ferrari f12 berlinetta (usa) lubrication system: tank parts diagram

0018 - LUBRICATION SYSTEM: TANK

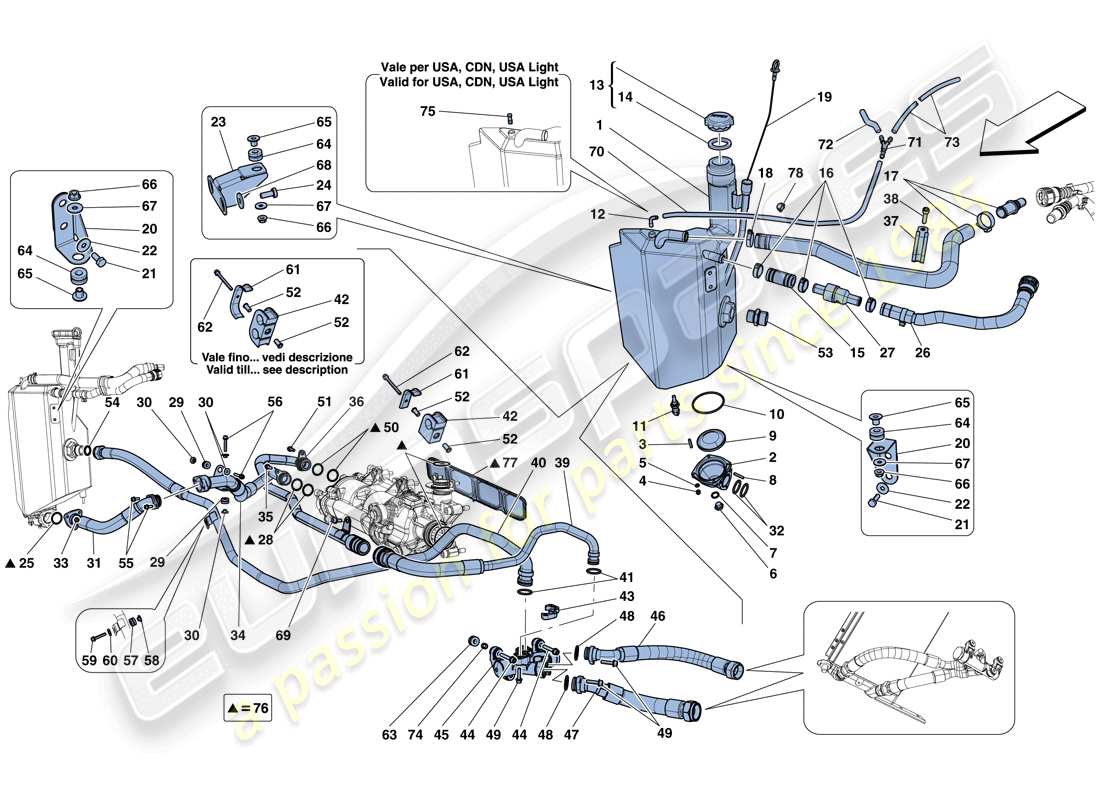

Ferrari F12 Berlinetta (USA) LUBRICATION SYSTEM: TANK Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                        #
                                                                                        Part number
                                                                                        Description
                                                                                        Price
                                                                                        # 001
                                                                                        MPN: 279990
                                                                                        ENGINE OIL TANK
                                                                                        -Applicable up to Ass. No. 112028-
                                                                                        from £1,219.66
                                                                                        from £1,219.66
                                                                                        # 001
                                                                                        MPN: 300016
                                                                                        ENGINE OIL TANK
                                                                                        -Applicable from Ass. No. 112029- -No longer supplied- -Replaced by 301436-
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 001
                                                                                        MPN: 301436
                                                                                        ENGINE OIL TANK
                                                                                        -Applicable from Ass. No. 112029-
                                                                                        from £976.50
                                                                                        from £976.50
                                                                                        This part replaces part number 300016 - and 2 more. Click to view details
                                                                                        # 002
                                                                                        MPN: 210914
                                                                                        OIL TANK PICKUP
                                                                                        from £298.37
                                                                                        from £298.37
                                                                                        # 003
                                                                                        MPN: 11500524
                                                                                        STUD BOLT
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 11500521
                                                                                        # 004
                                                                                        MPN: 102948
                                                                                        NUT
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 12574211 - and 4 more. Click to view details
                                                                                        # 005
                                                                                        MPN: 12601274
                                                                                        WASHER
                                                                                        -D. 6.40-12 X 0.5-
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                        # 006
                                                                                        MPN: 10300711
                                                                                        CAP
                                                                                        -No longer supplied- -Replaced by 293107-
                                                                                        from £0.57
                                                                                        from £0.57
                                                                                        This part replaces part number 10300771
                                                                                        # 006
                                                                                        MPN: 293107
                                                                                        THREADED PLUG
                                                                                        from £45.51
                                                                                        from £45.51
                                                                                        # 007
                                                                                        MPN: 10257060
                                                                                        GASKET
                                                                                        -No longer supplied- -Replaced by 10261460-
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 10253060 - and 2 more. Click to view details
                                                                                        # 007
                                                                                        MPN: 10261460
                                                                                        GASKET
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 008
                                                                                        MPN: 13541124
                                                                                        STUD BOLT
                                                                                        from £12.30
                                                                                        from £12.30
                                                                                        This part replaces part number 13541121
                                                                                        # 009
                                                                                        MPN: 100332
                                                                                        SUMP FILTER
                                                                                        from £9.27
                                                                                        from £9.27
                                                                                        This part replaces part number 240387 - and 9 more. Click to view details
                                                                                        # 012
                                                                                        MPN: 117715
                                                                                        CONNECTOR
                                                                                        -Not for USA, CDN, USA LIGHT- -No longer supplied- -Replaced by 290538-
                                                                                        from £2.24
                                                                                        from £2.24
                                                                                        This part replaces part number 119607
                                                                                        # 012
                                                                                        MPN: 290538
                                                                                        CONNECTOR
                                                                                        -Not for USA, CDN, USA LIGHT-
                                                                                        from £36.96
                                                                                        from £36.96
                                                                                        # 013
                                                                                        MPN: 175708
                                                                                        COMPLETE CAP
                                                                                        from £91.48
                                                                                        from £91.48
                                                                                        This part replaces part number 142790 which we have in stock - and 3 more. Click to view details
                                                                                        # 014
                                                                                        MPN: 175709
                                                                                        GASKET
                                                                                        from £21.22
                                                                                        from £21.22
                                                                                        This part replaces part number 142792
                                                                                        # 015
                                                                                        MPN: 257673
                                                                                        RUBBER PIPE
                                                                                        from £62.84
                                                                                        from £62.84
                                                                                        # 016
                                                                                        MPN: 178053
                                                                                        CLAMP
                                                                                        from £0.70
                                                                                        from £0.70
                                                                                        # 017
                                                                                        MPN: 279930
                                                                                        COMPL. VAPOUR ASPIRATOR PIPE
                                                                                        -Not for USA, CDN, USA LIGHT-
                                                                                        from £304.92
                                                                                        from £304.92
                                                                                        # 017
                                                                                        MPN: 284102
                                                                                        COMPL. VAPOUR ASPIRATOR PIPE
                                                                                        -Applicable for USA, CDN, USA LIGHT-
                                                                                        from £798.32
                                                                                        from £798.32
                                                                                        # 018
                                                                                        MPN: 13432970
                                                                                        COLLAR
                                                                                        from £0.85
                                                                                        from £0.85
                                                                                        This part replaces part number 13432908
                                                                                        # 019
                                                                                        MPN: 279991
                                                                                        DIPSTICK
                                                                                        -Applicable up to Ass. No. 112028-
                                                                                        from £33.63
                                                                                        from £33.63
                                                                                        # 019
                                                                                        MPN: 299675
                                                                                        DIPSTICK
                                                                                        -Applicable from Ass. No. 112029-
                                                                                        from £101.78
                                                                                        from £101.78
                                                                                        This part replaces part number 279991 which we have in stock - and 1 more. Click to view details
                                                                                        # 020
                                                                                        MPN: 269835
                                                                                        FASTENER BRACKET
                                                                                        from £9.36
                                                                                        from £9.36
                                                                                        # 021
                                                                                        MPN: 10902124
                                                                                        SCREW
                                                                                        -M6 X 14-
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                        # 021
                                                                                        MPN: 10902424
                                                                                        SCREW
                                                                                        -M6 X 20-
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        This part replaces part number 10902324 - and 3 more. Click to view details
                                                                                        # 022
                                                                                        MPN: 12643724
                                                                                        WASHER
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 109684 - and 4 more. Click to view details
                                                                                        # 023
                                                                                        MPN: 290317
                                                                                        MOUNTING
                                                                                        -Applicable up to Ass. No. 110676-
                                                                                        from £24.98
                                                                                        from £24.98
                                                                                        This part replaces part number 256484
                                                                                        # 024
                                                                                        MPN: 248471
                                                                                        SCREW
                                                                                        -M8 X 20- -Applicable up to Ass. No. 110676-
                                                                                        from £0.64
                                                                                        from £0.64
                                                                                        # 025
                                                                                        MPN: 153628
                                                                                        GASKET
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 026
                                                                                        MPN: 279933
                                                                                        VAPOUR PIPE FROM VALVE TO HEADS
                                                                                        -Not for USA, CDN, USA LIGHT-
                                                                                        from £48.04
                                                                                        from £48.04
                                                                                        # 026
                                                                                        MPN: 284101
                                                                                        VAPOUR PIPE FROM VALVE TO HEADS
                                                                                        -Applicable for USA, CDN, USA LIGHT-
                                                                                        from £73.91
                                                                                        from £73.91
                                                                                        # 027
                                                                                        MPN: 265721
                                                                                        CHECK VALVE
                                                                                        -No longer supplied- -Replaced by 294255-
                                                                                        from £70.07
                                                                                        from £70.07
                                                                                        This part replaces part number 234801 - and 1 more. Click to view details
                                                                                        # 027
                                                                                        MPN: 294255
                                                                                        CHECK VALVE
                                                                                        from £171.12
                                                                                        from £171.12
                                                                                        # 028
                                                                                        MPN: 104212
                                                                                        GASKET
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 029
                                                                                        MPN: 240607
                                                                                        GROMMET
                                                                                        from £3.17
                                                                                        from £3.17
                                                                                        # 030
                                                                                        MPN: 183898
                                                                                        FLANGED BUSHING
                                                                                        from £1.51
                                                                                        from £1.51

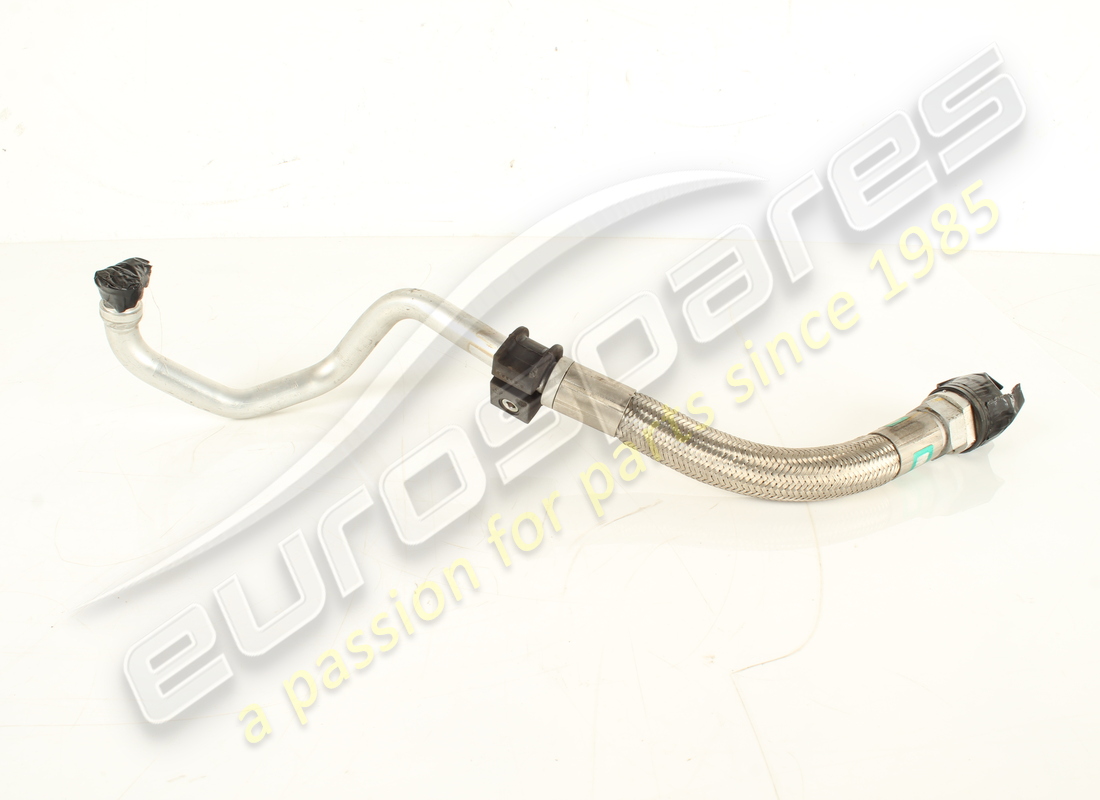

                                                                                        # 031
                                                                                        MPN: 291099
                                                                                        OIL PIPE FROM PUMP TO RESERVOIR SIDE PICKUP
                                                                                        from £155.87
                                                                                        from £155.87
                                                                                        # 032
                                                                                        MPN: 104212
                                                                                        GASKET
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 033
                                                                                        MPN: 14040611
                                                                                        NUT
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 034
                                                                                        MPN: 293259
                                                                                        OIL PIPE FROM PUMP TO ENGINE PICKUP
                                                                                        from £244.05
                                                                                        from £244.05
                                                                                        # 035
                                                                                        MPN: 231619
                                                                                        SCREW
                                                                                        -M6 X 22-
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 036
                                                                                        MPN: 289808
                                                                                        OIL RETURN PIPE FROM ENGINE TO SECTION
                                                                                        -No longer supplied- -Replaced by 298265-
                                                                                        from £98.04
                                                                                        from £98.04
                                                                                        # 036
                                                                                        MPN: 298265
                                                                                        OIL RETURN PIPE FROM ENGINE TO SECTION
                                                                                        from £171.11
                                                                                        from £171.11
                                                                                        This part replaces part number 289808 which we have in stock
                                                                                        # 037
                                                                                        MPN: 279957
                                                                                        BRACKET WITH SHEATH
                                                                                        -Not for USA, CDN, USA LIGHT-
                                                                                        from £11.09
                                                                                        from £11.09
                                                                                        # 037
                                                                                        MPN: 284099
                                                                                        BRACKET WITH SHEATH
                                                                                        -Applicable for USA, CDN, USA LIGHT-
                                                                                        from £8.72
                                                                                        from £8.72
                                                                                        # 038
                                                                                        MPN: 233600
                                                                                        SCREW
                                                                                        -M6 X 12-
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 039
                                                                                        MPN: 289510
                                                                                        OIL RETURN PIPE FROM SECTION TO VALVE
                                                                                        from £436.28
                                                                                        from £436.28
                                                                                        # 040
                                                                                        MPN: 289509
                                                                                        OIL RETURN PIPE FROM VALVE TO RESERVOIR
                                                                                        from £140.88
                                                                                        from £140.88
                                                                                        # 041
                                                                                        MPN: 122791
                                                                                        GASKET
                                                                                        from £1.26
                                                                                        from £1.26
                                                                                        # 042
                                                                                        MPN: 289394
                                                                                        RUBBER PILLORY BLOCK
                                                                                        -Applicable up to Ass. No. 109534-
                                                                                        from £554.40
                                                                                        from £554.40
                                                                                        # 042
                                                                                        MPN: 295108
                                                                                        RUBBER PILLORY BLOCK
                                                                                        -Applicable from Ass. No. 109535-
                                                                                        from £14.13
                                                                                        from £14.13
                                                                                        # 043
                                                                                        MPN: 258945
                                                                                        PIPE RETAINER FORK
                                                                                        from £13.30
                                                                                        from £13.30
                                                                                        # 044
                                                                                        MPN: 231623
                                                                                        SCREW
                                                                                        -M6 X 40- -Applicable for mounting 267300- -No longer supplied- -Replaced by 231625-
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 044
                                                                                        MPN: 231625
                                                                                        SCREW
                                                                                        -M6 X 50- -Applicable for mounting 267300-
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 045
                                                                                        MPN: 268336
                                                                                        COMPL. OIL THERMOSTAT
                                                                                        -Applicable up to engine No. 265553- -Applicable until depletion-
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 045
                                                                                        MPN: 304797
                                                                                        COMPL. OIL THERMOSTAT
                                                                                        -Applicable from engine No. 265554- -Applicable after depletion of 268336-
                                                                                        from £221.16
                                                                                        from £221.16
                                                                                        This part replaces part number 268336 - and 1 more. Click to view details
                                                                                        # 046
                                                                                        MPN: 288451
                                                                                        OIL DELIVERY PIPE FROM VALVE TO RADIATOR
                                                                                        from £212.00
                                                                                        from £212.00
                                                                                        This part replaces part number 285375
                                                                                        # 047
                                                                                        MPN: 287815
                                                                                        OIL RETURN PIPE FROM RADIATOR TO VALVE
                                                                                        from £200.68
                                                                                        from £200.68
                                                                                        This part replaces part number 263931
                                                                                        # 048
                                                                                        MPN: 122791
                                                                                        GASKET
                                                                                        from £1.26
                                                                                        from £1.26
                                                                                        # 049
                                                                                        MPN: 231620
                                                                                        SCREW
                                                                                        -M6 X 25-
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 050
                                                                                        MPN: 121903
                                                                                        GASKET
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 051
                                                                                        MPN: 231619
                                                                                        SCREW
                                                                                        -M6 X 22-
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 052
                                                                                        MPN: 289837
                                                                                        BUSHING
                                                                                        -Applicable until depletion-
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 052
                                                                                        MPN: 304075
                                                                                        BUSHING
                                                                                        -Applicable after depletion of 289837-
                                                                                        from £3.28
                                                                                        from £3.28
                                                                                        This part replaces part number 289837
                                                                                        # 053
                                                                                        MPN: 138150
                                                                                        CONNECTOR
                                                                                        from £17.12
                                                                                        from £17.12
                                                                                        # 054
                                                                                        MPN: 144487
                                                                                        GASKET
                                                                                        from £18.15
                                                                                        from £18.15
                                                                                        # 055
                                                                                        MPN: 248334
                                                                                        SCREW
                                                                                        -M6 X 16-
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 056
                                                                                        MPN: 231622
                                                                                        SCREW
                                                                                        -M6 X 35-
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 057
                                                                                        MPN: 103549
                                                                                        GROMMET
                                                                                        from £0.70
                                                                                        from £0.70
                                                                                        # 058
                                                                                        MPN: 149707
                                                                                        SHIM
                                                                                        from £0.66
                                                                                        from £0.66
                                                                                        # 059
                                                                                        MPN: 16286224
                                                                                        SCREW
                                                                                        -M6 X 25-
                                                                                        from £1.33
                                                                                        from £1.33
                                                                                        # 060
                                                                                        MPN: 12643724
                                                                                        WASHER
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 109684 - and 4 more. Click to view details
                                                                                        # 061
                                                                                        MPN: 289849
                                                                                        PLATE
                                                                                        -Applicable up to Ass. No. 109534-
                                                                                        from £7.39
                                                                                        from £7.39
                                                                                        # 061
                                                                                        MPN: 295109
                                                                                        PLATE
                                                                                        -Applicable from Ass. No. 109535-
                                                                                        from £4.13
                                                                                        from £4.13
                                                                                        # 062
                                                                                        MPN: 255495
                                                                                        SCREW
                                                                                        -M6 X 65-
                                                                                        from £0.50
                                                                                        from £0.50
                                                                                        This part replaces part number 282404
                                                                                        # 062
                                                                                        MPN: 282404
                                                                                        SCREW
                                                                                        -M6 X 65- -No longer supplied- -Replaced by 255495-
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 063
                                                                                        MPN: 267300
                                                                                        MOUNTING
                                                                                        from £6.11
                                                                                        from £6.11
                                                                                        This part replaces part number 294902 - and 1 more. Click to view details
                                                                                        # 064
                                                                                        MPN: 103549
                                                                                        GROMMET
                                                                                        from £0.70
                                                                                        from £0.70
                                                                                        # 065
                                                                                        MPN: 149707
                                                                                        SHIM
                                                                                        -Q.ty 2 from Ass.ly No. 110677-
                                                                                        from £0.64
                                                                                        from £0.64
                                                                                        # 066
                                                                                        MPN: 14059214
                                                                                        NUT
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 067
                                                                                        MPN: 12643724
                                                                                        WASHER
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 109684 - and 4 more. Click to view details
                                                                                        # 068
                                                                                        MPN: 12647024
                                                                                        WASHER
                                                                                        -Applicable up to Ass. No. 110676-
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 069
                                                                                        MPN: 231616
                                                                                        SCREW
                                                                                        -M6 X 14-
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 14305724 which we have in stock
                                                                                        # 070
                                                                                        MPN: 264423
                                                                                        RUBBER PIPE
                                                                                        -D. 6 X 9 X 825- -Not for USA, CDN, USA LIGHT- -Applicable until depletion-
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 070
                                                                                        MPN: 293755
                                                                                        RUBBER PIPE
                                                                                        -D. 6 X 9 X 825- -Not for USA, CDN, USA LIGHT- -Applicable after depletion of 264423-
                                                                                        from £36.82
                                                                                        from £36.82
                                                                                        This part replaces part number 264423
                                                                                        # 071
                                                                                        MPN: 258855
                                                                                        3-WAY CONNECTOR
                                                                                        -Not for USA, CDN, USA LIGHT-
                                                                                        from £23.07
                                                                                        from £23.07
                                                                                        # 072
                                                                                        MPN: 169695
                                                                                        RUBBER PIPE
                                                                                        -D. 3.5-8 X 55- -Not for USA, CDN, USA LIGHT-
                                                                                        from £2.96
                                                                                        from £2.96
                                                                                        # 073
                                                                                        MPN: 118901
                                                                                        RUBBER PIPE
                                                                                        -Not for USA, CDN, USA LIGHT-
                                                                                        from £3.25
                                                                                        from £3.25
                                                                                        # 074
                                                                                        MPN: 295197
                                                                                        SPACER
                                                                                        from £1.85
                                                                                        from £1.85
                                                                                        # 075
                                                                                        MPN: 14326101
                                                                                        THREADED PLUG
                                                                                        -Applicable for USA, CDN, USA LIGHT-
                                                                                        from £0.61
                                                                                        from £0.61
                                                                                        # 076
                                                                                        MPN: 308330
                                                                                        OIL PUMP GASKET KIT
                                                                                        from £20.21
                                                                                        from £20.21
                                                                                        # 077
                                                                                        MPN: 275528
                                                                                        PUMP SEAL FILTER
                                                                                        from £17.39
                                                                                        from £17.39
                                                                                        This part replaces part number 266381
                                                                                        # 078
                                                                                        MPN: 14570080
                                                                                        CLIP
                                                                                        from £0.53
                                                                                        from £0.53
