0023 - Transmission Pipe

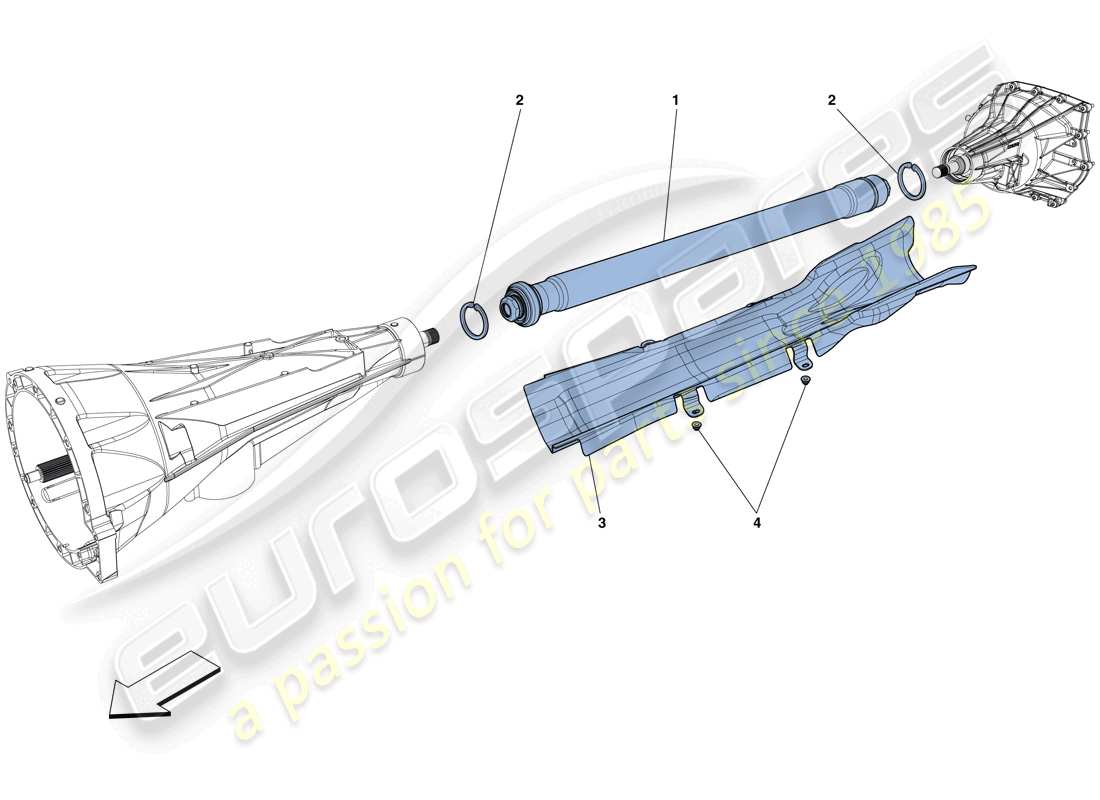

Ferrari F12 Berlinetta (USA) TRANSMISSION PIPE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: 279350
      transmission shaft
      -Applicable until depletion-
      Supersession
      Supersession
      # 001
      MPN: 316146
      transmission shaft
      -Applicable after depletion of 279350- -Applicable until depletion-
      Supersession
      Supersession
      This part replaces part number 279350
      # 001
      MPN: 340749
      transmission shaft
      -Applicable after depletion of 316146-
      from £838.28
      from £838.28
      This part replaces part number 316146 - and 1 more. Click to view details
      # 002
      MPN: 13398476
      SNAP RING
      from £0.53
      from £0.53
      # 003
      MPN: 299593
      TRANSMISSION SHAFT HEAT SHIELD
      -Applicable from Ass. No. 118715-
      from £58.83
      from £58.83
      # 003
      MPN: 84448100
      TRANSMISSION SHAFT HEAT SHIELD
      -Applicable up to Ass. No. 118714-
      from £149.78
      from £149.78
      # 004
      MPN: 14039614
      NUT
      from £0.53
      from £0.53
      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
