0025 - GEARBOX HOUSING

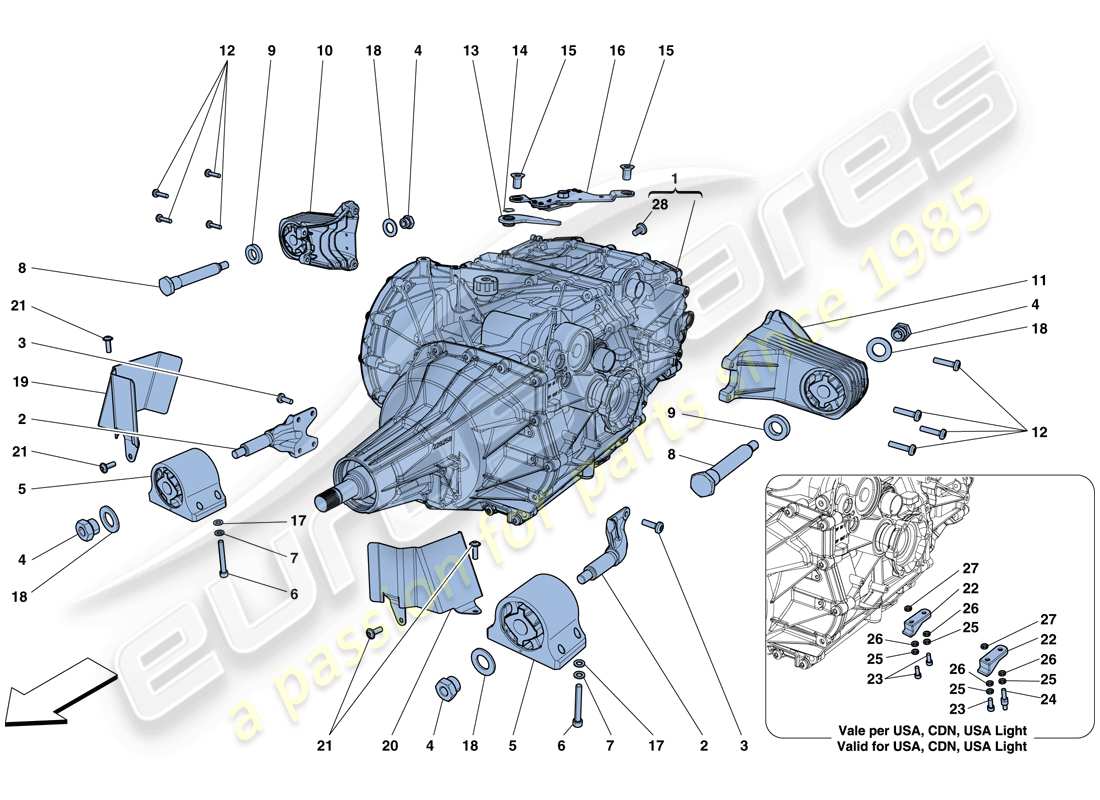

Ferrari F12 Berlinetta (USA) GEARBOX HOUSING Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            MPN: 278272
                            COMPL. DCT GEARBOX
                            -Request ASM authorisation-
                            from £21,995.00
                            from £21,995.00
                            # 002
                            MPN: 235647
                            FRONT STRUT
                            -Applicable until depletion-
                            from £54.48
                            from £54.48
                            This part replaces part number 278063 - and 3 more. Click to view details
                            # 002
                            MPN: 295438
                            FRONT STRUT
                            -Applicable after depletion of 235647-
                            from £65.86
                            from £65.86
                            This part replaces part number 235647 which we have in stock - and 1 more. Click to view details
                            # 003
                            MPN: 247856
                            SCREW
                            -M8 X 1.25 X 25-
                            from £0.99
                            from £0.99
                            # 004
                            MPN: 287404
                            NUT
                            from £3.86
                            from £3.86
                            This part replaces part number 260046 - and 3 more. Click to view details
                            # 005
                            MPN: 253004
                            COMPL. BUSHING MOUNTING
                            -No longer supplied- -Replaced by 289318-
                            from £97.45
                            from £97.45
                            # 005
                            MPN: 289318
                            COMPL. BUSHING MOUNTING
                            from £118.44
                            from £118.44
                            # 006
                            MPN: 14308924
                            SCREW
                            -M8 X 60-
                            from £2.12
                            from £2.12
                            # 007
                            MPN: 11198074
                            WASHER
                            from £0.47
                            from £0.47
                            This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                            # 008
                            MPN: 243075
                            GEARBOX MOUNTING BUSH PIN
                            from £37.15
                            from £37.15
                            # 009
                            MPN: 243122
                            SHIM
                            from £1.71
                            from £1.71
                            # 010
                            MPN: 266362
                            COMPL. RH REAR STRUT
                            from £116.72
                            from £116.72
                            # 011
                            MPN: 266364
                            COMPL. LH REAR STRUT
                            from £119.16
                            from £119.16
                            # 012
                            MPN: 247857
                            SCREW
                            -M8 X 1.25 X 35-
                            from £1.05
                            from £1.05
                            # 013
                            MPN: 238370
                            COMPLETE RELEASE LEVER
                            from £35.78
                            from £35.78
                            # 014
                            MPN: 11066176
                            SEEGER RING
                            from £0.47
                            from £0.47
                            # 015
                            MPN: 243151
                            SCREW
                            -M12 X 1.25 X 20-
                            from £3.06
                            from £3.06
                            # 016
                            MPN: 252661
                            RELEASE ARM MOUNTING BRACKET
                            -No longer supplied- -Replaced by 310524-
                            from £42.13
                            from £42.13
                            # 016
                            MPN: 310524
                            RELEASE ARM MOUNTING BRACKET
                            from £23.58
                            from £23.58
                            # 017
                            MPN: 10519624
                            WASHER
                            from £0.47
                            from £0.47
                            This part replaces part number 10519601 - and 3 more. Click to view details
                            # 018
                            MPN: 287405
                            SHIM
                            from £3.17
                            from £3.17
                            # 019
                            MPN: 282341
                            RH FRONT MOUNT HEAT SHIELD
                            from £5.45
                            from £5.45
                            # 020
                            MPN: 282339
                            LH FRONT MOUNT HEAT SHIELD
                            from £5.45
                            from £5.45
                            # 021
                            MPN: 16286124
                            SCREW
                            -M6 X 20-
                            from £0.51
                            from £0.51
                            # 021
                            MPN: 65377400
                            SCREW
                            -M6 X 1 X 18- -No longer supplied- -Replaced by 16286124-
                            from £1.21
                            from £1.21
                            This part replaces part number 156814 - and 3 more. Click to view details
                            # 022
                            MPN: 248689
                            RETENTION BRACKET
                            -Applicable for USA, CDN, USA LIGHT-
                            from £33.94
                            from £33.94
                            # 023
                            MPN: 14306474
                            SCREW
                            -Applicable for USA, CDN, USA LIGHT-
                            from £0.47
                            from £0.47
                            This part replaces part number 13028774
                            # 024
                            MPN: 266645
                            STUD BOLT
                            -Applicable for USA, CDN, USA LIGHT-
                            from £9.62
                            from £9.62
                            # 025
                            MPN: 12638524
                            WASHER
                            -Applicable for USA, CDN, USA LIGHT-
                            from £0.47
                            from £0.47
                            This part replaces part number 12638501 - and 2 more. Click to view details
                            # 026
                            MPN: 12601374
                            WASHER
                            -Applicable for USA, CDN, USA LIGHT-
                            from £0.47
                            from £0.47
                            This part replaces part number 10615474 - and 6 more. Click to view details
                            # 027
                            MPN: 10730514
                            WASHER
                            -Applicable for USA, CDN, USA LIGHT-
                            from £0.53
                            from £0.53
                            This part replaces part number 10730521
                            # 028
                            MPN: 263679
                            FUEL LEVEL PLUG
                            from £57.27
                            from £57.27
