0117 - FRONT BUMPER

Ferrari F12 Berlinetta (USA) FRONT BUMPER Parts Diagram

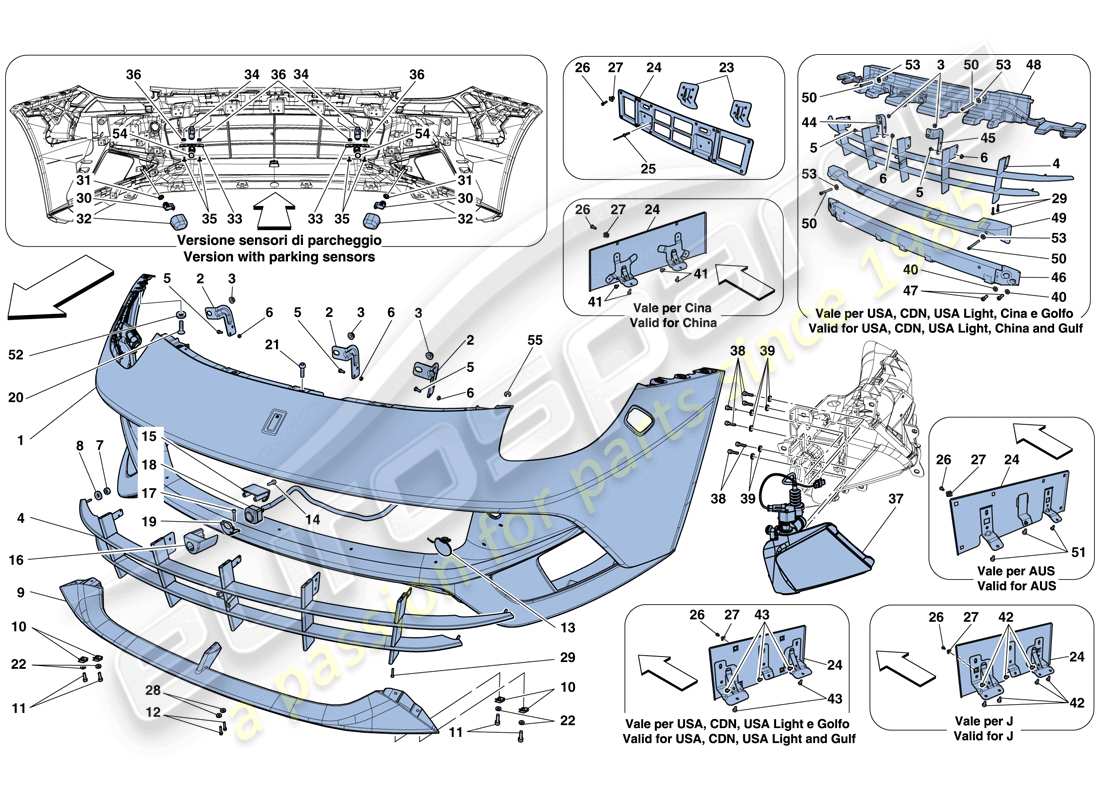

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Price
                    # 001
                    MPN: 85452110
                    FRONT BUMPER
                    -Version with parking sensors- -Sensors ordered separately- -Applicable for CINA, GOLFO-
                    from £5,566.51
                    from £5,566.51
                    # 001
                    MPN: 85496310
                    FRONT BUMPER
                    -Version with parking sensors- -Sensors ordered separately- -Not for CINA, USA, CDN, GOLFO, USA LIGHT-
                    from £1,848.53
                    from £1,848.53
                    # 001
                    MPN: 85531610
                    FRONT BUMPER
                    -Version with parking sensors- -Sensors ordered separately- -Applicable for USA, CDN, USA LIGHT-
                    from £5,102.65
                    from £5,102.65
                    # 002
                    MPN: 84828700
                    GRILLE FASTENER BRACKET
                    -Not for CINA, USA, CDN, GOLFO, USA LIGHT-
                    from £47.20
                    from £47.20
                    # 002
                    MPN: 84907300
                    GRILLE FASTENER BRACKET
                    -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
                    from £36.99
                    from £36.99
                    # 003
                    MPN: 12578111
                    NUT
                    -Q.ty 10 for CHINA, GULF, USA, CDN and USA light-
                    from £0.47
                    from £0.47
                    # 004
                    MPN: 84361800
                    BUMPER GRILLE
                    -Painted Black- -Not for CINA, USA, CDN, GOLFO, USA LIGHT-
                    from £806.72
                    from £806.72
                    # 004
                    MPN: 84860300
                    BUMPER GRILLE
                    -Painted Black- -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
                    from £1,210.09
                    from £1,210.09
                    # 004
                    MPN: 84868600
                    BUMPER GRILLE
                    -Version with camera- -Painted Black- -Not for CINA, USA, CDN, GOLFO, USA LIGHT-
                    from £1,021.41
                    from £1,021.41
                    # 004
                    MPN: 84928500
                    BUMPER GRILLE
                    -Chrome accent version- -Not for CINA, USA, CDN, GOLFO, USA LIGHT-
                    from £865.06
                    from £865.06
                    # 004
                    MPN: 84934700
                    BUMPER GRILLE
                    -Chrome accent version with camera- -Not for CINA, USA, CDN, GOLFO, USA LIGHT-
                    from £1,572.84
                    from £1,572.84
                    # 004
                    MPN: 84940700
                    BUMPER GRILLE
                    -Chrome accent version- -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
                    from £1,672.23
                    from £1,672.23
                    # 004
                    MPN: 84940800
                    BUMPER GRILLE
                    -Version with camera- -Painted Black- -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
                    from £2,200.17
                    from £2,200.17
                    # 004
                    MPN: 84940900
                    BUMPER GRILLE
                    -Chrome accent version with camera- -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
                    from £1,872.58
                    from £1,872.58
                    # 004
                    MPN: 911177
                    BUMPER GRILLE
                    -Grey paint finish- -Not for CINA, USA, CDN, GOLFO, USA LIGHT-
                    from £1,233.53
                    from £1,233.53
                    # 004
                    MPN: 911179
                    BUMPER GRILLE
                    -Grey paint finish- -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
                    from £2,200.17
                    from £2,200.17
                    # 004
                    MPN: 911181
                    BUMPER GRILLE
                    -Version with camera- -Grey paint finish- -Not for CINA, USA, CDN, GOLFO, USA LIGHT-
                    from £2,354.93
                    from £2,354.93
                    # 004
                    MPN: 911182
                    BUMPER GRILLE
                    -Version with camera- -Grey paint finish- -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
                    from £1,922.39
                    from £1,922.39
                    # 005
                    MPN: 13270424
                    SCREW
                    -M3 X 8- -Not for CINA, USA, CDN, GOLFO, USA LIGHT-
                    # 005
                    MPN: 82115900
                    SCREW
                    -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
                    from £0.51
                    from £0.51
                    # 006
                    MPN: 13046112
                    NUT
                    -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
                    from £0.47
                    from £0.47
                    # 006
                    MPN: 16101711
                    NUT
                    -Not for CINA, USA, CDN, GOLFO, USA LIGHT- -No longer supplied- -Replaced by 16101714-
                    from £0.47
                    from £0.47
                    This part replaces part number 16101715
                    # 006
                    MPN: 16101714
                    NUT
                    -No longer supplied- -Replaced by 16101711-
                    # 006
                    MPN: 16101714
                    NUT
                    -Not for CINA, USA, CDN, GOLFO, USA LIGHT-
                    # 007
                    MPN: 12574011
                    NUT
                    -No longer supplied- -Replaced by 12574017-
                    from £0.47
                    from £0.47
                    # 007
                    MPN: 12574017
                    NUT
                    from £0.51
                    from £0.51
                    # 008
                    MPN: 12642824
                    WASHER
                    Supersession
                    Supersession
                    # 009
                    MPN: 84363910
                    FRONT SPOILER
                    from £591.36
                    from £591.36
                    # 009
                    MPN: 84857500
                    FRONT SPOILER
                    -Carbon version-
                    from £3,813.30
                    from £3,813.30
                    # 010
                    MPN: 80874300
                    CLIP
                    from £0.61
                    from £0.61
                    # 011
                    MPN: 14305324
                    SCREW
                    -M6 X 20- -No longer supplied- -Replaced by 14305424-
                    from £0.47
                    from £0.47
                    This part replaces part number 14305321
                    # 011
                    MPN: 14305424
                    SCREW
                    -M6 X 25-
                    from £0.47
                    from £0.47
                    This part replaces part number 14305421 - and 2 more. Click to view details
                    # 012
                    MPN: 14303324
                    SCREW
                    -M4 X 20- -No longer supplied- -Replaced by 14303526-
                    from £0.53
                    from £0.53
                    This part replaces part number 014303324
                    # 012
                    MPN: 14303526
                    SCREW
                    -M4 X 30-
                    from £0.53
                    from £0.53
                    # 013
                    MPN: 84576310
                    TOW HOOK COVER
                    from £61.82
                    from £61.82
                    # 014
                    MPN: 84050100
                    SCREW
                    -Q.ty 2 for CHINA, GULF, USA, CDN and USA light- -Version with camera- -No longer supplied- -Replaced by 85593200-
                    Supersession
                    Supersession
                    # 014
                    MPN: 85593200
                    SCREW
                    -Version with camera- -Q.ty 2 for CHINA, GULF, USA, CDN and USA light-
                    from £8.24
                    from £8.24
                    This part replaces part number 84050100
                    # 015
                    MPN: 83718900
                    CAP
                    -Version with camera-
                    from £81.31
                    from £81.31
                    # 016
                    MPN: 83314200
                    HOUSING
                    -Version with camera- -Applicable for Taiwan-
                    from £35.11
                    from £35.11
                    # 016
                    MPN: 89190600
                    HOUSING
                    -Version with camera- -Not for Taiwan-
                    from £4.88
                    from £4.88
                    # 017
                    MPN: 85074500
                    SCREW
                    -Version with camera-
                    from £4.21
                    from £4.21
                    # 018
                    MPN: 266789
                    PARKING CAMERA
                    -Version with camera- -Applicable for Taiwan-
                    Supersession
                    Supersession
                    # 018
                    MPN: 341977
                    PARKING CAMERA
                    -Version with camera- -Not for Taiwan-
                    Supersession
                    Supersession
                    # 019
                    MPN: 84841700
                    BRACKET
                    -Version with camera- -Applicable for Taiwan- -Not for CINA, USA, CDN, GOLFO, USA LIGHT-
                    from £176.64
                    from £176.64
                    # 019
                    MPN: 85292100
                    BRACKET
                    -Version with camera- -Applicable for Taiwan- -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
                    from £36.96
                    from £36.96
                    # 019
                    MPN: 89190700
                    BRACKET
                    -Version with camera- -Not for Taiwan- -Not for CINA, USA, CDN, GOLFO, USA LIGHT-
                    from £22.18
                    from £22.18
                    # 019
                    MPN: 89211900
                    BRACKET
                    -Version with camera- -Not for Taiwan- -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
                    from £22.18
                    from £22.18
                    # 020
                    MPN: 80874900
                    SCREW
                    -Applicable from Ass. No. 113383- -No longer supplied- -Replaced by 81045300-
                    from £0.65
                    from £0.65
                    # 020
                    MPN: 81045300
                    SCREW
                    -Applicable up to Ass. No. 113382-
                    Supersession
                    Supersession
                    # 020
                    MPN: 81045300
                    SCREW
                    -Applicable from Ass. No. 113383-
                    Supersession
                    Supersession
                    # 020
                    MPN: 81290900
                    SCREW
                    -Applicable from Ass. No. 113383-
                    from £0.47
                    from £0.47
                    This part replaces part number 67578600
                    # 020
                    MPN: 84913100
                    SCREW
                    -Applicable from Ass. No. 113383- -No longer supplied- -Replaced by 81290900-
                    from £10.09
                    from £10.09
                    # 021
                    MPN: 84913100
                    SCREW
                    from £10.09
                    from £10.09
                    # 022
                    MPN: 10519421
                    WASHER
                    -No longer supplied- -Replaced by 10519424-
                    Supersession
                    Supersession
                    # 022
                    MPN: 10519424
                    WASHER
                    from £0.47
                    from £0.47
                    This part replaces part number 10519401 - and 3 more. Click to view details
                    # 023
                    MPN: 83411200
                    FRONT LICENSE PLATE MOUNTING BRACKET
                    -Applicable for UAE and Korea- -Applicable for EU GS, UK-
                    from £51.63
                    from £51.63
                    # 024
                    MPN: 82177600
                    NUMBER PLATE HOLDER
                    -Applicable for UAE and Korea- -Applicable for EU GS, UK-
                    from £9.62
                    from £9.62
                    # 024
                    MPN: 84427700
                    NUMBER PLATE HOLDER
                    -Applicable for AUS-
                    from £66.57
                    from £66.57
                    This part replaces part number 85183300
                    # 024
                    MPN: 85158500
                    NUMBER PLATE HOLDER
                    -Not for UAE- -Applicable for USA, CDN, GOLFO, USA LIGHT-
                    from £440.37
                    from £440.37
                    # 024
                    MPN: 85163800
                    NUMBER PLATE HOLDER
                    -Applicable for CINA-
                    from £102.60
                    from £102.60
                    # 024
                    MPN: 85173400
                    NUMBER PLATE HOLDER
                    -Applicable for J-
                    from £81.03
                    from £81.03
                    # 024
                    MPN: 85183300
                    NUMBER PLATE HOLDER
                    -Applicable for AUS- -No longer supplied- -Replaced by 84427700-
                    Supersession
                    Supersession
                    # 025
                    MPN: 14415690
                    RIVET
                    from £0.52
                    from £0.52
                    # 026
                    MPN: 15687204
                    SCREW
                    -Q.ty 2 for J market- -Not for China-
                    from £0.47
                    from £0.47
                    # 026
                    MPN: 62940900
                    SCREW
                    -Applicable for China-
                    from £0.73
                    from £0.73
                    This part replaces part number 67352400
                    # 027
                    MPN: 14215480
                    BLOCK
                    -Q.ty 2 for J market- -Not for China-
                    from £0.47
                    from £0.47
                    This part replaces part number 14211580
                    # 028
                    MPN: 14497724
                    WASHER
                    from £0.62
                    from £0.62
                    # 028
                    MPN: 14497778
                    WASHER
                    -No longer supplied- -Replaced by 14497724-
                    from £0.47
                    from £0.47
                    # 029
                    MPN: 84050100
                    SCREW
                    -Q.ty 10 for CHINA, GULF, USA, CDN and USA light- -No longer supplied- -Replaced by 85593200-
                    Supersession
                    Supersession
                    # 029
                    MPN: 85593200
                    SCREW
                    -Q.ty 10 for CHINA, GULF, USA, CDN and USA light-
                    from £8.24
                    from £8.24
                    This part replaces part number 84050100
                    # 030
                    MPN: 239082
                    PARKING SENSOR
                    -Version with parking sensors-
                    from £101.36
                    from £101.36
                    # 031
                    MPN: 81544800
                    CLEAR SILICONE RING
                    -Version with parking sensors-
                    from £4.49
                    from £4.49
                    # 032
                    MPN: 85459900
                    SENSOR HEAT SHIELD
                    -Version with parking sensors-
                    from £75.89
                    from £75.89
                    # 033
                    MPN: 84414500
                    CENTRAL SENSOR BRACKET
                    -Version with parking sensors-
                    from £22.76
                    from £22.76
                    # 034
                    MPN: 217832
                    PARKING SENSOR
                    -Version with parking sensors-
                    from £59.81
                    from £59.81
                    # 035
                    MPN: 256490
                    SCREW
                    -Version with parking sensors-
                    from £1.19
                    from £1.19
                    This part replaces part number 86607000
                    # 036
                    MPN: 84583500
                    PLATE
                    -Version with parking sensors-
                    from £0.71
                    from £0.71
                    # 037
                    MPN: 84375410
                    COMPL. RH SAA ASSEMBLY
                    -Black-
                    from £1,555.01
                    from £1,555.01
                    This part replaces part number 84375400
                    # 037
                    MPN: 84375510
                    COMPL. LH SAA ASSEMBLY
                    -Black-
                    from £2,332.52
                    from £2,332.52
                    This part replaces part number 84375500
                    # 037
                    MPN: 86571710
                    COMPL. LH SAA ASSEMBLY
                    -Grey-
                    from £1,555.01
                    from £1,555.01
                    # 037
                    MPN: 86571810
                    COMPL. RH SAA ASSEMBLY
                    -Grey-
                    from £1,555.01
                    from £1,555.01
                    # 038
                    MPN: 14304324
                    SCREW
                    from £0.57
                    from £0.57
                    # 039
                    MPN: 10519301
                    WASHER
                    from £12.73
                    from £12.73
                    This part replaces part number 10517377 - and 2 more. Click to view details
                    # 040
                    MPN: 12646701
                    WASHER
                    -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
                    from £0.53
                    from £0.53
                    # 041
                    MPN: 16084370
                    SCREW
                    -Applicable for CINA-
                    from £0.70
                    from £0.70
                    # 042
                    MPN: 16084370
                    SCREW
                    -Applicable for J-
                    from £0.70
                    from £0.70
                    # 043
                    MPN: 16084370
                    SCREW
                    -Applicable for USA, CDN, GOLFO, USA LIGHT-
                    from £0.70
                    from £0.70
                    # 044
                    MPN: 85041400
                    RH GRILLE FASTENER BRACKET
                    -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
                    from £42.98
                    from £42.98
                    # 045
                    MPN: 85041500
                    LH GRILLE FASTENER BRACKET
                    -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
                    from £42.98
                    from £42.98
                    # 046
                    MPN: 274922
                    LOWER FRONT CROSS-MEMBER
                    -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
                    from £303.07
                    from £303.07
                    # 047
                    MPN: 14814434
                    SCREW
                    -M8 X 25- -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
                    from £0.47
                    from £0.47
                    # 048
                    MPN: 84839200
                    UPPER IMPACT ABSORBER
                    -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
                    from £186.26
                    from £186.26
                    # 049
                    MPN: 84839300
                    LOWER IMPACT ABSORBER
                    -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
                    from £186.26
                    from £186.26
                    # 050
                    MPN: 231622
                    SCREW
                    -M6 X 35- -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
                    from £0.47
                    from £0.47
                    # 051
                    MPN: 16084370
                    SCREW
                    -Applicable for AUS-
                    from £0.70
                    from £0.70
                    # 052
                    MPN: 12643724
                    WASHER
                    -Applicable from Ass. No. 113383-
                    from £0.47
                    from £0.47
                    This part replaces part number 109684 - and 4 more. Click to view details
                    # 052
                    MPN: 12648301
                    WASHER
                    -Applicable from Ass. No. 113383- -No longer supplied- -Replaced by 12643724-
                    from £1.08
                    from £1.08
                    # 053
                    MPN: 12646701
                    WASHER
                    -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
                    from £0.53
                    from £0.53
                    # 054
                    MPN: 223516
                    GASKET
                    from £4.69
                    from £4.69
                    # 055
                    MPN: 105864
                    WASHER
                    from £0.70
                    from £0.70
                    This part replaces part number 95404
                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
