0103 - STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE

Ferrari F12 TDF (Europe) STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE Parts Diagram

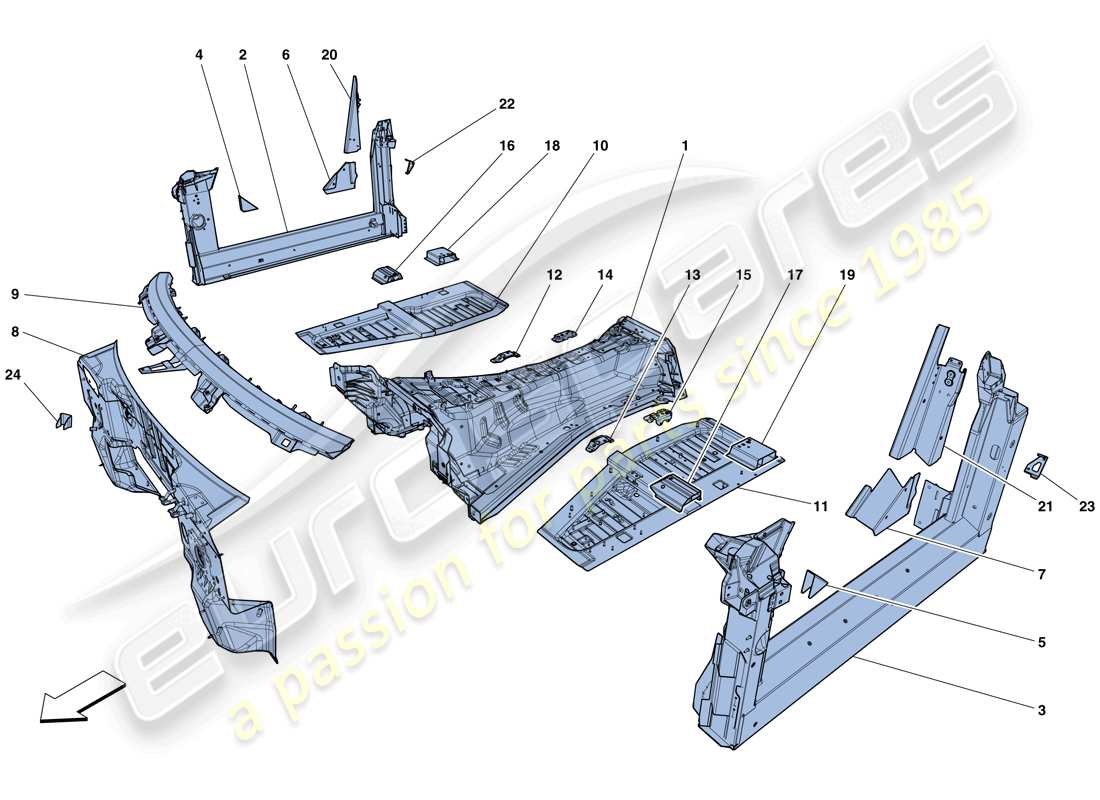

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Price
                                        # 001
                                        MPN: 281535
                                        COMPL. TUNNEL
                                        -Request ASM authorisation- -Not for GD-
                                        from £10,545.04
                                        from £10,545.04
                                        # 001
                                        MPN: 293320
                                        COMPL. TUNNEL
                                        -Request ASM authorisation- -Applicable for GD-
                                        from £10,654.95
                                        from £10,654.95
                                        # 002
                                        MPN: 321540
                                        RH SILL BEAM PILLAR SECTION
                                        -Request ASM authorisation-
                                        from £5,140.55
                                        from £5,140.55
                                        # 003
                                        MPN: 281686
                                        LH SILL BEAM PILLAR SECTION
                                        -Request ASM authorisation-
                                        from £5,140.55
                                        from £5,140.55
                                        # 004
                                        MPN: 281612
                                        INTERNAL RH FRONT TRUSS
                                        from £220.80
                                        from £220.80
                                        # 005
                                        MPN: 281611
                                        INTERNAL LH FRONT TRUSS
                                        from £220.80
                                        from £220.80
                                        # 006
                                        MPN: 278429
                                        EXTERNAL RH PILLAR TRUSS
                                        from £167.12
                                        from £167.12
                                        # 007
                                        MPN: 278428
                                        EXTERNAL LH PILLAR TRUSS
                                        from £167.12
                                        from £167.12
                                        # 008
                                        MPN: 273274
                                        FRONT FIREWALL
                                        -Not for GD-
                                        from £523.77
                                        from £523.77
                                        # 008
                                        MPN: 289169
                                        FRONT FIREWALL
                                        -Applicable for GD-
                                        from £529.05
                                        from £529.05
                                        # 009
                                        MPN: 273126
                                        WINDSCREEN VALENCE PANEL
                                        -Not for GD-
                                        from £1,012.89
                                        from £1,012.89
                                        # 009
                                        MPN: 292682
                                        WINDSCREEN VALENCE PANEL
                                        -Applicable for GD-
                                        from £555.48
                                        from £555.48
                                        # 010
                                        MPN: 273972
                                        RH SEMI-FLOOR
                                        from £592.11
                                        from £592.11
                                        # 011
                                        MPN: 273971
                                        LH SEMI-FLOOR
                                        from £592.11
                                        from £592.11
                                        # 012
                                        MPN: 273922
                                        INNER RH FRONT SEAT BRACKET
                                        from £368.02
                                        from £368.02
                                        # 013
                                        MPN: 273921
                                        INNER LH FRONT SEAT BRACKET
                                        from £368.02
                                        from £368.02
                                        # 014
                                        MPN: 294722
                                        INNER RH REAR SEAT BRACKET
                                        from £294.42
                                        from £294.42
                                        # 015
                                        MPN: 294720
                                        INNER LH REAR SEAT BRACKET
                                        from £294.42
                                        from £294.42
                                        # 016
                                        MPN: 273925
                                        OUTER RH FRONT SEAT BRACKET
                                        Supersession
                                        Supersession
                                        # 017
                                        MPN: 273926
                                        OUTER LH FRONT SEAT BRACKET
                                        Supersession
                                        Supersession
                                        # 018
                                        MPN: 281637
                                        RH REAR SEAT OUTER EXTRUSION
                                        Supersession
                                        Supersession
                                        # 019
                                        MPN: 281636
                                        LH REAR SEAT OUTER EXTRUSION
                                        Supersession
                                        Supersession
                                        # 020
                                        MPN: 278431
                                        INTERNAL RH PILLAR TRUSS
                                        from £254.30
                                        from £254.30
                                        # 021
                                        MPN: 278430
                                        INTERNAL LH PILLAR TRUSS
                                        from £254.30
                                        from £254.30
                                        # 022
                                        MPN: 284462
                                        RH TPMS TRIGGER MOUNTING BRACKET
                                        from £147.20
                                        from £147.20
                                        # 023
                                        MPN: 284461
                                        LH TPMS TRIGGER MOUNTING BRACKET
                                        from £147.20
                                        from £147.20
                                        # 024
                                        MPN: 85213100
                                        RH UPPER FRONT CONNECTOR ELEMENT
                                        from £7.42
                                        from £7.42
                                        # 024
                                        MPN: 85213200
                                        LH UPPER FRONT CONNECTOR ELEMENT
                                        from £7.42
                                        from £7.42
