0110 - HEADLINER TRIM AND ACCESSORIES

Ferrari F12 TDF (Europe) HEADLINER TRIM AND ACCESSORIES Parts Diagram

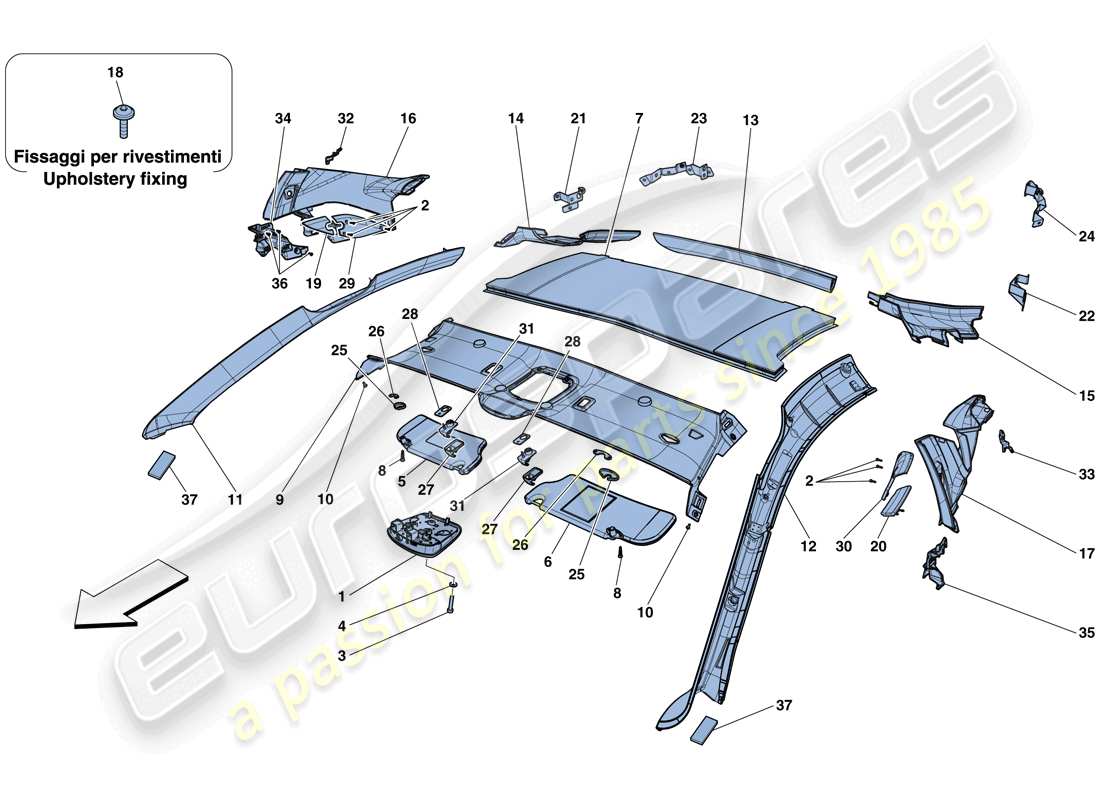

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            MPN: 309924
                            LIGHT UNIT
                            -Standard- -Not for HELE-
                            from £476.54
                            from £476.54
                            This part replaces part number 238482 which we have in stock - and 1 more. Click to view details
                            # 001
                            MPN: 309926
                            LIGHT UNIT
                            -Applicable for HELE- -Version with front parking sensors + passenger airbag disabled warning lamp- -Applicable for USA, CDN- -No longer supplied-
                            from £486.26
                            from £486.26
                            This part replaces part number 256581 - and 1 more. Click to view details
                            # 001
                            MPN: 309929
                            LIGHT UNIT
                            -Applicable for HELE- -Version with front parking sensors + passenger airbag disabled warning lamp-
                            from £278.14
                            from £278.14
                            This part replaces part number 256580 which we have in stock - and 3 more. Click to view details
                            # 002
                            MPN: 11566227
                            SCREW
                            -M5 X 14- -Version with 4-point seat harnesses- -Not for AUS, CINA, USA, CDN, J, USA LIGHT-
                            from £0.65
                            from £0.65
                            # 002
                            MPN: 13026124
                            SCREW
                            -M5 X 18- -Version with 4-point seat harnesses- -Not for AUS, CINA, USA, CDN, J, USA LIGHT- -No longer supplied- -Replaced by 14304187-
                            from £0.56
                            from £0.56
                            # 002
                            MPN: 14304187
                            SCREW
                            -M5 X 12- -Version with 4-point seat harnesses- -Not for AUS, CINA, USA, CDN, J, USA LIGHT- -No longer supplied- -Replaced by 11566227-
                            from £0.47
                            from £0.47
                            This part replaces part number 87658800
                            # 003
                            MPN: 14303324
                            SCREW
                            -M4 X 20-
                            from £0.52
                            from £0.52
                            This part replaces part number 014303324
                            # 004
                            MPN: 14446924
                            WASHER
                            from £0.47
                            from £0.47
                            This part replaces part number 14446901
                            # 005
                            MPN: 851302..
                            RH SUN VISOR
                            -Leather- -STC1- -STC2- -Applicable for GD-
                            from £169.31
                            from £169.31
                            # 005
                            MPN: 851686..
                            RH SUN VISOR
                            -Alcantara- -STC1- -STC2- -Applicable for GD-
                            Supersession
                            Supersession
                            # 005
                            MPN: 87748100
                            RH SUN VISOR
                            -INTP- -Leather- -STC1- -STC2- -Not for Taiwan- -Not for CINA, USA, CDN, GD, USA LIGHT- -No longer supplied- -Replaced by 88335600-
                            Supersession
                            Supersession
                            # 005
                            MPN: 87748600
                            RH SUN VISOR
                            -INTA- -Alcantara- -STC1- -STC2- -Not for Taiwan- -Not for CINA, USA, CDN, GD, USA LIGHT- -No longer supplied- -Replaced by 88335300-
                            Supersession
                            Supersession
                            # 005
                            MPN: 877527..
                            RH SUN VISOR
                            -Leather- -STC1- -STC2- -Applicable for Taiwan- -No longer supplied- -Replaced by 88335400-
                            # 005
                            MPN: 877528..
                            RH SUN VISOR
                            -Alcantara- -STC1- -STC2- -Applicable for Taiwan- -No longer supplied- -Replaced by 88335500-
                            # 005
                            MPN: 87797200
                            RH SUN VISOR
                            -INTA- -Alcantara- -STC1- -STC2- -Applicable for Russia- -No longer supplied-
                            # 005
                            MPN: 87797300
                            RH SUN VISOR
                            -INTP- -Leather- -STC1- -STC2- -Applicable for Russia- -No longer supplied-
                            # 005
                            MPN: 87797400
                            RH SUN VISOR
                            -INTA- -Alcantara- -STC1- -STC2- -Applicable for CINA- -No longer supplied- -Replaced by 88335700-
                            # 005
                            MPN: 87797500
                            RH SUN VISOR
                            -INTP- -Leather- -STC1- -STC2- -Applicable for CINA- -No longer supplied- -Replaced by 88335800-
                            # 005
                            MPN: 87879400
                            RH SUN VISOR
                            -INTP- -Leather- -STC1- -STC2- -Applicable for USA, CDN, USA LIGHT- -No longer supplied- -Replaced by 88336200-
                            # 005
                            MPN: 87881000
                            RH SUN VISOR
                            -INTA- -Alcantara- -STC1- -STC2- -Applicable for USA, CDN, USA LIGHT- -No longer supplied- -Replaced by 88336100-
                            # 005
                            MPN: 88335300
                            RH SUN VISOR
                            -INTA- -Alcantara- -STC1- -STC2- -Not for Taiwan- -Not for CINA, USA, CDN, GD, USA LIGHT-
                            from £360.81
                            from £360.81
                            This part replaces part number 87748612
                            # 005
                            MPN: 88335400
                            RH SUN VISOR
                            -INTP- -Leather- -STC1- -STC2- -Applicable for Taiwan-
                            from £360.81
                            from £360.81
                            # 005
                            MPN: 88335500
                            RH SUN VISOR
                            -INTA- -Alcantara- -STC1- -STC2- -Applicable for Taiwan-
                            # 005
                            MPN: 88335600
                            RH SUN VISOR
                            -INTP- -Leather- -STC1- -STC2- -Not for Taiwan- -Not for CINA, USA, CDN, GD, USA LIGHT-
                            from £360.81
                            from £360.81
                            This part replaces part number 87748112
                            # 005
                            MPN: 88335700
                            RH SUN VISOR
                            -INTA- -Alcantara- -STC1- -STC2- -Applicable for CINA-
                            # 005
                            MPN: 88335800
                            RH SUN VISOR
                            -INTP- -Leather- -STC1- -STC2- -Applicable for CINA-
                            # 005
                            MPN: 88336100
                            RH SUN VISOR
                            -INTA- -Alcantara- -STC1- -STC2- -Applicable for USA, CDN, USA LIGHT-
                            from £739.03
                            from £739.03
                            # 005
                            MPN: 88336200
                            RH SUN VISOR
                            -INTP- -Leather- -STC1- -STC2- -Applicable for USA, CDN, USA LIGHT-
                            from £739.03
                            from £739.03
                            # 006
                            MPN: 851300..
                            LH SUN VISOR
                            -Leather- -STC1- -STC2- -Not for USA, CDN, GD, USA LIGHT-
                            Supersession
                            Supersession
                            # 006
                            MPN: 851683..
                            LH SUN VISOR
                            -Alcantara- -STC1- -STC2- -Not for USA, CDN, GD, USA LIGHT-
                            Supersession
                            Supersession
                            # 006
                            MPN: 87748800
                            LH SUN VISOR
                            -INTP- -Leather- -STC1- -STC2- -Applicable for GD- -No longer supplied- -Replaced by 88336000-
                            Supersession
                            Supersession
                            # 006
                            MPN: 87749000
                            LH SUN VISOR
                            -INTA- -Alcantara- -STC1- -STC2- -Applicable for GD- -No longer supplied- -Replaced by 88335900-
                            Supersession
                            Supersession
                            # 006
                            MPN: 87881200
                            LH SUN VISOR
                            -INTP- -Leather- -STC1- -STC2- -Applicable for USA, CDN, USA LIGHT-
                            # 006
                            MPN: 87881400
                            LH SUN VISOR
                            -INTA- -Alcantara- -STC1- -STC2- -Applicable for USA, CDN, USA LIGHT-
                            from £739.03
                            from £739.03
                            # 006
                            MPN: 88335900
                            LH SUN VISOR
                            -INTA- -Alcantara- -STC1- -STC2- -Applicable for GD-
                            from £736.61
                            from £736.61
                            This part replaces part number 87749012
                            # 006
                            MPN: 88336000
                            LH SUN VISOR
                            -INTP- -Leather- -STC1- -STC2- -Applicable for GD-
                            from £405.14
                            from £405.14
                            This part replaces part number 87748812 - and 2 more. Click to view details
                            # 007
                            MPN: 862161..
                            ROOF TRIM
                            -Alcantara-
                            Supersession
                            Supersession
                            # 007
                            MPN: 862165..
                            ROOF TRIM
                            -Leather-
                            Supersession
                            Supersession
                            # 008
                            MPN: 13309477
                            SCREW
                            -M4 X 20-
                            from £0.47
                            from £0.47
                            # 009
                            MPN: 857908..
                            WINDSCREEN CROSS MEMBER TRIM
                            -Alcantara- -STC1- -STC2-
                            from £519.75
                            from £519.75
                            # 009
                            MPN: 857909..
                            WINDSCREEN CROSS MEMBER TRIM
                            -Leather- -STC1- -STC2-
                            Supersession
                            Supersession
                            # 010
                            MPN: 85692200
                            SCREW
                            -M5 X 12-
                            from £0.47
                            from £0.47
                            # 011
                            MPN: 862210..
                            RH WINDSCREEN PILLAR TRIM
                            -Alcantara- -Not for USA, CDN, USA LIGHT-
                            from £519.75
                            from £519.75
                            # 011
                            MPN: 862216..
                            RH WINDSCREEN PILLAR TRIM
                            -Leather- -Not for USA, CDN, USA LIGHT-
                            # 011
                            MPN: 862228..
                            RH WINDSCREEN PILLAR TRIM
                            -Alcantara- -Applicable for USA, CDN, USA LIGHT-
                            Supersession
                            Supersession
                            # 011
                            MPN: 862230..
                            RH WINDSCREEN PILLAR TRIM
                            -Leather- -Applicable for USA, CDN, USA LIGHT-
                            # 012
                            MPN: 862217..
                            LH WINDSCREEN PILLAR TRIM
                            -Alcantara- -Not for USA, CDN, USA LIGHT-
                            from £519.75
                            from £519.75
                            # 012
                            MPN: 862220..
                            LH WINDSCREEN PILLAR TRIM
                            -Leather- -Not for USA, CDN, USA LIGHT-
                            # 012
                            MPN: 862231..
                            LH WINDSCREEN PILLAR TRIM
                            -Alcantara- -Applicable for USA, CDN, USA LIGHT-
                            Supersession
                            Supersession
                            # 012
                            MPN: 862233..
                            LH WINDSCREEN PILLAR TRIM
                            -Leather- -Applicable for USA, CDN, USA LIGHT-
                            Supersession
                            Supersession
                            # 013
                            MPN: 845281..
                            UPPER REAR SCREEN TRIM
                            -Leather- -STC1- -STC2- -No longer supplied- -Replaced by 88282100-
                            from £414.75
                            from £414.75
                            # 013
                            MPN: 855041..
                            UPPER REAR SCREEN TRIM
                            -Alcantara- -STC1- -STC2- -No longer supplied- -Replaced by 88282400-
                            # 013
                            MPN: 856015..
                            UPPER REAR SCREEN TRIM
                            -Leather- -STC1- -STC2- -Version with track cameras-
                            Supersession
                            Supersession
                            # 013
                            MPN: 856095..
                            UPPER REAR SCREEN TRIM
                            -Alcantara- -STC1- -STC2- -Version with track cameras-
                            from £414.75
                            from £414.75
                            # 013
                            MPN: 88282100
                            UPPER REAR SCREEN TRIM
                            -INTP- -Leather- -STC1- -STC2-
                            # 013
                            MPN: 88282400
                            UPPER REAR SCREEN TRIM
                            -INTA- -Alcantara- -STC1- -STC2-
                            from £700.97
                            from £700.97
                            # 014
                            MPN: 87332700
                            COMPL. RH REAR PILLAR TRIM
                            -INTP- -Leather- -Not for USA, CDN, USA LIGHT-
                            from £1,098.87
                            from £1,098.87
                            # 014
                            MPN: 87333000
                            COMPL. RH REAR PILLAR TRIM
                            -INTA- -Alcantara- -Not for USA, CDN, USA LIGHT-
                            from £2,822.44
                            from £2,822.44
                            # 014
                            MPN: 87881700
                            COMPL. RH REAR PILLAR TRIM
                            -INTP- -Leather- -Applicable for USA, CDN, USA LIGHT-
                            # 014
                            MPN: 87881900
                            COMPL. RH REAR PILLAR TRIM
                            -INTA- -Alcantara- -Applicable for USA, CDN, USA LIGHT-
                            # 015
                            MPN: 87333200
                            COMPL. LH REAR PILLAR TRIM
                            -INTP- -Leather- -Not for USA, CDN, USA LIGHT-
                            from £1,112.76
                            from £1,112.76
                            # 015
                            MPN: 87333500
                            COMPL. LH REAR PILLAR TRIM
                            -INTA- -Alcantara- -Not for USA, CDN, USA LIGHT-
                            from £2,822.44
                            from £2,822.44
                            # 015
                            MPN: 87881600
                            COMPL. LH REAR PILLAR TRIM
                            -INTP- -Leather- -Applicable for USA, CDN, USA LIGHT-
                            # 015
                            MPN: 87881800
                            COMPL. LH REAR PILLAR TRIM
                            -INTA- -Alcantara- -Applicable for USA, CDN, USA LIGHT-
                            # 016
                            MPN: 87333700
                            COMPL. RH THIRD BRAKE LIGHT TRIM
                            -INTP- -Leather- -STC1- -STC2-
                            from £1,518.89
                            from £1,518.89
                            # 016
                            MPN: 87334100
                            COMPL. RH THIRD BRAKE LIGHT TRIM
                            -INTP- -Leather- -CD player version- -STC1- -STC2-
                            # 016
                            MPN: 87343900
                            COMPL. RH THIRD BRAKE LIGHT TRIM
                            -INTA- -Alcantara- -STC1- -STC2-
                            from £1,626.61
                            from £1,626.61
                            # 016
                            MPN: 87344100
                            COMPL. RH THIRD BRAKE LIGHT TRIM
                            -INTA- -Alcantara- -Applicable for Hi-Fi version- -STC1- -STC2-
                            from £1,333.56
                            from £1,333.56
                            # 016
                            MPN: 87537600
                            COMPL. RH THIRD BRAKE LIGHT TRIM
                            -INTA- -Alcantara- -Version with 4-point seat harnesses- -STC1- -STC2- -Not for AUS, CINA, USA, CDN, J, USA LIGHT-
                            # 016
                            MPN: 87539700
                            COMPL. RH THIRD BRAKE LIGHT TRIM
                            -INTP- -Leather- -Version with 4-point seat harnesses- -STC1- -STC2- -Not for AUS, CINA, USA, CDN, J, USA LIGHT-
                            # 016
                            MPN: 87861100
                            COMPL. RH THIRD BRAKE LIGHT TRIM
                            -INTA- -Alcantara- -Version with 4-point seat harnesses + Hi-Fi- -STC1- -STC2- -Not for AUS, CINA, USA, CDN, J, USA LIGHT-
                            from £1,744.92
                            from £1,744.92
                            # 016
                            MPN: 87862100
                            COMPL. RH THIRD BRAKE LIGHT TRIM
                            -INTP- -Leather- -Version with 4-point seat harnesses + Hi-Fi- -STC1- -STC2- -Not for AUS, CINA, USA, CDN, J, USA LIGHT-
                            # 017
                            MPN: 87334300
                            COMPL. LH THIRD BRAKE LIGHT TRIM
                            -INTP- -Leather- -STC1- -STC2-
                            # 017
                            MPN: 87334700
                            COMPL. LH THIRD BRAKE LIGHT TRIM
                            -INTP- -Leather- -CD player version- -STC1- -STC2-
                            # 017
                            MPN: 87344200
                            COMPL. LH THIRD BRAKE LIGHT TRIM
                            -INTA- -Alcantara- -STC1- -STC2-
                            from £1,626.61
                            from £1,626.61
                            # 017
                            MPN: 87344400
                            COMPL. LH THIRD BRAKE LIGHT TRIM
                            -INTA- -Alcantara- -Applicable for Hi-Fi version- -STC1- -STC2-
                            from £1,333.56
                            from £1,333.56
                            # 017
                            MPN: 87539900
                            COMPL. LH THIRD BRAKE LIGHT TRIM
                            -INTA- -Alcantara- -Version with 4-point seat harnesses- -STC1- -STC2- -Not for AUS, CINA, USA, CDN, J, USA LIGHT-
                            from £1,362.84
                            from £1,362.84
                            # 017
                            MPN: 87540000
                            COMPL. LH THIRD BRAKE LIGHT TRIM
                            -INTP- -Leather- -Version with 4-point seat harnesses- -STC1- -STC2- -Not for AUS, CINA, USA, CDN, J, USA LIGHT-
                            # 017
                            MPN: 87861400
                            COMPL. LH THIRD BRAKE LIGHT TRIM
                            -INTA- -Alcantara- -Version with 4-point seat harnesses + Hi-Fi- -STC1- -STC2- -Not for AUS, CINA, USA, CDN, J, USA LIGHT-
                            from £2,233.06
                            from £2,233.06
                            # 017
                            MPN: 87862200
                            COMPL. LH THIRD BRAKE LIGHT TRIM
                            -INTP- -Leather- -Version with 4-point seat harnesses + Hi-Fi- -STC1- -STC2- -Not for AUS, CINA, USA, CDN, J, USA LIGHT-
                            # 018
                            MPN: 85833700
                            SCREW
                            -M5 X 14-
                            from £0.47
                            from £0.47
                            # 019
                            MPN: 87537700
                            COMPL. RH CROSS MEMBER COVER BACKING.
                            -INTA- -Alcantara- -Version with 4-point seat harnesses- -Not for AUS, CINA, USA, CDN, J, USA LIGHT-
                            # 019
                            MPN: 87544800
                            COMPL. RH CROSS MEMBER COVER BACKING.
                            -INTP- -Leather- -Version with 4-point seat harnesses- -Not for AUS, CINA, USA, CDN, J, USA LIGHT-
                            from £322.07
                            from £322.07
                            # 020
                            MPN: 87539800
                            COMPL. LH CROSS MEMBER COVER BACKING.
                            -INTA- -Alcantara- -Version with 4-point seat harnesses- -Not for AUS, CINA, USA, CDN, J, USA LIGHT-
                            # 020
                            MPN: 87545100
                            COMPL. LH CROSS MEMBER COVER BACKING.
                            -INTP- -Leather- -Version with 4-point seat harnesses- -Not for AUS, CINA, USA, CDN, J, USA LIGHT-
                            from £322.07
                            from £322.07
                            # 021
                            MPN: 85064100
                            FRONT RH BRACKET
                            from £17.65
                            from £17.65
                            # 022
                            MPN: 85064200
                            FRONT LH BRACKET
                            from £17.65
                            from £17.65
                            # 023
                            MPN: 85064300
                            REAR RH BRACKET
                            from £20.60
                            from £20.60
                            # 024
                            MPN: 85064400
                            REAR LH BRACKET
                            from £20.60
                            from £20.60
                            # 025
                            MPN: 84794500
                            SUN VISOR FASTENER COVER
                            from £1.14
                            from £1.14
                            # 026
                            MPN: 84794600
                            SURROUND SPACER
                            from £1.63
                            from £1.63
                            # 027
                            MPN: 84794800
                            SUN VISOR CLIP COVER
                            from £2.07
                            from £2.07
                            # 028
                            MPN: 84794900
                            SURROUND SPACER
                            from £1.55
                            from £1.55
                            # 029
                            MPN: 87537100
                            COMPL. RH SPEAKER GRILLE
                            -Version with 4-point seat harnesses- -Not for AUS, CINA, USA, CDN, J, USA LIGHT-
                            from £294.42
                            from £294.42
                            # 030
                            MPN: 87539000
                            COMPL. LH SPEAKER GRILLE
                            -Version with 4-point seat harnesses- -Not for AUS, CINA, USA, CDN, J, USA LIGHT-
                            from £294.42
                            from £294.42
                            # 031
                            MPN: 81414800
                            CENTRAL MOUNT FOR SUN VISOR
                            from £3.68
                            from £3.68
                            # 032
                            MPN: 87334900
                            THIRD BRAKE LIGHT FASTENER BRACKET ON RH REAR SIDE SUBSTRUCTURE
                            from £25.29
                            from £25.29
                            # 033
                            MPN: 87335000
                            THIRD BRAKE LIGHT FASTENER BRACKET ON LH REAR SIDE SUBSTRUCTURE
                            from £25.29
                            from £25.29
                            # 034
                            MPN: 87544600
                            COMPL. LOWER RH THIRD BRAKE LIGHT TRIM
                            -INTA- -Alcantara- -Version with 4-point seat harnesses- -Not for AUS, CINA, USA, CDN, J, USA LIGHT-
                            # 034
                            MPN: 87544700
                            COMPL. LOWER RH THIRD BRAKE LIGHT TRIM
                            -INTP- -Leather- -Version with 4-point seat harnesses- -Not for AUS, CINA, USA, CDN, J, USA LIGHT-
                            # 035
                            MPN: 87544900
                            COMPL. LOWER LH THIRD BRAKE LIGHT TRIM
                            -INTA- -Alcantara- -Version with 4-point seat harnesses- -Not for AUS, CINA, USA, CDN, J, USA LIGHT-
                            # 035
                            MPN: 87545000
                            COMPL. LOWER LH THIRD BRAKE LIGHT TRIM
                            -INTP- -Leather- -Version with 4-point seat harnesses- -Not for AUS, CINA, USA, CDN, J, USA LIGHT-
                            # 036
                            MPN: 85833900
                            SCREW
                            -M5 X 16-
                            from £0.52
                            from £0.52
                            This part replaces part number 81972800
                            # 037
                            MPN: 142798
                            RUBBER SHIM
                            from £0.73
                            from £0.73
                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
