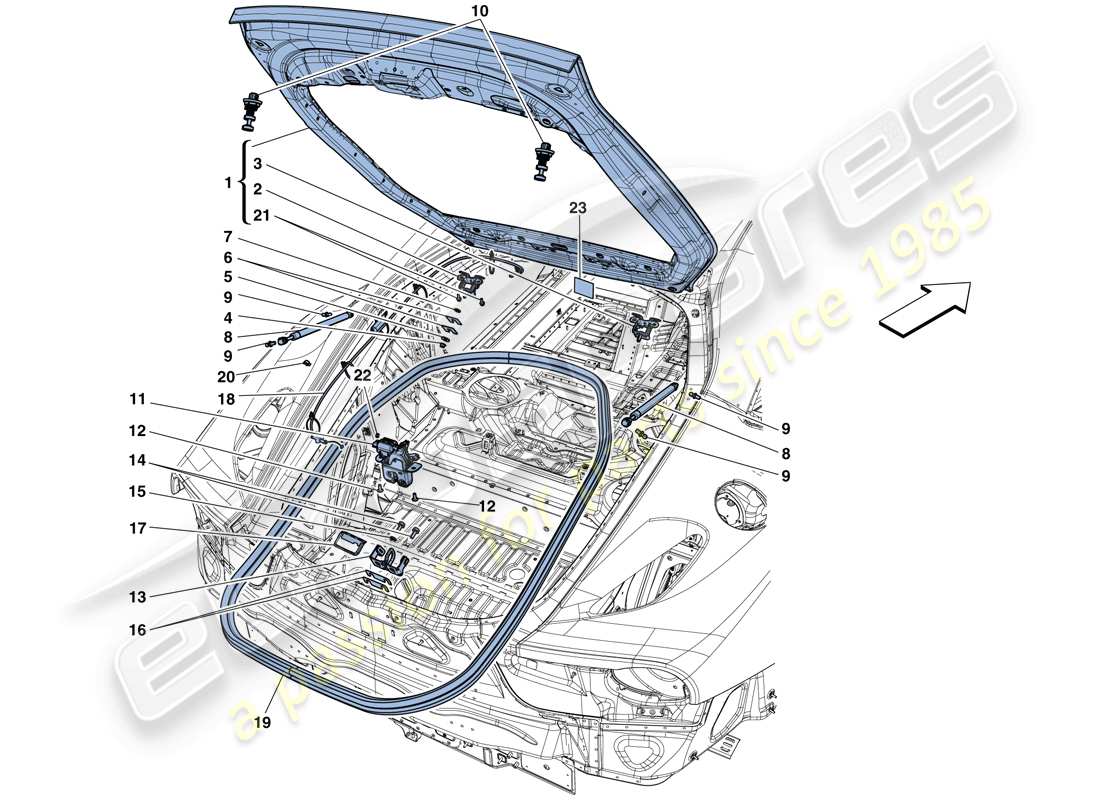

0112 - REAR LID AND OPENING MECHANISM

Ferrari F12 TDF (Europe) REAR LID AND OPENING MECHANISM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 001
                                  MPN: 87085711
                                  REAR LID
                                  from £2,347.54
                                  from £2,347.54
                                  # 001
                                  MPN: 88163511
                                  REAR LID
                                  -SDARS satellite antenna- -Applicable for USA, CDN-
                                  from £3,360.91
                                  from £3,360.91
                                  # 002
                                  MPN: 84813900
                                  LH TAILGATE HINGE
                                  from £88.66
                                  from £88.66
                                  # 003
                                  MPN: 84813800
                                  RH TAILGATE HINGE
                                  from £88.66
                                  from £88.66
                                  # 004
                                  MPN: 14059311
                                  NUT
                                  from £0.30
                                  from £0.30
                                  # 005
                                  MPN: 12647024
                                  WASHER
                                  Supersession
                                  Supersession
                                  # 006
                                  MPN: 84651000
                                  SHIM
                                  -Th. 1 mm-
                                  from £1.83
                                  from £1.83
                                  # 006
                                  MPN: 84651200
                                  SHIM
                                  -Th. 2 mm-
                                  from £1.83
                                  from £1.83
                                  # 007
                                  MPN: 84653800
                                  WASHER
                                  from £2.88
                                  from £2.88
                                  # 008
                                  MPN: 87261400
                                  GAS STRUT
                                  from £40.33
                                  from £40.33
                                  # 009
                                  MPN: 85216400
                                  PIN
                                  from £1.46
                                  from £1.46
                                  # 010
                                  MPN: 82966000
                                  VIBRATION DAMPER
                                  -No longer supplied- -Replaced by 849815-
                                  Supersession
                                  Supersession
                                  # 010
                                  MPN: 849815
                                  VIBRATION DAMPER
                                  from £19.91
                                  from £19.91
                                  This part replaces part number 82966000
                                  # 011
                                  MPN: 84922700
                                  ELECTRIC LOCK WITH LEVER AND MEMORY
                                  from £33.03
                                  from £33.03
                                  # 012
                                  MPN: 65377400
                                  SCREW
                                  -M6 X 1 X 18-
                                  from £1.24
                                  from £1.24
                                  This part replaces part number 156814 - and 3 more. Click to view details
                                  # 013
                                  MPN: 82209700
                                  LOCK STRIKER
                                  from £7.43
                                  from £7.43
                                  # 014
                                  MPN: 16287124
                                  SCREW
                                  -M8 X 20-
                                  from £0.59
                                  from £0.59
                                  # 015
                                  MPN: 12646724
                                  WASHER
                                  from £0.47
                                  from £0.47
                                  This part replaces part number 12601571 - and 3 more. Click to view details
                                  # 016
                                  MPN: 84147200
                                  SHIM
                                  -Th. 1 mm-
                                  from £1.76
                                  from £1.76
                                  # 016
                                  MPN: 84147600
                                  SHIM
                                  -Th. 0.5 mm-
                                  from £1.76
                                  from £1.76
                                  # 017
                                  MPN: 85602900
                                  COSMETIC COVER
                                  from £0.98
                                  from £0.98
                                  # 018
                                  MPN: 87786500
                                  LOCK RELEASE BOWDEN CABLE
                                  from £42.80
                                  from £42.80
                                  # 019
                                  MPN: 84339600
                                  TAILGATE STOP SEAL
                                  from £79.64
                                  from £79.64
                                  # 020
                                  MPN: 14569480
                                  CLIP
                                  from £0.48
                                  from £0.48
                                  This part replaces part number 81580800
                                  # 021
                                  MPN: 16286024
                                  SCREW
                                  -M6 X 16-
                                  from £0.47
                                  from £0.47
                                  # 022
                                  MPN: 11087676
                                  SNAP RING
                                  from £0.47
                                  from £0.47
                                  This part replaces part number 11087675
                                  # 023
                                  MPN: 179309
                                  ADHESIVE FOAM
                                  from £2.20
                                  from £2.20
