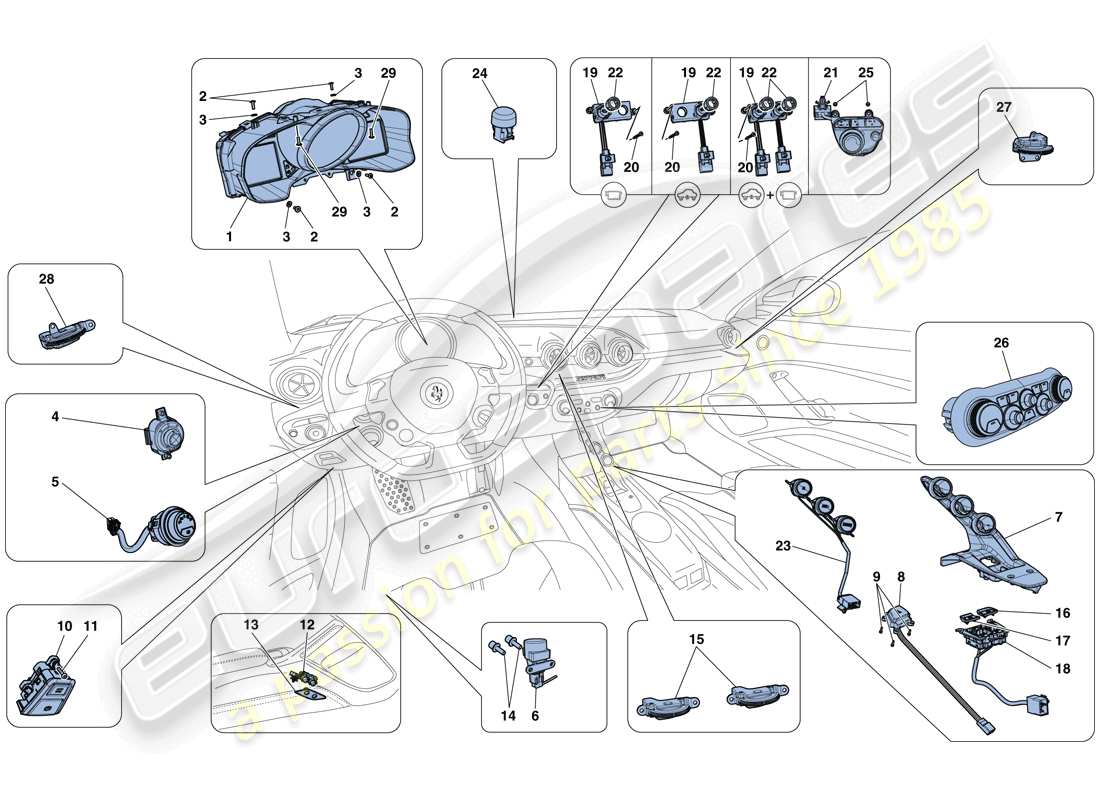

0126 - DASHBOARD AND TUNNEL INSTRUMENTS

Ferrari F12 TDF (Europe) DASHBOARD AND TUNNEL INSTRUMENTS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 001
                          MPN: 315148
                          INSTRUMENT PANEL
                          -Carbon version- -Black dial face- -Not for USA-
                          from £5,304.06
                          from £5,304.06
                          # 001
                          MPN: 315149
                          INSTRUMENT PANEL
                          -Carbon version- -Red dial face- -Not for USA-
                          from £5,304.06
                          from £5,304.06
                          # 001
                          MPN: 315150
                          INSTRUMENT PANEL
                          -Carbon version- -Yellow dial face- -Not for USA-
                          from £5,304.06
                          from £5,304.06
                          # 001
                          MPN: 315151
                          INSTRUMENT PANEL
                          -Carbon version- -White dial face- -Not for USA-
                          from £5,304.06
                          from £5,304.06
                          # 001
                          MPN: 315156
                          INSTRUMENT PANEL
                          -Carbon version- -Black dial face- -Applicable for USA-
                          from £5,304.06
                          from £5,304.06
                          # 001
                          MPN: 315157
                          INSTRUMENT PANEL
                          -Carbon version- -Red dial face- -Applicable for USA-
                          from £5,304.06
                          from £5,304.06
                          # 001
                          MPN: 315158
                          INSTRUMENT PANEL
                          -Carbon version- -Yellow dial face- -Applicable for USA-
                          from £5,304.06
                          from £5,304.06
                          # 001
                          MPN: 315159
                          INSTRUMENT PANEL
                          -Carbon version- -White dial face- -Applicable for USA-
                          from £5,304.06
                          from £5,304.06
                          # 001
                          MPN: 322460
                          INSTRUMENT PANEL
                          -Carbon version- -Aluminium- -Not for USA-
                          from £5,304.06
                          from £5,304.06
                          # 001
                          MPN: 322622
                          INSTRUMENT PANEL
                          -Carbon version- -Aluminium- -Applicable for USA-
                          from £5,304.06
                          from £5,304.06
                          # 002
                          MPN: 85692000
                          SCREW
                          -M5 X 10-
                          from £0.53
                          from £0.53
                          # 003
                          MPN: 12638178
                          WASHER
                          from £0.47
                          from £0.47
                          This part replaces part number 10519578 - and 3 more. Click to view details
                          # 004
                          MPN: 259909
                          EXTERNAL REAR VIEW MIRROR CONTROL
                          from £142.26
                          from £142.26
                          # 005
                          MPN: 283435
                          LIGHTS AND REAR FOG LIGHT CONTROLS SATELLITE
                          -Applicable for J, GD-
                          from £349.25
                          from £349.25
                          # 005
                          MPN: 293039
                          LIGHTS AND REAR FOG LIGHT SWITCH SATELLITE
                          -Not for J, GD-
                          from £192.09
                          from £192.09
                          # 007
                          MPN: 87529700
                          COMPL. CENTRE TUNNEL CONSOLE CONTROL PANEL
                          -Not for USA, CDN, GD, USA LIGHT-
                          from £3,242.33
                          from £3,242.33
                          # 007
                          MPN: 87554200
                          COMPL. CENTRE TUNNEL CONSOLE CONTROL PANEL
                          -Applicable for GD-
                          from £3,242.33
                          from £3,242.33
                          # 007
                          MPN: 88263300
                          COMPL. CENTRE TUNNEL CONSOLE CONTROL PANEL
                          -Applicable for USA, CDN, USA LIGHT-
                          from £3,242.23
                          from £3,242.23
                          # 008
                          MPN: 246860
                          HAZARD WARNING LIGHT BUTTON
                          from £47.83
                          from £47.83
                          # 009
                          MPN: 14418131
                          SCREW
                          -M3 X 10-
                          from £0.47
                          from £0.47
                          # 010
                          MPN: 232124
                          EPB SWITCH WITH AUTOPARK DISABLE
                          -No longer supplied- -Replaced by 820259..-
                          Supersession
                          Supersession
                          # 010
                          MPN: 820259..
                          EPB BUTTON WITH AUTOPARK DISABLE
                          -Plastic in interior leather trim colour-
                          Supersession
                          Supersession
                          # 011
                          MPN: 65752800
                          SCREW
                          -M4 X 10-
                          from £1.14
                          from £1.14
                          This part replaces part number 294485 - and 1 more. Click to view details
                          # 012
                          MPN: 311278
                          LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP RELEASE BUTTONS
                          -Not for GD-
                          from £213.45
                          from £213.45
                          This part replaces part number 285409
                          # 012
                          MPN: 311279
                          LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP RELEASE BUTTONS
                          -Applicable for GD-
                          from £213.45
                          from £213.45
                          This part replaces part number 298291
                          # 013
                          MPN: 286949
                          SURROUND FOR LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP RELEASE BUTTONS
                          -Not for GD-
                          from £36.79
                          from £36.79
                          # 013
                          MPN: 292350
                          SURROUND FOR LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP RELEASE BUTTONS
                          -Applicable for GD-
                          from £36.79
                          from £36.79
                          # 014
                          MPN: 85692300
                          SCREW
                          -M5 X 20-
                          from £0.47
                          from £0.47
                          This part replaces part number 83914200
                          # 015
                          MPN: 286443
                          AIR VENT CONTROL
                          from £36.75
                          from £36.75
                          # 016
                          MPN: 302236
                          RH POWER WINDOW BUTTON
                          from £23.48
                          from £23.48
                          # 017
                          MPN: 302237
                          LH POWER WINDOW BUTTON
                          from £23.48
                          from £23.48
                          # 018
                          MPN: 293193
                          COMPLETE POWER WINDOW CONTROLS
                          from £154.50
                          from £154.50
                          This part replaces part number 300401
                          # 019
                          MPN: 294971
                          VEHICLE LIFT CONTROL
                          -Version with lifter-
                          from £89.73
                          from £89.73
                          This part replaces part number 285414
                          # 019
                          MPN: 294972
                          CAMERA DUAL VIEW CONTROL
                          -Applicable for front and rear digital cameras- -Version with parking camera-
                          from £73.60
                          from £73.60
                          This part replaces part number 285415
                          # 019
                          MPN: 294973
                          CAMERA DUAL VIEW AND LIFT SYSTEM CONTROL
                          -Applicable for front and rear digital cameras and lift system- -Version with parking camera and lift system-
                          from £82.98
                          from £82.98
                          This part replaces part number 285416 - and 1 more. Click to view details
                          # 020
                          MPN: 15687204
                          SCREW
                          from £0.47
                          from £0.47
                          # 021
                          MPN: 318286
                          NAVIGATOR CONTROLS
                          -Not for Apple Car Play-
                          from £824.21
                          from £824.21
                          # 021
                          MPN: 318667
                          NAVIGATOR CONTROLS
                          -Applicable for Apple Car Play- -No longer supplied- -Replaced by 329635-
                          Supersession
                          Supersession
                          # 021
                          MPN: 329635
                          NAVIGATOR CONTROLS
                          -Applicable for Apple Car Play-
                          from £824.21
                          from £824.21
                          This part replaces part number 318667
                          # 022
                          MPN: 268000
                          TRIM RING
                          from £14.73
                          from £14.73
                          # 023
                          MPN: 302234
                          F1 GEARBOX CONTROLS
                          -Version with red ring- -Not for USA, CDN, GD, USA LIGHT-
                          from £182.17
                          from £182.17
                          # 023
                          MPN: 303089
                          F1 GEARBOX CONTROLS
                          -Version with red ring- -Applicable for GD-
                          from £356.69
                          from £356.69
                          # 023
                          MPN: 304310
                          F1 GEARBOX CONTROLS
                          -Version with red ring- -Applicable for USA, CDN, USA LIGHT-
                          from £363.97
                          from £363.97
                          # 024
                          MPN: 236871
                          DUAL ZONE SUN SENSOR
                          from £28.31
                          from £28.31
                          # 025
                          MPN: 16083401
                          SCREW
                          -M4 X 10-
                          from £0.47
                          from £0.47
                          # 026
                          MPN: 83422900
                          AC CONTROL PANEL
                          -Not for USA-
                          from £1,661.37
                          from £1,661.37
                          # 026
                          MPN: 84874000
                          AC CONTROL PANEL
                          -Applicable for USA-
                          from £1,678.16
                          from £1,678.16
                          # 027
                          MPN: 286444
                          RH VENT CONTROL
                          from £36.75
                          from £36.75
                          # 028
                          MPN: 285313
                          LH VENT CONTROL
                          -Not for GD-
                          from £42.91
                          from £42.91
                          # 028
                          MPN: 291214
                          LH VENT CONTROL
                          -Applicable for GD-
                          from £42.91
                          from £42.91
                          # 029
                          MPN: 13025787
                          SCREW
                          -M5 X 10-
                          from £0.47
                          from £0.47
                          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
