0127 - HEADLIGHTS AND TAILLIGHTS

Ferrari F12 TDF (Europe) HEADLIGHTS AND TAILLIGHTS Parts Diagram

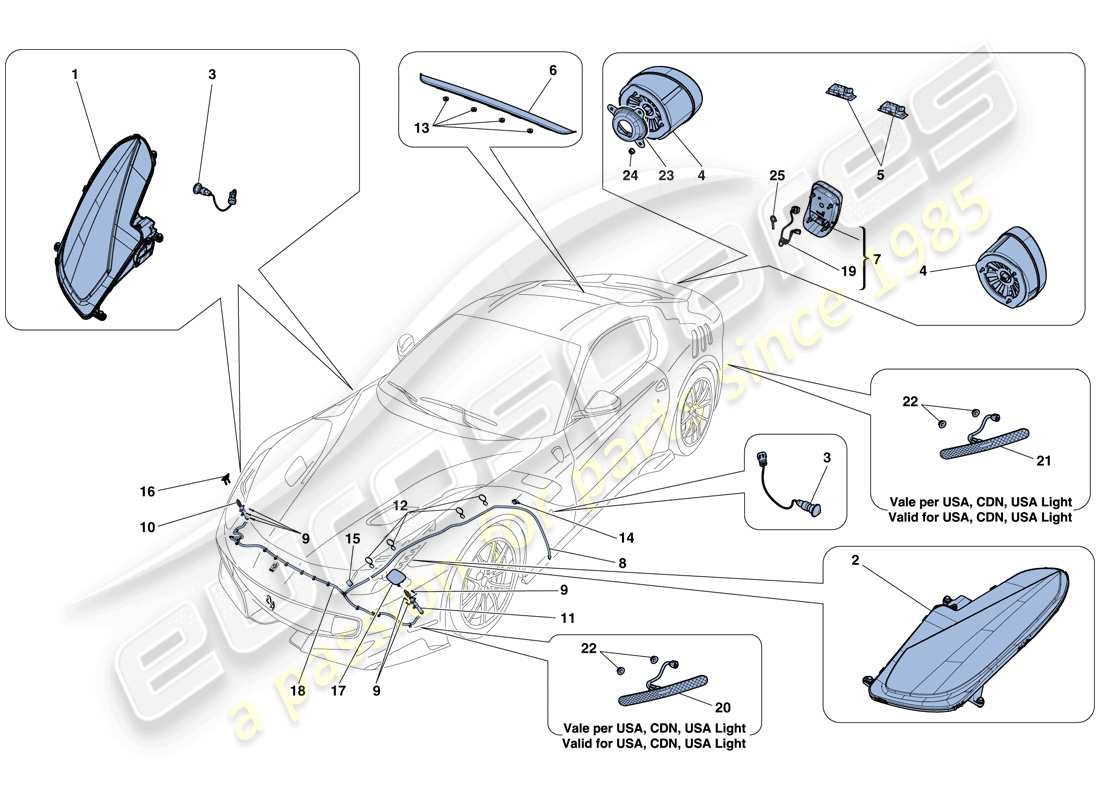

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 001
                                  MPN: 297788
                                  RH HEADLAMP
                                  -Carbon- -Applicable for EU GS, GOLFO-
                                  from £4,072.13
                                  from £4,072.13
                                  # 001
                                  MPN: 297789
                                  RH HEADLAMP
                                  -AFS- -Carbon- -Applicable for EU GS, GOLFO-
                                  from £4,737.77
                                  from £4,737.77
                                  # 001
                                  MPN: 297792
                                  RH HEADLAMP
                                  -Carbon- -Applicable for CINA-
                                  from £4,194.00
                                  from £4,194.00
                                  # 001
                                  MPN: 297793
                                  RH HEADLAMP
                                  -AFS- -Carbon- -Applicable for CINA-
                                  from £4,737.77
                                  from £4,737.77
                                  # 001
                                  MPN: 297796
                                  RH HEADLAMP
                                  -Carbon- -Applicable for USA, CDN, USA LIGHT-
                                  from £4,177.15
                                  from £4,177.15
                                  # 001
                                  MPN: 297797
                                  RH HEADLAMP
                                  -AFS- -Carbon- -Applicable for USA, CDN, USA LIGHT-
                                  from £4,737.77
                                  from £4,737.77
                                  # 001
                                  MPN: 297800
                                  RH HEADLAMP
                                  -Carbon- -Applicable for J, GD-
                                  from £4,177.15
                                  from £4,177.15
                                  # 001
                                  MPN: 297801
                                  RH HEADLAMP
                                  -AFS- -Carbon- -Applicable for J, GD-
                                  from £4,737.77
                                  from £4,737.77
                                  # 001
                                  MPN: 320966
                                  RH HEADLAMP
                                  -AFS- -Applicable for EU GS, GOLFO-
                                  from £2,348.96
                                  from £2,348.96
                                  # 001
                                  MPN: 320969
                                  RH HEADLAMP
                                  -Applicable for EU GS, GOLFO-
                                  from £1,640.33
                                  from £1,640.33
                                  # 001
                                  MPN: 325129
                                  RH HEADLAMP
                                  -Applicable for CINA-
                                  from £1,646.76
                                  from £1,646.76
                                  # 001
                                  MPN: 325130
                                  RH HEADLAMP
                                  -AFS- -Applicable for CINA-
                                  from £2,357.14
                                  from £2,357.14
                                  # 001
                                  MPN: 325925
                                  RH HEADLAMP
                                  -Applicable for USA, CDN, USA LIGHT-
                                  from £1,646.76
                                  from £1,646.76
                                  # 001
                                  MPN: 325926
                                  RH HEADLAMP
                                  -AFS- -Applicable for USA, CDN, USA LIGHT-
                                  from £2,400.43
                                  from £2,400.43
                                  # 001
                                  MPN: 327808
                                  RH HEADLAMP
                                  -AFS- -Applicable for J, GD-
                                  from £2,348.96
                                  from £2,348.96
                                  # 001
                                  MPN: 327809
                                  RH HEADLAMP
                                  -Applicable for J, GD-
                                  from £1,646.76
                                  from £1,646.76
                                  # 002
                                  MPN: 297790
                                  LH HEADLAMP
                                  -Carbon- -Applicable for EU GS, GOLFO-
                                  from £4,072.13
                                  from £4,072.13
                                  # 002
                                  MPN: 297791
                                  LH HEADLAMP
                                  -AFS- -Carbon- -Applicable for EU GS, GOLFO-
                                  from £4,737.77
                                  from £4,737.77
                                  # 002
                                  MPN: 297794
                                  LH HEADLAMP
                                  -Carbon- -Applicable for CINA-
                                  from £4,194.00
                                  from £4,194.00
                                  # 002
                                  MPN: 297795
                                  LH HEADLAMP
                                  -AFS- -Carbon- -Applicable for CINA-
                                  from £4,737.77
                                  from £4,737.77
                                  # 002
                                  MPN: 297798
                                  LH HEADLAMP
                                  -Carbon- -Applicable for USA, CDN, USA LIGHT-
                                  from £4,177.15
                                  from £4,177.15
                                  # 002
                                  MPN: 297799
                                  LH HEADLAMP
                                  -AFS- -Carbon- -Applicable for USA, CDN, USA LIGHT-
                                  from £4,737.77
                                  from £4,737.77
                                  # 002
                                  MPN: 297802
                                  LH HEADLAMP
                                  -Carbon- -Applicable for J, GD-
                                  from £4,177.15
                                  from £4,177.15
                                  # 002
                                  MPN: 297803
                                  LH HEADLAMP
                                  -AFS- -Carbon- -Applicable for J, GD-
                                  from £4,737.77
                                  from £4,737.77
                                  # 002
                                  MPN: 320970
                                  LH HEADLAMP
                                  -AFS- -Applicable for EU GS, GOLFO-
                                  from £2,348.96
                                  from £2,348.96
                                  # 002
                                  MPN: 320973
                                  LH HEADLAMP
                                  -Applicable for EU GS, GOLFO-
                                  from £1,640.33
                                  from £1,640.33
                                  # 002
                                  MPN: 325131
                                  LH HEADLAMP
                                  -Applicable for CINA-
                                  from £1,646.76
                                  from £1,646.76
                                  # 002
                                  MPN: 325132
                                  LH HEADLAMP
                                  -AFS- -Applicable for CINA-
                                  from £2,357.14
                                  from £2,357.14
                                  # 002
                                  MPN: 325927
                                  LH HEADLAMP
                                  -Applicable for USA, CDN, USA LIGHT-
                                  from £1,646.76
                                  from £1,646.76
                                  # 002
                                  MPN: 325928
                                  LH HEADLAMP
                                  -AFS- -Applicable for USA, CDN, USA LIGHT-
                                  from £2,400.43
                                  from £2,400.43
                                  # 002
                                  MPN: 327810
                                  LH HEADLAMP
                                  -AFS- -Applicable for J, GD-
                                  from £2,348.96
                                  from £2,348.96
                                  # 002
                                  MPN: 327811
                                  LH HEADLAMP
                                  -Applicable for J, GD-
                                  from £1,646.76
                                  from £1,646.76
                                  # 003
                                  MPN: 165558
                                  LATERAL TURN INDICATOR
                                  from £15.54
                                  from £15.54
                                  This part replaces part number 180415
                                  # 004
                                  MPN: 286441
                                  TAIL LIGHT
                                  from £332.52
                                  from £332.52
                                  # 005
                                  MPN: 264480
                                  REAR LICENSE PLATE LIGHT
                                  from £9.27
                                  from £9.27
                                  This part replaces part number 255368 which we have in stock - and 2 more. Click to view details
                                  # 006
                                  MPN: 279729
                                  THIRD STOP LIGHT
                                  from £109.36
                                  from £109.36
                                  # 007
                                  MPN: 313443
                                  REAR FOG LIGHT
                                  -Not for rear camera-
                                  from £131.22
                                  from £131.22
                                  # 007
                                  MPN: 313970
                                  REAR FOG LIGHT
                                  -Carbon- -Not for rear camera-
                                  from £1,141.98
                                  from £1,141.98
                                  This part replaces part number 320959
                                  # 007
                                  MPN: 320959
                                  REAR FOG LIGHT
                                  -Carbon- -Not for rear camera- -No longer supplied- -Replaced by 313970-
                                  Supersession
                                  Supersession
                                  # 007
                                  MPN: 320960
                                  REAR FOG LIGHT
                                  -Carbon- -Version with analogue rear camera- -Complete with analogue rear camera- -Not for Apple Car Play-
                                  from £1,542.74
                                  from £1,542.74
                                  # 007
                                  MPN: 320961
                                  REAR FOG LIGHT
                                  -Carbon- -Version with front and rear digital cameras- -Complete with digital rear camera- -Not for Apple Car Play-
                                  from £848.51
                                  from £848.51
                                  # 007
                                  MPN: 320961
                                  REAR FOG LIGHT
                                  -Carbon- -Applicable for Apple Car Play- -Complete with digital rear camera-
                                  from £848.51
                                  from £848.51
                                  # 007
                                  MPN: 328149
                                  REAR FOG LIGHT
                                  -Version with front and rear digital cameras- -Complete with digital rear camera- -Not for Apple Car Play-
                                  from £983.83
                                  from £983.83
                                  # 007
                                  MPN: 328149
                                  REAR FOG LIGHT
                                  -Applicable for Apple Car Play- -Complete with digital rear camera-
                                  from £983.83
                                  from £983.83
                                  # 007
                                  MPN: 328150
                                  REAR FOG LIGHT
                                  -Version with analogue rear camera- -Complete with analogue rear camera- -Not for Apple Car Play-
                                  from £983.83
                                  from £983.83
                                  # 008
                                  MPN: 84638900
                                  PIPE FROM RESERVOIR TO SECTION
                                  from £62.68
                                  from £62.68
                                  # 009
                                  MPN: 15688904
                                  SCREW
                                  # 010
                                  MPN: 84315300
                                  RH HEADLAMP WASHER
                                  from £80.29
                                  from £80.29
                                  # 011
                                  MPN: 84377700
                                  LH HEADLAMP WASHER
                                  from £80.29
                                  from £80.29
                                  # 012
                                  MPN: 85141400
                                  CLIP
                                  from £0.53
                                  from £0.53
                                  # 013
                                  MPN: 14059211
                                  NUT
                                  from £0.53
                                  from £0.53
                                  # 014
                                  MPN: 160888
                                  CLIP
                                  from £2.18
                                  from £2.18
                                  # 015
                                  MPN: 254315
                                  RUBBER PAD
                                  from £16.09
                                  from £16.09
                                  # 016
                                  MPN: 87376710
                                  COMPL. RH HEADLIGHT WASHER COVER
                                  from £43.87
                                  from £43.87
                                  # 017
                                  MPN: 87376610
                                  COMPL. LH HEADLIGHT WASHER COVER
                                  from £43.87
                                  from £43.87
                                  # 018
                                  MPN: 87674400
                                  HEADLIGHT WASHER PIPE
                                  from £135.02
                                  from £135.02
                                  # 019
                                  MPN: 325073
                                  REAR DIGITAL PARKING CAMERA
                                  -Applicable for digital front and rear cameras- -Applicable for Apple Car Play-
                                  from £1,039.83
                                  from £1,039.83
                                  # 019
                                  MPN: 325074
                                  ANALOGUE REAR PARKING CAMERA
                                  -Applicable for rear camera- -Not for Apple Car Play-
                                  from £1,352.40
                                  from £1,352.40
                                  # 020
                                  MPN: 233797
                                  FRONT SIDE MARKER
                                  -Applicable for USA, CDN, USA LIGHT-
                                  from £104.41
                                  from £104.41
                                  # 021
                                  MPN: 233799
                                  REAR SIDE MARKER
                                  -Applicable for USA, CDN, USA LIGHT-
                                  from £104.41
                                  from £104.41
                                  # 022
                                  MPN: 12578011
                                  NUT
                                  -Applicable for USA, CDN, USA LIGHT-
                                  from £0.53
                                  from £0.53
                                  # 023
                                  MPN: 297253
                                  RH TAILLIGHT COVER
                                  -Applicable up to Ass. No. 135181-
                                  from £36.16
                                  from £36.16
                                  # 024
                                  MPN: 12578011
                                  NUT
                                  -Applicable up to Ass. No. 135181-
                                  from £0.54
                                  from £0.54
                                  # 025
                                  MPN: 328994
                                  RING CLAMP
                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
