ferrari f12 tdf (europe) windscreen wiper, windscreen washer and horns parts diagram

0129 - Windscreen Wiper, Windscreen Washer and Horns

Ferrari F12 TDF (Europe) WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS Parts Diagram

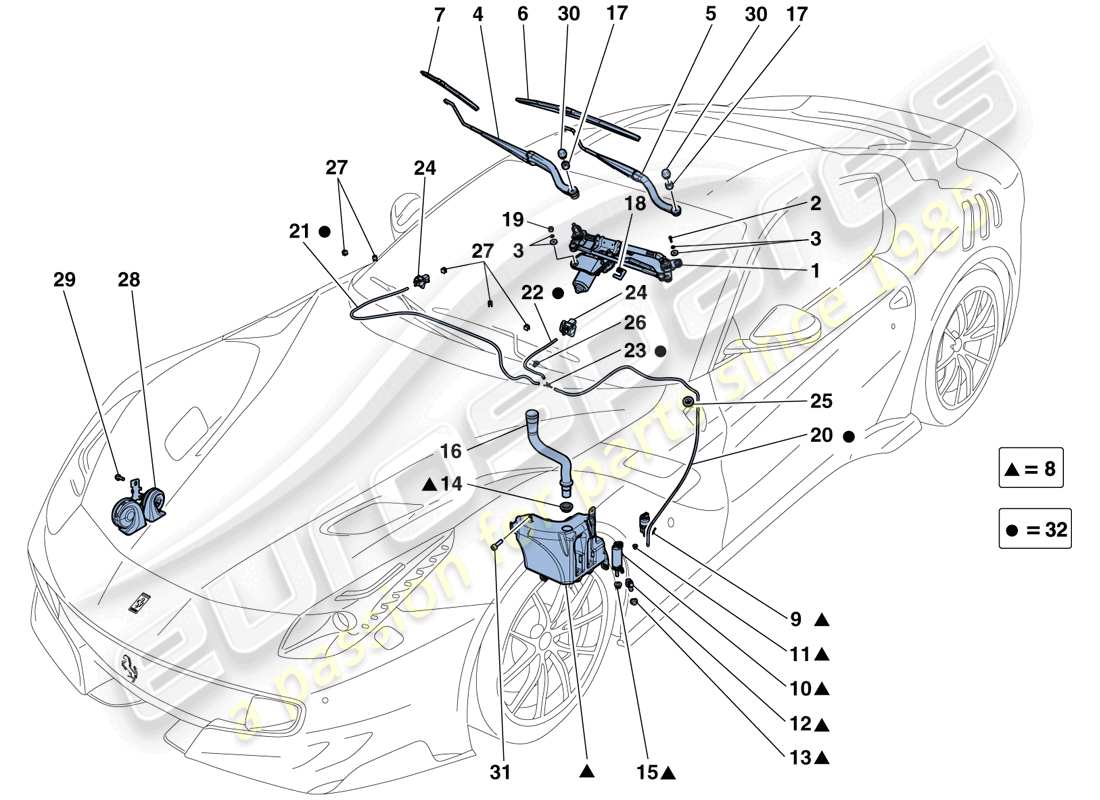

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price
                                          # 001
                                          MPN: 83736600
                                          WINDSCREEN WIPER WITH MOTOR AND LINKAGES
                                          -Not for GD-
                                          from £281.38
                                          from £281.38
                                          # 001
                                          MPN: 85033900
                                          WINDSCREEN WIPER WITH MOTOR AND LINKAGES
                                          -Applicable for GD-
                                          from £342.93
                                          from £342.93
                                          # 002
                                          MPN: 10902824
                                          SCREW
                                          -M6 X 30-
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 10902821
                                          # 003
                                          MPN: 12601274
                                          WASHER
                                          -D. 6.40-12 X 0.5-
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 12601221 - and 5 more. Click to view details
                                          # 003
                                          MPN: 12640624
                                          WASHER
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 12640601 - and 1 more. Click to view details
                                          # 004
                                          MPN: 83736700
                                          PASSENGER SIDE WINDSCREEN WIPER ARM
                                          -Not for GD-
                                          from £72.45
                                          from £72.45
                                          # 004
                                          MPN: 85033800
                                          PASSENGER SIDE WINDSCREEN WIPER ARM
                                          -Applicable for GD-
                                          from £73.48
                                          from £73.48
                                          # 005
                                          MPN: 83736800
                                          DRIVER SIDE WINDSCREEN WIPER ARM
                                          -Not for GD-
                                          from £72.45
                                          from £72.45
                                          # 005
                                          MPN: 85033700
                                          DRIVER SIDE WINDSCREEN WIPER ARM
                                          -Applicable for GD-
                                          from £85.73
                                          from £85.73
                                          # 006
                                          MPN: 82196700
                                          DRIVER SIDE WINDSCREEN WIPER BLADE
                                          -Not for GD-
                                          from £56.10
                                          from £56.10
                                          # 006
                                          MPN: 83994600
                                          PASSENGER SIDE WINDSCREEN WIPER BLADE
                                          -Applicable for GD-
                                          from £20.83
                                          from £20.83
                                          # 007
                                          MPN: 82196500
                                          PASSENGER SIDE WINDSCREEN WIPER BLADE
                                          -Not for GD-
                                          from £42.35
                                          from £42.35
                                          # 007
                                          MPN: 83994700
                                          DRIVER SIDE WINDSCREEN WIPER BLADE
                                          -Applicable for GD-
                                          from £37.03
                                          from £37.03
                                          # 008
                                          MPN: 82197100
                                          COMPL. WINDSCREEN /HEADLIGHT WASHER RESERVOIR
                                          from £121.96
                                          from £121.96
                                          # 009
                                          MPN: 81632900
                                          WINDSCREEN WASHER PUMP
                                          from £41.89
                                          from £41.89
                                          # 010
                                          MPN: 81633000
                                          HEADLIGHT WASHER PUMP
                                          from £52.99
                                          from £52.99
                                          This part replaces part number 81284700 - and 2 more. Click to view details
                                          # 011
                                          MPN: 65511700
                                          GASKET
                                          from £3.26
                                          from £3.26
                                          # 012
                                          MPN: 81633100
                                          FLUID LEVEL SENSOR
                                          from £40.20
                                          from £40.20
                                          # 013
                                          MPN: 81633200
                                          GASKET
                                          from £12.61
                                          from £12.61
                                          # 014
                                          MPN: 82198600
                                          FILLER PIPE SEAL
                                          from £14.71
                                          from £14.71
                                          # 015
                                          MPN: 65775100
                                          GASKET
                                          from £2.88
                                          from £2.88
                                          # 016
                                          MPN: 84233200
                                          FILLER PIPE
                                          from £31.76
                                          from £31.76
                                          # 017
                                          MPN: 10791021
                                          NUT
                                          from £0.53
                                          from £0.53
                                          # 018
                                          MPN: 289644
                                          CLIP
                                          from £2.55
                                          from £2.55
                                          # 019
                                          MPN: 85554200
                                          NUT
                                          from £0.54
                                          from £0.54
                                          # 020
                                          MPN: 84491600
                                          PIPE FROM ELECTRIC PUMP TO CHECK VALVE
                                          -After depletion order compl. pos. 32- -Applicable until depletion-
                                          Supersession
                                          Supersession
                                          # 021
                                          MPN: 84491700
                                          PIPE FROM VALVE TO RH NOZZLE
                                          -After depletion order compl. pos. 32- -Applicable until depletion-
                                          Supersession
                                          Supersession
                                          # 022
                                          MPN: 84491800
                                          PIPE FROM VALVE TO LH NOZZLE
                                          -After depletion order compl. pos. 32- -Applicable until depletion-
                                          Supersession
                                          Supersession
                                          # 023
                                          MPN: 82984600
                                          CHECK VALVE
                                          -After depletion order compl. pos. 32- -Applicable until depletion-
                                          from £3.36
                                          from £3.36
                                          # 024
                                          MPN: 83480800
                                          SPRAY NOZZLE
                                          -No longer supplied- -Replaced by 84019400-
                                          from £35.59
                                          from £35.59
                                          # 024
                                          MPN: 84019400
                                          SPRAY NOZZLE
                                          from £1.56
                                          from £1.56
                                          # 025
                                          MPN: 10396780
                                          GROMMET
                                          from £1.08
                                          from £1.08
                                          # 026
                                          MPN: 81097300
                                          CLIP
                                          from £1.65
                                          from £1.65
                                          # 027
                                          MPN: 14501087
                                          CLIP
                                          from £0.47
                                          from £0.47
                                          # 028
                                          MPN: 319416
                                          HORN COMPLETE WITH BRACKET
                                          from £27.39
                                          from £27.39
                                          # 029
                                          MPN: 15903801
                                          SCREW
                                          Supersession
                                          Supersession
                                          # 030
                                          MPN: 15811787
                                          PROTECTIVE CAP
                                          from £0.53
                                          from £0.53
                                          # 031
                                          MPN: 81290900
                                          SCREW
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 67578600
                                          # 032
                                          MPN: 83919300
                                          COMPL. SCREEN WASHER PIPE ASSEMBLY
                                          from £15.75
                                          from £15.75
                                          This part replaces part number 84491600 - and 5 more. Click to view details
                                          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
