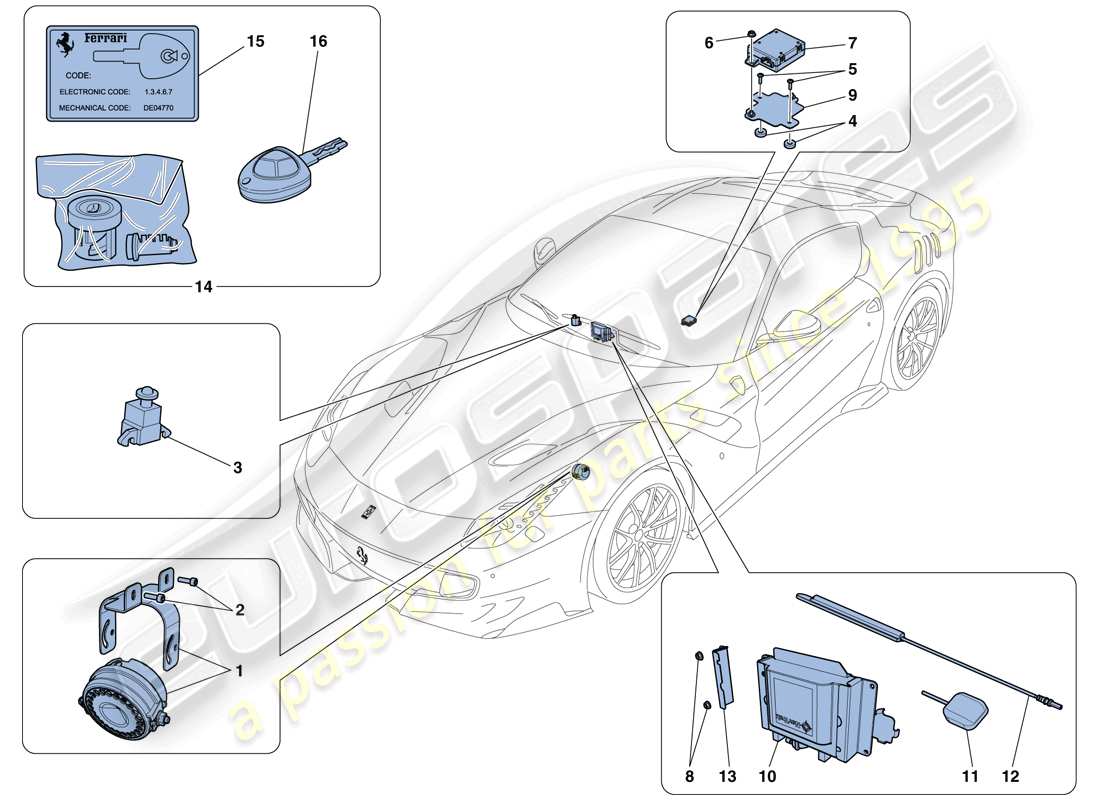

0134 - ANTITHEFT SYSTEM

Ferrari F12 TDF (Europe) ANTITHEFT SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 295278
                        COMPL. ANTI-THEFT SYSTEM SIREN
                        -Not for Israel-
                        from £43.75
                        from £43.75
                        This part replaces part number 282235 - and 1 more. Click to view details
                        # 001
                        MPN: 315744
                        COMPL. ANTI-THEFT SYSTEM SIREN
                        -Applicable for Israel-
                        from £81.46
                        from £81.46
                        # 002
                        MPN: 256323
                        SCREW
                        -M5 X 16-
                        from £0.47
                        from £0.47
                        # 003
                        MPN: 239744
                        TWO-TONE INFOLED
                        from £36.44
                        from £36.44
                        This part replaces part number 188253 which we have in stock - and 1 more. Click to view details
                        # 004
                        MPN: 84737900
                        FLAT WASHER
                        from £2.69
                        from £2.69
                        # 005
                        MPN: 63343400
                        SCREW
                        -M4 X 15-
                        from £1.36
                        from £1.36
                        # 006
                        MPN: 113647
                        NUT
                        from £0.47
                        from £0.47
                        # 007
                        MPN: 293416
                        MASTER DIPOLE ANTI-LIFT SENSOR
                        -No longer supplied- -Replaced by 316531-
                        from £128.84
                        from £128.84
                        # 007
                        MPN: 316531
                        MASTER DIPOLE ANTI-LIFT SENSOR
                        from £186.10
                        from £186.10
                        # 008
                        MPN: 14059121
                        NUT
                        from £0.54
                        from £0.54
                        # 009
                        MPN: 302020
                        BRACKET
                        from £6.62
                        from £6.62
                        # 010
                        MPN: 316923
                        ADR10 SATELLITE ALARM SYSTEM ECU
                        from £1,794.28
                        from £1,794.28
                        This part replaces part number 277442
                        # 011
                        MPN: 274464
                        GPS ANTENNA
                        from £32.48
                        from £32.48
                        # 012
                        MPN: 274465
                        GSM ANTENNA
                        from £13.63
                        from £13.63
                        # 013
                        MPN: 282642
                        NAVTRACK FASTENER BRACKET
                        from £5.87
                        from £5.87
                        This part replaces part number 249839
                        # 014
                        MPN: 254409
                        COMPL. KEY AND BLOCK KIT
                        -Contains 2 keys, 2 ignition switch blocks and 1 code card-
                        from £919.03
                        from £919.03
                        This part replaces part number 241458 - and 1 more. Click to view details
                        LOCKS SET COMPLETED WITH STE Genuine Ferrari Part - Used In stock
                        IGNITION BARREL AND DOOR LOCK WITH KEYS AND CARD
                        # 015
                        MPN: 153603
                        Ferrari CODE CARD
                        from £34.03
                        from £34.03
                        This part replaces part number 194003
                        # 016
                        MPN: 254332
                        UNCODED KEY
                        from £349.13
                        from £349.13
