0136 - AUDIO SPEAKER SYSTEM

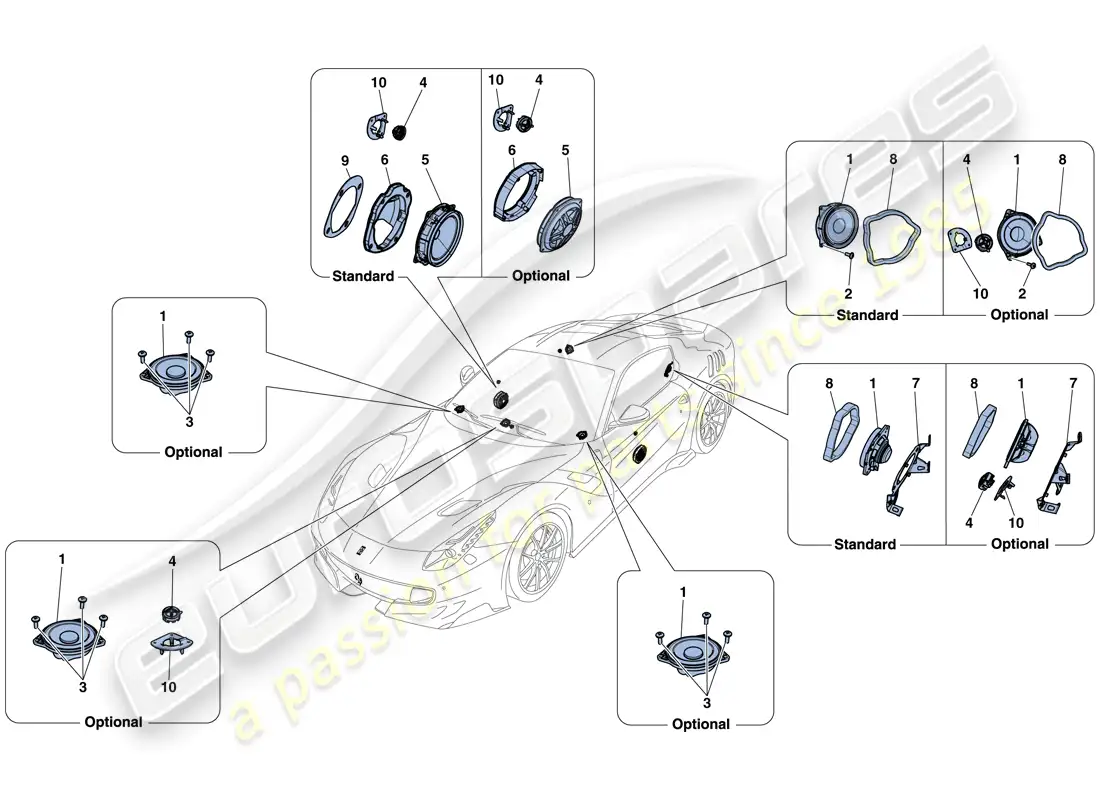

Ferrari F12 TDF (Europe) AUDIO SPEAKER SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: 253861
      TWIDDLER
      -Premium Hi-Fi version-
      from £69.42
      from £69.42
      # 001
      MPN: 269772
      TWIDDLER
      from £18.33
      from £18.33
      # 002
      MPN: 63343400
      SCREW
      -M4 X 15- -Q.ty 6 for high power Hi-Fi version-
      from £1.36
      from £1.36
      # 003
      MPN: 85692000
      SCREW
      -M5 X 10- -High power Hi-Fi version-
      from £0.51
      from £0.51
      # 004
      MPN: 251541
      TWEETER
      from £9.47
      from £9.47
      # 004
      MPN: 258166
      TWEETER
      -High power Hi-Fi version-
      from £36.62
      from £36.62
      # 005
      MPN: 252908
      WOOFER
      from £15.77
      from £15.77
      # 005
      MPN: 254984
      WOOFER
      -High power Hi-Fi version-
      from £98.20
      from £98.20
      # 006
      MPN: 260130
      LH WOOFER ADAPTER
      -High power Hi-Fi version-
      from £8.09
      from £8.09
      # 006
      MPN: 260131
      RH WOOFER ADAPTER
      -High power Hi-Fi version-
      from £8.09
      from £8.09
      # 006
      MPN: 266133
      WOOFER BRACKET WITH SPACER
      from £8.26
      from £8.26
      # 007
      MPN: 325233
      RH TWIDDLER BRACKET
      from £25.67
      from £25.67
      # 007
      MPN: 325235
      LH TWIDDLER BRACKET
      from £25.67
      from £25.67
      # 007
      MPN: 325697
      RH TWIDDLER BRACKET
      -High power Hi-Fi version-
      from £51.55
      from £51.55
      # 007
      MPN: 325698
      LH TWIDDLER BRACKET
      -High power Hi-Fi version-
      from £51.55
      from £51.55
      # 008
      MPN: 85276800
      GRILLE GASKET
      from £9.57
      from £9.57
      # 009
      MPN: 85221100
      GASKET
      from £13.51
      from £13.51
      # 010
      MPN: 82539000
      ADAPTOR FOR TWEETER
      from £1.79
      from £1.79
      # 010
      MPN: 82539400
      ADAPTOR FOR TWEETER
      -High power Hi-Fi version-
      from £1.79
      from £1.79
