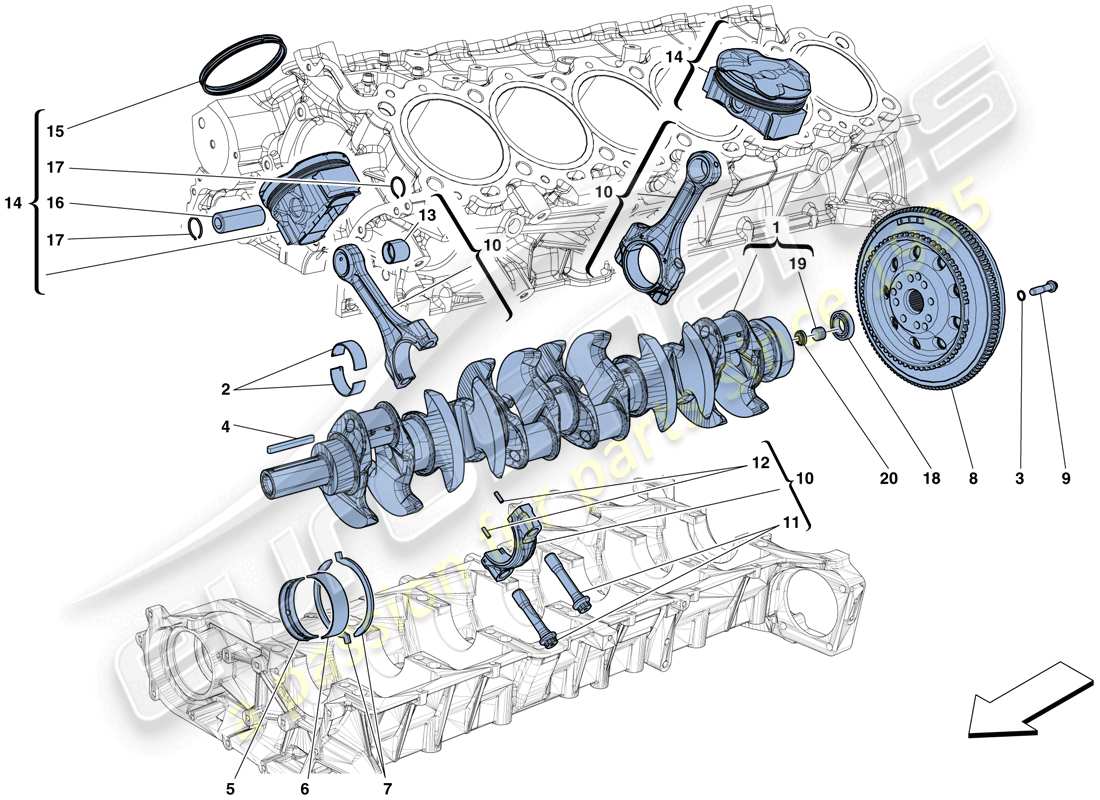

Ferrari F12 TDF (RHD) CRANKSHAFT - CONNECTING RODS AND PISTONS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            MPN: 306666
                            crankshaft
                            from £2,362.70
                            from £2,362.70
                            # 002
                            MPN: 304681
                            CONNECTING ROD HALF-BEARING
                            -Blue-
                            from £10.69
                            from £10.69
                            # 002
                            MPN: 304682
                            CONNECTING ROD HALF-BEARING
                            -Red-
                            from £10.69
                            from £10.69
                            # 002
                            MPN: 304683
                            CONNECTING ROD HALF-BEARING
                            -Pink-
                            from £10.69
                            from £10.69
                            # 003
                            MPN: 282966
                            GASKET
                            from £2.35
                            from £2.35
                            # 004
                            MPN: 190981
                            Key
                            from £0.56
                            from £0.56
                            # 005
                            MPN: 271028
                            UPPER HALF-BEARING
                            -Blue-
                            from £17.74
                            from £17.74
                            # 005
                            MPN: 271029
                            UPPER HALF-BEARING
                            -Yellow-
                            from £20.16
                            from £20.16
                            # 005
                            MPN: 271030
                            UPPER HALF-BEARING
                            -Green-
                            from £19.39
                            from £19.39
                            # 006
                            MPN: 271023
                            LOWER HALF-BEARING
                            -Blue-
                            from £17.67
                            from £17.67
                            # 006
                            MPN: 271024
                            LOWER HALF-BEARING
                            -Yellow-
                            from £20.05
                            from £20.05
                            # 006
                            MPN: 271025
                            LOWER HALF-BEARING
                            -Green-
                            from £19.29
                            from £19.29
                            # 007
                            MPN: 261727
                            CRANKSHAFT BEARING SHIM
                            from £5.64
                            from £5.64
                            # 008
                            MPN: 323539
                            engine flywheel
                            Supersession
                            Supersession
                            # 009
                            MPN: 229907
                            FASTENER SCREW
                            -M10 X 1.25 X 41.5-
                            from £4.75
                            from £4.75
                            # 010
                            MPN: 313576
                            COMPL. CONNECTING ROD AND CAP
                            from £183.63
                            from £183.63
                            # 011
                            MPN: 254806
                            SCREW
                            from £16.99
                            from £16.99
                            # 012
                            MPN: 292751
                            ALIGNMENT PIN
                            from £14.73
                            from £14.73
                            # 013
                            MPN: 300758
                            BUSHING
                            from £21.65
                            from £21.65
                            # 014
                            MPN: 321055
                            COMPL. PISTON, RH CYLINDER BANK
                            -Applicable up to engine No. 345751- -Applicable until depletion-
                            Supersession
                            Supersession
                            # 014
                            MPN: 321056
                            COMPL. PISTON, LH CYLINDER BANK
                            -Applicable up to engine No. 345751- -Applicable until depletion-
                            Supersession
                            Supersession
                            # 014
                            MPN: 336110
                            COMPL. PISTON, RH CYLINDER BANK
                            -Applicable from engine No. 345752- -Applicable after depletion of 321055-
                            from £295.00
                            from £295.00
                            This part replaces part number 321055
                            # 014
                            MPN: 336111
                            COMPL. PISTON, LH CYLINDER BANK
                            -Applicable from engine No. 345752- -Applicable after depletion of 321056-
                            from £295.00
                            from £295.00
                            This part replaces part number 321056
                            # 015
                            MPN: 329062
                            COMPL. PISTON RING SET
                            from £63.21
                            from £63.21
                            # 016
                            MPN: 255232
                            GUDGEON PIN
                            -Applicable until depletion-
                            from £42.84
                            from £42.84
                            # 017
                            MPN: 255234
                            STOP RING
                            -Applicable until depletion-
                            from £19.19
                            from £19.19
                            # 018
                            MPN: 103877
                            BEARING
                            from £15.20
                            from £15.20
                            This part replaces part number 24940440
                            # 019
                            MPN: 176396
                            THREADED PLUG
                            from £2.75
                            from £2.75
                            # 020
                            MPN: 14328801
                            PLUG
                            from £0.47
                            from £0.47
