ferrari f12 tdf (rhd) timing system - tappets parts diagram

0005 - timing system - tappets

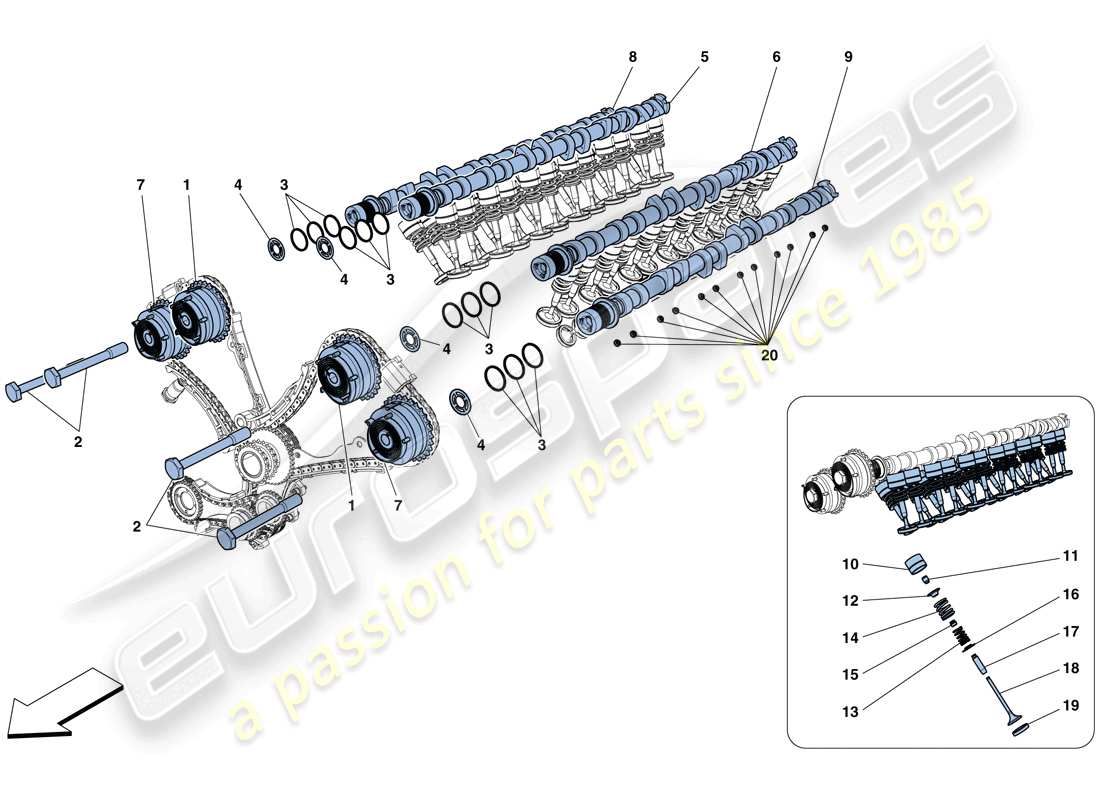

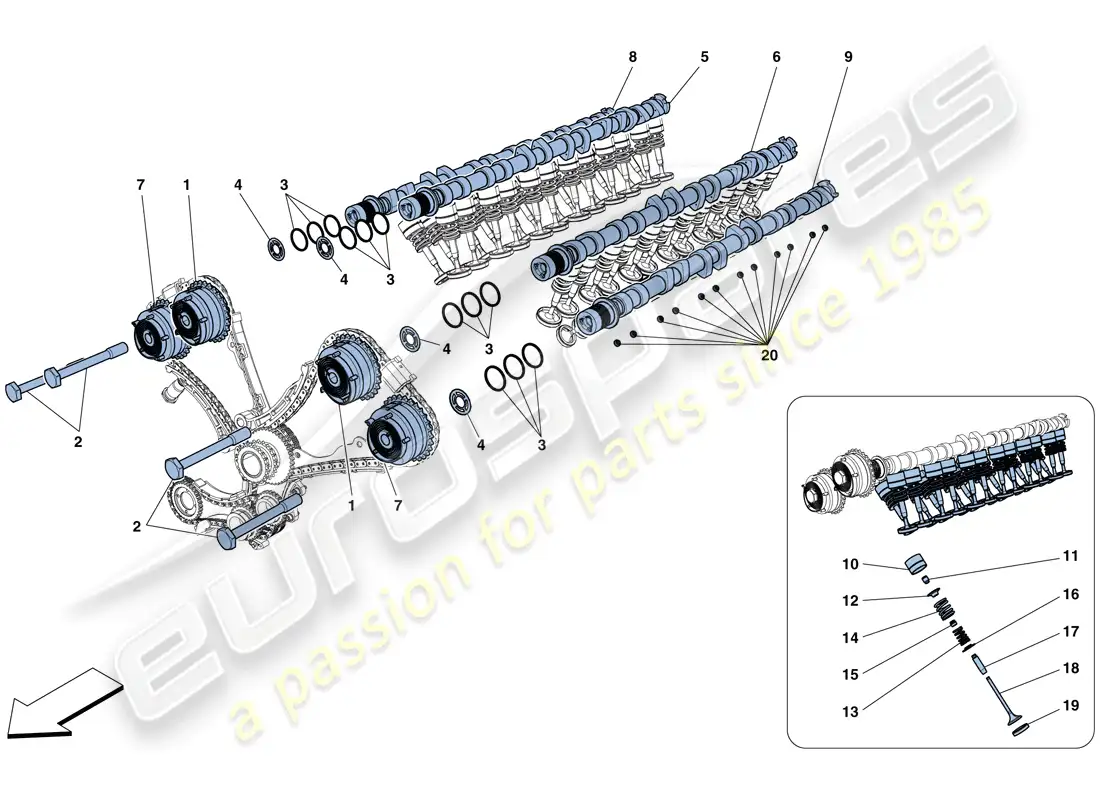

Ferrari F12 TDF (RHD) TIMING SYSTEM - TAPPETS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Price
                                # 001
                                MPN: 241906
                                VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT
                                from £147.13
                                from £147.13
                                # 002
                                MPN: 254892
                                VARIABLE TIMING ADJUSTER SCREW
                                -M14 X 1.5 X 109-
                                from £3.90
                                from £3.90
                                This part replaces part number 248022 - and 4 more. Click to view details
                                # 003
                                MPN: 197975
                                SEAL RING
                                -Also comes with engine gasket set-
                                from £3.86
                                from £3.86
                                # 004
                                MPN: 240559
                                DIAMOND COATED WASHER
                                from £4.75
                                from £4.75
                                # 005
                                MPN: 314867
                                RH INTAKE CAMSHAFT
                                from £340.11
                                from £340.11
                                # 006
                                MPN: 314868
                                LH INTAKE CAMSHAFT
                                from £340.11
                                from £340.11
                                # 007
                                MPN: 248020
                                VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT
                                from £147.74
                                from £147.74
                                # 008
                                MPN: 314869
                                RH EXHAUST CAMSHAFT
                                from £340.11
                                from £340.11
                                # 009
                                MPN: 314870
                                LH EXHAUST CAMSHAFT
                                from £340.11
                                from £340.11
                                # 010
                                MPN: 254496
                                MECHANICAL TAPPET
                                from £279.26
                                from £279.26
                                This part replaces part number 317673
                                # 010
                                MPN: 317673
                                MECHANICAL TAPPET
                                -No longer supplied- -Replaced by 254496-
                                Supersession
                                Supersession
                                # 011
                                MPN: 179763
                                VALVE SPRING SEMI-CONE
                                from £0.26
                                from £0.26
                                # 012
                                MPN: 237390
                                UPPER VALVE SPRING CAP
                                from £2.93
                                from £2.93
                                This part replaces part number 194713 - and 3 more. Click to view details
                                # 013
                                MPN: 238641
                                INTERNAL VALVE RETURN SPRING
                                Supersession
                                Supersession
                                # 014
                                MPN: 238640
                                EXTERNAL VALVE RETURN SPRING
                                Supersession
                                Supersession
                                # 015
                                MPN: 221473
                                OIL SEAL
                                -Also comes with engine gasket set-
                                from £0.94
                                from £0.94
                                # 016
                                MPN: 242574
                                LOWER STOP CAP
                                -Exhaust side-
                                from £4.64
                                from £4.64
                                This part replaces part number 194718
                                # 016
                                MPN: 247484
                                LOWER VALVE SPRING CAP
                                -Intake side-
                                from £3.26
                                from £3.26
                                # 017
                                MPN: 6213498
                                VALVE GUIDE
                                from £1.76
                                from £1.76
                                This part replaces part number 213498
                                # 018
                                MPN: 291638
                                INTAKE VALVE
                                from £6.74
                                from £6.74
                                # 018
                                MPN: 291851
                                EXHAUST VALVE
                                from £27.26
                                from £27.26
                                # 019
                                MPN: 6222847
                                INTAKE VALVE SEAT
                                from £5.07
                                from £5.07
                                This part replaces part number 222847 - and 1 more. Click to view details
                                # 019
                                MPN: 6222848
                                EXHAUST VALVE SEAT
                                from £5.43
                                from £5.43
                                This part replaces part number 222848 - and 1 more. Click to view details
                                # 020
                                MPN: 149229
                                VALVE CLEARANCE ADJUSTER PAD
                                from £13.21
                                from £13.21
