ferrari f12 tdf (rhd) cooling - radiators and air ducts parts diagram

0020 - COOLING - RADIATORS AND AIR DUCTS

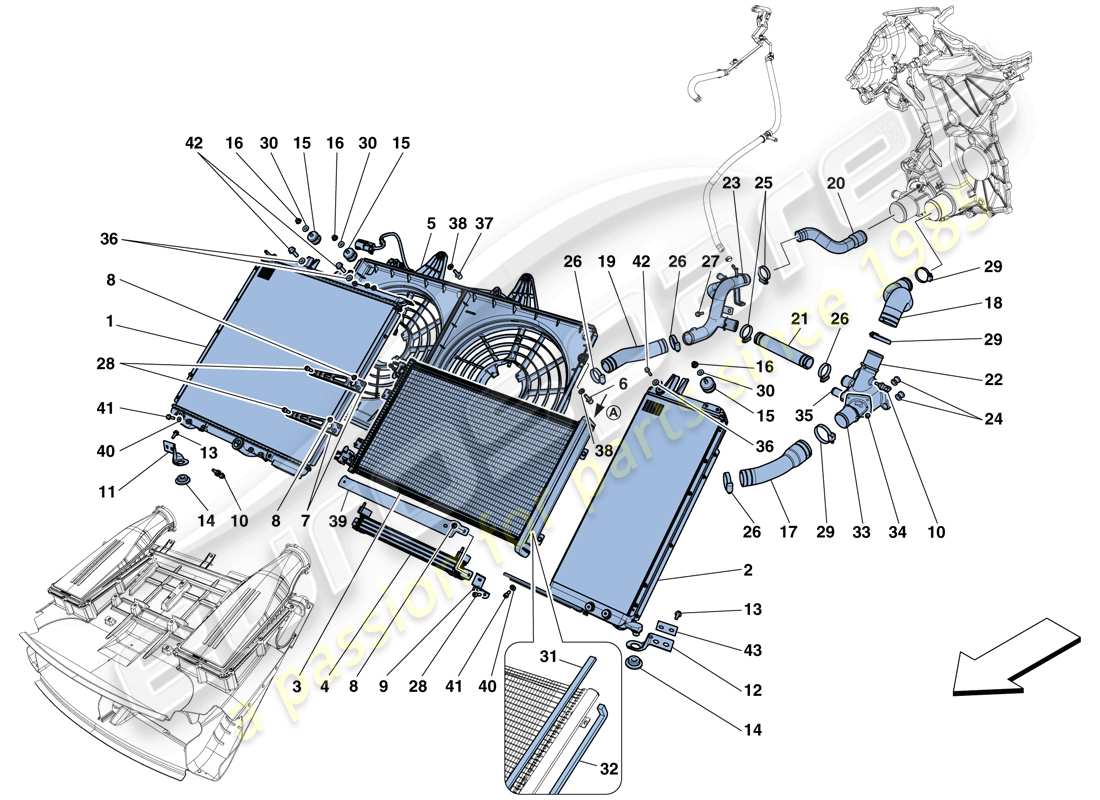

Ferrari F12 TDF (RHD) COOLING - RADIATORS AND AIR DUCTS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 001
                                                                      MPN: 303057
                                                                      ENGINE WATER RADIATOR
                                                                      Supersession
                                                                      Supersession
                                                                      # 002
                                                                      MPN: 277227
                                                                      ENGINE OIL RADIATOR
                                                                      from £385.95
                                                                      from £385.95
                                                                      This part replaces part number 263428 - and 1 more. Click to view details
                                                                      # 003
                                                                      MPN: 265489
                                                                      AC FILTER CONDENSER
                                                                      from £111.79
                                                                      from £111.79
                                                                      AC FILTER CONDENSER Genuine Ferrari Part - Damaged In stock
                                                                      SIDE EDGE DAMAGED ( STILL HOLDS PRESSURE )
                                                                      # 004
                                                                      MPN: 310424
                                                                      POWER STEERING FLUID RADIATOR
                                                                      from £206.25
                                                                      from £206.25
                                                                      This part replaces part number 261216
                                                                      # 005
                                                                      MPN: 295049
                                                                      COWL WITH ELECTRIC FANS
                                                                      -Plastic- -Not for USA, CDN, USA LIGHT- -Applicable up to Ass. No. 135425-
                                                                      from £1,059.89
                                                                      from £1,059.89
                                                                      This part replaces part number 295914
                                                                      # 005
                                                                      MPN: 295049
                                                                      COWL WITH ELECTRIC FANS
                                                                      -Plastic- -Applicable for USA, CDN, USA LIGHT- -Applicable up to Ass. No. 133881-
                                                                      from £1,059.89
                                                                      from £1,059.89
                                                                      This part replaces part number 295914
                                                                      # 005
                                                                      MPN: 328095
                                                                      COWL WITH ELECTRIC FANS
                                                                      -Plastic- -Not for USA, CDN, USA LIGHT- -Applicable from Ass. No. 135426-
                                                                      from £1,465.08
                                                                      from £1,465.08
                                                                      # 005
                                                                      MPN: 328095
                                                                      COWL WITH ELECTRIC FANS
                                                                      -Plastic- -Applicable for USA, CDN, USA LIGHT- -Applicable from Ass. No. 133882-
                                                                      from £1,465.08
                                                                      from £1,465.08
                                                                      # 006
                                                                      MPN: 16285227
                                                                      SCREW
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 007
                                                                      MPN: 268656
                                                                      CONDENSER MOUNTING BRACKET
                                                                      from £21.35
                                                                      from £21.35
                                                                      # 008
                                                                      MPN: 13046012
                                                                      NUT
                                                                      from £1.52
                                                                      from £1.52
                                                                      # 009
                                                                      MPN: 297845
                                                                      RH POWER STEERING FLUID RADIATOR MOUNTING BRACKET
                                                                      from £147.39
                                                                      from £147.39
                                                                      # 009
                                                                      MPN: 297846
                                                                      LH POWER STEERING FLUID RADIATOR MOUNTING BRACKET
                                                                      from £147.39
                                                                      from £147.39
                                                                      This part replaces part number 287493
                                                                      # 011
                                                                      MPN: 284549
                                                                      LOWER RH BRACKET
                                                                      -No longer supplied- -Replaced by 328405-
                                                                      from £34.39
                                                                      from £34.39
                                                                      # 011
                                                                      MPN: 328405
                                                                      LOWER RH BRACKET
                                                                      from £39.97
                                                                      from £39.97
                                                                      # 012
                                                                      MPN: 284548
                                                                      LOWER LH BRACKET
                                                                      -No longer supplied- -Replaced by 329394-
                                                                      from £34.39
                                                                      from £34.39
                                                                      # 012
                                                                      MPN: 328406
                                                                      LOWER LH BRACKET
                                                                      from £39.97
                                                                      from £39.97
                                                                      This part replaces part number 329394
                                                                      # 012
                                                                      MPN: 329394
                                                                      LOWER LH BRACKET
                                                                      -No longer supplied- -Replaced by 328406-
                                                                      Supersession
                                                                      Supersession
                                                                      # 013
                                                                      MPN: 16287127
                                                                      SCREW
                                                                      -M8 X 20-
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 014
                                                                      MPN: 138926
                                                                      RUBBER PAD FOR PIN
                                                                      -No longer supplied- -Replaced by 307674-
                                                                      from £2.32
                                                                      from £2.32
                                                                      # 014
                                                                      MPN: 307674
                                                                      RADIATOR MOUNTING BUSH
                                                                      from £4.41
                                                                      from £4.41
                                                                      # 015
                                                                      MPN: 271472
                                                                      PLUG
                                                                      from £7.74
                                                                      from £7.74
                                                                      # 016
                                                                      MPN: 14040711
                                                                      NUT
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 14040715
                                                                      # 017
                                                                      MPN: 260080
                                                                      WATER HOSE FROM VALVE TO RADIATOR
                                                                      from £104.66
                                                                      from £104.66
                                                                      # 018
                                                                      MPN: 290951
                                                                      WATER HOSE FROM ENGINE TO VALVE
                                                                      from £109.30
                                                                      from £109.30
                                                                      # 019
                                                                      MPN: 258630
                                                                      RETURN HOSE FROM RADIATOR
                                                                      from £21.34
                                                                      from £21.34
                                                                      # 020
                                                                      MPN: 290949
                                                                      RETURN HOSE TO PUMP
                                                                      from £18.01
                                                                      from £18.01
                                                                      # 021
                                                                      MPN: 270452
                                                                      WATER HOSE FROM VALVE
                                                                      from £36.79
                                                                      from £36.79
                                                                      # 022
                                                                      MPN: 267849
                                                                      THERMOSTAT HOUSING
                                                                      from £97.15
                                                                      from £97.15
                                                                      # 023
                                                                      MPN: 290950
                                                                      METAL WATER RECIRCULATION CONNECTOR PIPE
                                                                      from £111.52
                                                                      from £111.52
                                                                      # 024
                                                                      MPN: 267300
                                                                      MOUNTING
                                                                      from £6.08
                                                                      from £6.08
                                                                      This part replaces part number 294902 - and 1 more. Click to view details
                                                                      # 025
                                                                      MPN: 262113
                                                                      COLLAR
                                                                      from £0.94
                                                                      from £0.94
                                                                      # 026
                                                                      MPN: 13000690
                                                                      SCREW COLLAR
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 12177090 - and 1 more. Click to view details
                                                                      # 027
                                                                      MPN: 16286024
                                                                      SCREW
                                                                      -M6 X 16-
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 028
                                                                      MPN: 16284927
                                                                      SCREW
                                                                      -M5 X 10-
                                                                      Supersession
                                                                      Supersession
                                                                      # 029
                                                                      MPN: 296345
                                                                      COLLAR
                                                                      from £1.37
                                                                      from £1.37
                                                                      # 030
                                                                      MPN: 12647024
                                                                      WASHER
                                                                      Supersession
                                                                      Supersession
                                                                      # 031
                                                                      MPN: 282469
                                                                      RUBBER SHIM
                                                                      from £1.23
                                                                      from £1.23
                                                                      # 032
                                                                      MPN: 282580
                                                                      RUBBER SHIM
                                                                      from £2.88
                                                                      from £2.88
                                                                      # 033
                                                                      MPN: 262913
                                                                      PRESSURE SWITCH/THERMOSTAT
                                                                      from £78.45
                                                                      from £78.45
                                                                      This part replaces part number 257544 - and 3 more. Click to view details
                                                                      # 034
                                                                      MPN: 231617
                                                                      SCREW
                                                                      -M6 X 18-
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 14433124
                                                                      # 035
                                                                      MPN: 228438
                                                                      CONNECTOR
                                                                      from £3.80
                                                                      from £3.80
                                                                      # 036
                                                                      MPN: 166467
                                                                      WASHER
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 037
                                                                      MPN: 16285227
                                                                      SCREW
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 038
                                                                      MPN: 12643778
                                                                      WASHER
                                                                      from £0.50
                                                                      from £0.50
                                                                      This part replaces part number 12643777 - and 1 more. Click to view details
                                                                      # 039
                                                                      MPN: 289445
                                                                      POWER STEERING RADIATOR SHIELD
                                                                      from £77.53
                                                                      from £77.53
                                                                      # 040
                                                                      MPN: 12638178
                                                                      WASHER
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 10519578 - and 3 more. Click to view details
                                                                      # 041
                                                                      MPN: 16285127
                                                                      SCREW
                                                                      -M5 X 16-
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 042
                                                                      MPN: 16281827
                                                                      SCREW
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 043
                                                                      MPN: 329502
                                                                      PLATE
                                                                      from £6.34
                                                                      from £6.34
