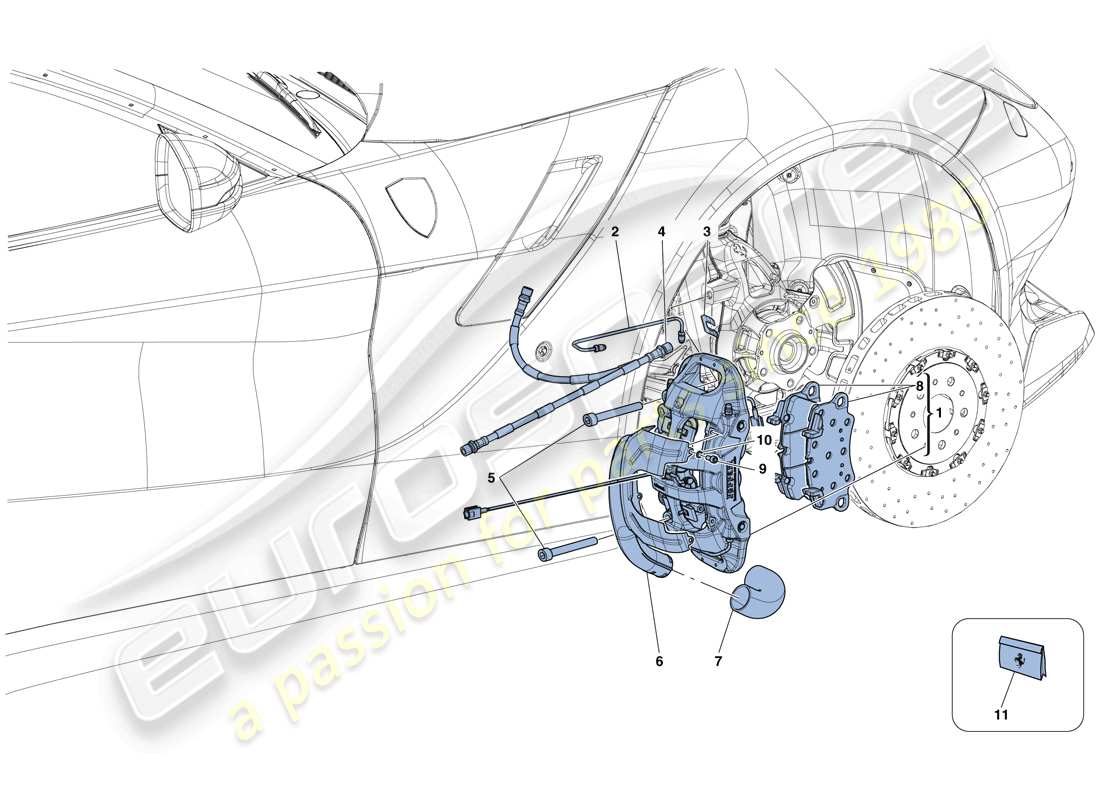

0028 - FRONT BRAKE CALLIPERS

Ferrari F12 TDF (RHD) FRONT BRAKE CALLIPERS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Price
                # 001
                MPN: 322124
                FRONT LH CALLIPER WITH PADS
                -Standard-
                from £2,171.45
                from £2,171.45
                # 001
                MPN: 322125
                FRONT RH CALLIPER WITH PADS
                -Standard-
                from £2,171.45
                from £2,171.45
                # 001
                MPN: 322126
                FRONT LH CALLIPER WITH PADS
                -Black-
                from £2,224.72
                from £2,224.72
                # 001
                MPN: 322127
                FRONT RH CALLIPER WITH PADS
                -Black-
                from £2,224.72
                from £2,224.72
                # 001
                MPN: 322128
                FRONT LH CALLIPER WITH PADS
                -Scuderia Red-
                from £2,334.36
                from £2,334.36
                # 001
                MPN: 322129
                FRONT RH CALLIPER WITH PADS
                -Scuderia Red-
                from £2,334.36
                from £2,334.36
                # 001
                MPN: 322130
                FRONT LH CALLIPER WITH PADS
                -Gold-
                from £2,334.36
                from £2,334.36
                # 001
                MPN: 322131
                FRONT RH CALLIPER WITH PADS
                -Gold-
                from £2,334.36
                from £2,334.36
                # 001
                MPN: 322132
                FRONT LH CALLIPER WITH PADS
                -Blue-
                from £2,529.61
                from £2,529.61
                # 001
                MPN: 322133
                FRONT RH CALLIPER WITH PADS
                -Blue-
                from £2,529.61
                from £2,529.61
                # 001
                MPN: 322134
                FRONT LH CALLIPER WITH PADS
                -Dark grey-
                from £2,529.61
                from £2,529.61
                # 001
                MPN: 322135
                FRONT RH CALLIPER WITH PADS
                -Dark grey-
                from £2,529.61
                from £2,529.61
                # 001
                MPN: 322136
                FRONT LH CALLIPER WITH PADS
                -Silver-
                from £2,334.36
                from £2,334.36
                # 001
                MPN: 322137
                FRONT RH CALLIPER WITH PADS
                -Silver-
                from £2,334.36
                from £2,334.36
                # 001
                MPN: 322138
                FRONT LH CALLIPER WITH PADS
                -Red-
                from £2,271.51
                from £2,271.51
                # 001
                MPN: 322139
                FRONT RH CALLIPER WITH PADS
                -Red-
                from £2,271.51
                from £2,271.51

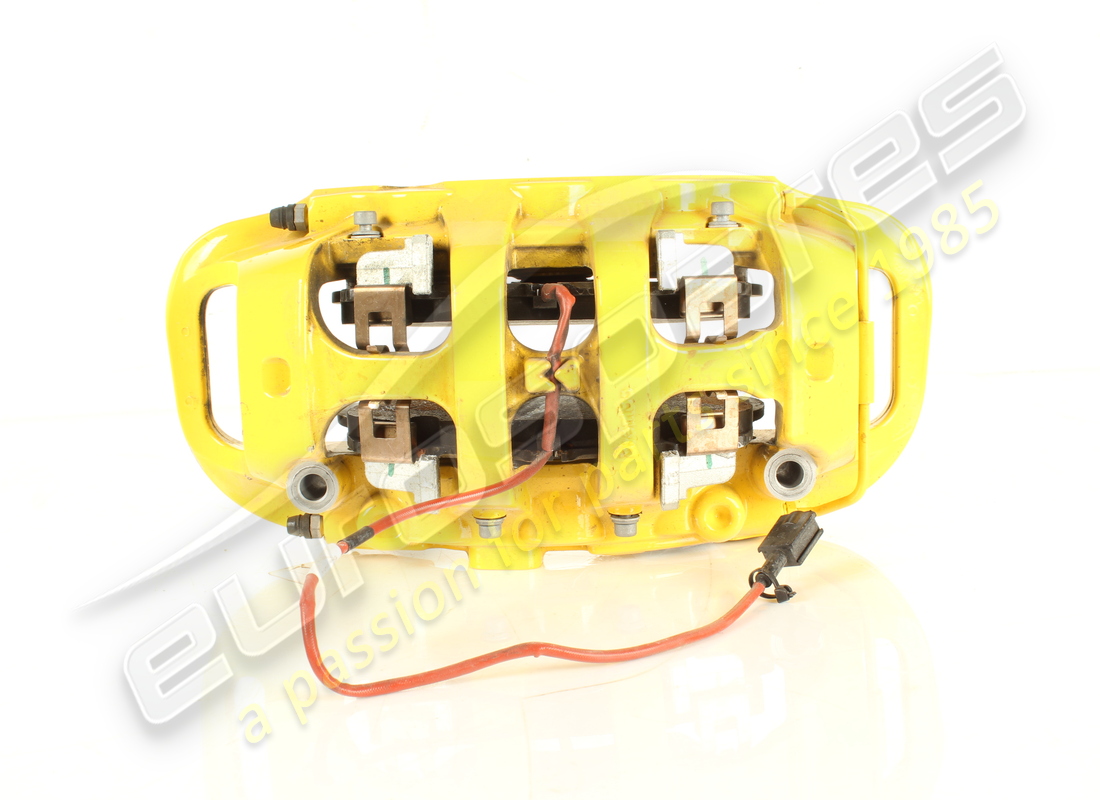

                # 001
                MPN: 322140
                FRONT LH CALLIPER WITH PADS
                -Yellow-
                from £1,283.90
                from £1,283.90
                # 001
                MPN: 322141
                FRONT RH CALLIPER WITH PADS
                -Yellow-
                from £1,283.90
                from £1,283.90
                # 002
                MPN: 314469
                COMPL. BRAKE PIPE FROM CALIPER TO LH HOSE
                from £184.30
                from £184.30
                # 002
                MPN: 314470
                COMPL. BRAKE PIPE FROM CALIPER TO RH HOSE
                from £184.30
                from £184.30
                # 003
                MPN: 116374
                CLIP
                from £1.16
                from £1.16
                # 004
                MPN: 254241
                RUBBER PIPE
                Supersession
                Supersession
                # 005
                MPN: 195167
                SCREW
                -M12 X 1.5 X 95-
                from £9.38
                from £9.38
                This part replaces part number 217654 - and 1 more. Click to view details
                # 006
                MPN: 306017
                FRONT LH CALLIPER HOUSING COVER
                from £278.13
                from £278.13
                # 006
                MPN: 306018
                RH FRONT CALLIPER HOUSING COVER
                from £278.13
                from £278.13
                # 007
                MPN: 302698
                AIR SYSTEM PIPE
                from £58.36
                from £58.36
                # 008
                MPN: 70003278
                FRONT PAD SET WITH SPRING
                from £1,113.38
                from £1,113.38
                # 009
                MPN: 14305187
                SCREW
                -M6 X 12- -No longer supplied- -Replaced by 231616-
                from £0.51
                from £0.51
                # 009
                MPN: 231616
                SCREW
                -M6 X 14-
                from £0.47
                from £0.47
                This part replaces part number 14305724 which we have in stock
                # 010
                MPN: 12648278
                WASHER
                -No longer supplied- -Replaced by 13550224-
                from £0.47
                from £0.47
                # 010
                MPN: 13550224
                WASHER
                from £0.68
                from £0.68
                # 011
                MPN: 70003492
                FRONT DUST GAITER KIT
                from £62.42
                from £62.42
