0031 - Steering Control

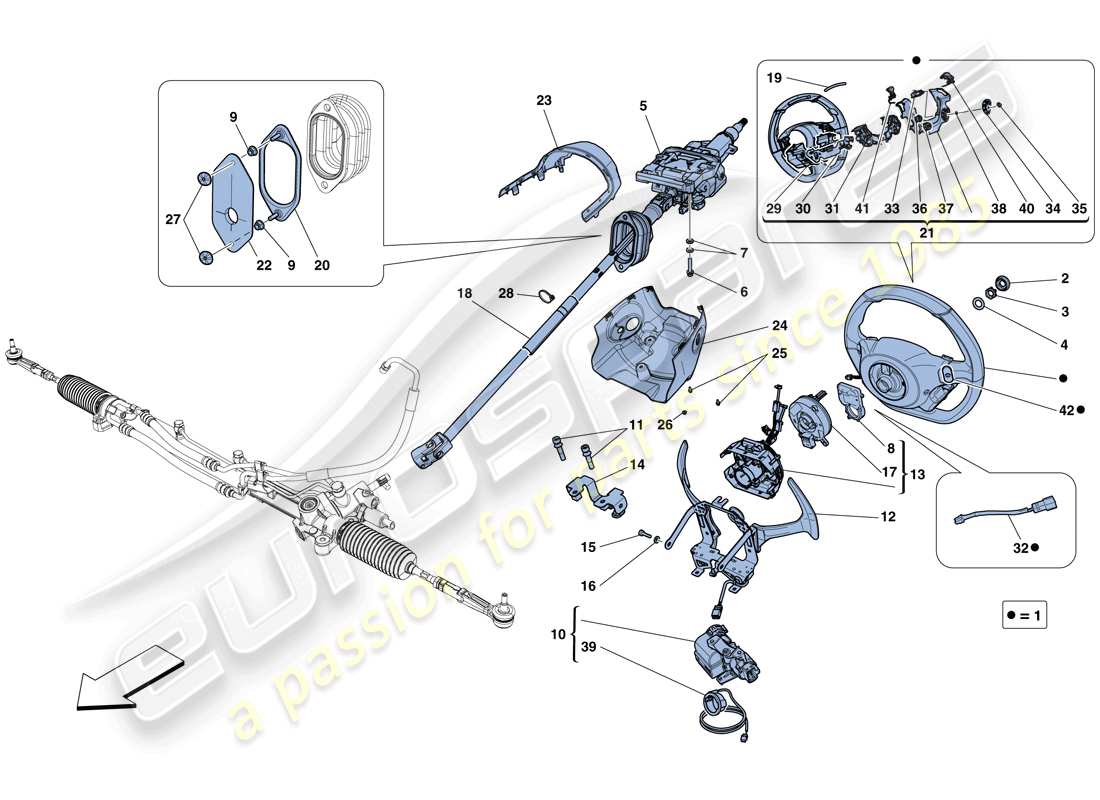

Ferrari F12 TDF (RHD) STEERING CONTROL Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                #
                                                                Part number
                                                                Description
                                                                Price
                                                                # 001
                                                                MPN: 88083300
                                                                COMPL. STEERING WHEEL
                                                                -INTP- -STIC- -Integrated audio system-
                                                                from £10,200.94
                                                                from £10,200.94
                                                                # 001
                                                                MPN: 88389200
                                                                COMPL. STEERING WHEEL
                                                                -INTP- -STIC- -Standard-
                                                                # 002
                                                                MPN: 299558
                                                                NUT CAP
                                                                from £0.47
                                                                from £0.47
                                                                # 003
                                                                MPN: 299557
                                                                NUT
                                                                -M16 X 1.5-
                                                                from £0.68
                                                                from £0.68
                                                                # 004
                                                                MPN: 152034
                                                                WASHER
                                                                from £3.36
                                                                from £3.36
                                                                # 005
                                                                MPN: 272107
                                                                COMPL. STEERING COLUMN
                                                                -Mechanical-
                                                                from £1,304.45
                                                                from £1,304.45
                                                                # 006
                                                                MPN: 10902324
                                                                SCREW
                                                                -M6 X 18-
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
                                                                # 006
                                                                MPN: 14306924
                                                                SCREW
                                                                -M8 X 50-
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 14306921 which we have in stock
                                                                # 007
                                                                MPN: 10519624
                                                                WASHER
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 10519601 - and 3 more. Click to view details
                                                                # 007
                                                                MPN: 11194074
                                                                WASHER
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 11194077 - and 1 more. Click to view details
                                                                # 007
                                                                MPN: 11197774
                                                                WASHER
                                                                from £0.54
                                                                from £0.54
                                                                This part replaces part number 11197770 - and 3 more. Click to view details
                                                                # 007
                                                                MPN: 12646624
                                                                WASHER
                                                                from £0.47
                                                                from £0.47
                                                                # 008
                                                                MPN: 309296
                                                                STEERING ANGLE SENSOR
                                                                from £114.23
                                                                from £114.23
                                                                # 009
                                                                MPN: 14058419
                                                                NUT
                                                                from £0.47
                                                                from £0.47
                                                                # 010
                                                                MPN: 247058
                                                                STEERING LOCK
                                                                from £350.00
                                                                from £350.00
                                                                # 011
                                                                MPN: 192053
                                                                STEERING LOCK FASTENER SCREW
                                                                from £2.47
                                                                from £2.47
                                                                # 012
                                                                MPN: 321767
                                                                SHIFT PADDLE ASSEMBLY
                                                                from £1,521.66
                                                                from £1,521.66
                                                                # 013
                                                                MPN: 314346
                                                                COMPL. STEERING SENSOR MOUNTING
                                                                from £265.16
                                                                from £265.16
                                                                # 014
                                                                MPN: 258616
                                                                BRACKET MOUNTING
                                                                from £24.88
                                                                from £24.88
                                                                # 015
                                                                MPN: 14304187
                                                                SCREW
                                                                -M5 X 12-
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 87658800
                                                                # 016
                                                                MPN: 12601174
                                                                WASHER
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 12601173 - and 5 more. Click to view details
                                                                # 017
                                                                MPN: 259914
                                                                CLOCK SPRING CONTACT
                                                                from £148.11
                                                                from £148.11
                                                                This part replaces part number 187750
                                                                # 018
                                                                MPN: 278791
                                                                STEERING COLUMN SHIELD
                                                                from £29.58
                                                                from £29.58
                                                                # 019
                                                                MPN: 214236
                                                                LED SURROUND
                                                                from £203.56
                                                                from £203.56
                                                                # 020
                                                                MPN: 237433
                                                                STEERING COLUMN GAITER FASTENER PLATE
                                                                from £15.04
                                                                from £15.04
                                                                # 021
                                                                MPN: 323022
                                                                COMPL. STEERING WHEEL MOUNTED CONTROLS
                                                                from £3,055.02
                                                                from £3,055.02
                                                                This part replaces part number 323023
                                                                # 022
                                                                MPN: 245266
                                                                STEERING COLUMN GAITER SOUNDPROOFING SEAL
                                                                from £6.95
                                                                from £6.95
                                                                # 023
                                                                MPN: 847051..
                                                                UPPER STEERING COLUMN TRIM
                                                                -Leather-
                                                                Supersession
                                                                Supersession
                                                                # 024
                                                                MPN: 847046..
                                                                LOWER STEERING COLUMN TRIM
                                                                -Leather-
                                                                Supersession
                                                                Supersession
                                                                # 025
                                                                MPN: 256323
                                                                SCREW
                                                                -M5 X 16-
                                                                from £0.47
                                                                from £0.47
                                                                # 026
                                                                MPN: 14059121
                                                                NUT
                                                                from £0.54
                                                                from £0.54
                                                                # 027
                                                                MPN: 250645
                                                                RING NUT
                                                                from £0.47
                                                                from £0.47
                                                                # 028
                                                                MPN: 13000690
                                                                SCREW COLLAR
                                                                -Applicable for mechanical steering column-
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 12177090 - and 1 more. Click to view details
                                                                # 029
                                                                MPN: 258336
                                                                MAIN SHELL
                                                                from £14.79
                                                                from £14.79
                                                                # 030
                                                                MPN: 308322
                                                                ELECTRONIC BOARD
                                                                from £376.99
                                                                from £376.99
                                                                # 031
                                                                MPN: 258338
                                                                MAIN MOUNT
                                                                from £14.79
                                                                from £14.79
                                                                # 032
                                                                MPN: 325936
                                                                CLOCK SPRING CONNECTOR HARNESS
                                                                -Only applicable for spare parts-
                                                                from £64.65
                                                                from £64.65
                                                                # 033
                                                                MPN: 212752
                                                                ROTARY SELECTOR
                                                                from £406.55
                                                                from £406.55
                                                                # 034
                                                                MPN: 273115
                                                                MANETTINO DECAL
                                                                from £29.58
                                                                from £29.58
                                                                # 035
                                                                MPN: 210986
                                                                MANETTINO LEVER
                                                                from £81.31
                                                                from £81.31
                                                                # 036
                                                                MPN: 257739
                                                                SHOCK ABSORBER HEIGHT BUTTON
                                                                from £28.83
                                                                from £28.83
                                                                # 037
                                                                MPN: 257738
                                                                ENGINE START BUTTON
                                                                from £35.49
                                                                from £35.49
                                                                # 038
                                                                MPN: 308717
                                                                WASHER FOR STEERING WHEEL MANETTINO
                                                                from £2.40
                                                                from £2.40
                                                                # 039
                                                                MPN: 191664
                                                                IMMOBILIZER ANTENNA
                                                                from £18.08
                                                                from £18.08
                                                                # 040
                                                                MPN: 255430
                                                                RH TURN INDICATORS
                                                                from £120.50
                                                                from £120.50
                                                                # 041
                                                                MPN: 255429
                                                                LH TURN INDICATORS
                                                                from £120.50
                                                                from £120.50
                                                                # 042
                                                                MPN: 291692
                                                                RH NIT BUTTON
                                                                -Integrated audio system-
                                                                from £605.54
                                                                from £605.54
                                                                # 042
                                                                MPN: 292879
                                                                LH NIT BUTTON
                                                                -Integrated audio system-
                                                                from £605.54
                                                                from £605.54
                                                                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
