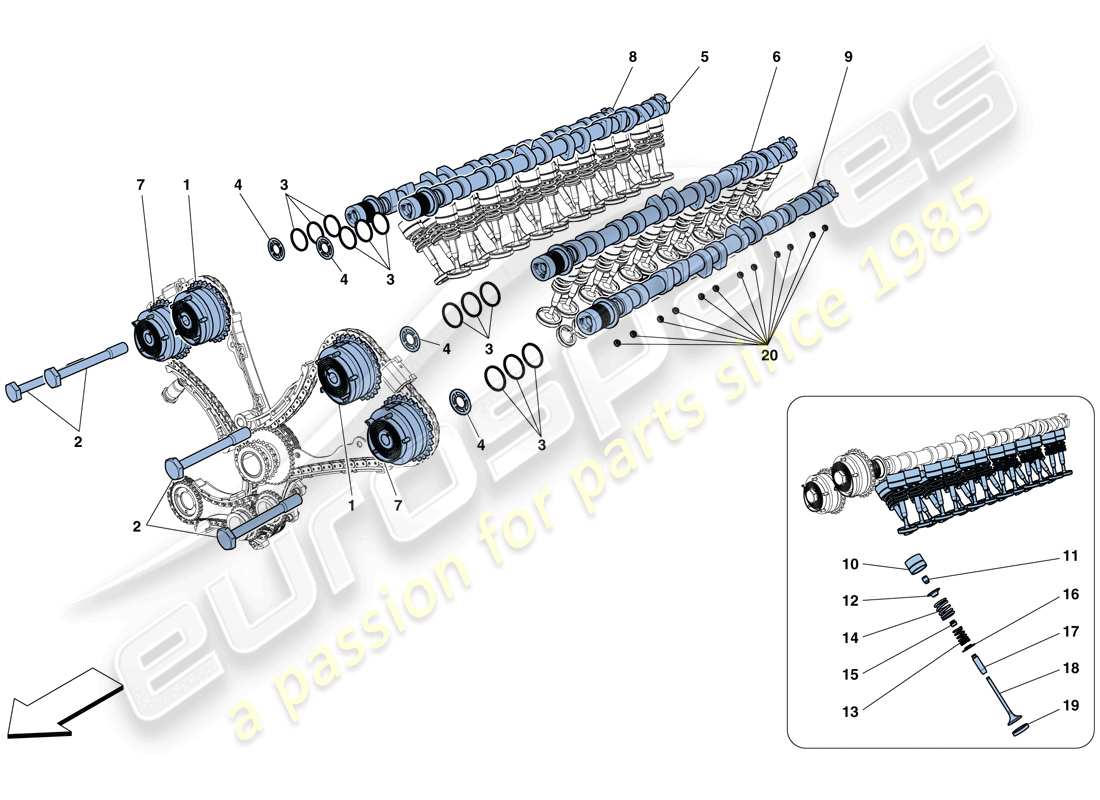

Ferrari F12 TDF (USA) TIMING SYSTEM - TAPPETS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 241906
VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT
from £148.39
from £148.39
# 002
MPN: 254892
VARIABLE TIMING ADJUSTER SCREW
-M14 X 1.5 X 109-
from £3.90
from £3.90
This part replaces part number 248022 - and 4 more. Click to view details
# 003
MPN: 197975
SEAL RING
-Also comes with engine gasket set-
from £3.86
from £3.86
# 004
MPN: 240559
DIAMOND COATED WASHER
from £4.84
from £4.84
# 005
MPN: 314867
RH INTAKE CAMSHAFT
from £343.05
from £343.05
# 006
MPN: 314868
LH INTAKE CAMSHAFT
from £343.05
from £343.05
# 007
MPN: 248020
VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT
from £149.01
from £149.01
# 008
MPN: 314869
RH EXHAUST CAMSHAFT
from £343.05
from £343.05
# 009
MPN: 314870
LH EXHAUST CAMSHAFT
from £343.05
from £343.05
# 010
MPN: 254496
MECHANICAL TAPPET
from £281.66
from £281.66
This part replaces part number 317673
# 010
MPN: 317673
MECHANICAL TAPPET
-No longer supplied- -Replaced by 254496-
Supersession
Supersession
# 011
MPN: 179763
VALVE SPRING SEMI-CONE
from £0.27
from £0.27
COTTER FOR SPRING VALVE (179763) Genuine Maserati Part - Used In stock
Removed from 4200 engine 81090
Removed from 4200 engine 81090
# 012
MPN: 237390
UPPER VALVE SPRING CAP
from £2.95
from £2.95
This part replaces part number 194713 - and 3 more. Click to view details
# 013
MPN: 238641
INTERNAL VALVE RETURN SPRING
Supersession
Supersession
# 014
MPN: 238640
EXTERNAL VALVE RETURN SPRING
Supersession
Supersession
# 015
MPN: 221473
OIL SEAL
-Also comes with engine gasket set-
from £0.95
from £0.95
# 016
MPN: 242574
LOWER STOP CAP
-Exhaust side-
from £4.67
from £4.67
This part replaces part number 194718
# 016
MPN: 247484
LOWER VALVE SPRING CAP
-Intake side-
from £3.28
from £3.28
# 017
MPN: 6213498
VALVE GUIDE
from £1.77
from £1.77
This part replaces part number 213498
# 018
MPN: 291638
INTAKE VALVE
from £6.79
from £6.79
# 018
MPN: 291851

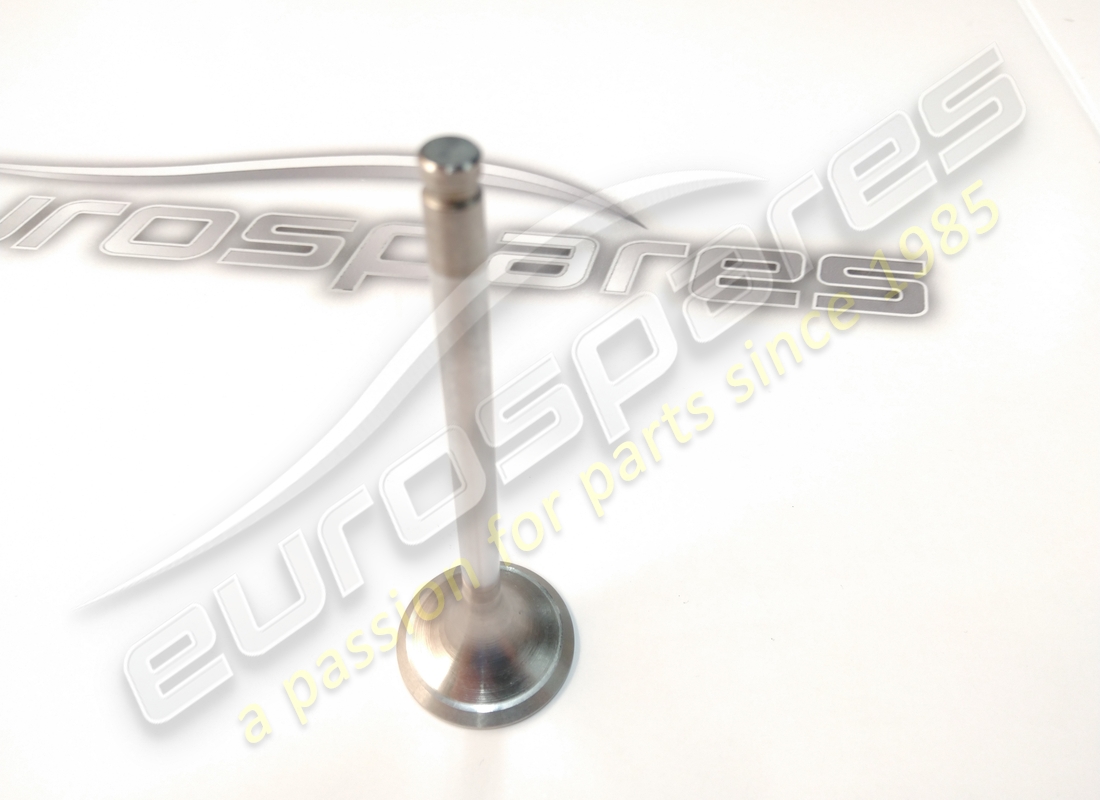

EXHAUST VALVE
from £27.50
from £27.50
# 019
MPN: 6222847
INTAKE VALVE SEAT
from £5.11
from £5.11
This part replaces part number 222847 - and 1 more. Click to view details
# 019
MPN: 6222848
EXHAUST VALVE SEAT
from £5.47
from £5.47
This part replaces part number 222848 - and 1 more. Click to view details
# 020
MPN: 149229
VALVE CLEARANCE ADJUSTER PAD
from £13.21
from £13.21
