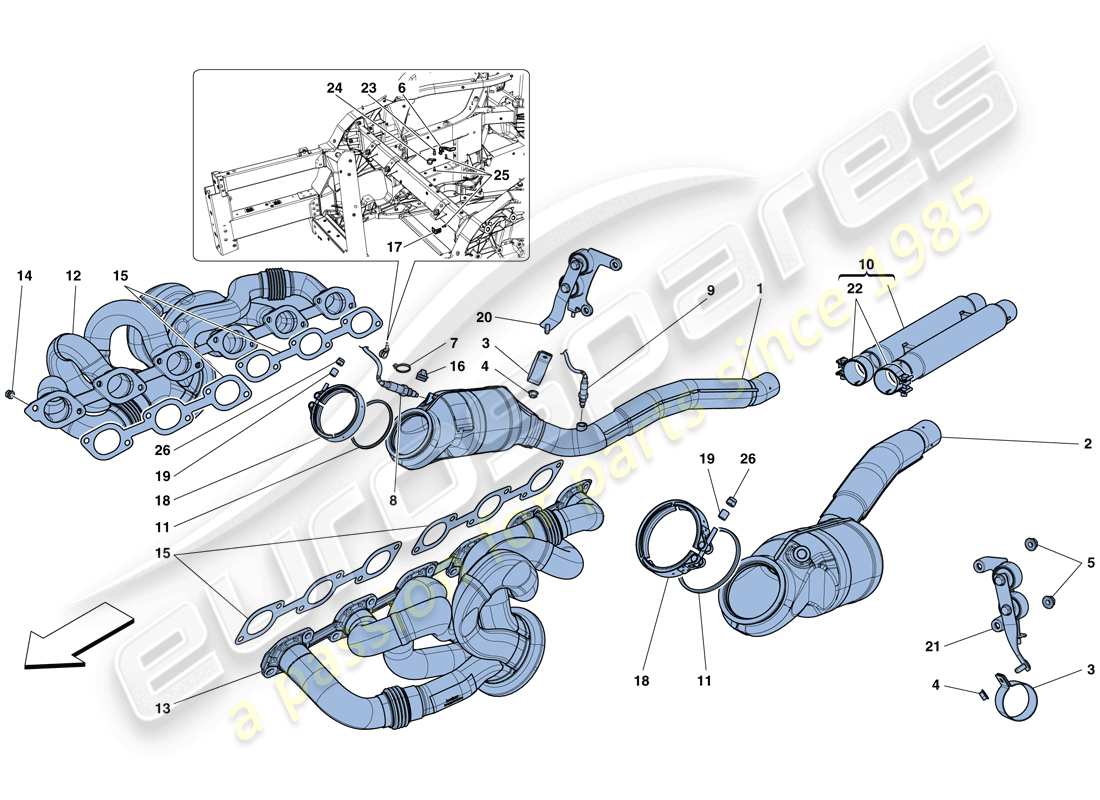

Ferrari F12 TDF (USA) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price
                                          # 002
                                          MPN: 275463
                                          COMPL. LH CATALYTIC CONVERTER
                                          from £2,647.56
                                          from £2,647.56
                                          # 003
                                          MPN: 270406
                                          RING CLAMP
                                          from £10.10
                                          from £10.10
                                          # 004
                                          MPN: 14059311
                                          NUT
                                          from £0.26
                                          from £0.26
                                          # 005
                                          MPN: 14059421
                                          NUT
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 156462
                                          # 006
                                          MPN: 290698
                                          FRONT OXYGEN SENSOR CABLE FASTENER BRACKET
                                          from £9.27
                                          from £9.27
                                          # 007
                                          MPN: 206739
                                          CABLE TIE
                                          from £3.65
                                          from £3.65
                                          This part replaces part number 243232
                                          # 008
                                          MPN: 286650
                                          FRONT OXYGEN SENSOR
                                          -L. 500 mm-
                                          Supersession
                                          Supersession
                                          # 009
                                          MPN: 180915
                                          REAR OXYGEN SENSOR
                                          -L. 1200 mm-
                                          from £26.25
                                          from £26.25
                                          This part replaces part number 177674 - and 2 more. Click to view details
                                          # 010
                                          MPN: 290883
                                          COMPL. CENTRAL EXTENSION
                                          -Applicable for Taiwan, Korea and J-
                                          from £354.52
                                          from £354.52
                                          # 010
                                          MPN: 317260
                                          COMPL. CENTRAL EXTENSION
                                          -Not for Taiwan, Korea and J-
                                          from £465.21
                                          from £465.21
                                          # 011
                                          MPN: 275465
                                          GASKET
                                          from £36.68
                                          from £36.68
                                          # 012
                                          MPN: 295005
                                          COMPL. RH EXHAUST MANIFOLD
                                          from £1,018.42
                                          from £1,018.42
                                          This part replaces part number 290514 - and 1 more. Click to view details
                                          # 013
                                          MPN: 321649
                                          COMPL. LH EXHAUST MANIFOLD
                                          from £1,851.68
                                          from £1,851.68
                                          # 014
                                          MPN: 210971
                                          NUT
                                          from £0.92
                                          from £0.92
                                          # 015
                                          MPN: 212702
                                          GASKET
                                          -Also comes with engine gasket set-
                                          from £6.85
                                          from £6.85
                                          # 016
                                          MPN: 291283
                                          CLIP
                                          from £0.53
                                          from £0.53
                                          # 017
                                          MPN: 185408
                                          CONNECTOR FASTENER BRACKET
                                          from £9.32
                                          from £9.32
                                          # 018
                                          MPN: 272264
                                          V-CLAMP FOR FASTENING CATALYTIC CONVERTER TO MANIFOLD
                                          -Applicable for Taiwan, Korea and J-
                                          from £13.95
                                          from £13.95
                                          # 018
                                          MPN: 290743
                                          V-CLAMP FOR FASTENING CATALYTIC CONVERTER TO MANIFOLD
                                          -Not for Taiwan, Korea and J-
                                          from £32.53
                                          from £32.53
                                          # 019
                                          MPN: 292946
                                          SPACER
                                          from £4.40
                                          from £4.40
                                          # 020
                                          MPN: 296303
                                          COMPLETE RH CATALYTIC CONVERTER MOUNTING BRACKET
                                          from £65.04
                                          from £65.04
                                          This part replaces part number 281237 which we have in stock - and 5 more. Click to view details
                                          # 021
                                          MPN: 296304
                                          COMPLETE LH CATALYTIC CONVERTER MOUNTING BRACKET
                                          from £65.04
                                          from £65.04
                                          This part replaces part number 281238 which we have in stock - and 5 more. Click to view details
                                          # 022
                                          MPN: 282998
                                          RING CLAMP
                                          from £17.17
                                          from £17.17
                                          # 023
                                          MPN: 232777
                                          STUD BOLT
                                          from £5.13
                                          from £5.13
                                          # 024
                                          MPN: 10419501
                                          BRACKET
                                          from £1.56
                                          from £1.56
                                          # 025
                                          MPN: 231616
                                          SCREW
                                          -M6 X 14-
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 14305724 which we have in stock
                                          # 026
                                          MPN: 292945
                                          NUT
                                          from £7.49
                                          from £7.49
