ferrari f12 tdf (usa) cooling - oil pump parts diagram

0018 - COOLING - OIL PUMP

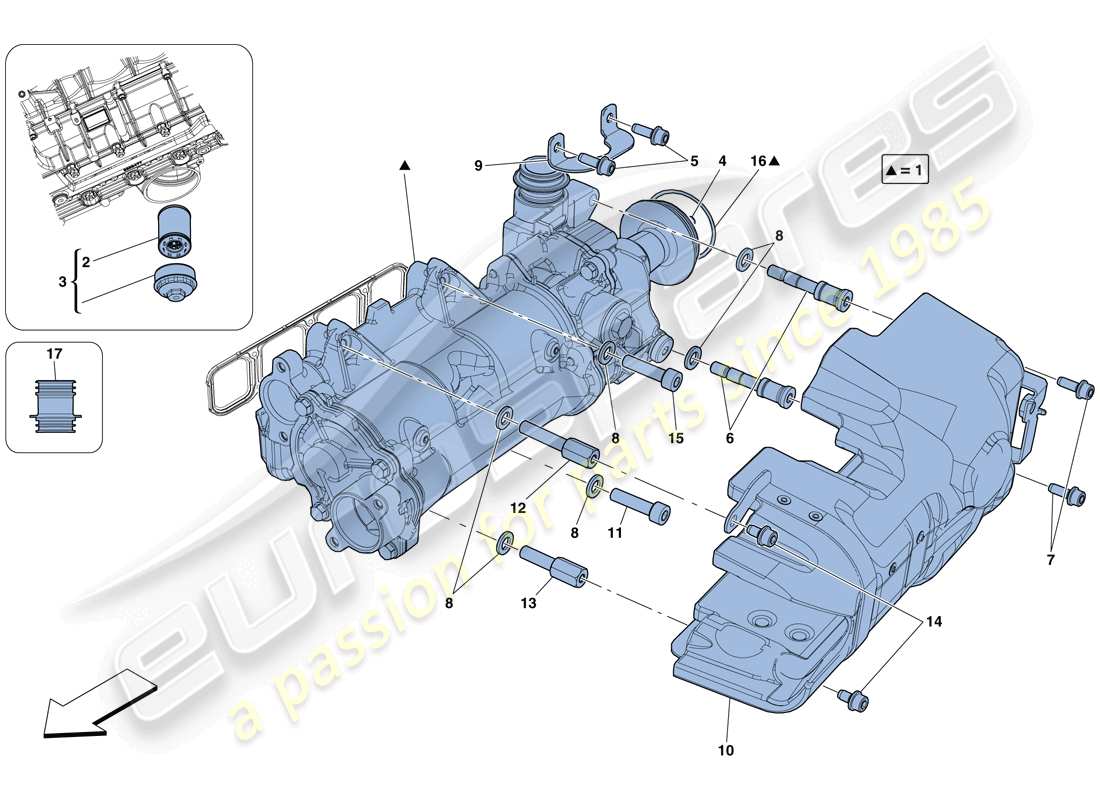

Ferrari F12 TDF (USA) COOLING - OIL PUMP Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Price
                  # 001
                  MPN: 305154

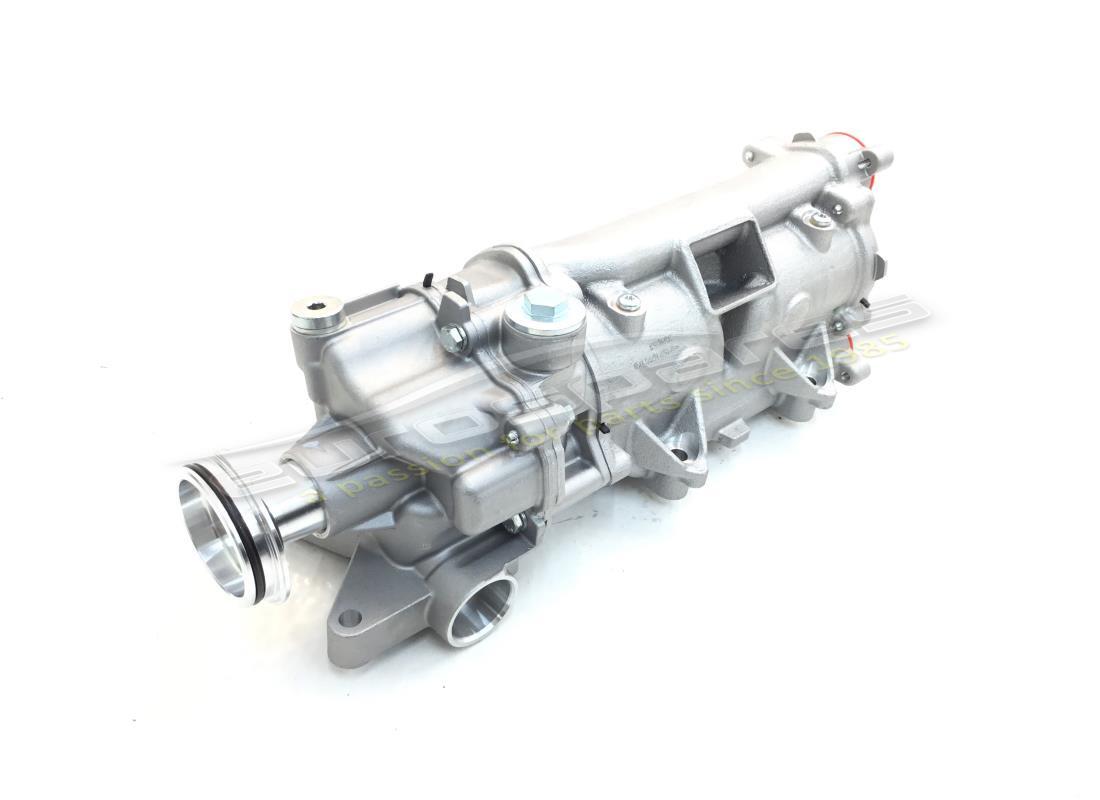

                  COMPL. OIL PUMPS
                  -No longer supplied- -Replaced by 331659-
                  from £1,833.27
                  from £1,833.27
                  This part replaces part number 298147
                  # 001
                  MPN: 331659
                  COMPL. OIL PUMPS
                  -For vehicles up to engine No. 320662 also order lower crankcase shell assembly 332018 tab.1 pos.1, bracket 327526 tab.18 pos.9 and bush 327521 tab.18 pos.17- -Applicable until depletion-
                  Supersession
                  Supersession
                  # 001
                  MPN: 340448
                  COMPL. OIL PUMPS
                  -For vehicles up to engine No. 320662 also order lower crankcase shell assembly 332018 tab.1 pos.1, bracket 327526 tab.18 pos.9 and bush 327521 tab.18 pos.17- -Applicable after depletion of 331659-
                  from £1,829.55
                  from £1,829.55
                  This part replaces part number 331659
                  # 002
                  MPN: 280900
                  OIL FILTER
                  from £66.20
                  from £66.20
                  # 003
                  MPN: 289950
                  COMPL. OIL FILTER
                  from £72.88
                  from £72.88
                  # 004
                  MPN: 295134
                  HEXAGONAL OIL PUMP DRIVE ROD
                  from £15.59
                  from £15.59
                  This part replaces part number 288975
                  # 005
                  MPN: 248334
                  SCREW
                  -M6 X 16-
                  from £0.53
                  from £0.53
                  # 006
                  MPN: 292495
                  CALIBRATED STUD BOLT
                  from £15.10
                  from £15.10
                  # 007
                  MPN: 231617
                  SCREW
                  -M6 X 18-
                  from £0.47
                  from £0.47
                  This part replaces part number 14433124
                  # 008
                  MPN: 11198074
                  WASHER
                  from £0.47
                  from £0.47
                  This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                  # 009
                  MPN: 263347
                  BRACKET
                  -Applicable up to engine No. 320662-
                  from £5.99
                  from £5.99
                  # 009
                  MPN: 327526
                  BRACKET
                  -Applicable from engine No. 320663-
                  from £4.19
                  from £4.19
                  # 010
                  MPN: 300169
                  OIL PUMP SOUNDPROOFING GUARD
                  -Applicable for USA, CDN, GD, USA LIGHT-
                  from £368.02
                  from £368.02
                  # 010
                  MPN: 325955
                  COMPL. OIL PUMP SHIELD
                  -Not for USA, CDN, GD, USA LIGHT- -Applicable until depletion-
                  Supersession
                  Supersession
                  # 010
                  MPN: 330399
                  COMPL. OIL PUMP SHIELD
                  -Not for USA, CDN, GD, USA LIGHT- -Applicable after depletion of 325955-
                  from £376.14
                  from £376.14
                  This part replaces part number 325955
                  # 011
                  MPN: 14306421
                  SCREW
                  Supersession
                  Supersession
                  # 012
                  MPN: 293410
                  STUD BOLT
                  -M8 X 35-
                  from £14.38
                  from £14.38
                  # 013
                  MPN: 293409
                  STUD BOLT
                  -M8 X 25-
                  from £9.07
                  from £9.07
                  # 014
                  MPN: 233600
                  SCREW
                  -M6 X 12-
                  from £0.47
                  from £0.47
                  # 016
                  MPN: 123353
                  O-RING
                  from £1.15
                  from £1.15
                  # 017
                  MPN: 327521
                  COMPL. OIL PUMP DELIVERY FITTING
                  -Applicable for oil pump 331659 pos.1 and crankcase assembly 332018 tab.1 pos.1-
                  from £19.14
                  from £19.14
