ferrari f12 tdf (usa) front suspension - shock absorber and brake disc parts diagram

0033 - Front Suspension - Shock Absorber and Brake Disc

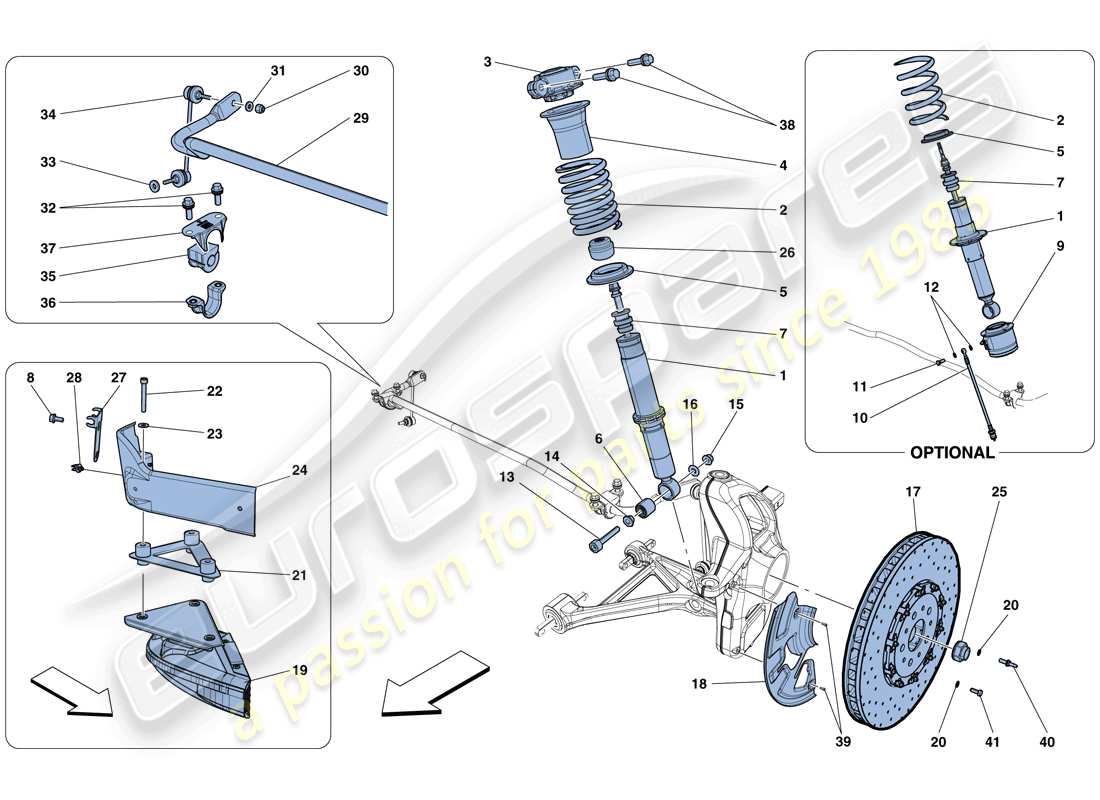

Ferrari F12 TDF (USA) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Price
                                                            # 001
                                                            MPN: 319797
                                                            FRONT SHOCK ABSORBER
                                                            from £1,012.81
                                                            from £1,012.81
                                                            # 001
                                                            MPN: 319798
                                                            FRONT SHOCK ABSORBER
                                                            -Version with lifter-
                                                            from £1,279.46
                                                            from £1,279.46
                                                            # 002
                                                            MPN: 313931
                                                            FRONT SUSPENSION SPRING
                                                            from £78.14
                                                            from £78.14
                                                            # 002
                                                            MPN: 320645
                                                            FRONT SUSPENSION SPRING
                                                            -Version with lifter-
                                                            from £102.54
                                                            from £102.54
                                                            # 003
                                                            MPN: 250394
                                                            STOP CAP
                                                            from £68.25
                                                            from £68.25
                                                            # 005
                                                            MPN: 188996
                                                            LOWER SPACER
                                                            from £4.43
                                                            from £4.43
                                                            This part replaces part number 259314 - and 8 more. Click to view details
                                                            # 006
                                                            MPN: 157630
                                                            BALL JOINT
                                                            from £48.50
                                                            from £48.50
                                                            This part replaces part number 159262
                                                            # 007
                                                            MPN: 288828
                                                            ENDSTOP BUSH
                                                            from £21.15
                                                            from £21.15
                                                            This part replaces part number 257412 - and 2 more. Click to view details
                                                            # 008
                                                            MPN: 16296924
                                                            SCREW
                                                            -M6 X 14-
                                                            from £0.47
                                                            from £0.47
                                                            This part replaces part number 289834
                                                            # 009
                                                            MPN: 300214
                                                            COMPL. ACTUATOR
                                                            -Version with lift system-
                                                            from £388.78
                                                            from £388.78
                                                            # 010
                                                            MPN: 277168
                                                            RUBBER PIPE
                                                            -Version with lifter-
                                                            from £45.50
                                                            from £45.50
                                                            # 011
                                                            MPN: 261587
                                                            CONNECTION FOR UNION
                                                            -Version with lifter-
                                                            from £16.86
                                                            from £16.86
                                                            # 012
                                                            MPN: 259638
                                                            GASKET
                                                            -Version with lifter-
                                                            from £7.84
                                                            from £7.84
                                                            # 013
                                                            MPN: 237297
                                                            SCREW
                                                            -M12 X 1.25 X 80-
                                                            from £16.08
                                                            from £16.08
                                                            # 014
                                                            MPN: 237821
                                                            BUSHING
                                                            from £2.60
                                                            from £2.60
                                                            # 015
                                                            MPN: 255271
                                                            NUT
                                                            from £0.40
                                                            from £0.40
                                                            This part replaces part number 14058721 - and 1 more. Click to view details
                                                            # 016
                                                            MPN: 12646921
                                                            WASHER
                                                            from £0.30
                                                            from £0.30
                                                            This part replaces part number 12646901 - and 1 more. Click to view details
                                                            # 017
                                                            MPN: 321910
                                                            FRONT BRAKE DISC
                                                            from £1,575.95
                                                            from £1,575.95
                                                            # 018
                                                            MPN: 297322
                                                            FRONT LH DISC SHIELD
                                                            from £7.32
                                                            from £7.32
                                                            # 018
                                                            MPN: 297323
                                                            FRONT RH DISC SHIELD
                                                            from £7.32
                                                            from £7.32
                                                            # 019
                                                            MPN: 303201
                                                            LH FRONT BRAKE AIR DUCT
                                                            from £192.93
                                                            from £192.93
                                                            # 019
                                                            MPN: 303202
                                                            RH FRONT BRAKE AIR DUCT
                                                            from £192.93
                                                            from £192.93
                                                            # 020
                                                            MPN: 228132
                                                            WASHER
                                                            from £0.47
                                                            from £0.47
                                                            # 021
                                                            MPN: 320714
                                                            BRACKET FASTENING DUCT TO LH LOWER ARM
                                                            from £31.96
                                                            from £31.96
                                                            # 021
                                                            MPN: 320715
                                                            BRACKET FASTENING DUCT TO RH LOWER ARM
                                                            from £31.96
                                                            from £31.96
                                                            # 022
                                                            MPN: 14305924
                                                            SCREW
                                                            -M6 X 45-
                                                            from £0.50
                                                            from £0.50
                                                            # 023
                                                            MPN: 11193274
                                                            WASHER
                                                            from £0.53
                                                            from £0.53
                                                            This part replaces part number 11193279 which we have in stock
                                                            # 024
                                                            MPN: 320722
                                                            COMPL. LH AIR DEFLECTOR
                                                            from £39.07
                                                            from £39.07
                                                            # 024
                                                            MPN: 320723
                                                            COMPL. RH AIR DEFLECTOR
                                                            from £21.49
                                                            from £21.49
                                                            # 025
                                                            MPN: 203780
                                                            NUT
                                                            from £11.70
                                                            from £11.70
                                                            This part replaces part number 187814
                                                            # 026
                                                            MPN: 288829
                                                            STOP CAP
                                                            from £28.46
                                                            from £28.46
                                                            # 027
                                                            MPN: 291864
                                                            ABS CABLE MOUNTING BRACKET
                                                            from £5.69
                                                            from £5.69
                                                            # 028
                                                            MPN: 261214
                                                            RAYMOND CLIP
                                                            from £0.68
                                                            from £0.68
                                                            # 029
                                                            MPN: 277262
                                                            STABILISER BAR
                                                            from £282.02
                                                            from £282.02
                                                            # 030
                                                            MPN: 12164714
                                                            NUT
                                                            from £0.47
                                                            from £0.47
                                                            # 031
                                                            MPN: 12601474
                                                            WASHER
                                                            from £0.54
                                                            from £0.54
                                                            This part replaces part number 12601471 which we have in stock - and 2 more. Click to view details
                                                            # 032
                                                            MPN: 245843
                                                            SCREW
                                                            -M10 X 1.25 X 30-
                                                            from £1.23
                                                            from £1.23
                                                            # 033
                                                            MPN: 12601474
                                                            WASHER
                                                            from £0.54
                                                            from £0.54
                                                            This part replaces part number 12601471 which we have in stock - and 2 more. Click to view details
                                                            # 034
                                                            MPN: 247950
                                                            LH SPHERICAL TIE-ROD
                                                            from £31.42
                                                            from £31.42
                                                            # 034
                                                            MPN: 247952
                                                            RH SPHERICAL TIE-ROD
                                                            from £57.13
                                                            from £57.13
                                                            # 035
                                                            MPN: 236241
                                                            STABILISER BAR BUSH
                                                            from £15.91
                                                            from £15.91
                                                            # 036
                                                            MPN: 245822
                                                            RETAINER BRACKET
                                                            from £7.05
                                                            from £7.05
                                                            # 037
                                                            MPN: 286144
                                                            BUSHING MOUNT
                                                            from £7.32
                                                            from £7.32
                                                            # 038
                                                            MPN: 248790
                                                            SCREW
                                                            from £2.17
                                                            from £2.17
                                                            # 039
                                                            MPN: 250657
                                                            SCREW
                                                            -M6 X 14-
                                                            from £4.45
                                                            from £4.45
                                                            # 040
                                                            MPN: 104370
                                                            SCREW
                                                            from £5.12
                                                            from £5.12
                                                            This part replaces part number 139981
                                                            # 041
                                                            MPN: 228131
                                                            SCREW
                                                            -M8 X 20-
                                                            from £0.47
                                                            from £0.47
