0100 - BODYSHELL - EXTERNAL TRIM

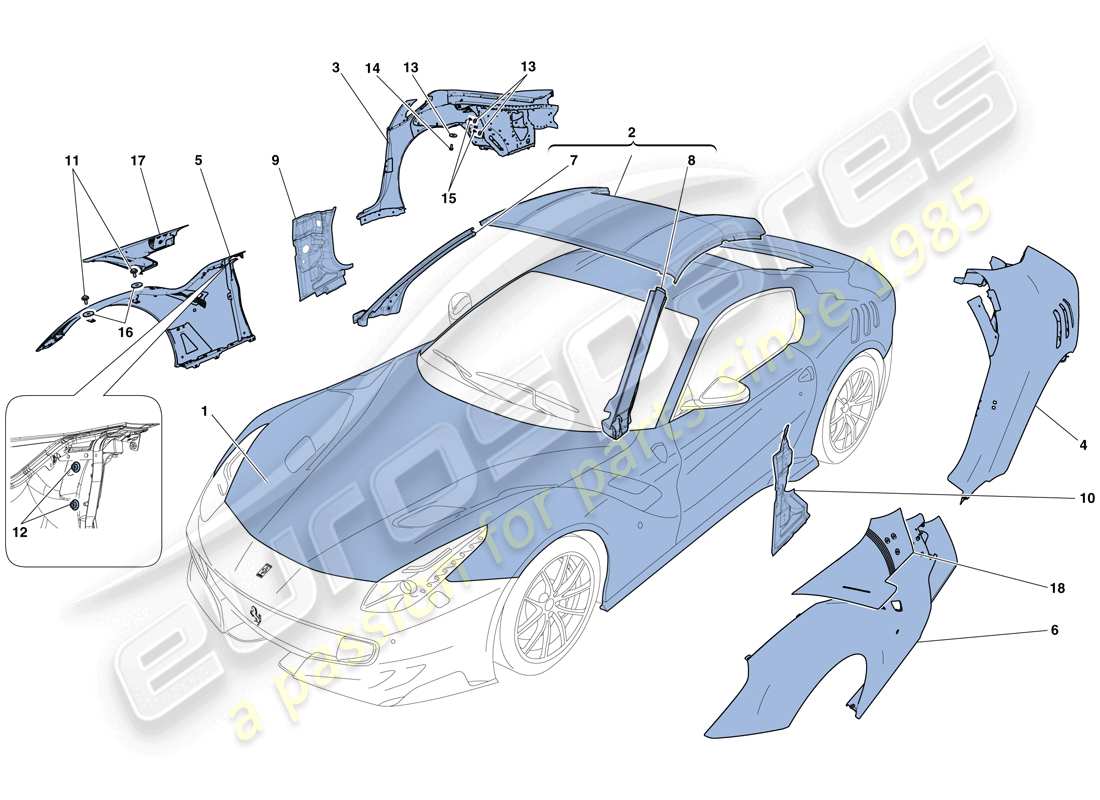

Ferrari F12 TDF (USA) BODYSHELL - EXTERNAL TRIM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            -
                            COMPLETE BODYSHELL
                            # 002
                            MPN: 87013711
                            COMPL. OUTER ROOF SKIN
                            from £2,620.89
                            from £2,620.89
                            # 003
                            MPN: 86994611
                            COMPL. REAR RH FLANK
                            from £4,311.76
                            from £4,311.76
                            # 004
                            MPN: 87005711
                            COMPL. REAR LH FLANK
                            from £4,311.76
                            from £4,311.76
                            # 005
                            MPN: 87086711
                            COMPL. RH FRONT FENDER
                            from £1,581.90
                            from £1,581.90
                            # 006
                            MPN: 87086911
                            COMPL. LH FRONT FENDER
                            from £1,581.90
                            from £1,581.90
                            # 007
                            MPN: 84225211
                            RH UPPER PILLAR EXTERNAL TRIM
                            from £659.62
                            from £659.62
                            # 008
                            MPN: 84225311
                            LH UPPER PILLAR EXTERNAL TRIM
                            from £659.62
                            from £659.62
                            # 009
                            MPN: 84400611
                            RH LOWER PILLAR EXTERNAL TRIM
                            -No longer supplied- -Replaced by 88541411-
                            Supersession
                            Supersession
                            # 009
                            MPN: 88541411
                            RH LOWER PILLAR EXTERNAL TRIM
                            from £659.62
                            from £659.62
                            This part replaces part number 84400711
                            # 010
                            MPN: 84400711
                            LH LOWER PILLAR EXTERNAL TRIM
                            -No longer supplied- -Replaced by 88541311-
                            Supersession
                            Supersession
                            # 010
                            MPN: 88541311
                            LH LOWER PILLAR EXTERNAL TRIM
                            from £659.62
                            from £659.62
                            This part replaces part number 84400611
                            # 011
                            MPN: 16286121
                            SCREW
                            from £0.47
                            from £0.47
                            # 012
                            MPN: 14039614
                            NUT
                            from £0.52
                            from £0.52
                            # 013
                            MPN: 12624101
                            WASHER
                            from £0.47
                            from £0.47
                            # 014
                            MPN: 13833224
                            SCREW
                            from £0.47
                            from £0.47
                            This part replaces part number 13833271 which we have in stock
                            # 015
                            MPN: 13833221
                            SCREW
                            from £0.71
                            from £0.71
                            # 016
                            MPN: 68040000
                            WASHER
                            from £0.47
                            from £0.47
                            # 017
                            MPN: 87191910
                            RH AERODYNAMIC FAIRING
                            -Version with shields-
                            from £4,490.32
                            from £4,490.32
                            # 017
                            MPN: 88441410
                            RH AERODYNAMIC FAIRING
                            -Not for version with shields-
                            from £5,467.90
                            from £5,467.90
                            # 018
                            MPN: 87191610
                            LH AERODYNAMIC FAIRING
                            -Version with shields-
                            from £4,490.32
                            from £4,490.32
                            # 018
                            MPN: 88441210
                            LH AERODYNAMIC FAIRING
                            -Not for version with shields-
                            from £5,467.90
                            from £5,467.90
