0108 - PASSENGER COMPARTMENT MATS

Ferrari F12 TDF (USA) PASSENGER COMPARTMENT MATS Parts Diagram

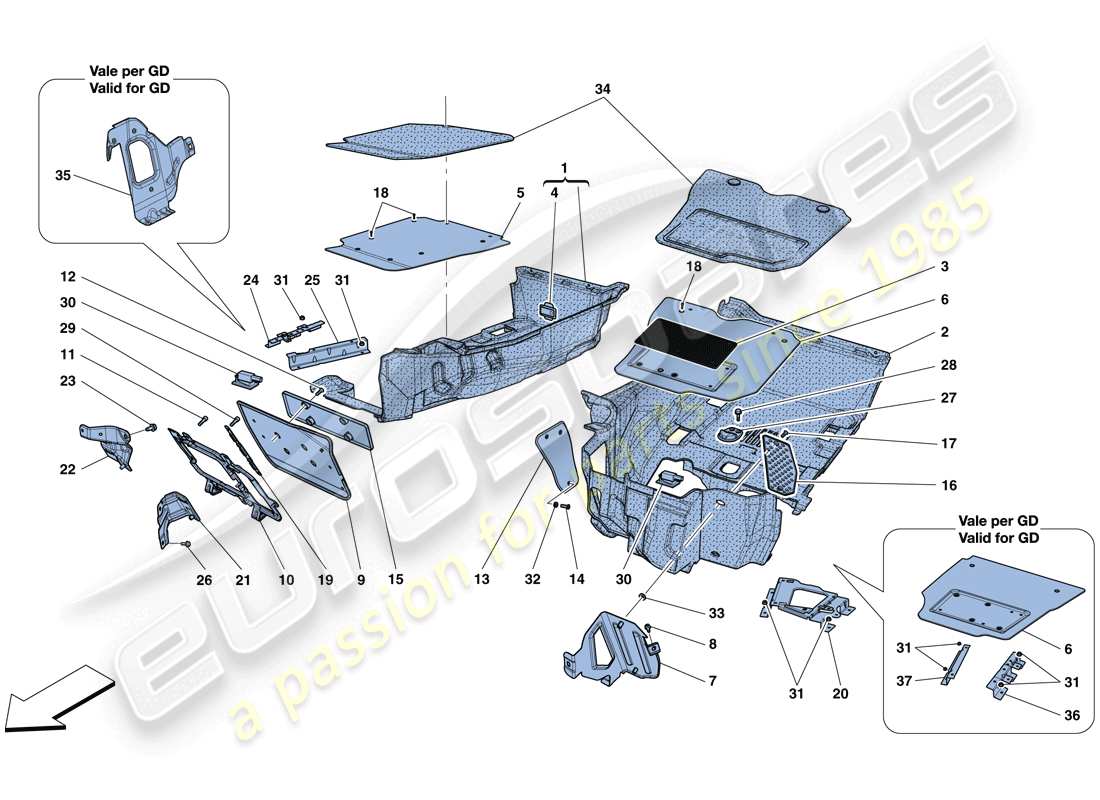

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Price
                    # 001
                    MPN: 87339300
                    COMPL. RH MAT
                    -Apollo fabric- -Not for GD-
                    from £4,264.81
                    from £4,264.81
                    # 001
                    MPN: 87681100
                    COMPL. RH MAT
                    -INTP- -Leather- -Not for GD-
                    # 001
                    MPN: 87681400
                    COMPL. RH MAT
                    -INTA- -Alcantara- -Not for GD-
                    # 001
                    MPN: 87720700
                    COMPL. RH MAT
                    -Apollo fabric- -Applicable for GD-
                    from £4,092.59
                    from £4,092.59
                    # 001
                    MPN: 87720900
                    COMPL. RH MAT
                    -INTP- -Leather- -Applicable for GD-
                    # 001
                    MPN: 87721100
                    COMPL. RH MAT
                    -INTA- -Alcantara- -Applicable for GD-
                    # 002
                    MPN: 87339800
                    COMPL. LH MAT
                    -Apollo fabric- -Not for GD-
                    from £3,962.05
                    from £3,962.05
                    # 002
                    MPN: 87680900
                    COMPL. LH MAT
                    -INTP- -Leather- -Not for GD-
                    # 002
                    MPN: 87681200
                    COMPL. LH MAT
                    -INTA- -Alcantara- -Not for GD-
                    # 002
                    MPN: 87721300
                    COMPL. LH MAT
                    -Apollo fabric- -Applicable for GD-
                    from £4,092.59
                    from £4,092.59
                    # 002
                    MPN: 87721400
                    COMPL. LH MAT
                    -INTP- -Leather- -Applicable for GD-
                    # 002
                    MPN: 87721500
                    COMPL. LH MAT
                    -INTA- -Alcantara- -Applicable for GD-
                    # 003
                    MPN: 82926200
                    DRIVER SIDE MAT INSERT
                    from £60.06
                    from £60.06
                    # 004
                    MPN: 83706000
                    INSPECTION CAP
                    -Black-
                    from £12.37
                    from £12.37
                    # 005
                    MPN: 87343700
                    PASSENGER SIDE FOOTREST
                    -Not for GD-
                    from £507.86
                    from £507.86
                    # 005
                    MPN: 87343800
                    PASSENGER SIDE FOOTREST
                    -Version with fire extinguisher- -Not for GD-
                    from £530.01
                    from £530.01
                    # 005
                    MPN: 87447200
                    PASSENGER SIDE FOOTREST
                    -Carbon- -Not for GD-
                    from £3,091.35
                    from £3,091.35
                    # 005
                    MPN: 87447300
                    PASSENGER SIDE FOOTREST
                    -Carbon- -Version with fire extinguisher- -Not for GD-
                    from £3,091.35
                    from £3,091.35
                    # 005
                    MPN: 87722600
                    PASSENGER SIDE FOOTREST
                    -Version with fire extinguisher- -Applicable for GD-
                    from £568.92
                    from £568.92
                    # 005
                    MPN: 87722700
                    PASSENGER SIDE FOOTREST
                    -Carbon- -Applicable for GD-
                    from £2,936.77
                    from £2,936.77
                    # 005
                    MPN: 87722800
                    PASSENGER SIDE FOOTREST
                    -Carbon- -Version with fire extinguisher- -Applicable for GD-
                    from £3,091.35
                    from £3,091.35
                    # 005
                    MPN: 87723000
                    PASSENGER SIDE FOOTREST
                    -Applicable for GD-
                    from £539.74
                    from £539.74
                    # 006
                    MPN: 87343600
                    DRIVER SIDE FOOTREST
                    -Not for GD-
                    from £522.59
                    from £522.59
                    # 006
                    MPN: 87447100
                    DRIVER SIDE FOOTREST
                    -Carbon- -Not for GD-
                    from £3,091.35
                    from £3,091.35
                    # 006
                    MPN: 87722400
                    DRIVER SIDE FOOTREST
                    -Applicable for GD-
                    from £4,019.51
                    from £4,019.51
                    # 006
                    MPN: 87722500
                    DRIVER SIDE FOOTREST
                    -Carbon- -Applicable for GD-
                    from £2,936.77
                    from £2,936.77
                    # 007
                    MPN: 83388800
                    DRIVER SIDE FOOTREST
                    -Not for GD-
                    from £42.50
                    from £42.50
                    # 007
                    MPN: 85462600
                    DRIVER SIDE FOOTREST
                    -Applicable for GD-
                    from £80.96
                    from £80.96
                    # 008
                    MPN: 18752121
                    SCREW
                    -M8 X 18-
                    from £0.47
                    from £0.47
                    # 009
                    MPN: 87667700
                    COMPL. PASSENGER FOOTREST BRACKET
                    -Apollo fabric- -Not for GD-
                    from £554.28
                    from £554.28
                    # 009
                    MPN: 87681700
                    COMPL. PASSENGER FOOTREST BRACKET
                    -INTP- -Leather- -Not for GD-
                    # 009
                    MPN: 87681900
                    COMPL. PASSENGER FOOTREST BRACKET
                    -INTA- -Alcantara- -Not for GD-
                    from £579.24
                    from £579.24
                    # 009
                    MPN: 87722000
                    COMPL. PASSENGER FOOTREST BRACKET
                    -Apollo fabric- -Applicable for GD-
                    from £2,192.46
                    from £2,192.46
                    # 009
                    MPN: 87722200
                    COMPL. PASSENGER FOOTREST BRACKET
                    -INTP- -Leather- -Applicable for GD-
                    # 009
                    MPN: 87761600
                    COMPL. PASSENGER FOOTREST BRACKET
                    -INTA- -Alcantara- -Applicable for GD-
                    # 010
                    MPN: 84558900
                    COMPL. PASSENGER FOOTREST STRUCTURE
                    -Applicable for GD-
                    from £113.36
                    from £113.36
                    # 010
                    MPN: 85459700
                    COMPL. PASSENGER FOOTREST STRUCTURE
                    -Not for GD-
                    from £84.66
                    from £84.66
                    # 011
                    MPN: 248334
                    SCREW
                    -M6 X 16-
                    from £0.52
                    from £0.52
                    # 012
                    MPN: 14433124
                    SCREW
                    -M6 X 18-
                    from £0.47
                    from £0.47
                    This part replaces part number 14433121
                    # 013
                    MPN: 81243100
                    ACCELERATOR PEDAL PLATE
                    -Applicable for GD-
                    from £26.24
                    from £26.24
                    # 013
                    MPN: 85305600
                    ACCELERATOR PEDAL GUARD
                    -Not for GD-
                    from £63.31
                    from £63.31
                    # 014
                    MPN: 14441434
                    SCREW
                    -M6 X 20- -Not for GD-
                    from £1.16
                    from £1.16
                    This part replaces part number 14441427 - and 1 more. Click to view details
                    # 014
                    MPN: 84865900
                    SCREW
                    -M6 X 20- -Applicable for GD-
                    from £0.47
                    from £0.47
                    # 015
                    MPN: 87734600
                    FOOTREST TRIM
                    from £221.23
                    from £221.23
                    # 016
                    MPN: 87734500
                    LH FOOTREST
                    from £243.14
                    from £243.14
                    # 017
                    MPN: 14358524
                    SCREW
                    -M6 X 18-
                    from £0.47
                    from £0.47
                    # 017
                    MPN: 14433124
                    SCREW
                    -M6 X 18- -No longer supplied- -Replaced by 14358524-
                    from £0.47
                    from £0.47
                    This part replaces part number 14433121
                    # 018
                    MPN: 14304424
                    SCREW
                    -M5 X 25- -Q.ty 9 for version with extinguisher-
                    from £0.47
                    from £0.47
                    # 018
                    MPN: 14358524
                    SCREW
                    -M6 X 18- -No longer supplied- -Replaced by 14304424-
                    from £0.47
                    from £0.47
                    # 019
                    MPN: 84558600
                    BRACKET FOR FOOTREST TRIM
                    from £33.19
                    from £33.19
                    # 020
                    MPN: 87343400
                    COMPL. LH ECU COMPARTMENT COVER BRACKET
                    -Not for GD-
                    from £42.48
                    from £42.48
                    # 021
                    MPN: 81004400
                    UPPER BRACKET
                    -Not for GD-
                    from £11.94
                    from £11.94
                    # 021
                    MPN: 84562500
                    UPPER BRACKET
                    -Applicable for GD-
                    from £14.38
                    from £14.38
                    This part replaces part number 81264000 - and 1 more. Click to view details
                    # 022
                    MPN: 82277800
                    UPPER INTERNAL BRACKET
                    -Not for GD-
                    from £15.83
                    from £15.83
                    # 022
                    MPN: 84044600
                    UPPER INTERNAL BRACKET
                    -Applicable for GD-
                    from £18.61
                    from £18.61
                    # 023
                    MPN: 18752121
                    SCREW
                    -M8 X 18-
                    from £0.47
                    from £0.47
                    # 024
                    MPN: 82287800
                    COMPL. OUTER RH HATCH LID BRACKET
                    -Applicable for GOLFO-
                    from £23.62
                    from £23.62
                    # 024
                    MPN: 83944000
                    COMPL. OUTER RH HATCH LID BRACKET
                    -Applicable for GD-
                    from £15.83
                    from £15.83
                    # 024
                    MPN: 88297500
                    COMPL. OUTER RH HATCH LID BRACKET
                    -Not for GOLFO, GD-
                    from £27.72
                    from £27.72
                    # 025
                    MPN: 82288000
                    COMPL. INNER RH HATCH LID BRACKET
                    from £11.23
                    from £11.23
                    # 026
                    MPN: 16296924
                    SCREW
                    -M6 X 14-
                    from £0.47
                    from £0.47
                    This part replaces part number 289834
                    # 027
                    MPN: 84123200
                    INERTIA SWITCH SHIELD
                    -No longer supplied- -Replaced by 89024000-
                    from £3.44
                    from £3.44
                    # 027
                    MPN: 89024000
                    INERTIA SWITCH SHIELD
                    from £3.44
                    from £3.44
                    # 028
                    MPN: 16285127
                    SCREW
                    -M5 X 16-
                    from £0.47
                    from £0.47
                    # 029
                    MPN: 248334
                    SCREW
                    -M6 X 16- -No longer supplied- -Replaced by 269959-
                    from £0.53
                    from £0.53
                    # 029
                    MPN: 269959
                    SCREW
                    -M6 X 18-
                    from £0.53
                    from £0.53
                    # 031
                    MPN: 14059211
                    NUT
                    from £0.47
                    from £0.47
                    # 032
                    MPN: 84738000
                    WASHER
                    from £0.61
                    from £0.61
                    # 033
                    MPN: 84737900
                    FLAT WASHER
                    from £2.69
                    from £2.69
                    # 034
                    MPN: 88445800
                    REMOVABLE MAT KIT
                    -INTA- -STC1- -STC2- -Not for GOLFO, GD-
                    from £875.26
                    from £875.26
                    # 034
                    MPN: 88445900
                    REMOVABLE MAT KIT
                    -Version with fire extinguisher- -INTA- -STC1- -STC2- -Not for GD-
                    from £875.26
                    from £875.26
                    # 034
                    MPN: 88446000
                    REMOVABLE MAT KIT
                    -INTA- -STC1- -STC2- -Applicable for GD-
                    from £875.26
                    from £875.26
                    # 034
                    MPN: 88446100
                    REMOVABLE MAT KIT
                    -Version with fire extinguisher- -INTA- -STC1- -STC2- -Applicable for GD-
                    from £851.45
                    from £851.45
                    # 035
                    MPN: 81264200
                    ACCELERATOR PEDAL SHIELD FASTENER BRACKET
                    -Applicable for GD-
                    from £27.49
                    from £27.49
                    # 036
                    MPN: 83944400
                    COMPL. OUTER LH HATCH LID BRACKET
                    -Applicable for GD- -Applicable until depletion-
                    from £11.77
                    from £11.77
                    # 036
                    MPN: 88717600
                    COMPL. OUTER LH HATCH LID BRACKET
                    -Applicable for GD- -Applicable after depletion of 83944400-
                    from £25.76
                    from £25.76
                    This part replaces part number 83944400 which we have in stock
                    # 037
                    MPN: 82288100
                    COMPL. INNER LH HATCH LID BRACKET
                    -Applicable for GD-
                    from £11.23
                    from £11.23
