ferrari f12 tdf (usa) shields - external trim parts diagram

0128 - SHIELDS - EXTERNAL TRIM

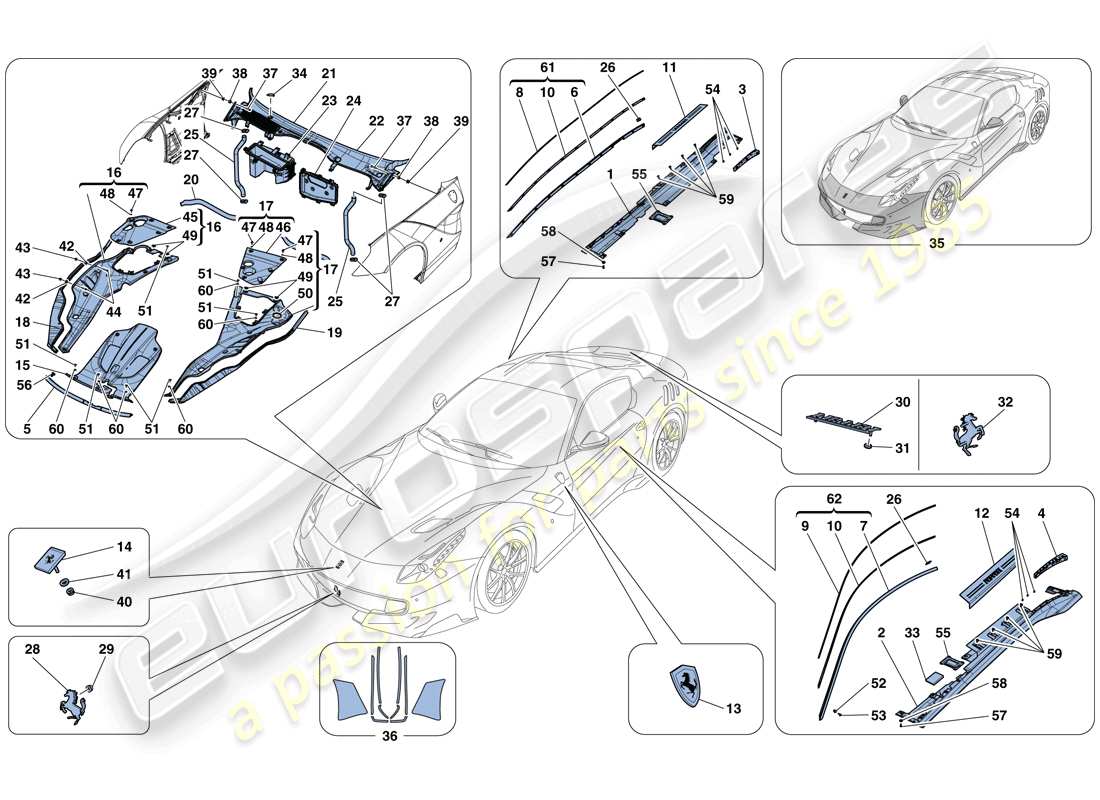

Ferrari F12 TDF (USA) SHIELDS - EXTERNAL TRIM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Price
                                                                              # 001
                                                                              MPN: 87157100
                                                                              COMPL. RH OUTER SILL COVER
                                                                              -Applicable for AUS, USA, CDN, J, USA LIGHT-
                                                                              from £547.71
                                                                              from £547.71
                                                                              # 001
                                                                              MPN: 87533000
                                                                              COMPL. RH OUTER SILL COVER
                                                                              -Carbon version-
                                                                              from £3,612.71
                                                                              from £3,612.71
                                                                              # 002
                                                                              MPN: 87157000
                                                                              COMPL. LH OUTER SILL COVER
                                                                              -Applicable for AUS, USA, CDN, J, USA LIGHT-
                                                                              from £547.71
                                                                              from £547.71
                                                                              # 002
                                                                              MPN: 87532900
                                                                              COMPL. LH OUTER SILL COVER
                                                                              -Carbon version-
                                                                              from £3,612.71
                                                                              from £3,612.71
                                                                              # 003
                                                                              MPN: 84416000
                                                                              REAR RH BRACKET
                                                                              from £2.96
                                                                              from £2.96
                                                                              # 004
                                                                              MPN: 84416100
                                                                              REAR LH BRACKET
                                                                              from £2.96
                                                                              from £2.96
                                                                              # 005
                                                                              MPN: 83411100
                                                                              UPPER SEAL FOR FRONT BUMPER
                                                                              from £305.02
                                                                              from £305.02
                                                                              # 006
                                                                              MPN: 87152400
                                                                              RH ROOF GUTTER MOULDING
                                                                              from £281.09
                                                                              from £281.09
                                                                              # 007
                                                                              MPN: 87152300
                                                                              LH ROOF GUTTER MOULDING
                                                                              from £281.09
                                                                              from £281.09
                                                                              # 008
                                                                              MPN: 87156400
                                                                              RH ROOF GUTTER MOULDING SEAL
                                                                              Supersession
                                                                              Supersession
                                                                              # 009
                                                                              MPN: 87151300
                                                                              LH ROOF GUTTER MOULDING SEAL
                                                                              Supersession
                                                                              Supersession
                                                                              # 010
                                                                              MPN: 87156500
                                                                              DOUBLE-SIDED ADHESIVE SPACER ON ROOF GUTTER MOULDING
                                                                              # 011
                                                                              MPN: 85891000
                                                                              RH KICKPLATE
                                                                              -Carbon version-
                                                                              from £515.17
                                                                              from £515.17
                                                                              This part replaces part number 84654900
                                                                              # 012
                                                                              MPN: 85890800
                                                                              LH KICKPLATE
                                                                              -Carbon version-
                                                                              from £515.17
                                                                              from £515.17
                                                                              This part replaces part number 84654700
                                                                              # 013
                                                                              MPN: 84829200
                                                                              SQUADRA CORSE SHIELD BADGE
                                                                              -Version with shields-
                                                                              from £294.60
                                                                              from £294.60
                                                                              # 014
                                                                              MPN: 65394800
                                                                              front badge
                                                                              from £101.47
                                                                              from £101.47
                                                                              # 015
                                                                              MPN: 87625100
                                                                              COMPL. CENTRAL ENGINE COMPARTMENT COVER
                                                                              from £146.38
                                                                              from £146.38
                                                                              # 015
                                                                              MPN: 87625400
                                                                              COMPL. CENTRAL ENGINE COMPARTMENT COVER
                                                                              -Carbon-
                                                                              from £2,627.62
                                                                              from £2,627.62
                                                                              # 016
                                                                              MPN: 87157400
                                                                              COMPL. RH LATERAL RH ENGINE COMPARTMENT COVER
                                                                              -Not for GD-
                                                                              from £216.95
                                                                              from £216.95
                                                                              # 016
                                                                              MPN: 87625600
                                                                              COMPL. RH LATERAL RH ENGINE COMPARTMENT COVER
                                                                              -Carbon- -Not for GD-
                                                                              from £4,087.04
                                                                              from £4,087.04
                                                                              # 016
                                                                              MPN: 87868700
                                                                              COMPL. RH LATERAL RH ENGINE COMPARTMENT COVER
                                                                              -Applicable for GD-
                                                                              from £226.12
                                                                              from £226.12
                                                                              # 016
                                                                              MPN: 87868900
                                                                              COMPL. RH LATERAL RH ENGINE COMPARTMENT COVER
                                                                              -Carbon- -Applicable for GD-
                                                                              from £4,087.04
                                                                              from £4,087.04
                                                                              # 017
                                                                              MPN: 87157300
                                                                              COMPL. LH LATERAL ENGINE COMPARTMENT COVER
                                                                              -Not for GD-
                                                                              from £119.32
                                                                              from £119.32
                                                                              # 017
                                                                              MPN: 87625900
                                                                              COMPL. LH LATERAL ENGINE COMPARTMENT COVER
                                                                              -Carbon- -Not for GD-
                                                                              from £4,087.04
                                                                              from £4,087.04
                                                                              # 017
                                                                              MPN: 87868800
                                                                              COMPL. LH LATERAL ENGINE COMPARTMENT COVER
                                                                              -Applicable for GD-
                                                                              from £226.12
                                                                              from £226.12
                                                                              # 017
                                                                              MPN: 87869000
                                                                              COMPL. LH LATERAL ENGINE COMPARTMENT COVER
                                                                              -Carbon- -Applicable for GD-
                                                                              from £4,087.04
                                                                              from £4,087.04
                                                                              # 018
                                                                              MPN: 83918800
                                                                              RH SEAL
                                                                              from £125.39
                                                                              from £125.39
                                                                              # 019
                                                                              MPN: 83918900
                                                                              LH SEAL
                                                                              from £227.99
                                                                              from £227.99
                                                                              # 020
                                                                              MPN: 83363900
                                                                              UNDERWINDSCREEN TRAY SEAL
                                                                              from £42.78
                                                                              from £42.78
                                                                              # 021
                                                                              MPN: 84307700
                                                                              RH UNDERWINDSCREEN TRAY
                                                                              -Not for GD-
                                                                              from £56.19
                                                                              from £56.19
                                                                              # 021
                                                                              MPN: 85031800
                                                                              RH UNDERWINDSCREEN TRAY
                                                                              -Applicable for GD-
                                                                              from £88.30
                                                                              from £88.30
                                                                              # 022
                                                                              MPN: 84307900
                                                                              LH UNDERWINDSCREEN TRAY
                                                                              -Not for GD-
                                                                              from £102.17
                                                                              from £102.17
                                                                              # 022
                                                                              MPN: 85031300
                                                                              LH UNDERWINDSCREEN TRAY
                                                                              -Applicable for GD-
                                                                              from £88.30
                                                                              from £88.30
                                                                              # 023
                                                                              MPN: 84058100
                                                                              AC UNIT AIR INTAKE TRAY, MOBILE PART
                                                                              -Not for GD-
                                                                              from £86.30
                                                                              from £86.30
                                                                              # 023
                                                                              MPN: 84976800
                                                                              AC UNIT AIR INTAKE TRAY, MOBILE PART
                                                                              -Applicable for GD-
                                                                              from £80.27
                                                                              from £80.27
                                                                              # 024
                                                                              MPN: 83917200
                                                                              AC UNIT AIR INTAKE TRAY, FIXED PART
                                                                              -Not for GD-
                                                                              from £61.28
                                                                              from £61.28
                                                                              # 024
                                                                              MPN: 84841600
                                                                              AC UNIT AIR INTAKE TRAY, FIXED PART
                                                                              -Applicable for GD-
                                                                              from £74.26
                                                                              from £74.26
                                                                              # 025
                                                                              MPN: 83364200

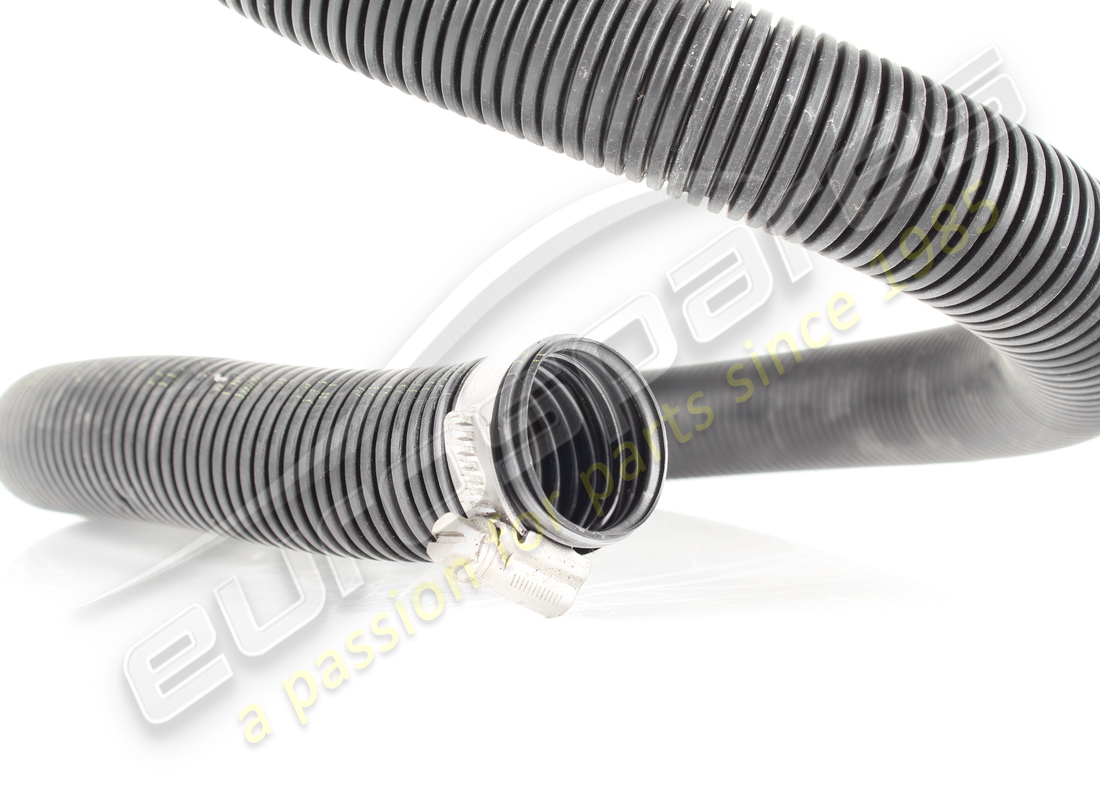

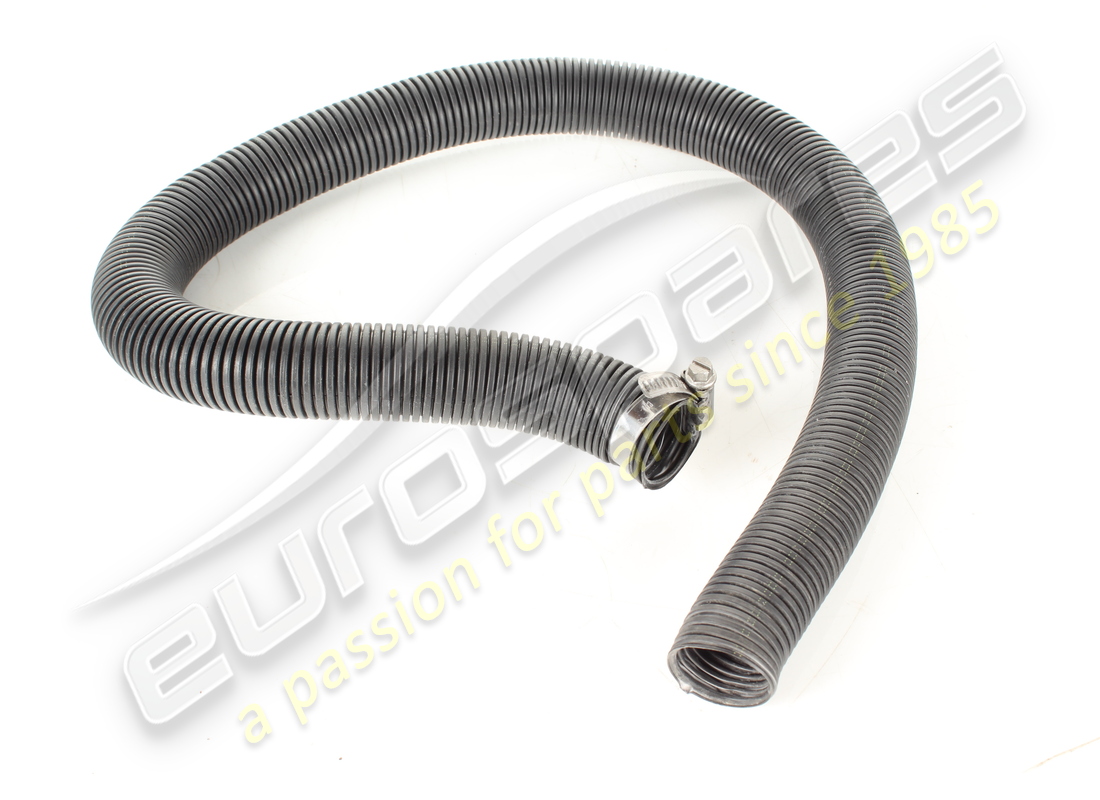

                                                                              WATER DRAIN PIPE
                                                                              -Not for GD-
                                                                              from £2.42
                                                                              from £2.42
                                                                              # 025
                                                                              MPN: 83364200
                                                                              WATER DRAIN PIPE
                                                                              -RH side- -Applicable for GD-
                                                                              from £2.42
                                                                              from £2.42
                                                                              # 025
                                                                              MPN: 85031600
                                                                              WATER DRAIN PIPE
                                                                              -LH side- -Applicable for GD-
                                                                              from £2.36
                                                                              from £2.36
                                                                              # 026
                                                                              MPN: 86746200
                                                                              MOULDING FASTENER CLIP
                                                                              from £1.27
                                                                              from £1.27
                                                                              # 027
                                                                              MPN: 296779
                                                                              SCREW COLLAR
                                                                              from £3.87
                                                                              from £3.87
                                                                              # 028
                                                                              MPN: 84933700
                                                                              CAVALLINO RAMPANTE BADGE
                                                                              from £40.14
                                                                              from £40.14
                                                                              # 029
                                                                              MPN: 16101711
                                                                              NUT
                                                                              from £0.53
                                                                              from £0.53
                                                                              This part replaces part number 16101715
                                                                              # 030
                                                                              MPN: 61025000
                                                                              Ferrari BADGE
                                                                              from £56.92
                                                                              from £56.92
                                                                              This part replaces part number 30028500 which we have in stock - and 2 more. Click to view details
                                                                              # 031
                                                                              MPN: 60324506
                                                                              CLIP
                                                                              -No longer supplied- -Replaced by 84952000-
                                                                              from £1.55
                                                                              from £1.55
                                                                              This part replaces part number 62773000
                                                                              # 031
                                                                              MPN: 84952000
                                                                              COSMETIC CAP
                                                                              from £5.82
                                                                              from £5.82
                                                                              # 032
                                                                              MPN: 60032109
                                                                              CAVALLINO RAMPANTE BADGE
                                                                              from £33.60
                                                                              from £33.60
                                                                              This part replaces part number 253-44-302-02 which we have in stock - and 3 more. Click to view details
                                                                              # 032
                                                                              MPN: 83203000
                                                                              CAVALLINO RAMPANTE BADGE
                                                                              -No longer supplied- -Replaced by 60032109-
                                                                              from £24.31
                                                                              from £24.31
                                                                              This part replaces part number 85658300
                                                                              # 033
                                                                              MPN: 69651700
                                                                              FOAM PROTECTION
                                                                              from £2.15
                                                                              from £2.15
                                                                              # 034
                                                                              MPN: 84434900
                                                                              FASTENER COVER CAP
                                                                              -Not for GD-
                                                                              from £1.42
                                                                              from £1.42
                                                                              # 034
                                                                              MPN: 85031700
                                                                              FASTENER COVER CAP
                                                                              -Applicable for GD-
                                                                              from £1.25
                                                                              from £1.25
                                                                              # 035
                                                                              MPN: 70003907
                                                                              COMPL. FILM KIT
                                                                              -Not for USA, CDN-
                                                                              from £1,599.36
                                                                              from £1,599.36
                                                                              # 035
                                                                              MPN: 70003908
                                                                              LH SIDE FILM KIT
                                                                              from £947.06
                                                                              from £947.06
                                                                              # 035
                                                                              MPN: 70003909
                                                                              RH SIDE FILM KIT
                                                                              from £947.06
                                                                              from £947.06
                                                                              # 035
                                                                              MPN: 70003910
                                                                              FRONT ADHESIVE FILM KIT
                                                                              -Not for USA, CDN-
                                                                              from £1,122.06
                                                                              from £1,122.06
                                                                              # 035
                                                                              MPN: 70003998
                                                                              COMPL. FILM KIT
                                                                              -Applicable for USA, CDN-
                                                                              from £1,563.85
                                                                              from £1,563.85
                                                                              # 035
                                                                              MPN: 70003999
                                                                              FRONT ADHESIVE FILM KIT
                                                                              -Applicable for USA, CDN-
                                                                              from £1,216.33
                                                                              from £1,216.33
                                                                              # 036
                                                                              MPN: 70003911
                                                                              HIGH WEAR FILM KIT
                                                                              from £269.02
                                                                              from £269.02
                                                                              # 037
                                                                              MPN: 15958077
                                                                              SCREW
                                                                              from £1.91
                                                                              from £1.91
                                                                              # 038
                                                                              MPN: 67324300
                                                                              SPACER
                                                                              from £1.53
                                                                              from £1.53
                                                                              # 039
                                                                              MPN: 14215480
                                                                              BLOCK
                                                                              from £0.54
                                                                              from £0.54
                                                                              This part replaces part number 14211580
                                                                              # 040
                                                                              MPN: 113647
                                                                              NUT
                                                                              from £0.54
                                                                              from £0.54
                                                                              # 041
                                                                              MPN: 12638124
                                                                              WASHER
                                                                              from £0.54
                                                                              from £0.54
                                                                              This part replaces part number 12638101 which we have in stock - and 1 more. Click to view details
                                                                              # 042
                                                                              MPN: 85243800
                                                                              SPACER
                                                                              from £1.61
                                                                              from £1.61
                                                                              # 043
                                                                              MPN: 14215480
                                                                              BLOCK
                                                                              from £0.53
                                                                              from £0.53
                                                                              This part replaces part number 14211580
                                                                              # 044
                                                                              MPN: 15958077
                                                                              SCREW
                                                                              from £1.80
                                                                              from £1.80
                                                                              # 045
                                                                              MPN: 87157800
                                                                              RH INSPECTION COVER
                                                                              -Not for GD-
                                                                              from £73.28
                                                                              from £73.28
                                                                              # 045
                                                                              MPN: 87625800
                                                                              RH INSPECTION COVER
                                                                              -Carbon- -Not for GD-
                                                                              from £1,408.79
                                                                              from £1,408.79
                                                                              # 045
                                                                              MPN: 87819800
                                                                              RH INSPECTION COVER
                                                                              -Applicable for GD-
                                                                              from £73.28
                                                                              from £73.28
                                                                              # 045
                                                                              MPN: 87868600
                                                                              RH INSPECTION COVER
                                                                              -Carbon- -Applicable for GD-
                                                                              from £1,408.79
                                                                              from £1,408.79
                                                                              # 046
                                                                              MPN: 87157700
                                                                              LH INSPECTION COVER
                                                                              -Not for GD-
                                                                              from £73.28
                                                                              from £73.28
                                                                              # 046
                                                                              MPN: 87626100
                                                                              LH INSPECTION COVER
                                                                              -Carbon- -Not for GD-
                                                                              from £1,408.79
                                                                              from £1,408.79
                                                                              # 046
                                                                              MPN: 87819900
                                                                              LH INSPECTION COVER
                                                                              -Applicable for GD-
                                                                              from £73.28
                                                                              from £73.28
                                                                              # 046
                                                                              MPN: 87868500
                                                                              LH INSPECTION COVER
                                                                              -Carbon- -Applicable for GD-
                                                                              from £1,408.79
                                                                              from £1,408.79
                                                                              # 047
                                                                              MPN: 84927100
                                                                              QUARTER TURN SCREW
                                                                              from £8.03
                                                                              from £8.03
                                                                              # 048
                                                                              MPN: 83957000
                                                                              FASTENING FOR SCREW
                                                                              from £4.02
                                                                              from £4.02
                                                                              # 049
                                                                              MPN: 83914300
                                                                              CLIP
                                                                              from £8.03
                                                                              from £8.03
                                                                              # 050
                                                                              MPN: 82742000
                                                                              RING
                                                                              from £36.49
                                                                              from £36.49
                                                                              # 051
                                                                              MPN: 256490
                                                                              SCREW
                                                                              from £1.08
                                                                              from £1.08
                                                                              This part replaces part number 86607000
                                                                              # 052
                                                                              MPN: 14115680
                                                                              BLOCK
                                                                              from £0.48
                                                                              from £0.48
                                                                              # 053
                                                                              MPN: 15538777
                                                                              SCREW
                                                                              from £0.51
                                                                              from £0.51
                                                                              # 054
                                                                              MPN: 12578011
                                                                              NUT
                                                                              from £0.53
                                                                              from £0.53
                                                                              # 055
                                                                              MPN: 269375
                                                                              RH VEHICLE LIFT BRACKET
                                                                              from £12.54
                                                                              from £12.54
                                                                              # 056
                                                                              MPN: 84436400
                                                                              button
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 057
                                                                              MPN: 10902387
                                                                              SCREW
                                                                              -M6 X 18-
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 10902327 which we have in stock
                                                                              # 058
                                                                              MPN: 12640678
                                                                              WASHER
                                                                              from £1.14
                                                                              from £1.14
                                                                              This part replaces part number 12640677
                                                                              # 059
                                                                              MPN: 80874900
                                                                              SCREW
                                                                              -M6 X 22-
                                                                              from £0.72
                                                                              from £0.72
                                                                              # 060
                                                                              MPN: 13579478
                                                                              WASHER
                                                                              -Applicable for carbon covers- -No longer supplied- -Replaced by 84533500-
                                                                              from £0.48
                                                                              from £0.48
                                                                              # 060
                                                                              MPN: 84533500
                                                                              WASHER
                                                                              -Applicable for carbon covers-
                                                                              Supersession
                                                                              Supersession
                                                                              # 061
                                                                              MPN: 87154400
                                                                              COMPL. RH ROOF GUTTER MOULDING
                                                                              -After depletion, order loose components- -Applicable until depletion-
                                                                              from £546.12
                                                                              from £546.12
                                                                              This part replaces part number 87156400
                                                                              # 062
                                                                              MPN: 87154300
                                                                              COMPL. LH ROOF GUTTER MOULDING
                                                                              -After depletion, order loose components- -Applicable until depletion-
                                                                              from £546.12
                                                                              from £546.12
                                                                              This part replaces part number 87151300
