010 - Tanks and Gasoline Vent System -Valid for USA-

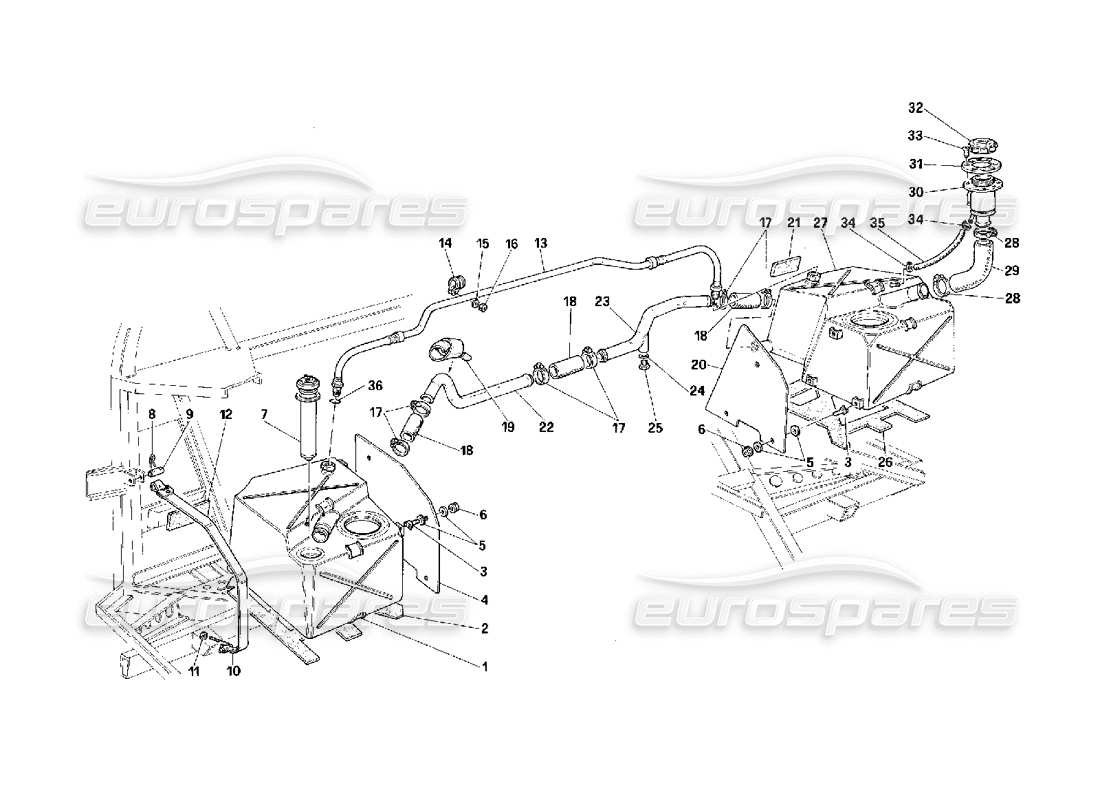

Ferrari F40 Tanks and Gasoline Vent System -Valid for USA- Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 143445
FUEL TANK LH
from £5,439.11
from £5,439.11
# 002
MPN: 144005
RUBBER SPACER
from £49.07
from £49.07
# 003
MPN: 14664790
SCREW
from £0.52
from £0.52
# 004
MPN: 144348
LH PROTECTION
from £160.43
from £160.43
# 005
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 006
MPN: 14058411
NUT
from £0.52
from £0.52
# 007
MPN: 143002
FUEL LEVEL
from £751.19
from £751.19
# 008
MPN: 10796440
SPLIT PIN
from £0.71
from £0.71
This part replaces part number 10796401 - and 1 more. Click to view details
# 009
MPN: 103447
PIN
from £12.86
from £12.86
# 010
MPN: 142793
BELT
Supersession
Supersession
# 011
MPN: 104030
SELF LOCKING NUT
from £0.53
from £0.53
This part replaces part number 16104125
# 012
MPN: 142798
RUBBER SPACER
from £0.86
from £0.86
# 013
MPN: 137660
EXHAUST PIPE TANKS
from £352.82
from £352.82
# 014
MPN: 10441490
BRACKET
from £0.50
from £0.50
# 015
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 016
MPN: 12574211
NUT
from £0.71
from £0.71
# 017
MPN: 13000590
CLAMP
from £0.47
from £0.47
This part replaces part number 105622 - and 2 more. Click to view details
# 018
MPN: 114277
SLEEVE
from £30.60
from £30.60
This part replaces part number 101468 - and 3 more. Click to view details
# 019
MPN: 139298
Insulation
# 020
MPN: 144347
RH PROTECTION
from £160.43
from £160.43
# 021
MPN: 142797
RUBBER SPACER
from £0.69
from £0.69
# 022
MPN: 144327
LH TANK CONNECTION PIPE
from £35.46
from £35.46
# 023
MPN: 144326
RH TANK CONNECTION PIPE
from £75.03
from £75.03
# 024
MPN: 10278650
GASKET
from £0.47
from £0.47
# 025
MPN: 10300771
FUEL DRAIN PLUG
from £0.58
from £0.58
# 026
MPN: 142799
RUBBER SPACER
from £45.29
from £45.29
# 027
MPN: 143444
FUEL TANK RH
from £5,439.11
from £5,439.11
# 028
MPN: 12174190
CLAMP
Supersession
Supersession
# 029
MPN: 143798
PIPE FROM UNION TO TANK
from £194.24
from £194.24
# 030
MPN: 140492
UNION
from £462.45
from £462.45
# 031
MPN: 143981
FLANGE
from £264.25
from £264.25
# 032
MPN: 180320
FUEL CAP
from £181.43
from £181.43
# 033
MPN: 149950
SCREW
from £0.71
from £0.71
This part replaces part number 14440931
# 034
MPN: 12179090
CLAMP
Supersession
Supersession
This part replaces part number 102721
# 035
MPN: 133984
EXHAUST PIPE
from £2.07
from £2.07
# 036
MPN: 128702
GASKET
from £2.45
from £2.45
