028 - Brakes and Clutch Control Pedals

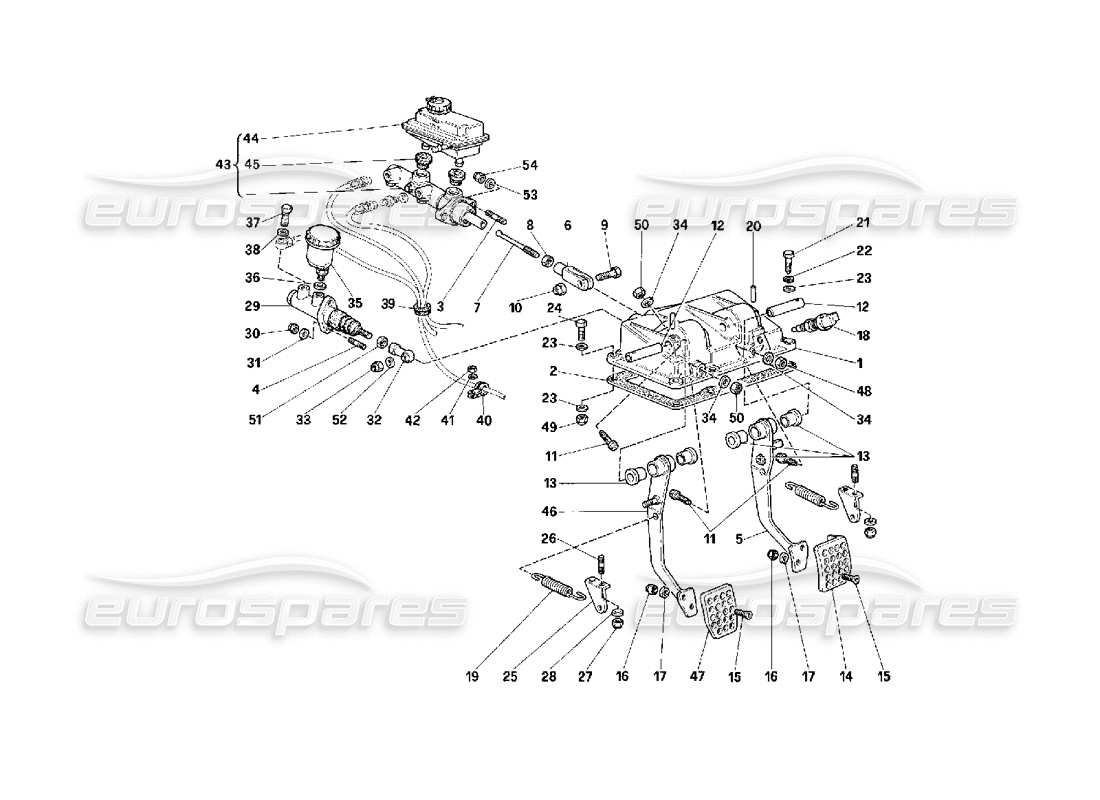

Ferrari F40 Brakes and Clutch Control Pedals Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 133344
SUPPORT
from £791.67
from £791.67
# 002
MPN: 128627
GASKET
from £53.21
from £53.21
This part replaces part number 163251
# 003
MPN: 12429621
STUD
from £14.91
from £14.91
# 004
MPN: 13543324
STUD
from £0.57
from £0.57
This part replaces part number 13543321
# 005
MPN: 133553
BRAKE PEDAL
from £1,137.18
from £1,137.18
# 006
MPN: 133393
FORK
from £163.85
from £163.85
# 007
MPN: 137650
PIN
from £20.25
from £20.25
# 008
MPN: 16102311
NUT
from £0.43
from £0.43
This part replaces part number 16102315
# 009
MPN: 137116
SCREW
from £4.37
from £4.37
# 010
MPN: 16104411
NUT
from £0.54
from £0.54
# 011
MPN: 128620
SCREW PEDAL
from £35.22
from £35.22
# 012
MPN: 133554
PIN
from £43.40
from £43.40
# 013
MPN: 128612
BUSH PEDAL (AS OPTION NR. 128613)
from £46.53
from £46.53
This part replaces part number 128613
# 014
MPN: 128608
PLATE
from £190.50
from £190.50
# 015
MPN: 14441420
SCREW
from £0.47
from £0.47
# 016
MPN: 102948
NUT
from £0.53
from £0.53
This part replaces part number 12574211 - and 3 more. Click to view details
# 017
MPN: 12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
# 018
MPN: 133555
SWITCH
from £11.08
from £11.08
# 019
MPN: 138856
SPRING PEDAL
from £21.41
from £21.41
# 020
MPN: 114623
COTTER PIN
from £0.47
from £0.47
# 021
MPN: 16136021
SCREW
from £0.74
from £0.74
# 022
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 023
MPN: 10519601
WASHER
from £0.48
from £0.48
# 024
MPN: 16044021
SCREW
from £1.68
from £1.68
This part replaces part number 119631 which we have in stock
# 025
MPN: 62431900
PLATE
from £10.37
from £10.37
# 026
MPN: 11001021
STUD
Supersession
Supersession
# 027
MPN: 12574115
NUT
from £1.12
from £1.12
# 028
MPN: 14496324
WASHER
from £1.43
from £1.43
This part replaces part number 14496301 which we have in stock
# 029
MPN: 137544
Clutch Pump
Supersession
Supersession
# 030
MPN: 16100824
NUT
from £0.53
from £0.53
This part replaces part number 16100814 - and 1 more. Click to view details
# 031
MPN: 12601379
WASHER
from £0.96
from £0.96
This part replaces part number 12601370
# 032
MPN: 123194
BALL JOINT
from £7.89
from £7.89
# 033
MPN: 104030
SELF LOCKING NUT
from £0.54
from £0.54
This part replaces part number 16104125
# 034
MPN: 10519621
WASHER
Supersession
Supersession
# 035
MPN: 135772
SMALL TANK
from £245.38
from £245.38
# 036
MPN: 10298460
GASKET
from £0.47
from £0.47
This part replaces part number 93353
# 037
MPN: 136565
HOSE
from £2.88
from £2.88
# 038
MPN: 10260160
GASKET
from £0.53
from £0.53
This part replaces part number 10260170
# 039
MPN: 10397380
CABLE RING
from £0.93
from £0.93
This part replaces part number 83172800
# 040
MPN: 10441590
BRACKET
from £0.53
from £0.53
This part replaces part number 10113600
# 041
MPN: 14496401
WASHER
Supersession
Supersession
# 042
MPN: 15896214
NUT
from £0.54
from £0.54
This part replaces part number 15896211
# 043
MPN: 137651

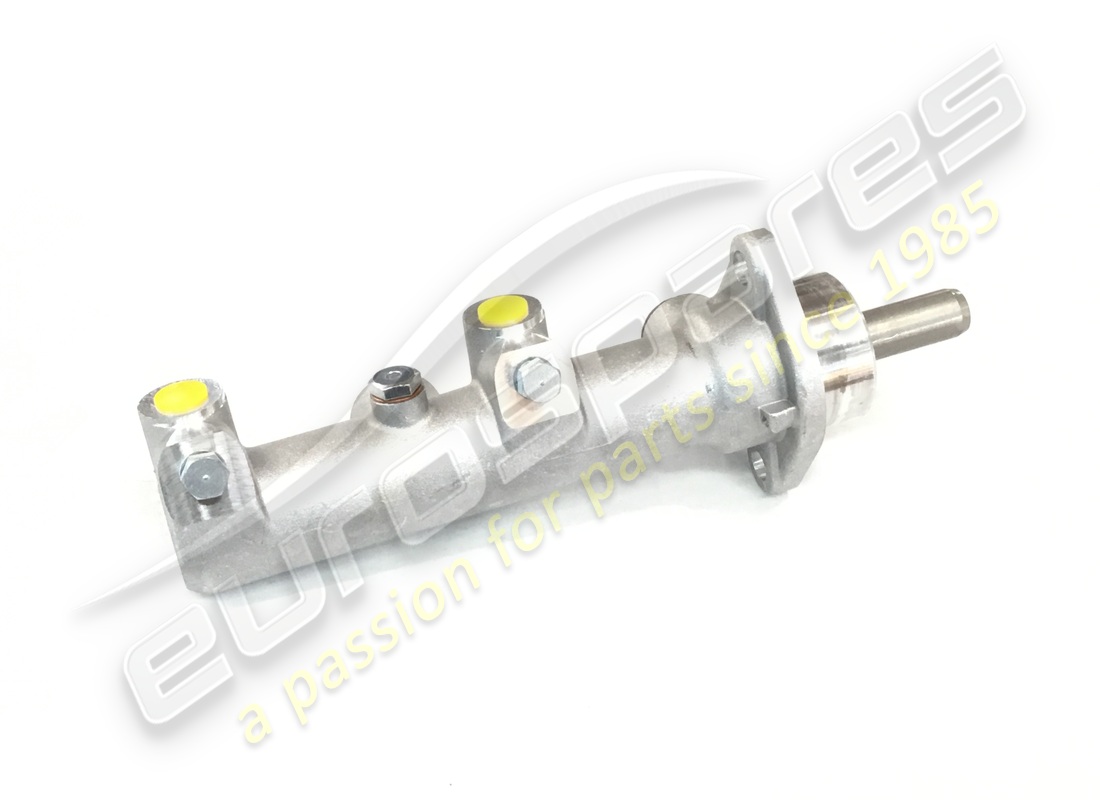

BRAKE PUMP
- Not for USA
from £595.00
from £595.00
# 043
MPN: 140595
BRAKE PUMP
- Valid for USA
from £264.25
from £264.25
# 044
MPN: 133559
SMALL TANK
from £233.48
from £233.48
# 045
MPN: 175189
SEALING RING
from £14.14
from £14.14
This part replaces part number 106625
# 046
MPN: 128596
CLUTCH PEDAL
from £192.38
from £192.38
# 047
MPN: 128599
PLATE CLUTCH PEDAL
from £75.52
from £75.52
# 048
MPN: 16102311
NUT
from £0.43
from £0.43
This part replaces part number 16102315
# 049
MPN: 16104411
NUT
from £0.53
from £0.53
# 050
MPN: 16102311
NUT
from £0.43
from £0.43
This part replaces part number 16102315
# 051
MPN: 16102311
NUT
from £0.43
from £0.43
This part replaces part number 16102315
# 052
MPN: 10519621
WASHER
Supersession
Supersession
# 053
MPN: 12601379
WASHER
from £0.96
from £0.96
This part replaces part number 12601370
# 054
MPN: 104030
SELF LOCKING NUT
from £0.53
from £0.53
This part replaces part number 16104125
