032 - Differential & Axle Shafts

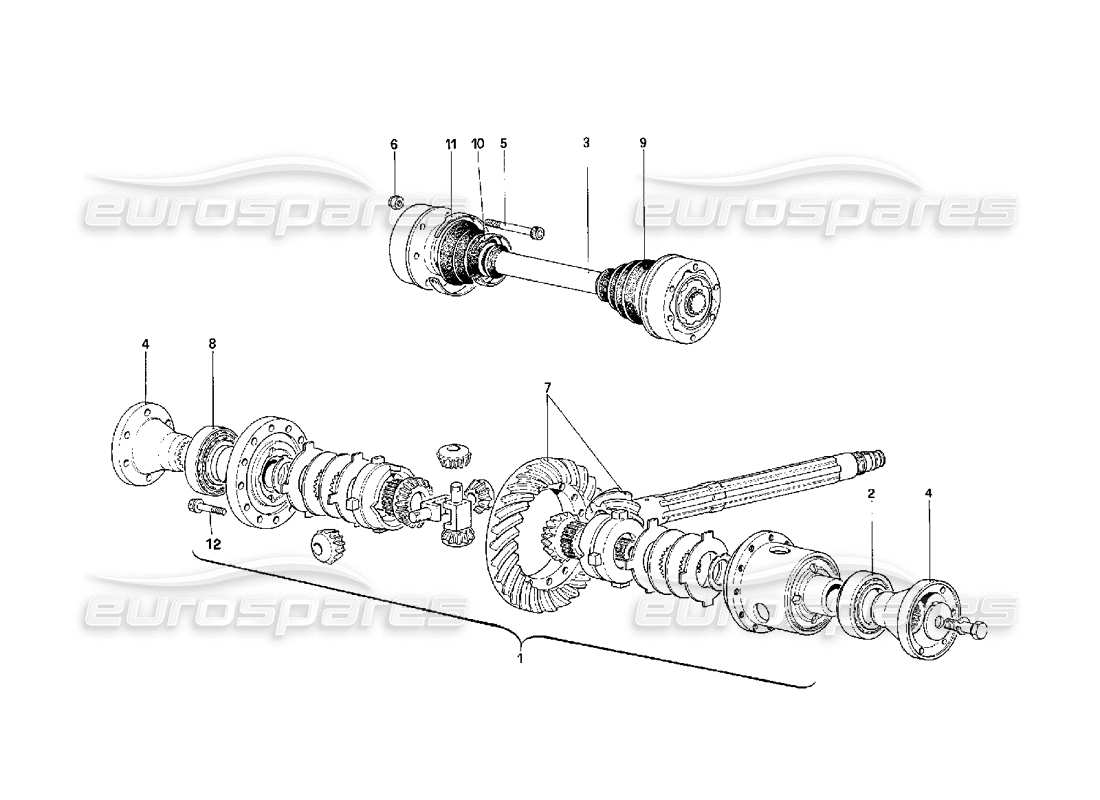

Ferrari F40 Differential & Axle Shafts Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 101626
DIFFERENTIAL, COMPLETE
Supersession
Supersession
This part replaces part number 101623
# 002
MPN: 101634
BEARING
from £99.09
from £99.09
This part replaces part number 580881
# 003
MPN: 111867
AXLE SHAFT
from £420.00
from £420.00
# 004
MPN: 119373
FLANGE
from £529.20
from £529.20
This part replaces part number 101631
# 005
MPN: 101632
DRIVESHAFT BOLT
from £5.00
from £5.00
This part replaces part number 103432 - and 3 more. Click to view details
# 006
MPN: 101633
DRIVESHAFT NUT
(original)
from £4.50
from £4.50
# 007
MPN: 132413

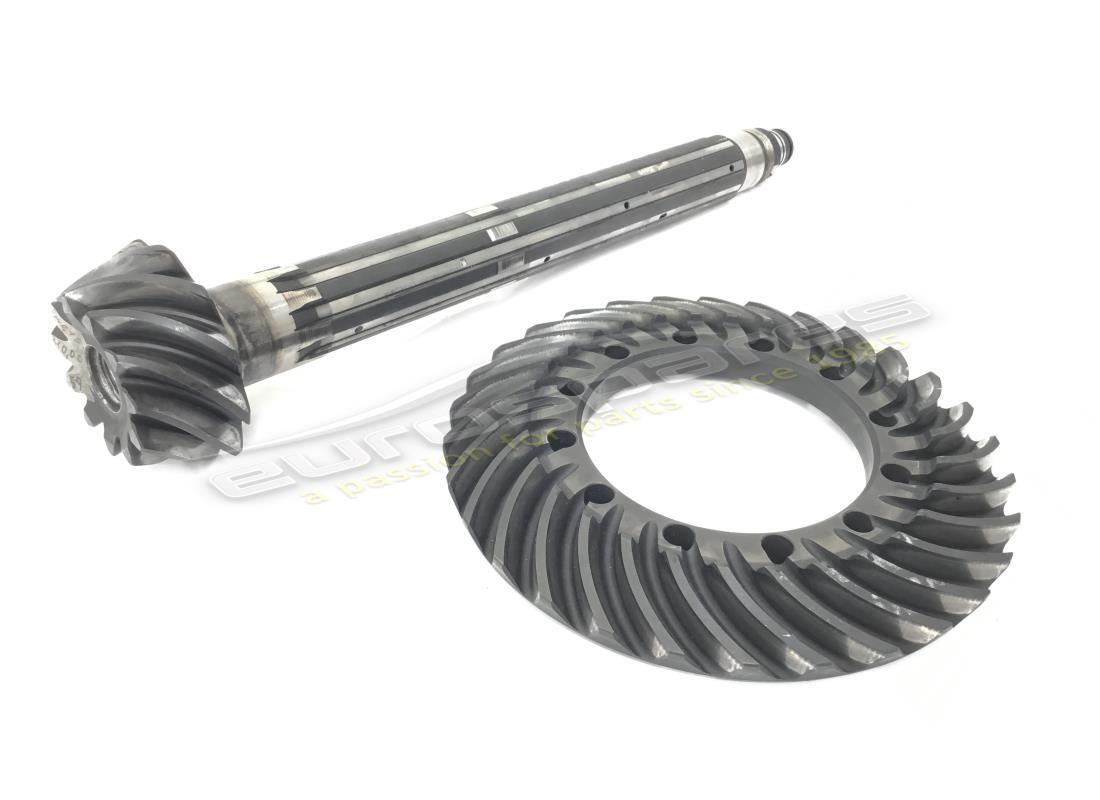

CROWN WHEEL AND PINION COMPLETE R 11/30
- Not for cars with catalyst
from £4,194.75
from £4,194.75
This part replaces part number 132414 - and 3 more. Click to view details
# 007
MPN: 144853
CROWN WHEEL AND PINION COMPLETE R 10/29
- Valid for cars with catalyst
from £3,243.83
from £3,243.83
This part replaces part number 121733 - and 1 more. Click to view details
# 008
MPN: 125390
BEARING
from £98.35
from £98.35
# 009
MPN: 95860404
DRIVE SHAFT GAITER
from £9.95
from £9.95
This part replaces part number 95860404/A
# 010
MPN: 117956
CLAMP
from £2.77
from £2.77
# 011
MPN: 117957
CLAMP
from £3.56
from £3.56
# 012
MPN: 152613
DIFFERENTIAL TIGHTENING SCREW
from £8.17
from £8.17
