105 - External Elements Body - Central Part

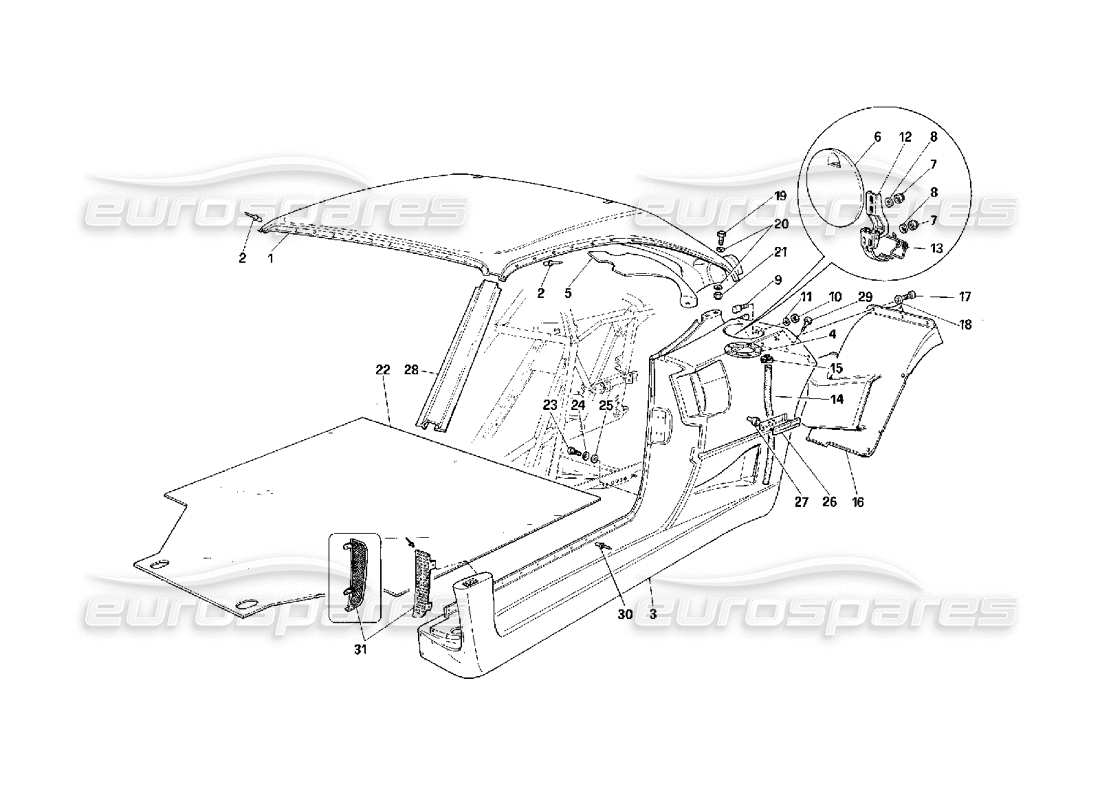

Ferrari F40 External Elements Body - Central Part Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 70000628
COACKWORK REPAIRING KIT
Includes resin, hardener, thickener, carbon kevlar colth, GRP glass colth and honeycomb sheets
# 001
MPN: 62507000
BODY CEILING
from £5,383.17
from £5,383.17
This part replaces part number 62392400 - and 1 more. Click to view details
# 002
MPN: 60560800
RIVET L. 12
from £0.47
from £0.47
# 002
MPN: 61741600
RIVET L. 11.5
from £0.47
from £0.47
# 002
MPN: 61756900
RIVET L. 8
from £0.47
from £0.47
# 003
MPN: 62479200
RH SIDE
- Not for USA
Supersession
Supersession
# 003
MPN: 62479300
LH SIDE
- Not for USA
Supersession
Supersession

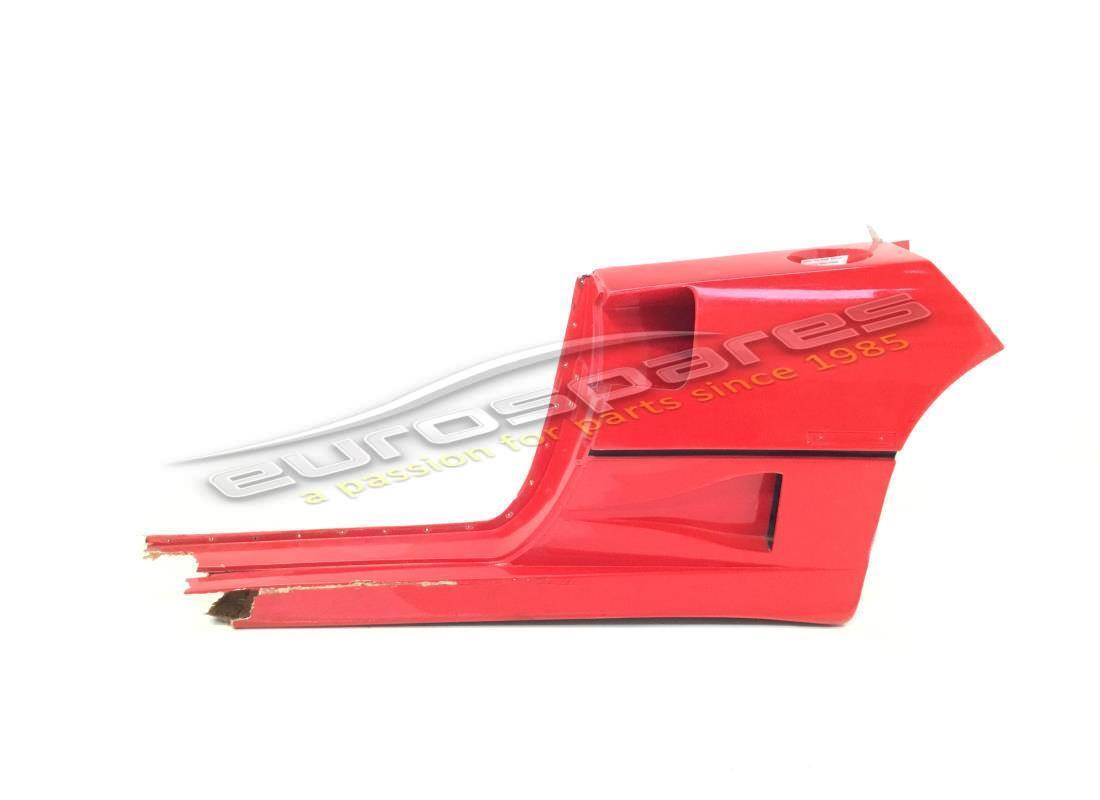

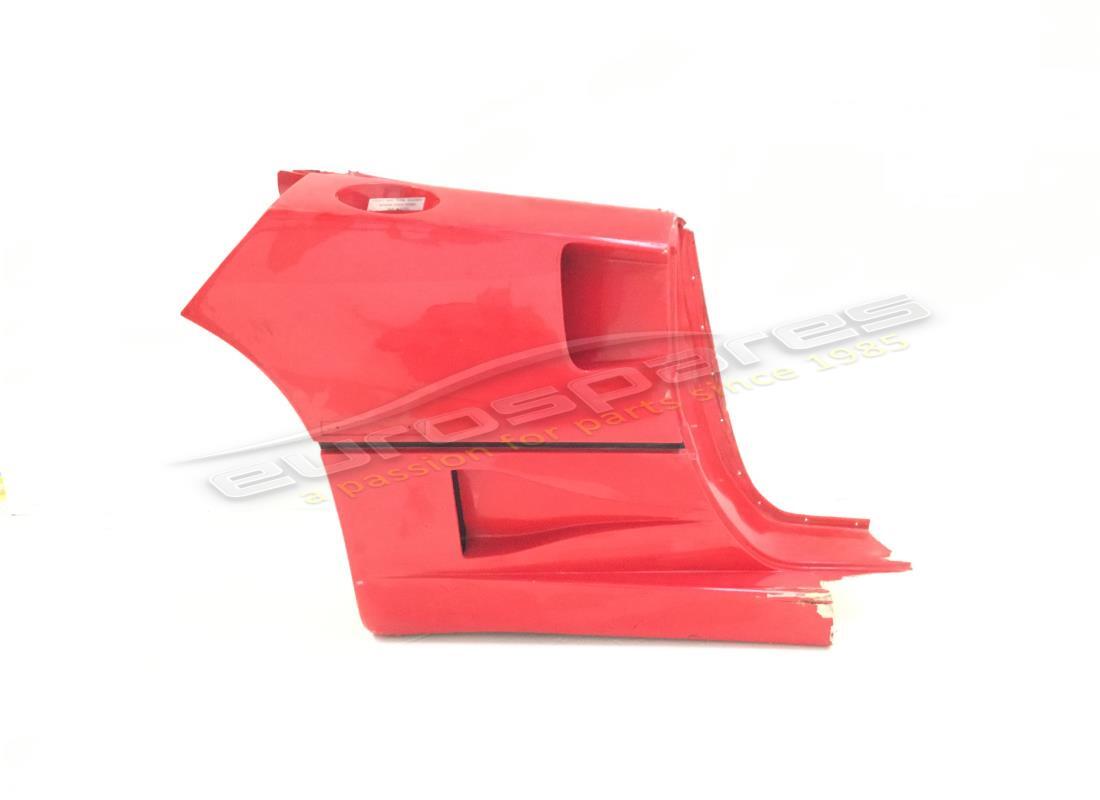

# 003
MPN: 62746400
RH SIDE
- Valid for USA
from £2,931.98
from £2,931.98
This part replaces part number 62479200 - and 1 more. Click to view details

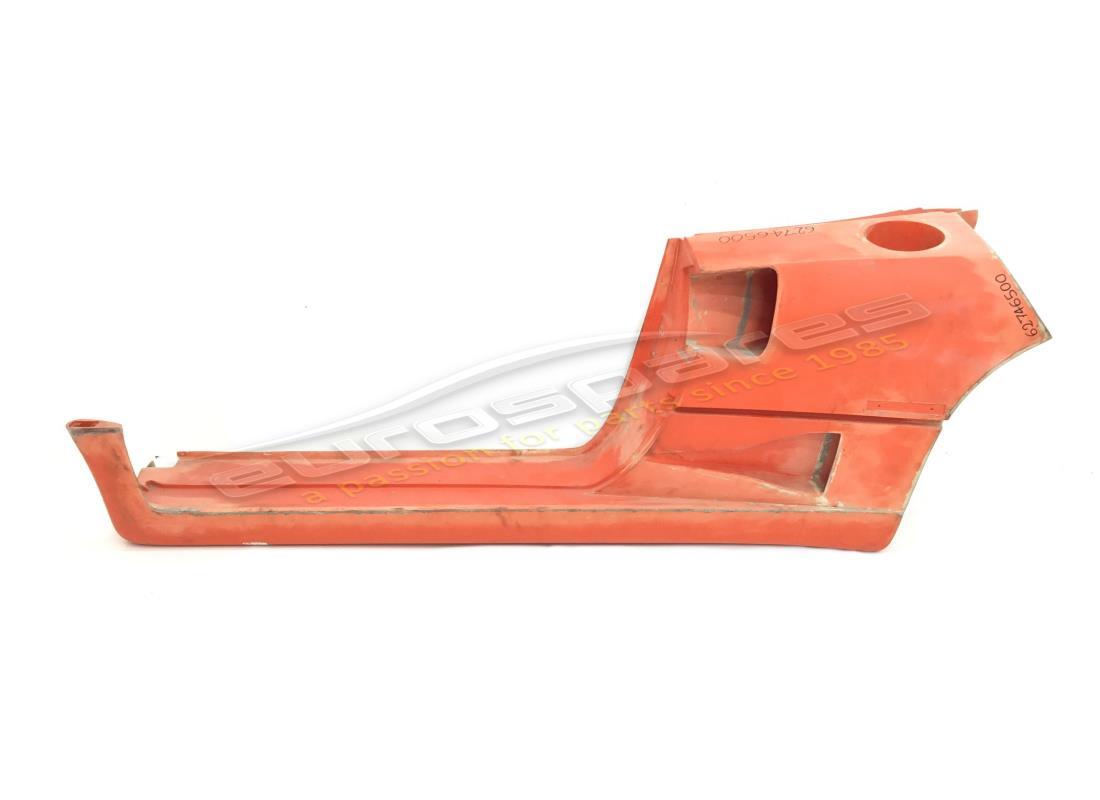

# 003
MPN: 62746500
LH SIDE
- Valid for USA
from £2,931.98
from £2,931.98
This part replaces part number 62479300 - and 1 more. Click to view details

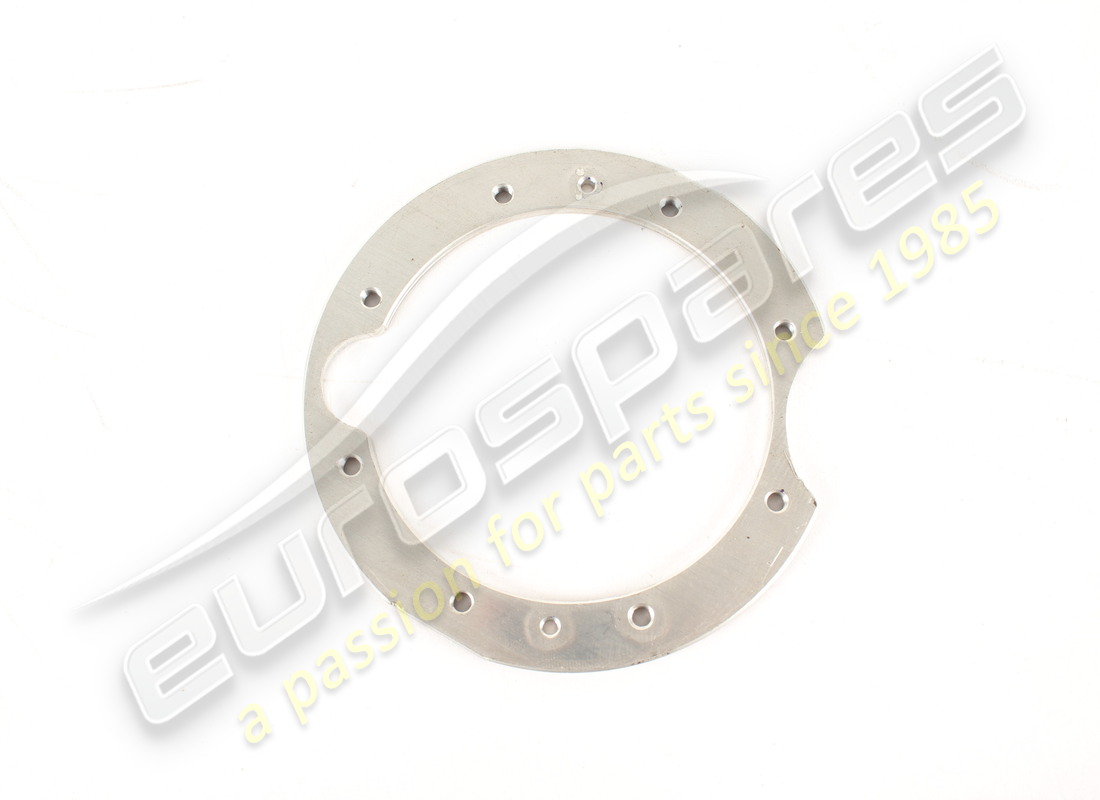

# 004
MPN: 62478200
FLANGE
from £309.75
from £309.75
# 005
MPN: 62459700
RH REAR FRAMEWORK
from £150.60
from £150.60
# 005
MPN: 62459800
LH REAR FRAMEWORK
from £70.60
from £70.60
# 006
MPN: 62392900
RH FUEL FILLER
from £246.54
from £246.54
# 006
MPN: 62393000
LH FUEL FILLER
from £246.54
from £246.54
# 007
MPN: 12574115
NUT
from £1.11
from £1.11
# 008
MPN: 12637801
WASHER
from £0.47
from £0.47
# 009
MPN: 62453200
PIN
from £5.11
from £5.11
# 010
MPN: 15896411
NUT
Supersession
Supersession
This part replaces part number 15896401
# 011
MPN: 12637801
WASHER
from £0.47
from £0.47
# 012
MPN: 62473500
HINGE
- Not for USA
from £44.65
from £44.65
# 012
MPN: 62761300
HINGE
- Valid for USA
from £79.67
from £79.67
# 013
MPN: 61396700
SPRING
- Not for USA
from £116.07
from £116.07
# 013
MPN: 62760500
SPRING
- Valid for USA
from £10.71
from £10.71
# 014
MPN: 62510100
TUBE
Supersession
Supersession
# 015
MPN: 13000190
SCREW COLLAR
from £0.53
from £0.53
This part replaces part number 12178990 - and 1 more. Click to view details
# 016
MPN: 62738600
RH GRAVEL GUARD
from £1,182.47
from £1,182.47
This part replaces part number 62391900
# 016
MPN: 62738700
LH GRAVEL GUARD
from £1,416.95
from £1,416.95
This part replaces part number 62392000
# 017
MPN: 10977718
SCREW
from £5.20
from £5.20
# 018
MPN: 12638178
WASHER
from £0.47
from £0.47
This part replaces part number 10519578 - and 3 more. Click to view details
# 019
MPN: 10978021
SCREW
from £0.96
from £0.96
# 020
MPN: 12638101
WASHER
from £0.71
from £0.71
# 021
MPN: 12574115
NUT
from £1.11
from £1.11
# 022

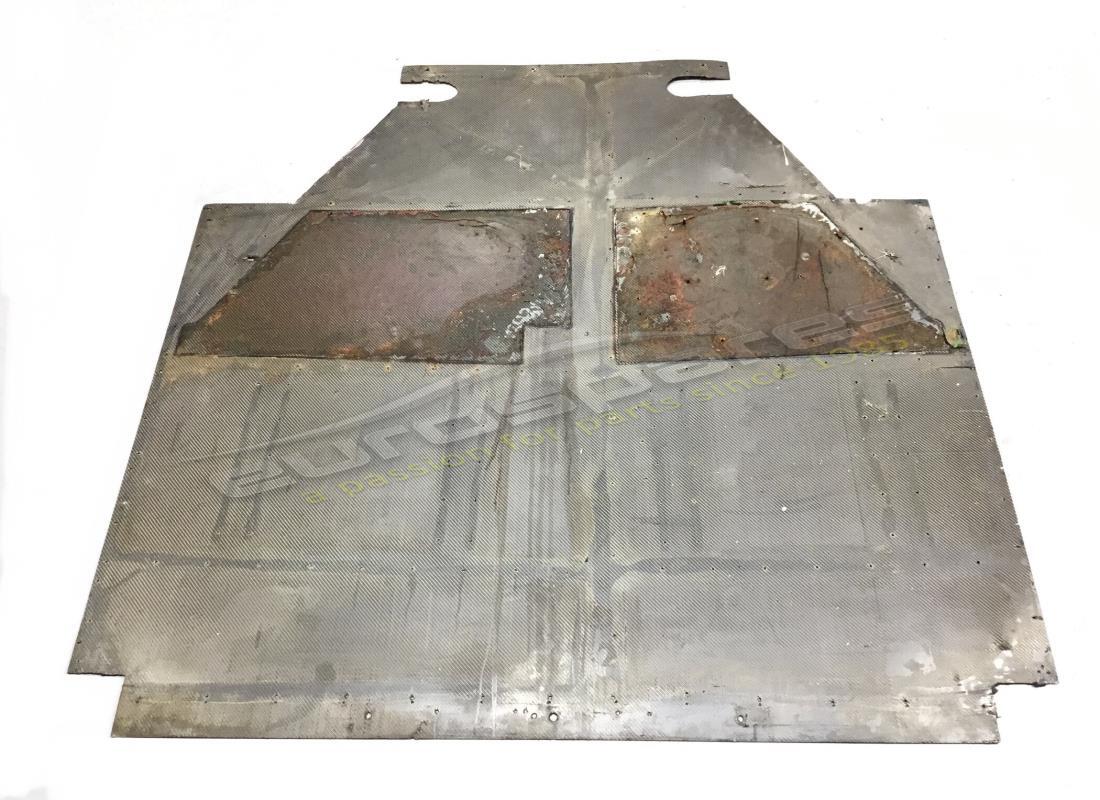

MPN: 62383600
FLOOR
from £2,265.70
from £2,265.70
# 023
MPN: 10902111
SCREW
from £1.11
from £1.11
# 024
MPN: 11197773
WASHER
Supersession
Supersession
# 025
MPN: 12643721
WASHER
from £0.92
from £0.92
# 026
MPN: 20043105
PININFARINA MOTIF
from £48.00
from £48.00
# 027
MPN: 60324506
CLIP
from £1.59
from £1.59
This part replaces part number 62773000
# 028
MPN: 62478600
RH LINING
from £149.31
from £149.31
# 028
MPN: 62478700
LH LINING
from £149.31
from £149.31
# 029
MPN: 60892600
RUBBER
from £10.12
from £10.12
This part replaces part number 20043808
# 030
MPN: 40341802
RIVET L. 3,2 X L. 17
from £0.47
from £0.47
# 030
MPN: 60110103
RIVET L. 3,2 X L. 10
from £0.47
from £0.47
# 030
MPN: 60560800
RIVET L. 3,2 X L. 12
from £0.47
from £0.47
# 030
MPN: 61741600
RIVET L. 3,2 X L. 11.5
from £0.47
from £0.47
# 030
MPN: 61756900
RIVET L. 3,2 X L. 8
from £0.47
from £0.47
# 030
MPN: 62498200
RIVET L. 3,2 X L. 21.8
# 030
MPN: 62498300
RIVET L. 3,2 X L. 30
from £0.47
from £0.47
# 030
MPN: 62672300
RIVET L. 3,2 X L. 9.1
from £0.47
from £0.47
# 030
MPN: 62672400
RIVET L. 3,2 X L. 12
from £2.49
from £2.49
# 031
MPN: 62990100
LH SIDE LOWER GRILLE (SLITS TYPE)
from £85.48
from £85.48
# 031
MPN: 62990200
RH SIDE LOWER GRILLE (SLITS TYPE)
from £85.48
from £85.48
# 031
MPN: 62990200
RH SIDE LOWER GRILLE (NETS TYPE)
from £85.48
from £85.48
# 031
MPN: 63394100
LH SIDE LOWER GRILLE (NETS TYPE)
- Valid till depletion
from £120.44
from £120.44
