118 - Dashboard and Tunnel

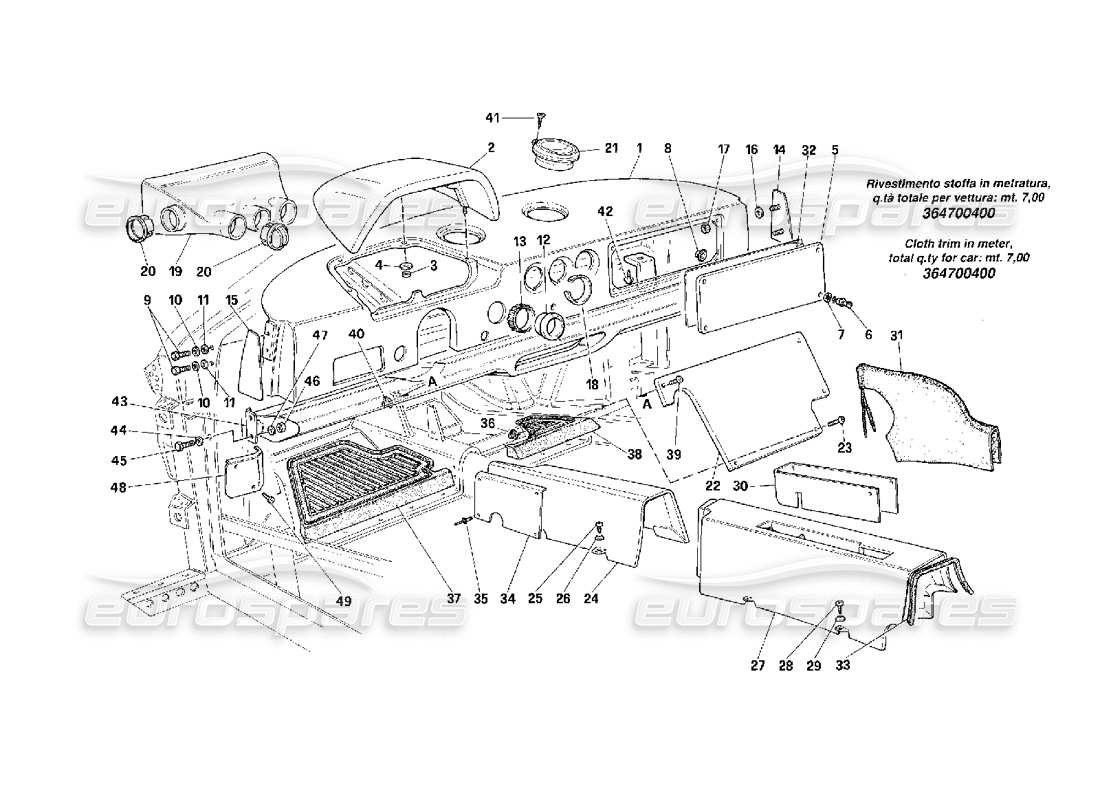

Ferrari F40 Dashboard and Tunnel Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 62502500
COVERING
from £564.44
from £564.44
# 001
MPN: 62565400
PANEL WITH COVERING
- Not for USA with A.C.
from £3,501.24
from £3,501.24
# 001
MPN: 62743100
PANEL WITH COVERING
- Valid for USA with A.C.
from £2,075.97
from £2,075.97
# 002
MPN: 62590000
DASH BOARD
from £1,646.45
from £1,646.45
This part replaces part number 70000556
# 002
MPN: 62641000
COVERING
from £49.82
from £49.82
This part replaces part number 70000561
# 003
MPN: 10721911
NUT
from £0.53
from £0.53
# 004
MPN: 12642801
WASHER
from £0.53
from £0.53
This part replaces part number 12642824
# 005
MPN: 62503000
COVERING
from £12.62
from £12.62
# 005
MPN: 62565500
LID WITH COVERING
from £528.52
from £528.52
# 006
MPN: 62468200
PIN
from £10.37
from £10.37
This part replaces part number 62547200
# 006
MPN: 62547200
PIN (62468200 ALTERNATIVES)
Supersession
Supersession
# 007
MPN: 62468000
STOP RING
from £8.01
from £8.01
# 008
MPN: 62467900
PIN CLIP
from £9.06
from £9.06
# 009
MPN: 10902387
SCREW
from £0.47
from £0.47
This part replaces part number 10902327 which we have in stock
# 010
MPN: 12640606
WASHER
Supersession
Supersession
# 011
MPN: 12643777
WASHER
Supersession
Supersession
This part replaces part number 12643706 which we have in stock - and 1 more. Click to view details
# 012
MPN: 62451600
RING NUT
from £4.08
from £4.08
# 013
MPN: 62451700
RING
from £9.96
from £9.96
# 014
MPN: 62590100
RH MOULDING WITH COVERING
from £72.98
from £72.98
This part replaces part number 70000557
# 015
MPN: 62590200
LH MOULDING WITH COVERING
from £129.01
from £129.01
This part replaces part number 70000558
# 016
MPN: 12624101
WASHER
from £0.53
from £0.53
# 017
MPN: 10794011
NUT
from £0.29
from £0.29
# 018
MPN: 70000562
MOULDING WITH COVERING
from £95.55
from £95.55
# 019
MPN: 62420200
CONVEYOR
from £1,575.22
from £1,575.22
# 020
MPN: 60656500
AIR OUTLET
from £23.94
from £23.94
# 021
MPN: 62509800
AIR OUTLET
from £87.76
from £87.76
# 022
MPN: 62385200
PLATE
from £1,889.48
from £1,889.48
# 023
MPN: 13274672
SCREW
from £0.78
from £0.78
This part replaces part number 13274617
# 024
MPN: 62497400
COVERING
from £169.32
from £169.32
# 024
MPN: 62553500
FRONT TUNNEL WITH COVERING
from £379.18
from £379.18
# 025
MPN: 15908806
SCREW
Supersession
Supersession
# 026
MPN: 12611607
WASHER
from £1.09
from £1.09
# 027
MPN: 62497300
COVERING
from £766.03
from £766.03
# 027
MPN: 62540100
COVERING
from £749.90
from £749.90
# 027
MPN: 62553400
REAR TUNNEL WITH COVERING
- Not for USA
from £693.00
from £693.00
# 027
MPN: 62730600
REAR TUNNEL WITH COVERING
- Valid for USA
from £1,640.31
from £1,640.31
# 028
MPN: 15908478
SCREW
from £0.47
from £0.47
# 029
MPN: 12611607
WASHER
from £1.09
from £1.09
# 030
MPN: 62540200
COVERING
from £7.83
from £7.83
# 030
MPN: 62568500
MOULDING WITH COVERING
from £1,254.75
from £1,254.75
This part replaces part number 70000560
# 031
MPN: 62526900
BOOT
from £306.41
from £306.41
# 032
MPN: 62426000
RELAYS PLATE
- For control unit 62425800
from £35.85
from £35.85
# 033
MPN: 62568600
REAR SEALING CORD
from £39.35
from £39.35
# 034
MPN: 62566700
SHIELD
from £34.24
from £34.24
# 035
MPN: 61741600
RIVET
from £0.53
from £0.53
# 036
MPN: 62471100
CLIP
from £16.25
from £16.25
# 037
MPN: 62549900
CARPET
from £511.74
from £511.74
# 038
MPN: 62576400
CARPET
from £334.44
from £334.44
# 039
MPN: 13276617
SCREW
from £1.37
from £1.37
# 040
MPN: 62471200
BALL TO FIX. LIFTING SYSTEM
from £5.76
from £5.76
# 041
MPN: 15692178
SCREW
from £0.53
from £0.53
# 042
MPN: 15925901
SCREW
# 043
MPN: 62759000
KNEE GUARD WITH COVERING
- Valid for USA
from £3,101.33
from £3,101.33
# 043
MPN: 62759100
COVERING
# 044
MPN: 12639721
WASHER
from £0.47
from £0.47
This part replaces part number 12639711
# 045
MPN: 10902611
SCREW
from £0.51
from £0.51
# 046
MPN: 12575421
NUT
Supersession
Supersession
# 047
MPN: 12640606
WASHER
Supersession
Supersession
# 048
MPN: 62758400
RH ELECTRICAL BOARD COVER
- Valid for USA
from £109.76
from £109.76
# 048
MPN: 62760800
LH ELECTRICAL BOARD COVER
- Valid for USA
from £97.82
from £97.82
# 049
MPN: 13273916
SCREW
from £0.47
from £0.47
