ferrari f50 crankcase parts diagram

001 - crankcase

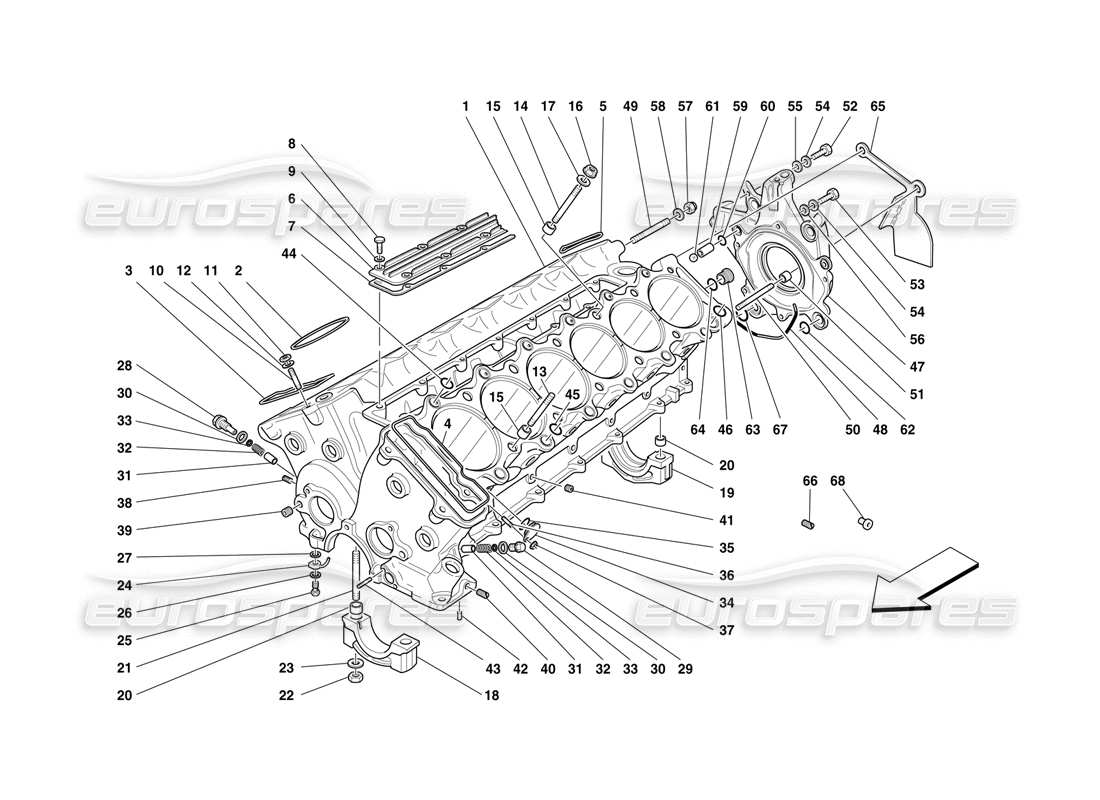

Ferrari F50 Crankcase Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                              #
                                                                                                                              Part number
                                                                                                                              Description
                                                                                                                              Price
                                                                                                                              # 000
                                                                                                                              MPN: 169538
                                                                                                                              COMPLETE CRANKCASE
                                                                                                                              from £30,366.96
                                                                                                                              from £30,366.96
                                                                                                                              This part replaces part number 159126 - and 2 more. Click to view details
                                                                                                                              # 001
                                                                                                                              MPN: 164552
                                                                                                                              Engine Crankcase
                                                                                                                              - Not as spare part - With complete crankcase
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              # 002
                                                                                                                              MPN: 159144
                                                                                                                              COOPERS SEAL RING
                                                                                                                              from £263.55
                                                                                                                              from £263.55
                                                                                                                              # 003
                                                                                                                              MPN: 154035
                                                                                                                              RH GASKET
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              # 004
                                                                                                                              MPN: 154030
                                                                                                                              LH GASKET
                                                                                                                              from £10.95
                                                                                                                              from £10.95
                                                                                                                              # 005
                                                                                                                              MPN: 150110
                                                                                                                              GASKET
                                                                                                                              from £6.20
                                                                                                                              from £6.20
                                                                                                                              # 006
                                                                                                                              MPN: 158073
                                                                                                                              WATER DUCT COVER
                                                                                                                              from £334.58
                                                                                                                              from £334.58
                                                                                                                              # 007
                                                                                                                              MPN: 158079
                                                                                                                              GASKET
                                                                                                                              from £12.16
                                                                                                                              from £12.16
                                                                                                                              # 008
                                                                                                                              MPN: 10902424
                                                                                                                              SCREW
                                                                                                                              from £0.49
                                                                                                                              from £0.49
                                                                                                                              This part replaces part number 10902324 - and 3 more. Click to view details
                                                                                                                              # 009
                                                                                                                              MPN: 11197774
                                                                                                                              WASHER
                                                                                                                              from £0.52
                                                                                                                              from £0.52
                                                                                                                              This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                                              # 010
                                                                                                                              MPN: 13516824
                                                                                                                              STUD
                                                                                                                              from £0.47
                                                                                                                              from £0.47
                                                                                                                              This part replaces part number 13516821
                                                                                                                              # 011
                                                                                                                              MPN: 133215
                                                                                                                              NUT
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              This part replaces part number 64342800
                                                                                                                              # 012
                                                                                                                              MPN: 12604474
                                                                                                                              WASHER
                                                                                                                              from £0.47
                                                                                                                              from £0.47
                                                                                                                              This part replaces part number 12604479
                                                                                                                              # 013
                                                                                                                              MPN: 154072
                                                                                                                              STUD
                                                                                                                              - Exhaust side
                                                                                                                              from £10.60
                                                                                                                              from £10.60
                                                                                                                              # 014
                                                                                                                              MPN: 154073
                                                                                                                              STUD
                                                                                                                              - Suction side
                                                                                                                              from £6.85
                                                                                                                              from £6.85
                                                                                                                              # 015
                                                                                                                              MPN: 149995
                                                                                                                              DOWEL
                                                                                                                              from £60.06
                                                                                                                              from £60.06
                                                                                                                              # 016
                                                                                                                              MPN: 148093
                                                                                                                              NUT
                                                                                                                              from £30.93
                                                                                                                              from £30.93
                                                                                                                              # 017
                                                                                                                              MPN: 151117
                                                                                                                              WASHER
                                                                                                                              from £0.31
                                                                                                                              from £0.31
                                                                                                                              # 018
                                                                                                                              MPN: 159126
                                                                                                                              FRONT AND INTERMEDIATE CAP
                                                                                                                              - Not as spare part - With complete crankcase
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              # 019
                                                                                                                              MPN: 159127
                                                                                                                              REAR CAP
                                                                                                                              - Not as spare part - With complete crankcase
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              # 020
                                                                                                                              MPN: 159196
                                                                                                                              DOWEL
                                                                                                                              from £8.45
                                                                                                                              from £8.45
                                                                                                                              # 021
                                                                                                                              MPN: 159198
                                                                                                                              STUD
                                                                                                                              from £29.45
                                                                                                                              from £29.45
                                                                                                                              # 022
                                                                                                                              MPN: 103841
                                                                                                                              NUT
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              This part replaces part number 4146542
                                                                                                                              # 023
                                                                                                                              MPN: 159197
                                                                                                                              WASHER
                                                                                                                              from £2.37
                                                                                                                              from £2.37
                                                                                                                              # 024
                                                                                                                              MPN: 149454
                                                                                                                              NOZZLE
                                                                                                                              from £52.32
                                                                                                                              from £52.32
                                                                                                                              # 025
                                                                                                                              MPN: 149453
                                                                                                                              SCREW FOR NOZZLE
                                                                                                                              from £6.46
                                                                                                                              from £6.46
                                                                                                                              # 026
                                                                                                                              MPN: 11197774
                                                                                                                              WASHER
                                                                                                                              from £0.52
                                                                                                                              from £0.52
                                                                                                                              This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                                              # 027
                                                                                                                              MPN: 10297760
                                                                                                                              GASKET
                                                                                                                              from £0.47
                                                                                                                              from £0.47
                                                                                                                              # 028
                                                                                                                              MPN: 154176
                                                                                                                              RH PLUG
                                                                                                                              from £41.43
                                                                                                                              from £41.43
                                                                                                                              # 029
                                                                                                                              MPN: 152569
                                                                                                                              LH PLUG
                                                                                                                              from £34.26
                                                                                                                              from £34.26
                                                                                                                              # 030
                                                                                                                              MPN: 10257060
                                                                                                                              GASKET
                                                                                                                              from £0.47
                                                                                                                              from £0.47
                                                                                                                              This part replaces part number 10253060 - and 2 more. Click to view details
                                                                                                                              # 031
                                                                                                                              MPN: 149520
                                                                                                                              SHUTTER PISTON
                                                                                                                              from £12.27
                                                                                                                              from £12.27
                                                                                                                              # 032
                                                                                                                              MPN: 149519
                                                                                                                              SPRING
                                                                                                                              from £3.51
                                                                                                                              from £3.51
                                                                                                                              # 033
                                                                                                                              MPN: 152570
                                                                                                                              SPACER
                                                                                                                              from £2.95
                                                                                                                              from £2.95
                                                                                                                              # 034
                                                                                                                              MPN: 149105
                                                                                                                              PLUG
                                                                                                                              from £13.19
                                                                                                                              from £13.19
                                                                                                                              # 035
                                                                                                                              MPN: 134233
                                                                                                                              O.R. GASKET
                                                                                                                              from £0.47
                                                                                                                              from £0.47
                                                                                                                              # 036
                                                                                                                              MPN: 149106
                                                                                                                              STUD
                                                                                                                              from £7.83
                                                                                                                              from £7.83
                                                                                                                              # 037
                                                                                                                              MPN: 132877
                                                                                                                              NUT
                                                                                                                              from £1.54
                                                                                                                              from £1.54
                                                                                                                              This part replaces part number 67190100
                                                                                                                              # 038
                                                                                                                              MPN: 161439
                                                                                                                              THREADED PLUG
                                                                                                                              from £6.68
                                                                                                                              from £6.68
                                                                                                                              # 039
                                                                                                                              MPN: 14324811
                                                                                                                              THREADED PLUG
                                                                                                                              from £2.84
                                                                                                                              from £2.84
                                                                                                                              # 040
                                                                                                                              MPN: 65928500
                                                                                                                              THREADED PLUG
                                                                                                                              from £24.36
                                                                                                                              from £24.36
                                                                                                                              This part replaces part number 10267550
                                                                                                                              # 041
                                                                                                                              MPN: 14326050
                                                                                                                              THREADED PLUG
                                                                                                                              from £0.93
                                                                                                                              from £0.93
                                                                                                                              # 042
                                                                                                                              MPN: 10334520
                                                                                                                              PIN
                                                                                                                              from £1.31
                                                                                                                              from £1.31
                                                                                                                              # 043
                                                                                                                              MPN: 152270
                                                                                                                              STUD
                                                                                                                              from £7.83
                                                                                                                              from £7.83
                                                                                                                              # 044
                                                                                                                              MPN: 123475
                                                                                                                              O.R. GASKET
                                                                                                                              from £1.90
                                                                                                                              from £1.90
                                                                                                                              # 045
                                                                                                                              MPN: 134232
                                                                                                                              O.R. GASKET
                                                                                                                              from £0.67
                                                                                                                              from £0.67
                                                                                                                              This part replaces part number 153718 which we have in stock
                                                                                                                              # 046
                                                                                                                              MPN: 134233
                                                                                                                              O.R. GASKET
                                                                                                                              from £0.47
                                                                                                                              from £0.47
                                                                                                                              # 047
                                                                                                                              MPN: 159192
                                                                                                                              REAR COVER
                                                                                                                              from £876.25
                                                                                                                              from £876.25
                                                                                                                              # 048
                                                                                                                              MPN: 171948
                                                                                                                              GASKET
                                                                                                                              from £7.84
                                                                                                                              from £7.84
                                                                                                                              This part replaces part number 162402
                                                                                                                              # 049
                                                                                                                              MPN: 13547034
                                                                                                                              STUD
                                                                                                                              from £1.78
                                                                                                                              from £1.78
                                                                                                                              # 050
                                                                                                                              MPN: 13450234
                                                                                                                              STUD
                                                                                                                              from £7.83
                                                                                                                              from £7.83
                                                                                                                              # 051
                                                                                                                              MPN: 125537
                                                                                                                              DOWEL
                                                                                                                              from £2.41
                                                                                                                              from £2.41
                                                                                                                              # 052
                                                                                                                              MPN: 10902224
                                                                                                                              SCREW
                                                                                                                              from £0.53
                                                                                                                              from £0.53
                                                                                                                              # 053
                                                                                                                              MPN: 10902621
                                                                                                                              SCREW
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              This part replaces part number 10902611
                                                                                                                              # 054
                                                                                                                              MPN: 11197774
                                                                                                                              WASHER
                                                                                                                              from £0.53
                                                                                                                              from £0.53
                                                                                                                              This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                                              # 055
                                                                                                                              MPN: 103044
                                                                                                                              WASHER
                                                                                                                              from £5.19
                                                                                                                              from £5.19
                                                                                                                              # 056
                                                                                                                              MPN: 10519424
                                                                                                                              WASHER
                                                                                                                              from £0.47
                                                                                                                              from £0.47
                                                                                                                              This part replaces part number 10519401 - and 3 more. Click to view details
                                                                                                                              # 057
                                                                                                                              MPN: 133216
                                                                                                                              NUT
                                                                                                                              from £4.84
                                                                                                                              from £4.84
                                                                                                                              # 058
                                                                                                                              MPN: 12642424
                                                                                                                              WASHER
                                                                                                                              from £0.53
                                                                                                                              from £0.53
                                                                                                                              # 059
                                                                                                                              MPN: 149112
                                                                                                                              DOWEL
                                                                                                                              from £3.19
                                                                                                                              from £3.19
                                                                                                                              # 060
                                                                                                                              MPN: 123475
                                                                                                                              O.R. GASKET
                                                                                                                              from £1.90
                                                                                                                              from £1.90
                                                                                                                              # 061
                                                                                                                              MPN: 150557
                                                                                                                              BALL
                                                                                                                              from £0.71
                                                                                                                              from £0.71
                                                                                                                              # 062
                                                                                                                              MPN: 132248
                                                                                                                              O.R. GASKET
                                                                                                                              from £0.47
                                                                                                                              from £0.47
                                                                                                                              # 063
                                                                                                                              MPN: 149113
                                                                                                                              PLUG
                                                                                                                              - Not as spare part now
                                                                                                                              from £11.41
                                                                                                                              from £11.41
                                                                                                                              # 064
                                                                                                                              MPN: 134233
                                                                                                                              O.R. GASKET
                                                                                                                              - Not as spare part now
                                                                                                                              from £0.47
                                                                                                                              from £0.47
                                                                                                                              # 065
                                                                                                                              MPN: 164280
                                                                                                                              RH PLATE
                                                                                                                              from £17.36
                                                                                                                              from £17.36
                                                                                                                              # 065
                                                                                                                              MPN: 164281
                                                                                                                              LH PLATE
                                                                                                                              from £17.36
                                                                                                                              from £17.36
                                                                                                                              # 066
                                                                                                                              MPN: 10269150
                                                                                                                              THREADED PLUG
                                                                                                                              from £0.47
                                                                                                                              from £0.47
                                                                                                                              # 067
                                                                                                                              MPN: 148225
                                                                                                                              O.R. GASKET
                                                                                                                              from £0.54
                                                                                                                              from £0.54
                                                                                                                              # 068
                                                                                                                              MPN: 165962
                                                                                                                              PLUG
                                                                                                                              from £11.17
                                                                                                                              from £11.17
