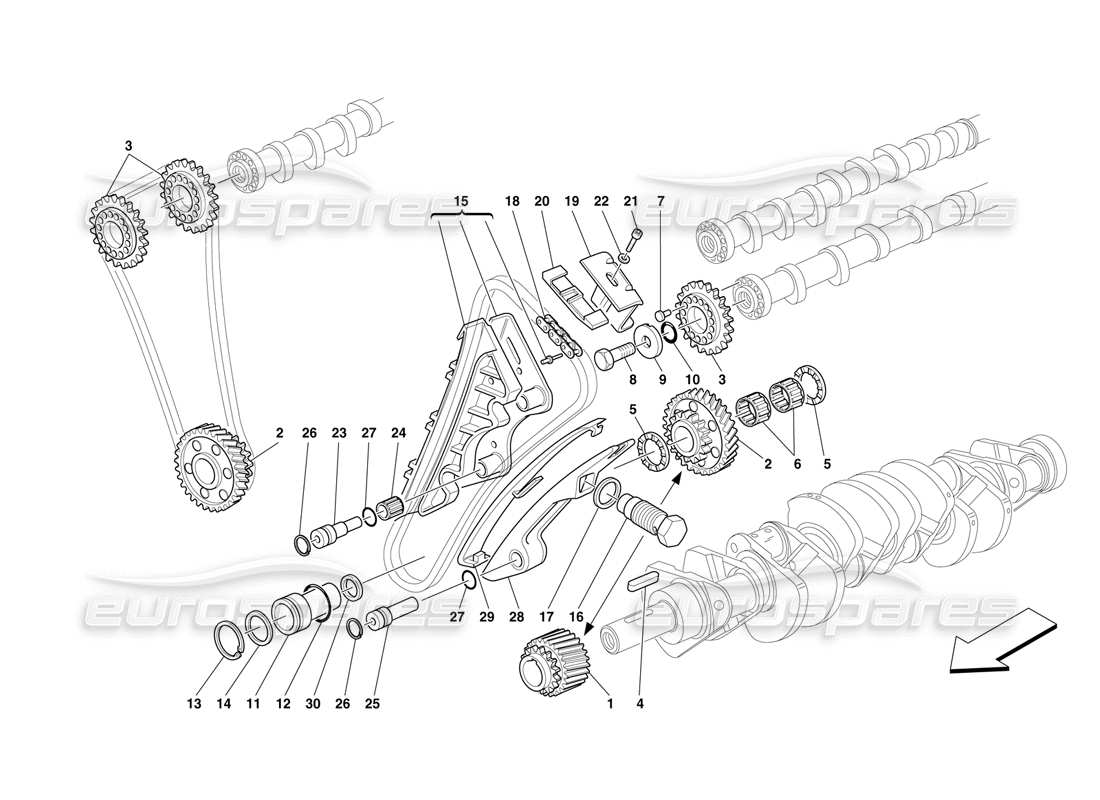

Ferrari F50 Timing - Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 165976
CONTROL TIMING GEAR
from £106.62
from £106.62
# 002
MPN: 165919
GEAR ASSEMBLY
from £337.98
from £337.98
# 003
MPN: 154171
TOOTHED WHEEL
from £417.40
from £417.40
# 004
MPN: 159835
Key
from £4.19
from £4.19
# 005
MPN: 163016
ROLLER CAGE
from £4.63
from £4.63
# 006
MPN: 165788
ROLLER CASING
from £19.44
from £19.44
# 007
MPN: 106203
DOWEL
from £4.31
from £4.31
# 008
MPN: 146540
SCREW
from £9.06
from £9.06
This part replaces part number 16326431 - and 3 more. Click to view details
# 009
MPN: 117274
WASHER
from £2.17
from £2.17
# 010
MPN: 114808
SEAL RING
from £2.53
from £2.53
# 011
MPN: 162887
PIN
from £71.02
from £71.02
# 012
MPN: 111000
O.R. GASKET
from £0.82
from £0.82
# 013
MPN: 11059776
SEEGER RING
from £0.47
from £0.47
# 014
MPN: 164297
SPACER WASHER
- Th. mm. 0,50
from £4.51
from £4.51
# 014
MPN: 164347
SPACER WASHER
- Th. mm. 0,55
from £6.76
from £6.76
# 014
MPN: 164348
SPACER WASHER
- Th. mm. 0,60
from £8.10
from £8.10
# 014
MPN: 166446
SPACER WASHER
- Th. mm. 0,45
from £6.76
from £6.76
# 015
MPN: 158173
GUIDE SHOE ASSEMBLY
from £960.00
from £960.00
# 016
MPN: 152502
CHAIN TENSIONER
from £393.86
from £393.86
# 017
MPN: 10261860
GASKET
from £0.54
from £0.54
This part replaces part number 10279550 which we have in stock - and 1 more. Click to view details
# 018
MPN: 151784
TIMING CONTROL CHAIN
from £24.63
from £24.63
