007 - IGNITION SYSTEM

Ferrari F50 Ignition System Parts Diagram

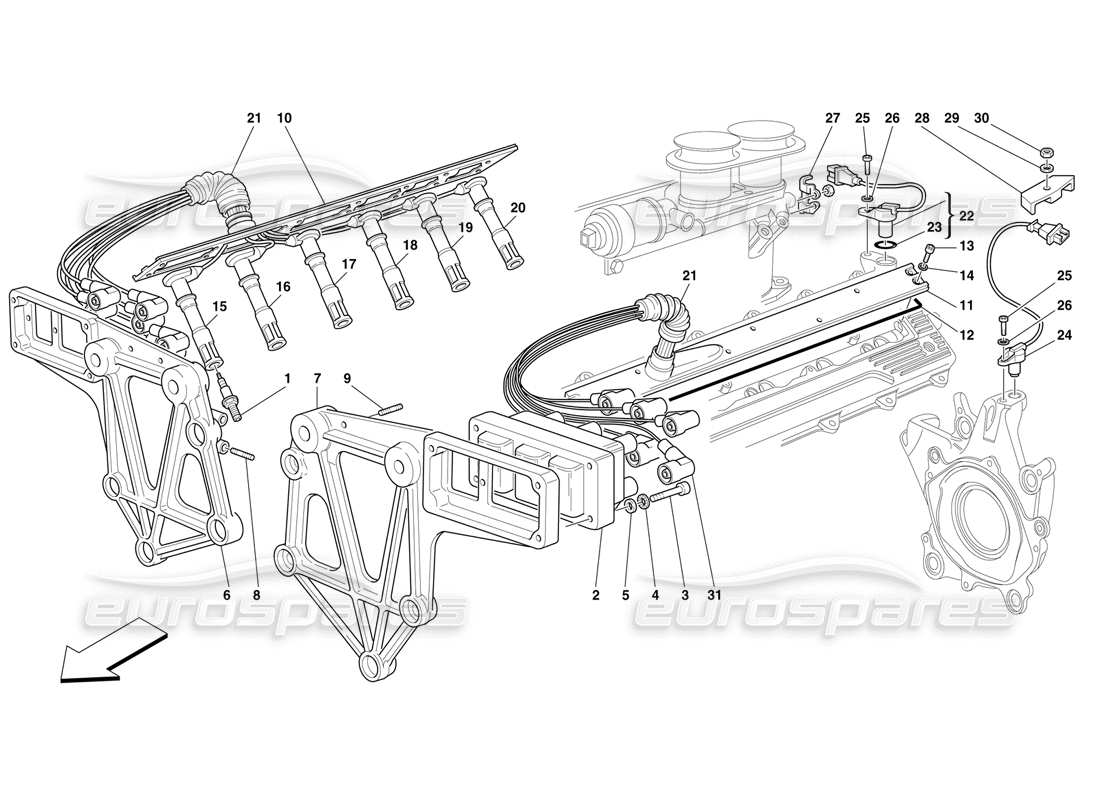

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Price
                                                              # 001
                                                              MPN: 167098

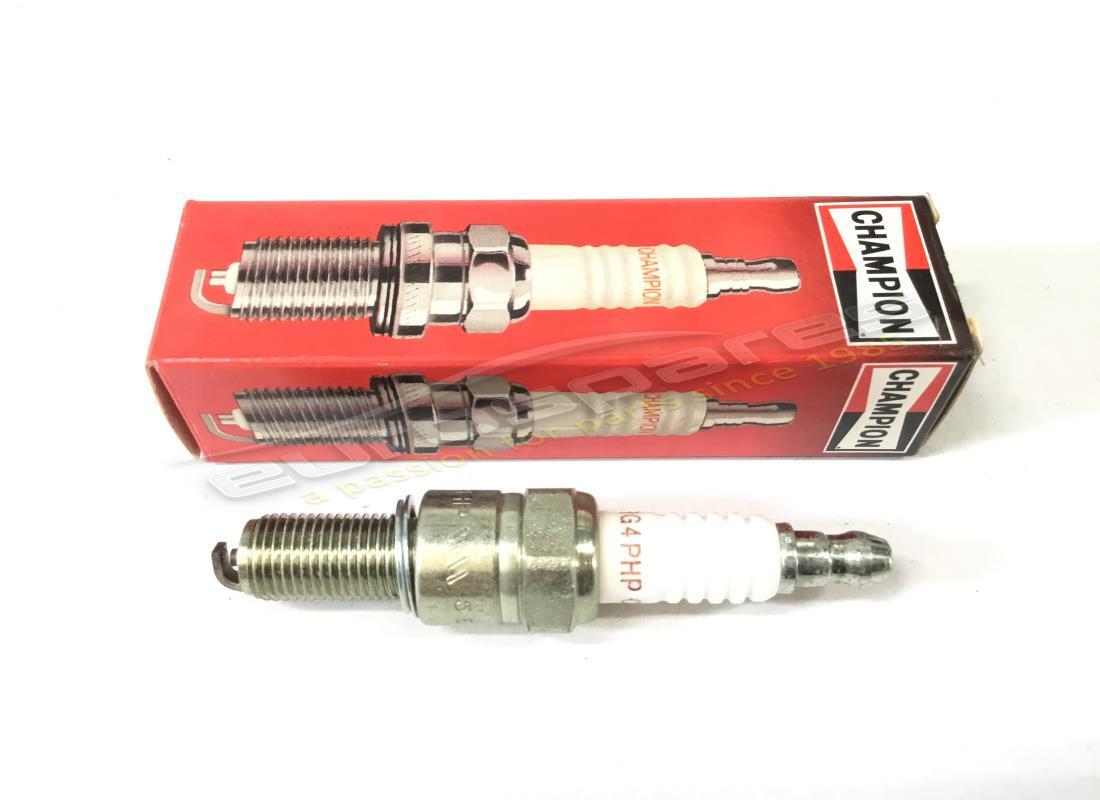

                                                              SPARK PLUG
                                                              from £29.81
                                                              from £29.81
                                                              This part replaces part number 142794 which we have in stock
                                                              # 001
                                                              MPN: 169483
                                                              SPARK PLUG
                                                              from £17.30
                                                              from £17.30
                                                              # 002
                                                              MPN: 165854
                                                              IGNITION COIL
                                                              from £327.60
                                                              from £327.60
                                                              # 003
                                                              MPN: 10902821
                                                              SCREW
                                                              from £1.08
                                                              from £1.08
                                                              This part replaces part number 10902801 - and 1 more. Click to view details
                                                              # 004
                                                              MPN: 12605374
                                                              WASHER
                                                              from £0.71
                                                              from £0.71
                                                              This part replaces part number 12605370 which we have in stock - and 1 more. Click to view details
                                                              # 005
                                                              MPN: 60698400
                                                              WASHER
                                                              from £0.51
                                                              from £0.51
                                                              # 006
                                                              MPN: 164914
                                                              RH PLATE
                                                              from £584.40
                                                              from £584.40
                                                              # 007
                                                              MPN: 164913
                                                              LH PLATE
                                                              from £584.40
                                                              from £584.40
                                                              # 008
                                                              MPN: 10980114
                                                              STUD
                                                              from £0.61
                                                              from £0.61
                                                              # 009
                                                              MPN: 11499924
                                                              STUD
                                                              from £7.70
                                                              from £7.70
                                                              This part replaces part number 11499921 which we have in stock
                                                              # 010
                                                              MPN: 153371
                                                              RH COVER
                                                              from £365.82
                                                              from £365.82
                                                              # 010
                                                              MPN: FHT026

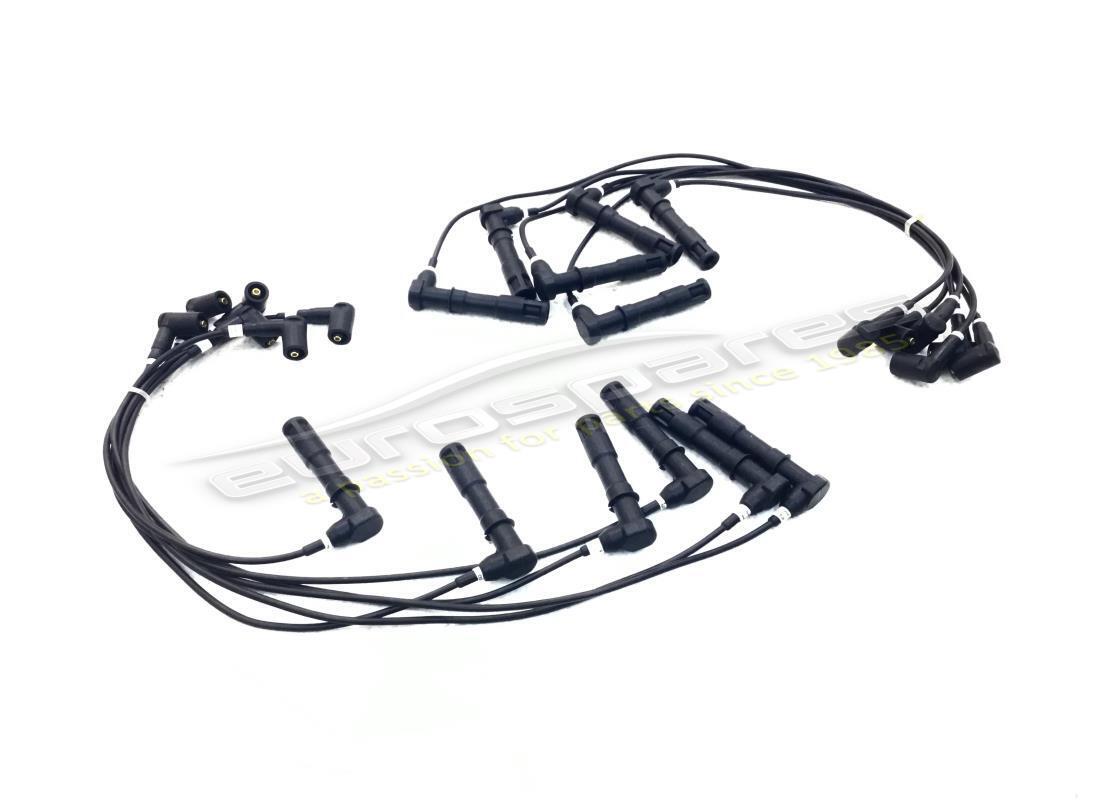

                                                              HT LEADS SET
                                                              from £932.20
                                                              from £932.20
                                                              # 011
                                                              MPN: 153372
                                                              LH COVER
                                                              from £364.43
                                                              from £364.43
                                                              # 012
                                                              MPN: 153361

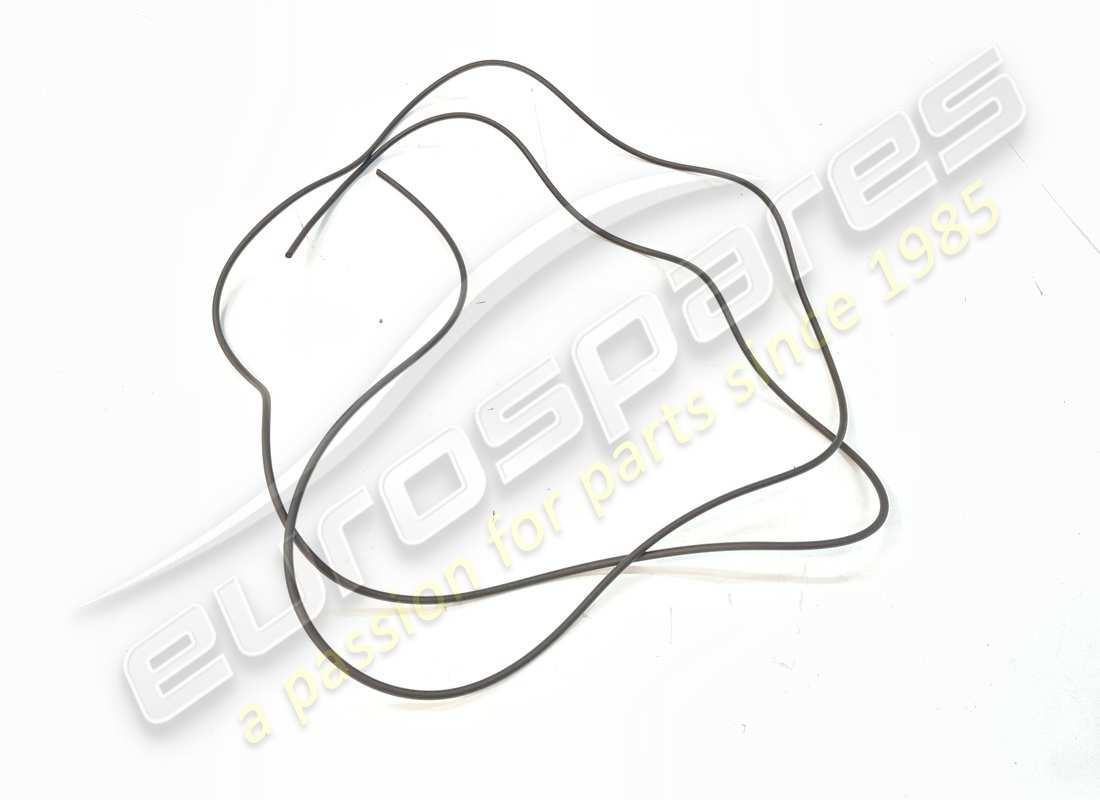

                                                              GASKET
                                                              from £19.85
                                                              from £19.85
                                                              # 013
                                                              MPN: 14303024
                                                              SCREW
                                                              from £0.48
                                                              from £0.48
                                                              This part replaces part number 14303021 - and 1 more. Click to view details
                                                              # 013
                                                              MPN: 153359
                                                              SCREW
                                                              - Not as spare part now - Replaced by 14303024
                                                              Supersession
                                                              Supersession
                                                              # 014
                                                              MPN: 12604079
                                                              WASHER
                                                              from £0.80
                                                              from £0.80
                                                              # 015
                                                              MPN: 156951

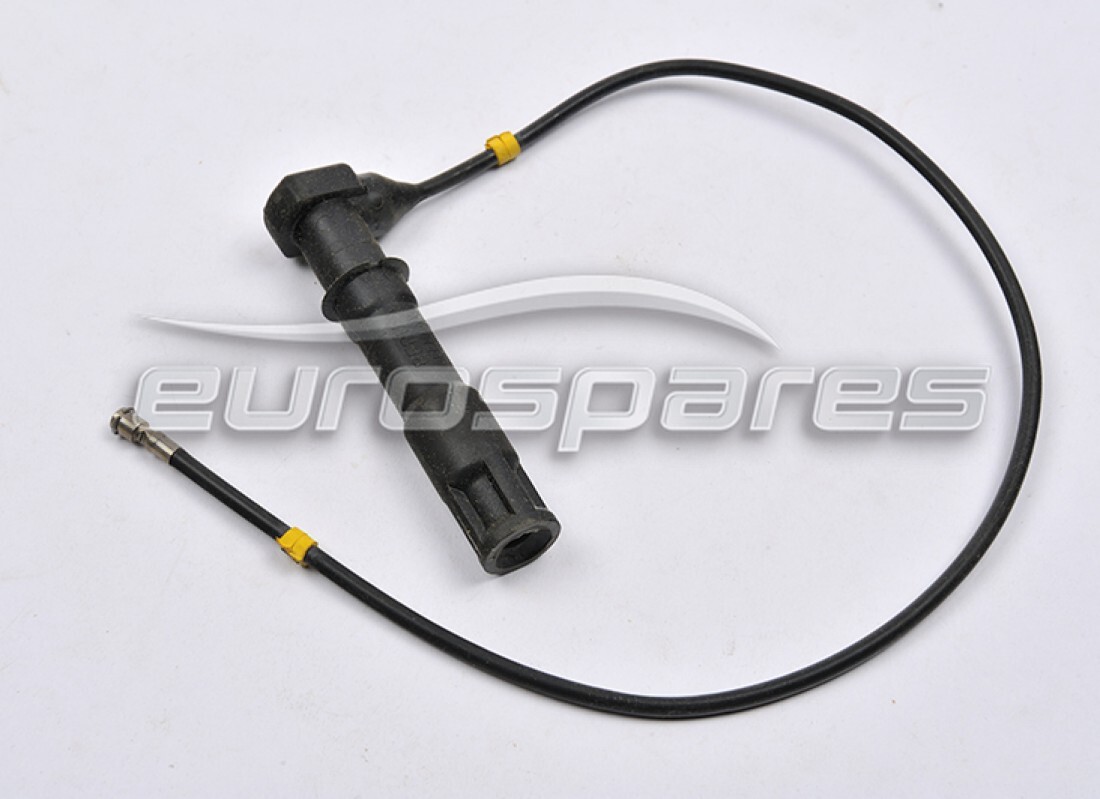

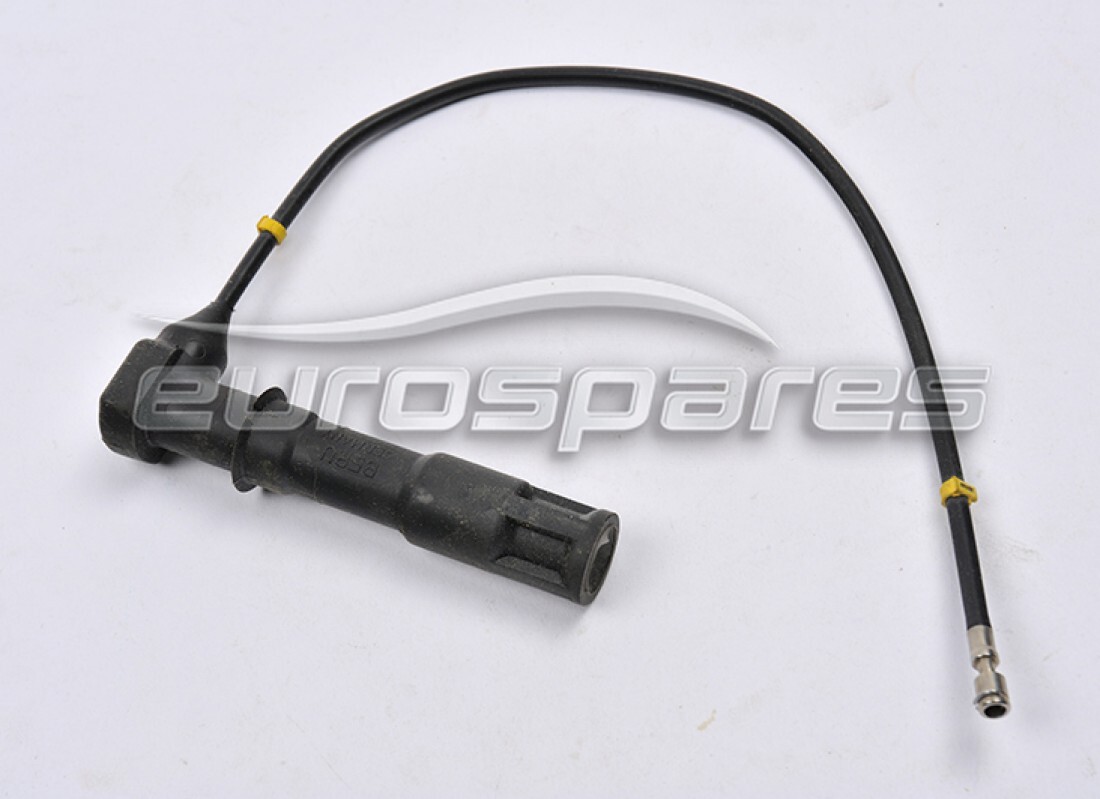

                                                              SPARK PLUG CABLE CYLINDER 1
                                                              from £102.32
                                                              from £102.32
                                                              # 015
                                                              MPN: 156962

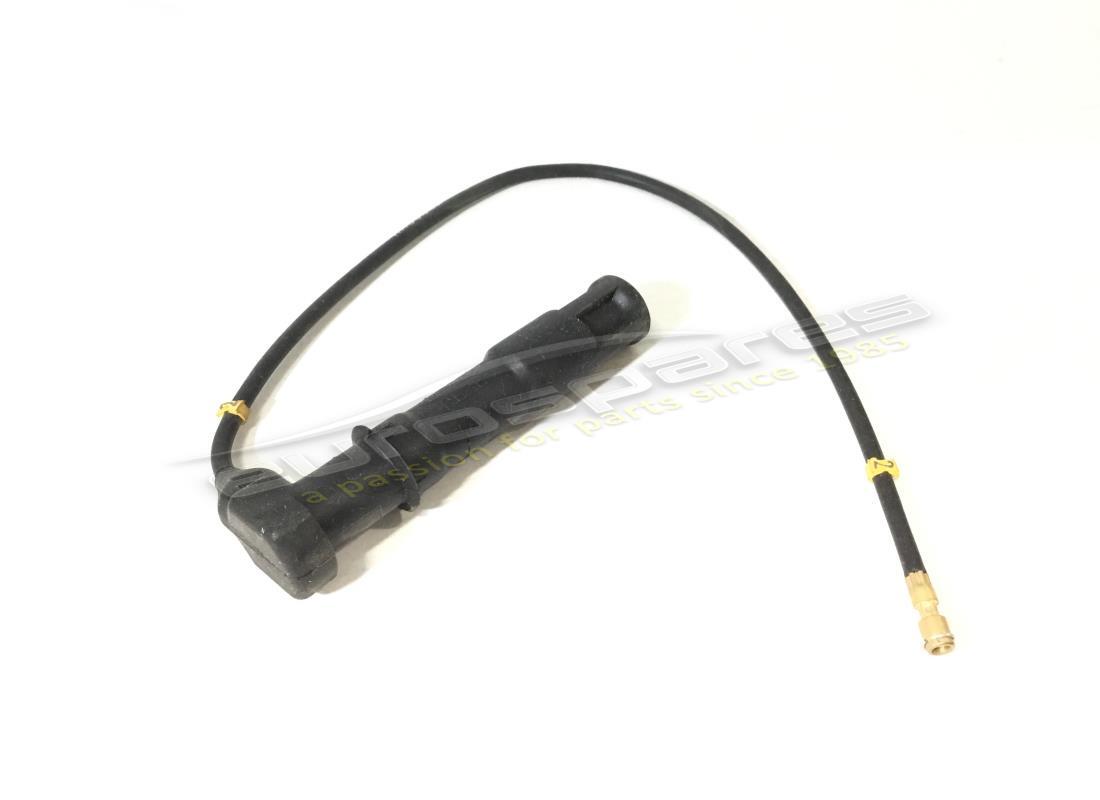

                                                              SPARK PLUG CABLE CYLINDER 12
                                                              from £109.02
                                                              from £109.02
                                                              # 016
                                                              MPN: 156952

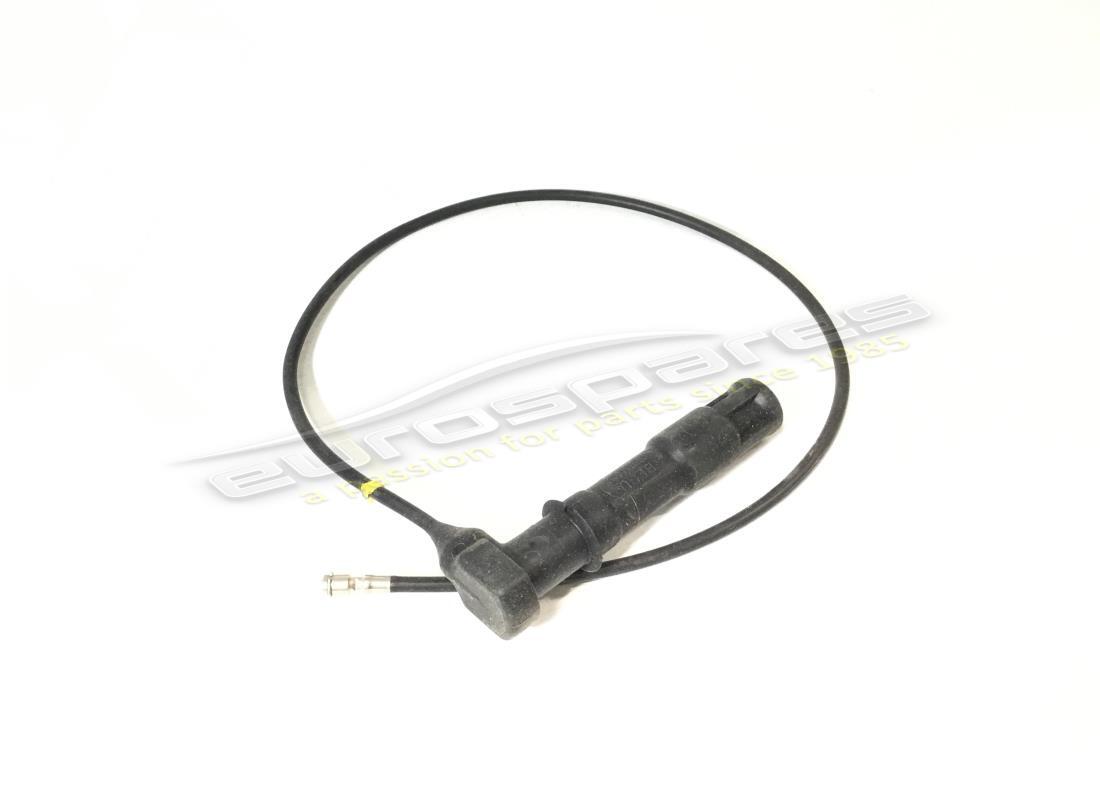

                                                              SPARK PLUG CABLE CYLINDER 2
                                                              from £126.00
                                                              from £126.00
                                                              # 016
                                                              MPN: 156961

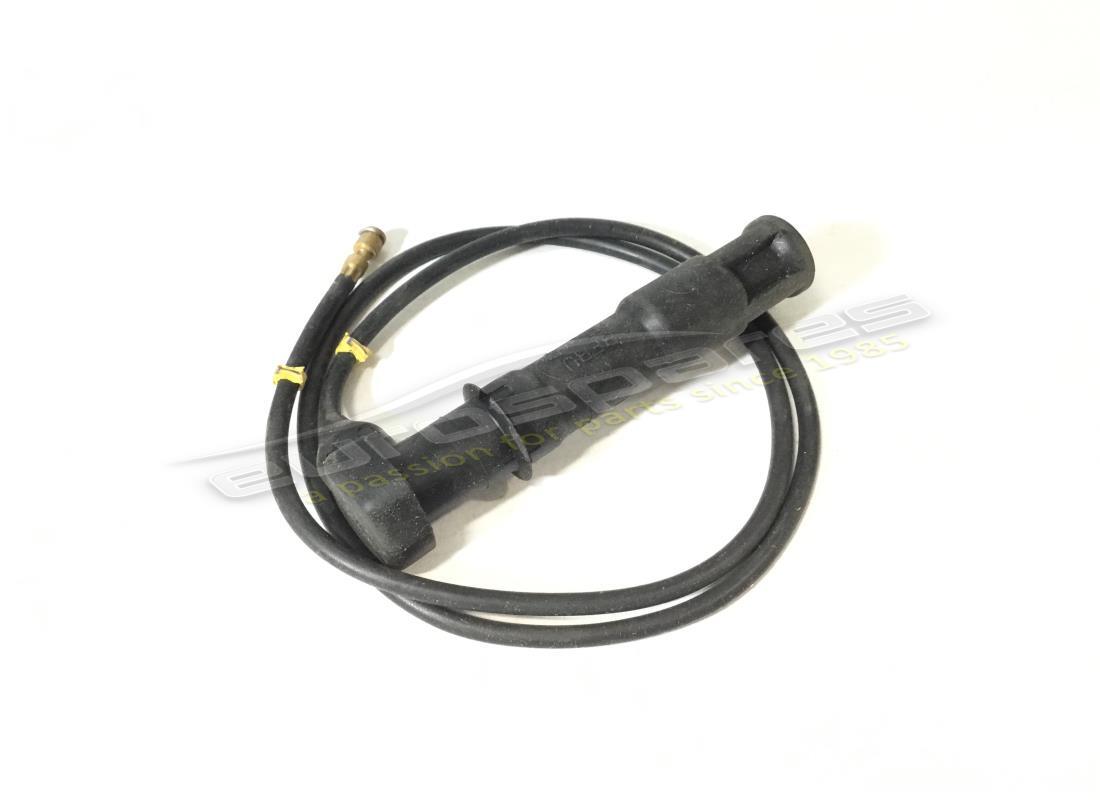

                                                              SPARK PLUG CABLE CYLINDER 11
                                                              from £72.14
                                                              from £72.14
                                                              # 017
                                                              MPN: 156953

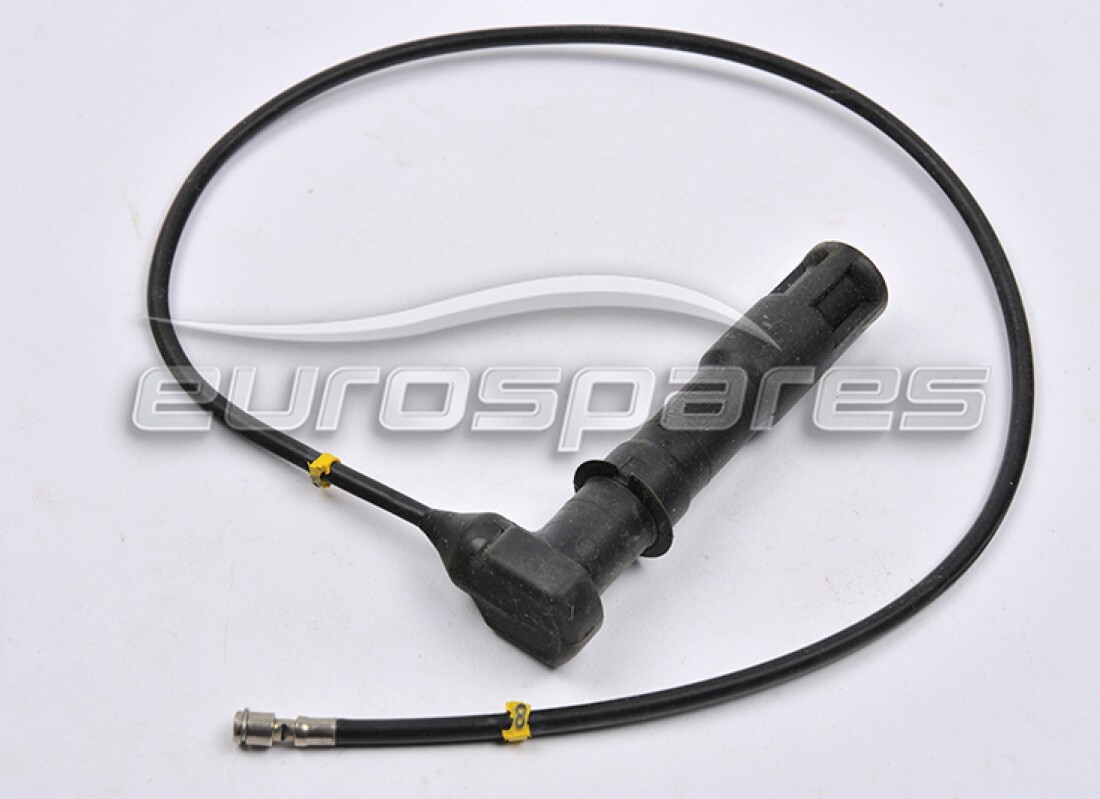

                                                              SPARK PLUG CABLE CYLINDER 3
                                                              from £72.01
                                                              from £72.01
                                                              # 017
                                                              MPN: 156960

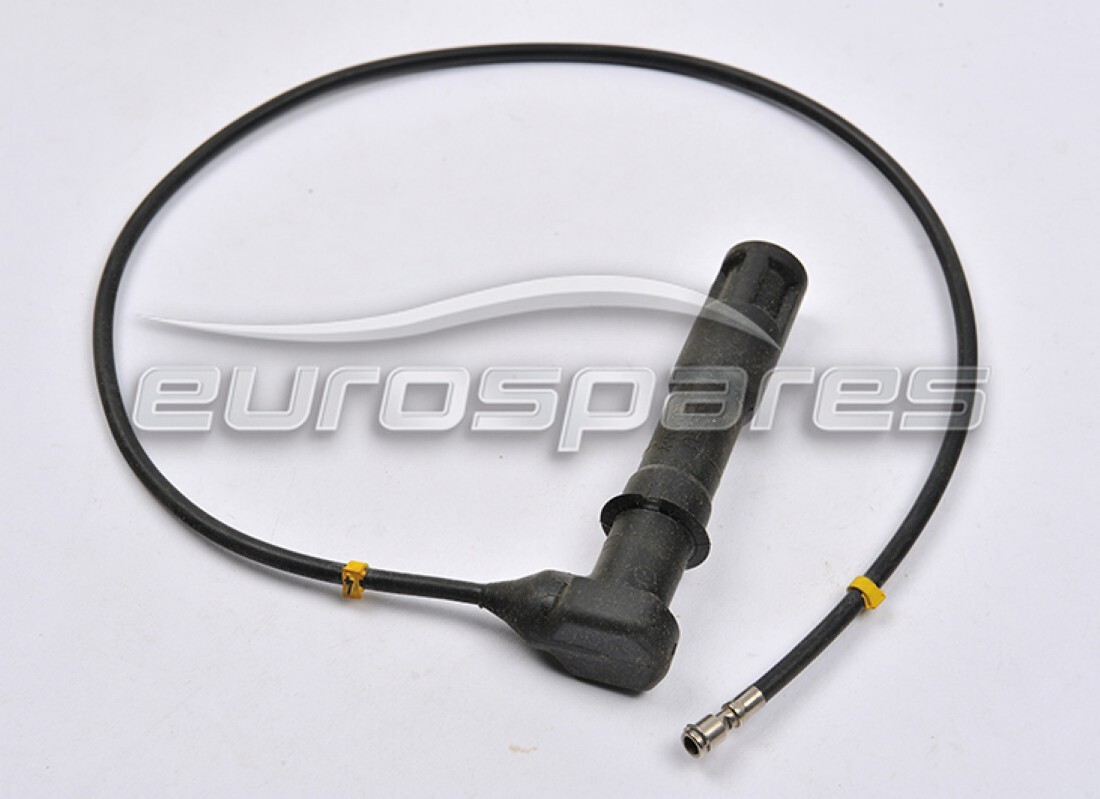

                                                              SPARK PLUG CABLE CYLINDER 10
                                                              from £126.00
                                                              from £126.00
                                                              # 018
                                                              MPN: 156954
                                                              SPARK PLUG CABLE CYLINDER 4
                                                              from £126.00
                                                              from £126.00
                                                              # 018
                                                              MPN: 156959
                                                              SPARK PLUG CABLE CYLINDER 9
                                                              from £126.00
                                                              from £126.00
                                                              # 019
                                                              MPN: 156955
                                                              SPARK PLUG CABLE CYLINDER 5
                                                              from £72.14
                                                              from £72.14
                                                              # 019
                                                              MPN: 156958
                                                              SPARK PLUG CABLE CYLINDER 8
                                                              from £126.00
                                                              from £126.00
                                                              # 020
                                                              MPN: 156956
                                                              SPARK PLUG CABLE CYLINDER 6
                                                              from £83.40
                                                              from £83.40
                                                              # 020
                                                              MPN: 156957
                                                              SPARK PLUG CABLE CYLINDER 7
                                                              from £126.00
                                                              from £126.00
                                                              # 021
                                                              MPN: 159562
                                                              BOOT
                                                              from £33.50
                                                              from £33.50
                                                              # 022
                                                              MPN: 150866
                                                              PHASE SENSOR
                                                              from £135.82
                                                              from £135.82
                                                              # 023
                                                              MPN: 150867
                                                              SEAL RING
                                                              from £1.18
                                                              from £1.18
                                                              # 024
                                                              MPN: 158714

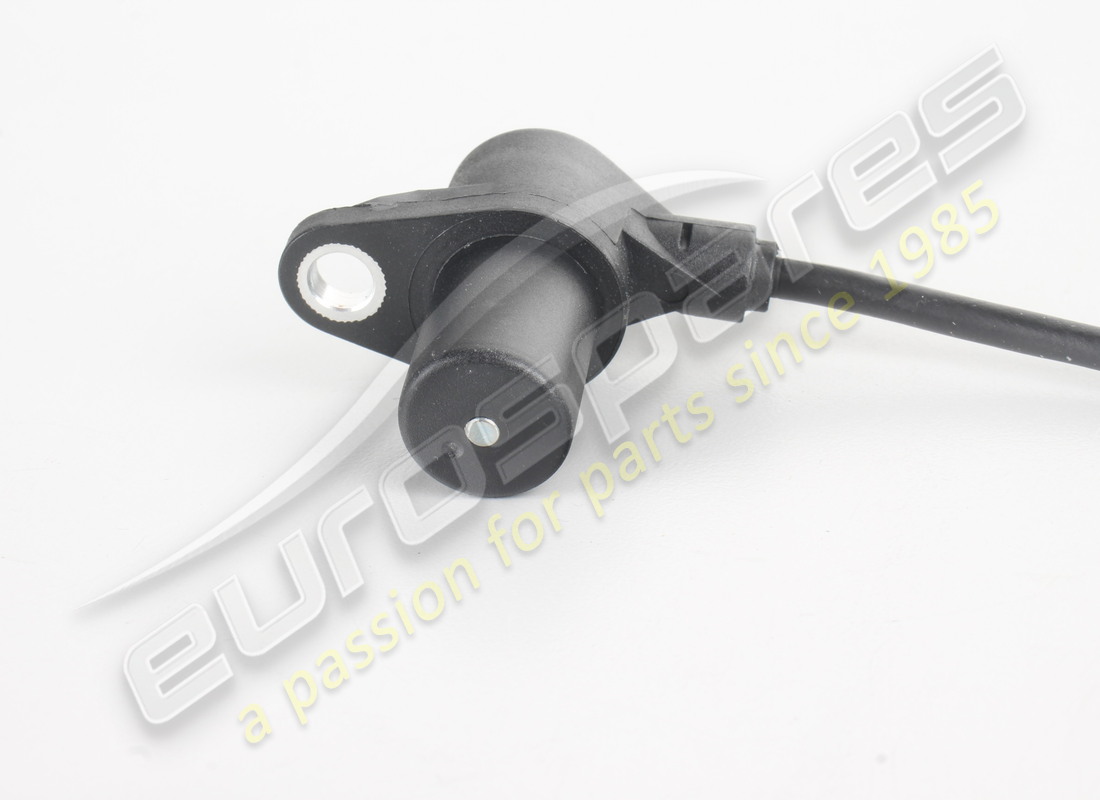

                                                              RH ANGOLAR SPEED SENSOR
                                                              from £150.12
                                                              from £150.12
                                                              # 024
                                                              MPN: 167939
                                                              LH ANGOLAR SPEED SENSOR
                                                              from £54.14
                                                              from £54.14
                                                              # 025
                                                              MPN: 14305224
                                                              SCREW
                                                              from £0.51
                                                              from £0.51
                                                              # 026
                                                              MPN: 12601274
                                                              WASHER
                                                              from £0.53
                                                              from £0.53
                                                              This part replaces part number 12601221 - and 5 more. Click to view details
                                                              # 027
                                                              MPN: 168115
                                                              BRACKET
                                                              from £69.02
                                                              from £69.02
                                                              This part replaces part number 166731
                                                              # 028
                                                              MPN: 146654
                                                              SUPPORT
                                                              from £46.33
                                                              from £46.33
                                                              # 029
                                                              MPN: 10519377
                                                              WASHER
                                                              Supersession
                                                              Supersession
                                                              This part replaces part number 10519305 which we have in stock - and 1 more. Click to view details
                                                              # 030
                                                              MPN: 169180
                                                              NUT
                                                              from £0.54
                                                              from £0.54
                                                              This part replaces part number 12574121
                                                              # 031
                                                              MPN: 162640
                                                              90¡ BOOT
                                                              from £32.06
                                                              from £32.06
