ferrari f50 fuel injection system parts diagram

011 - Fuel Injection System

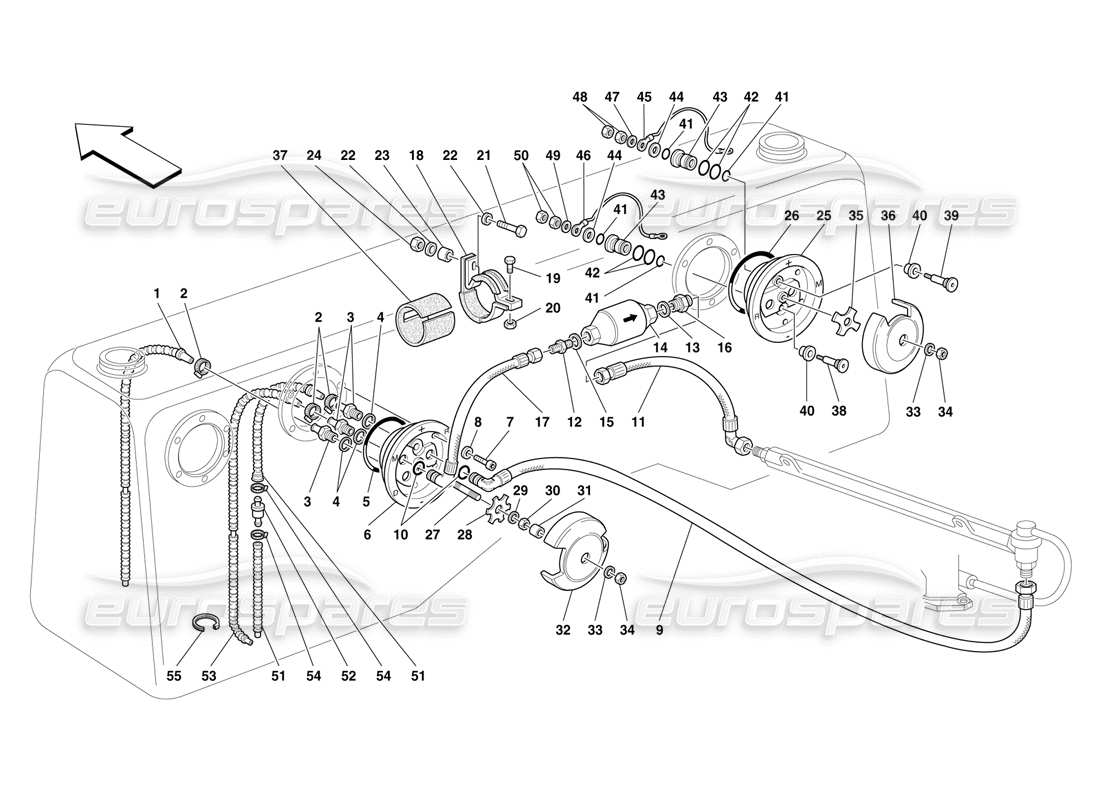

Ferrari F50 Fuel Injection System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                          #
                                                                                                          Part number
                                                                                                          Description
                                                                                                          Price
                                                                                                          # 001
                                                                                                          MPN: 170067
                                                                                                          FUEL FLOWING BACK PIPE
                                                                                                          from £46.37
                                                                                                          from £46.37
                                                                                                          # 002
                                                                                                          MPN: 13431570
                                                                                                          SCREW COLLAR
                                                                                                          - Not as spare part now - Replaced by 171406
                                                                                                          from £0.61
                                                                                                          from £0.61
                                                                                                          # 002
                                                                                                          MPN: 171406
                                                                                                          SCREW COLLAR
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          # 003
                                                                                                          MPN: 164331
                                                                                                          UNION
                                                                                                          from £26.52
                                                                                                          from £26.52

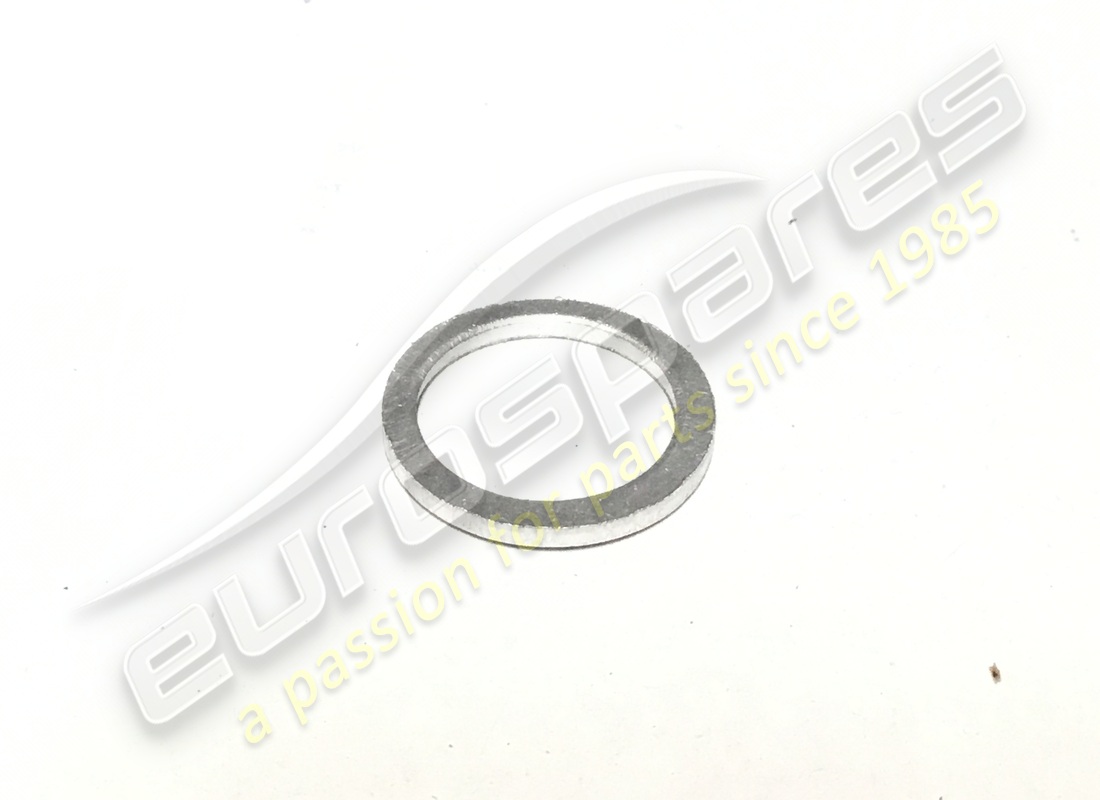

                                                                                                          # 004
                                                                                                          MPN: 11270150
                                                                                                          GASKET
                                                                                                          from £4.02
                                                                                                          from £4.02
                                                                                                          # 005
                                                                                                          MPN: 164330
                                                                                                          GASKET
                                                                                                          from £2.01
                                                                                                          from £2.01
                                                                                                          # 006
                                                                                                          MPN: 165775
                                                                                                          LH FLANGE
                                                                                                          from £870.84
                                                                                                          from £870.84
                                                                                                          # 007
                                                                                                          MPN: 164329
                                                                                                          SCREW
                                                                                                          from £0.48
                                                                                                          from £0.48
                                                                                                          # 008
                                                                                                          MPN: 12601274
                                                                                                          WASHER
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                          # 009
                                                                                                          MPN: 162862
                                                                                                          LH FUEL FLOWING BACK PIPE
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 009
                                                                                                          MPN: 162863
                                                                                                          RH FUEL FLOWING BACK PIPE
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 010
                                                                                                          MPN: 127816
                                                                                                          GASKET
                                                                                                          from £1.41
                                                                                                          from £1.41
                                                                                                          # 011
                                                                                                          MPN: 162860
                                                                                                          PIPE FROM FILTER TO FLAUTE
                                                                                                          - Valid till stock exhaustion
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 011
                                                                                                          MPN: 170681
                                                                                                          PIPE FROM FILTER TO FLAUTE
                                                                                                          - Valid after stock exhaustion of 162860
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          This part replaces part number 162860
                                                                                                          # 012
                                                                                                          MPN: 109889
                                                                                                          UNION
                                                                                                          from £2.73
                                                                                                          from £2.73
                                                                                                          # 013
                                                                                                          MPN: 10280060
                                                                                                          GASKET
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          This part replaces part number 100501 - and 3 more. Click to view details
                                                                                                          # 014
                                                                                                          MPN: 152212
                                                                                                          FUEL FILTER
                                                                                                          from £15.70
                                                                                                          from £15.70
                                                                                                          # 015
                                                                                                          MPN: 11270160
                                                                                                          GASKET
                                                                                                          from £0.80
                                                                                                          from £0.80
                                                                                                          # 016
                                                                                                          MPN: 109797
                                                                                                          UNION
                                                                                                          from £9.91
                                                                                                          from £9.91
                                                                                                          # 017
                                                                                                          MPN: 162856
                                                                                                          PIPE FROM TANK TO FILTER
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 018
                                                                                                          MPN: 152885
                                                                                                          BRACKET WITH SHEATH
                                                                                                          from £5.32
                                                                                                          from £5.32
                                                                                                          # 019
                                                                                                          MPN: 10902524
                                                                                                          SCREW
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          # 020
                                                                                                          MPN: 102741
                                                                                                          NUT
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                          # 021
                                                                                                          MPN: 115200
                                                                                                          SCREW
                                                                                                          from £4.44
                                                                                                          from £4.44
                                                                                                          # 022
                                                                                                          MPN: 12644424
                                                                                                          WASHER
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          This part replaces part number 12644401 - and 1 more. Click to view details
                                                                                                          # 023
                                                                                                          MPN: 166730
                                                                                                          SPACER
                                                                                                          from £4.00
                                                                                                          from £4.00
                                                                                                          # 024
                                                                                                          MPN: 102948
                                                                                                          NUT
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                                          # 025
                                                                                                          MPN: 164334
                                                                                                          RH FLANGE
                                                                                                          from £870.84
                                                                                                          from £870.84
                                                                                                          # 026
                                                                                                          MPN: 154102
                                                                                                          GASKET
                                                                                                          from £3.71
                                                                                                          from £3.71
                                                                                                          # 027
                                                                                                          MPN: 165928
                                                                                                          STUD
                                                                                                          from £7.09
                                                                                                          from £7.09
                                                                                                          # 028
                                                                                                          MPN: 165776
                                                                                                          LH SAFETY PLATE
                                                                                                          from £28.73
                                                                                                          from £28.73
                                                                                                          # 029
                                                                                                          MPN: 12601274
                                                                                                          WASHER
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                          # 030
                                                                                                          MPN: 15896214
                                                                                                          NUT
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          This part replaces part number 15896211
                                                                                                          # 031
                                                                                                          MPN: 165929
                                                                                                          SPACER
                                                                                                          from £3.97
                                                                                                          from £3.97
                                                                                                          # 032
                                                                                                          MPN: 165999
                                                                                                          LH HEAT SHIELD SMALL SUMP
                                                                                                          from £44.72
                                                                                                          from £44.72
                                                                                                          # 033
                                                                                                          MPN: 14496204
                                                                                                          WASHER
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          This part replaces part number 14496201
                                                                                                          # 034
                                                                                                          MPN: 14084015
                                                                                                          NUT
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          # 035
                                                                                                          MPN: 129316
                                                                                                          RH SAFETY PLATE
                                                                                                          from £2.20
                                                                                                          from £2.20
                                                                                                          # 036
                                                                                                          MPN: 168348
                                                                                                          RH HEAT SHIELD SMALL SUMP
                                                                                                          from £47.28
                                                                                                          from £47.28
                                                                                                          # 037
                                                                                                          MPN: 164206
                                                                                                          FILTER INSULATION
                                                                                                          from £93.39
                                                                                                          from £93.39
                                                                                                          # 038
                                                                                                          MPN: 169933
                                                                                                          GROUND PIN
                                                                                                          from £16.90
                                                                                                          from £16.90
                                                                                                          # 039
                                                                                                          MPN: 169934
                                                                                                          GROUND PIN
                                                                                                          from £16.90
                                                                                                          from £16.90
                                                                                                          # 040
                                                                                                          MPN: 170072
                                                                                                          BUSHING FOR FLANGE
                                                                                                          from £9.84
                                                                                                          from £9.84
                                                                                                          # 041
                                                                                                          MPN: 14452681
                                                                                                          GASKET
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          # 042
                                                                                                          MPN: 134705
                                                                                                          GASKET
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          # 043
                                                                                                          MPN: 170017
                                                                                                          BUSHING
                                                                                                          from £114.36
                                                                                                          from £114.36
                                                                                                          # 044
                                                                                                          MPN: 10519401
                                                                                                          WASHER
                                                                                                          from £0.71
                                                                                                          from £0.71
                                                                                                          # 045
                                                                                                          MPN: 170069
                                                                                                          POSITIVE ELECTRIC CABLE
                                                                                                          from £116.76
                                                                                                          from £116.76
                                                                                                          # 046
                                                                                                          MPN: 170070
                                                                                                          NEGATIVE ELECTRIC CABLE
                                                                                                          from £17.66
                                                                                                          from £17.66
                                                                                                          # 047
                                                                                                          MPN: 10615470
                                                                                                          WASHER
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 048
                                                                                                          MPN: 15896214
                                                                                                          NUT
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          This part replaces part number 15896211
                                                                                                          # 049
                                                                                                          MPN: 149951
                                                                                                          WASHER
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          This part replaces part number 10615301 which we have in stock - and 4 more. Click to view details
                                                                                                          # 050
                                                                                                          MPN: 15896414
                                                                                                          NUT
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          This part replaces part number 15896411
                                                                                                          # 051
                                                                                                          MPN: 170698
                                                                                                          FUEL FLOWING BACK PIPE
                                                                                                          # 052
                                                                                                          MPN: 166540
                                                                                                          NONRETURN VALVE
                                                                                                          from £17.68
                                                                                                          from £17.68
                                                                                                          This part replaces part number 170503
                                                                                                          # 053
                                                                                                          MPN: 170067
                                                                                                          FUEL DELIVERY TUBE
                                                                                                          from £46.37
                                                                                                          from £46.37
                                                                                                          # 054
                                                                                                          MPN: 13431570
                                                                                                          SCREW COLLAR
                                                                                                          - Not as spare part now - Replaced by 171406
                                                                                                          from £0.61
                                                                                                          from £0.61
                                                                                                          # 054
                                                                                                          MPN: 171406
                                                                                                          SCREW COLLAR
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          # 055
                                                                                                          MPN: 14560180
                                                                                                          CLAMP
