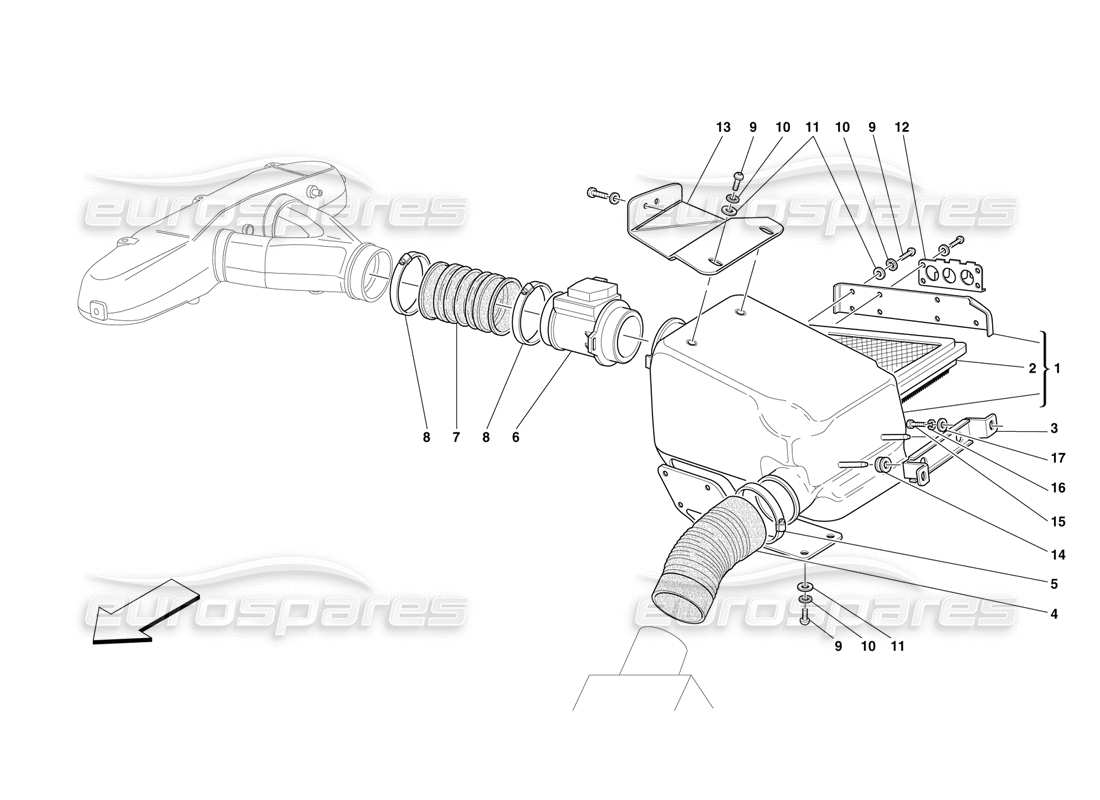

015 - AIR INTAKE

Ferrari F50 Air Intake Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 001
                              MPN: 162399
                              RH AIR FILTER BOX
                              - Not for car 74 DB
                              from £2,182.39
                              from £2,182.39
                              # 001
                              MPN: 162542
                              LH AIR FILTER BOX
                              - Not for car 74 DB
                              from £3,581.99
                              from £3,581.99
                              # 001
                              MPN: 171267
                              RH AIR FILTER BOX
                              - Valid for car 74 DB
                              from £1,916.95
                              from £1,916.95
                              # 001
                              MPN: 171268
                              LH AIR FILTER BOX
                              - Valid for car 74 DB
                              from £1,916.95
                              from £1,916.95
                              # 002
                              MPN: 162541
                              AIR FILTER
                              from £117.43
                              from £117.43
                              # 003
                              MPN: 64195500
                              BRACKET
                              from £54.99
                              from £54.99
                              # 004
                              MPN: 161434
                              SLEEVE
                              from £94.05
                              from £94.05
                              # 005
                              MPN: 13001290
                              SCREW COLLAR
                              from £7.08
                              from £7.08
                              This part replaces part number 126489 - and 1 more. Click to view details
                              # 006
                              MPN: 154916
                              AIR FLOW METER
                              from £895.00
                              from £895.00
                              This part replaces part number 138403 - and 2 more. Click to view details
                              # 007
                              MPN: 170917
                              SLEEVE
                              - Not as spare parrt now for F50 - Replaced by 170917
                              from £42.57
                              from £42.57
                              # 007
                              MPN: 170917
                              SLEEVE
                              from £42.57
                              from £42.57
                              # 008
                              MPN: 13001190
                              SCREW COLLAR
                              from £0.62
                              from £0.62
                              # 009
                              MPN: 13274172
                              SCREW
                              Supersession
                              Supersession
                              # 010
                              MPN: 12605274
                              WASHER
                              from £0.71
                              from £0.71
                              This part replaces part number 12605270 - and 1 more. Click to view details
                              # 011
                              MPN: 14496377
                              WASHER
                              from £1.07
                              from £1.07
                              This part replaces part number 14496309
                              # 012
                              MPN: 163021
                              BRACKET
                              from £87.74
                              from £87.74
                              # 013
                              MPN: 64169400
                              RH BRACKET
                              from £9.33
                              from £9.33
                              # 013
                              MPN: 64169500
                              LH BRACKET
                              from £9.56
                              from £9.56
                              # 014
                              MPN: 10396180
                              CABLE GROMMET
                              from £1.08
                              from £1.08
                              This part replaces part number 10459687
                              # 015
                              MPN: 10977524
                              SCREW
                              from £0.51
                              from £0.51
                              # 016
                              MPN: 127494
                              WASHER
                              (minimum order quantity = 20)
                              from £0.53
                              from £0.53
                              This part replaces part number 10516470 - and 4 more. Click to view details
                              # 017
                              MPN: 12643724
                              WASHER
                              from £0.47
                              from £0.47
                              This part replaces part number 109684 - and 4 more. Click to view details
