027 - ClutCH Controls

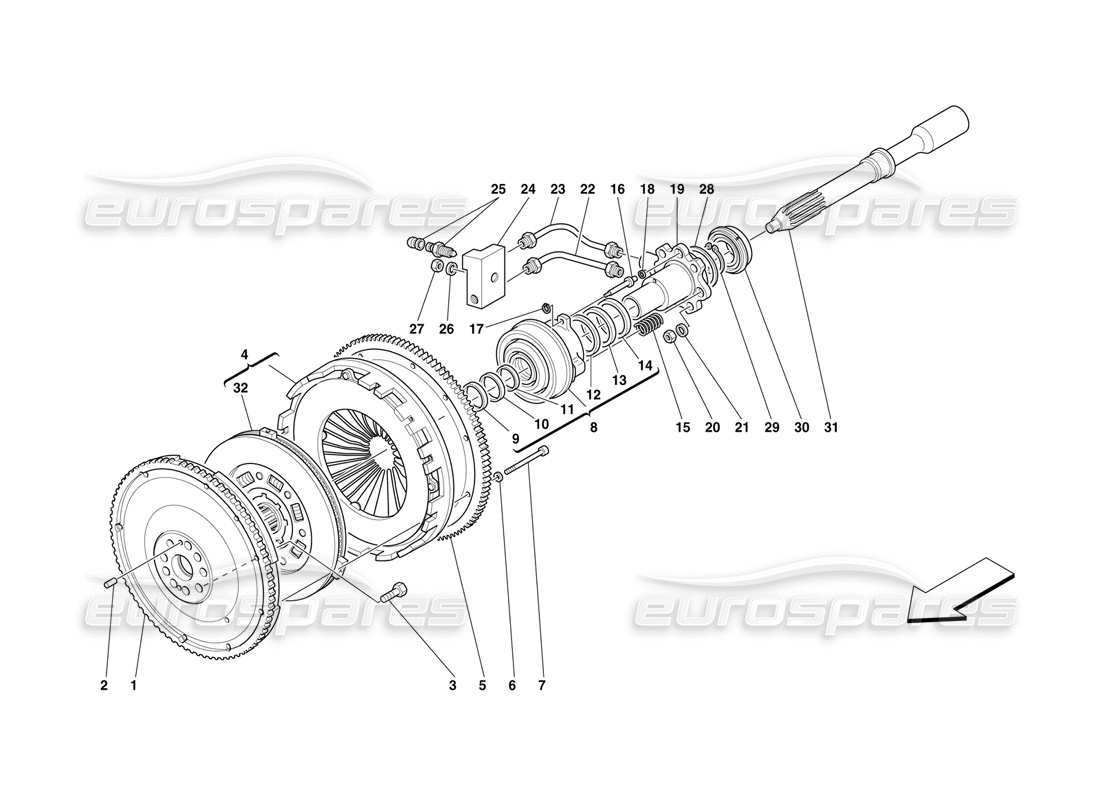

Ferrari F50 Clutch Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 154939
ENGINE FLYWHEEL WITH TOOTHED WHEEL
from £2,926.16
from £2,926.16
# 002
MPN: 10337530
PIN
from £0.47
from £0.47
# 003
MPN: 201755
SCREW
from £1.16
from £1.16
This part replaces part number 103875
# 004
MPN: 163854

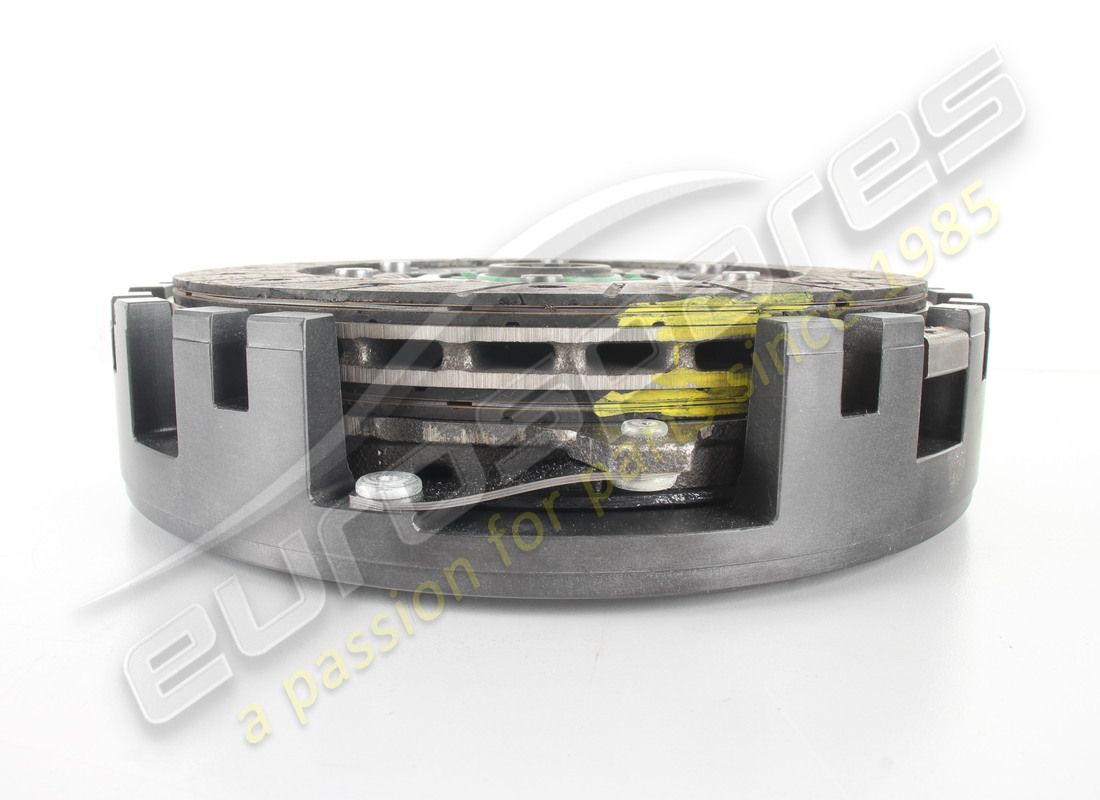

COMPLETE CLUTCH
from £4,168.26
from £4,168.26
This part replaces part number 167344
# 005
MPN: 155318
RING GEAR
from £253.35
from £253.35
# 006
MPN: 10569274
WASHER
from £0.86
from £0.86
# 007
MPN: 14303974
SCREW
from £0.71
from £0.71
# 008
MPN: 166434
COMPLETE THRUST BEARING
from £459.32
from £459.32
This part replaces part number 166433
# 009
MPN: 154550
SCRAPER RING
from £12.51
from £12.51
This part replaces part number 144550
# 010
MPN: 154504
RING
from £3.63
from £3.63
# 011
MPN: 154505
SEAL RING
from £6.89
from £6.89
# 012
MPN: 154508
SEAL RING
from £23.25
from £23.25
# 013
MPN: 154507
RING
from £2.01
from £2.01
This part replaces part number 170419 which we have in stock - and 1 more. Click to view details
# 014
MPN: 154551
SCRAPER RING
from £16.42
from £16.42
# 015
MPN: 121717
PRELOAD SPRING
from £2.51
from £2.51
# 016
MPN: 155322
PIN
from £28.43
from £28.43
# 017
MPN: 11065476
SEEGER RING
Supersession
Supersession
This part replaces part number 11065470
# 018
MPN: 10569274
WASHER
from £0.86
from £0.86
# 019
MPN: 155867
FLANGE FOR BEARING
from £1,891.17
from £1,891.17
# 020
MPN: 16100824
NUT
from £0.51
from £0.51
This part replaces part number 16100814 - and 1 more. Click to view details
# 021
MPN: 127496
WASHER
from £0.53
from £0.53
This part replaces part number 10516671 - and 2 more. Click to view details
# 022
MPN: 155935

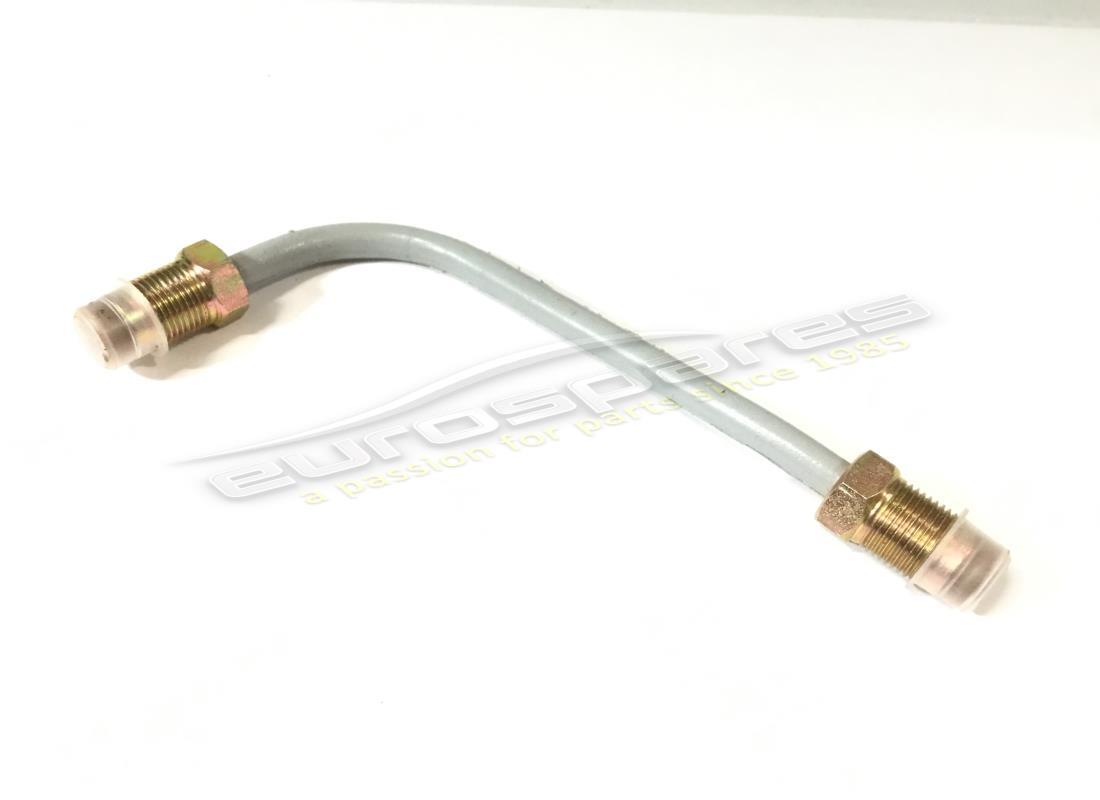

CLUTCH CONTROL PIPE
from £55.47
from £55.47
# 023
MPN: 155929

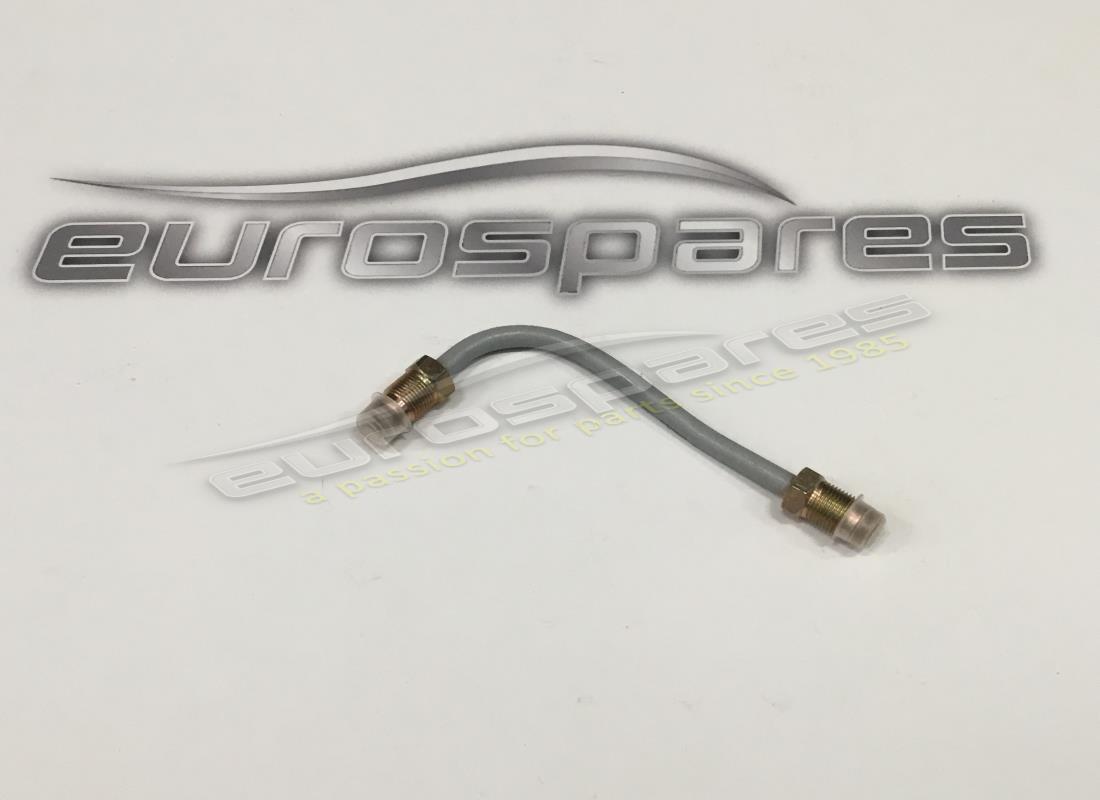

DRAIN PIPE
from £35.81
from £35.81
# 024
MPN: 235706
BLOCK
- 152954 also required
from £79.79
from £79.79
This part replaces part number 196918 - and 1 more. Click to view details
# 025
MPN: 121699
BLEEDER SCREW
from £11.76
from £11.76
# 026
MPN: 13579224
WASHER
from £0.47
from £0.47
# 027
MPN: 102948
NUT
from £0.47
from £0.47
This part replaces part number 12574211 - and 3 more. Click to view details
# 028
MPN: 155966
SPACER
from £35.85
from £35.85
# 029
MPN: 11067876
SEEGER RING
from £0.47
from £0.47
# 030
MPN: 146767

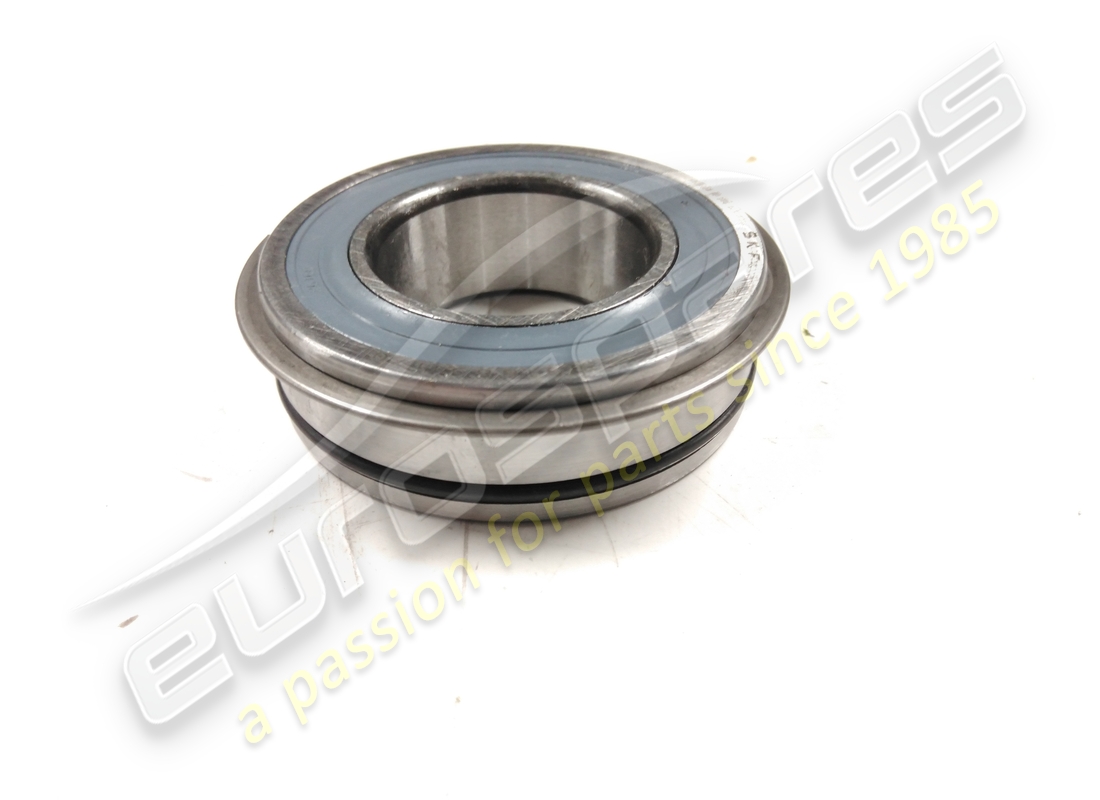

BEARING
from £660.48
from £660.48
# 031
MPN: 155883
CLUTCH SHAFT
from £451.74
from £451.74
# 032
MPN: 167344
CLUTCH TWIN DISC
- Not as spare part - With the assembly 163854
Supersession
Supersession
