Ferrari F50 Gearboxes-Differential Housing Parts Diagram

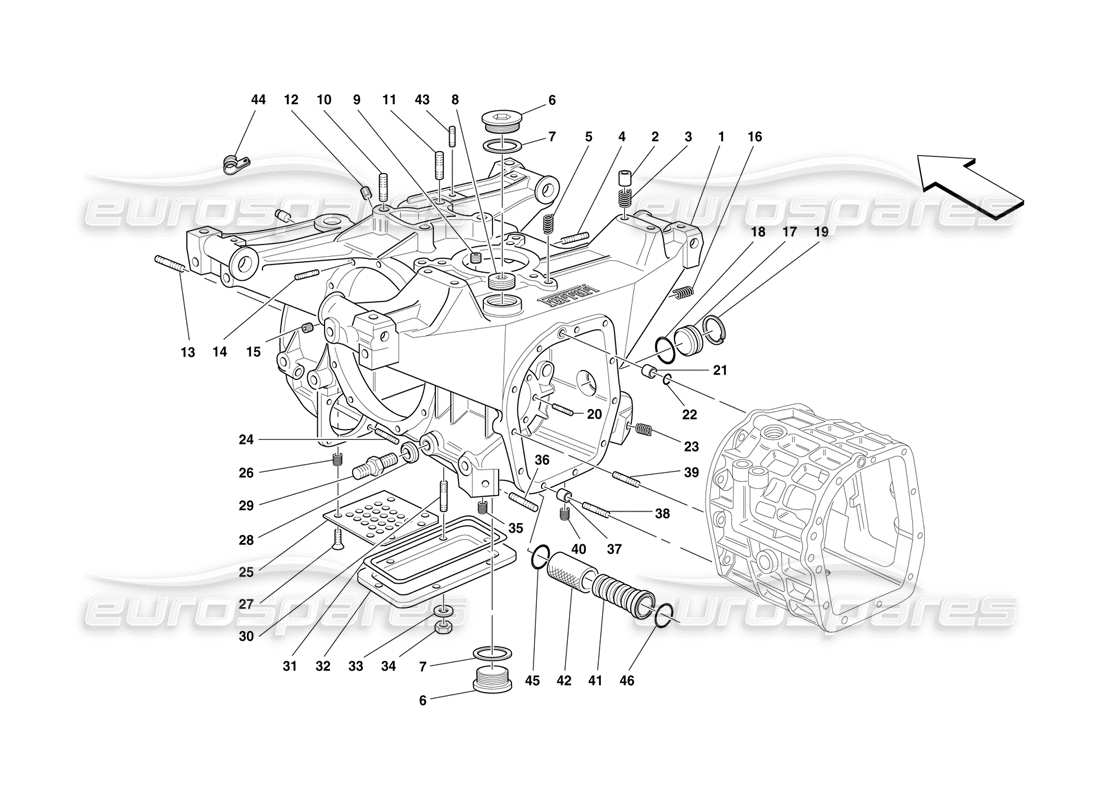

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                              #
                                                                                              Part number
                                                                                              Description
                                                                                              Price
                                                                                              # 000
                                                                                              MPN: 156787
                                                                                              GEARBOXES ASSEMBLY
                                                                                              from £14,916.93
                                                                                              from £14,916.93
                                                                                              This part replaces part number 155098 - and 2 more. Click to view details
                                                                                              # 001
                                                                                              MPN: 155098
                                                                                              FRONT GEARBOX
                                                                                              - Not as spare part - With the assembly 156787
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 002
                                                                                              MPN: 150961
                                                                                              CENTERING DOWEL
                                                                                              from £22.77
                                                                                              from £22.77
                                                                                              # 003
                                                                                              MPN: 13528370
                                                                                              THREADED INSERT
                                                                                              from £1.04
                                                                                              from £1.04
                                                                                              # 004
                                                                                              MPN: 13541424
                                                                                              STUD
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 13541421
                                                                                              # 005
                                                                                              MPN: 13525870
                                                                                              THREADED INSERT
                                                                                              from £1.40
                                                                                              from £1.40
                                                                                              This part replaces part number 105510
                                                                                              # 006
                                                                                              MPN: 154387
                                                                                              THREADED PLUG
                                                                                              from £39.44
                                                                                              from £39.44
                                                                                              # 007
                                                                                              MPN: 164023
                                                                                              GASKET
                                                                                              from £67.03
                                                                                              from £67.03

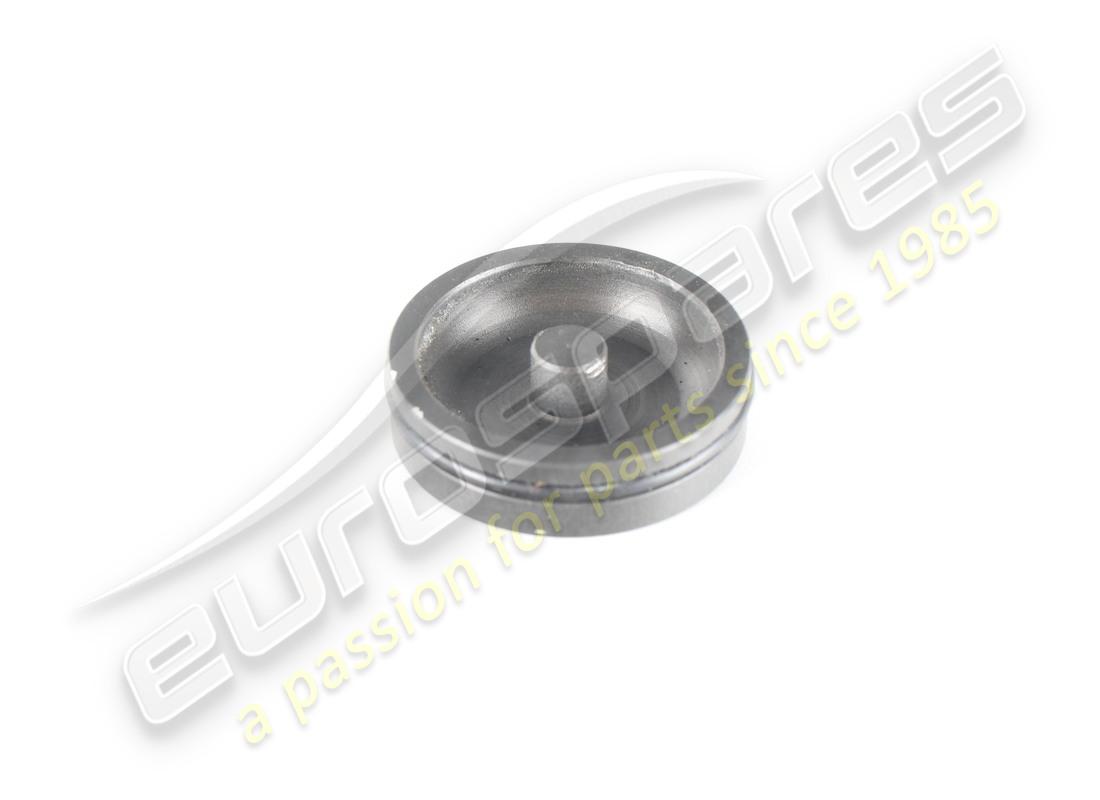

                                                                                              # 008
                                                                                              MPN: 10269950
                                                                                              PLUG
                                                                                              from £21.87
                                                                                              from £21.87
                                                                                              This part replaces part number 95124
                                                                                              # 009
                                                                                              MPN: 14326150
                                                                                              THREADED PLUG
                                                                                              from £0.51
                                                                                              from £0.51
                                                                                              This part replaces part number 12326150
                                                                                              # 010
                                                                                              MPN: 13453534
                                                                                              STUD
                                                                                              from £13.19
                                                                                              from £13.19
                                                                                              # 011
                                                                                              MPN: 13453634
                                                                                              STUD
                                                                                              from £7.83
                                                                                              from £7.83
                                                                                              # 012
                                                                                              MPN: 14326150
                                                                                              THREADED PLUG
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              This part replaces part number 12326150
                                                                                              # 013
                                                                                              MPN: 13516924
                                                                                              STUD
                                                                                              from £1.23
                                                                                              from £1.23
                                                                                              This part replaces part number 13516921
                                                                                              # 014
                                                                                              MPN: 13543424
                                                                                              STUD
                                                                                              from £1.03
                                                                                              from £1.03
                                                                                              This part replaces part number 13543421
                                                                                              # 015
                                                                                              MPN: 14326050
                                                                                              THREADED PLUG
                                                                                              from £1.00
                                                                                              from £1.00
                                                                                              # 016
                                                                                              MPN: 13528370
                                                                                              THREADED INSERT
                                                                                              from £1.04
                                                                                              from £1.04
                                                                                              # 017
                                                                                              MPN: 158672
                                                                                              PLUG
                                                                                              from £41.15
                                                                                              from £41.15

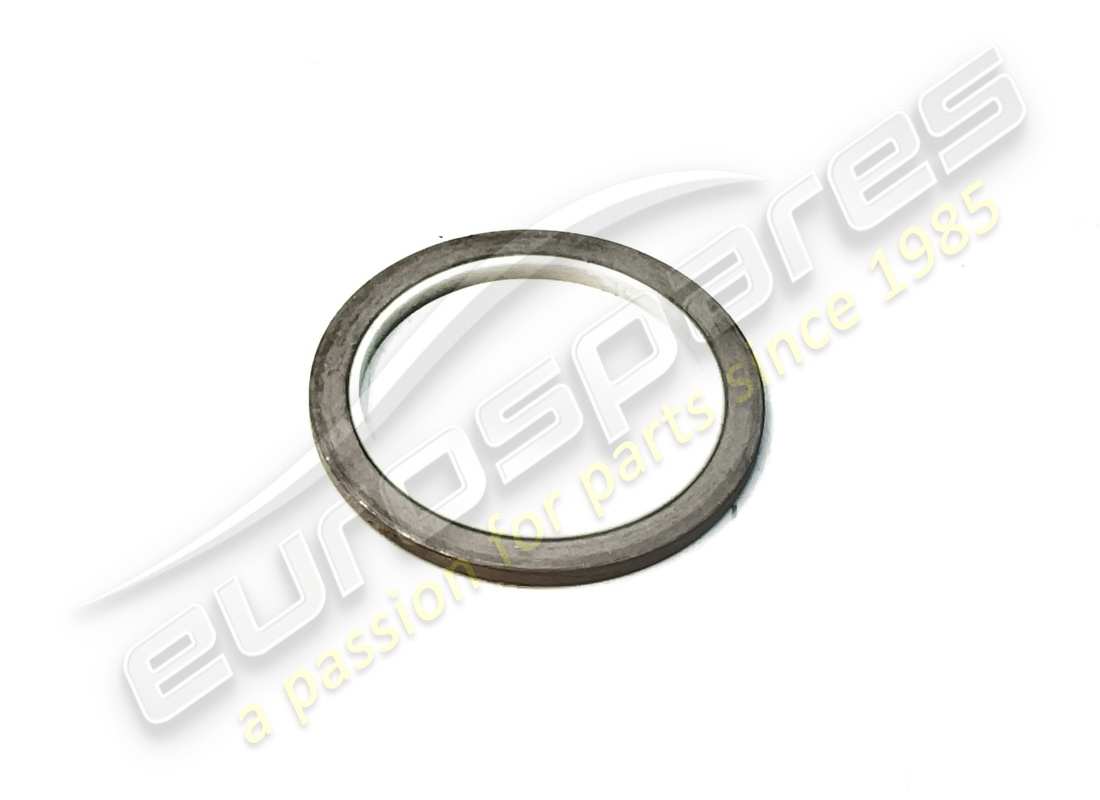

                                                                                              # 018
                                                                                              MPN: 111000
                                                                                              GASKET
                                                                                              from £0.61
                                                                                              from £0.61
                                                                                              # 019
                                                                                              MPN: 11059976
                                                                                              SEEGER RING
                                                                                              from £0.56
                                                                                              from £0.56
                                                                                              This part replaces part number 11059975
                                                                                              # 020
                                                                                              MPN: 12429324
                                                                                              STUD
                                                                                              from £7.83
                                                                                              from £7.83
                                                                                              # 021
                                                                                              MPN: 150957
                                                                                              BUSHING
                                                                                              from £4.42
                                                                                              from £4.42
                                                                                              # 022
                                                                                              MPN: 132536
                                                                                              GASKET
                                                                                              from £0.80
                                                                                              from £0.80
                                                                                              # 023
                                                                                              MPN: 13522170
                                                                                              THREADED INSERT
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 024
                                                                                              MPN: 13543434
                                                                                              STUD
                                                                                              from £3.40
                                                                                              from £3.40
                                                                                              # 025
                                                                                              MPN: 152030
                                                                                              PROTECTION DRILLET PLATE
                                                                                              from £16.15
                                                                                              from £16.15
                                                                                              # 026
                                                                                              MPN: 13521770
                                                                                              THREADED INSERT
                                                                                              from £1.04
                                                                                              from £1.04
                                                                                              # 027
                                                                                              MPN: 111189
                                                                                              SCREW
                                                                                              from £2.65
                                                                                              from £2.65
                                                                                              # 028
                                                                                              MPN: 149189
                                                                                              WASHER
                                                                                              from £5.00
                                                                                              from £5.00
                                                                                              # 029
                                                                                              MPN: 149102
                                                                                              SCREW
                                                                                              from £26.93
                                                                                              from £26.93
                                                                                              # 030
                                                                                              MPN: 13540924
                                                                                              STUD
                                                                                              from £0.70
                                                                                              from £0.70
                                                                                              This part replaces part number 13540921
                                                                                              # 031
                                                                                              MPN: 155685
                                                                                              GASKET
                                                                                              from £14.85
                                                                                              from £14.85
                                                                                              # 032
                                                                                              MPN: 149828
                                                                                              ENGINE OIL TANK COVER
                                                                                              from £155.86
                                                                                              from £155.86
                                                                                              # 033
                                                                                              MPN: 12601274
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                              # 034
                                                                                              MPN: 15896214
                                                                                              NUT
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              This part replaces part number 15896211
                                                                                              # 035
                                                                                              MPN: 13522270
                                                                                              THREADED INSERT
                                                                                              from £0.58
                                                                                              from £0.58
                                                                                              # 036
                                                                                              MPN: 13543324
                                                                                              STUD
                                                                                              from £0.83
                                                                                              from £0.83
                                                                                              This part replaces part number 13543321
                                                                                              # 037
                                                                                              MPN: 150961
                                                                                              CENTERING DOWEL
                                                                                              from £22.77
                                                                                              from £22.77
                                                                                              # 038
                                                                                              MPN: 13543624
                                                                                              STUD
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              This part replaces part number 13543621
                                                                                              # 039
                                                                                              MPN: 13543524
                                                                                              STUD
                                                                                              from £2.01
                                                                                              from £2.01
                                                                                              This part replaces part number 13543521
                                                                                              # 040
                                                                                              MPN: 13522070
                                                                                              THREADED INSERT
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 041
                                                                                              MPN: 151505
                                                                                              OIL SUCTION FAN
                                                                                              from £208.34
                                                                                              from £208.34
                                                                                              # 042
                                                                                              MPN: 151515
                                                                                              OIL FILTER
                                                                                              from £32.45
                                                                                              from £32.45
                                                                                              # 043
                                                                                              MPN: 11001224
                                                                                              STUD
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 11001221
                                                                                              # 044
                                                                                              MPN: 145661
                                                                                              BRACKET
                                                                                              from £4.67
                                                                                              from £4.67
                                                                                              # 045
                                                                                              MPN: 151913
                                                                                              LOCK RING
                                                                                              from £0.47
                                                                                              from £0.47

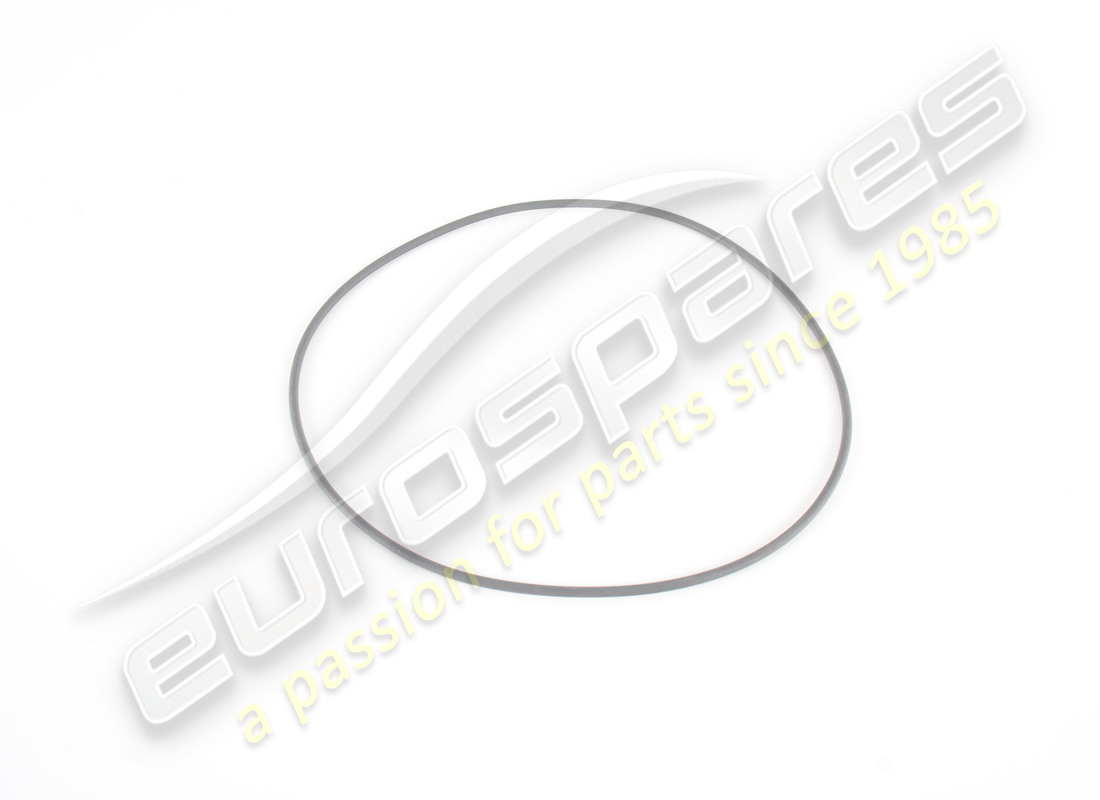

                                                                                              # 046
                                                                                              MPN: 151914
                                                                                              O.R. GASKET
                                                                                              from £0.54
                                                                                              from £0.54
                                                                                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
