029 - Rear Part Gearboxes Housing - Covers and Lubrication

Ferrari F50 Rear Part Gearboxes Housing - Covers and Lubrication Parts Diagram

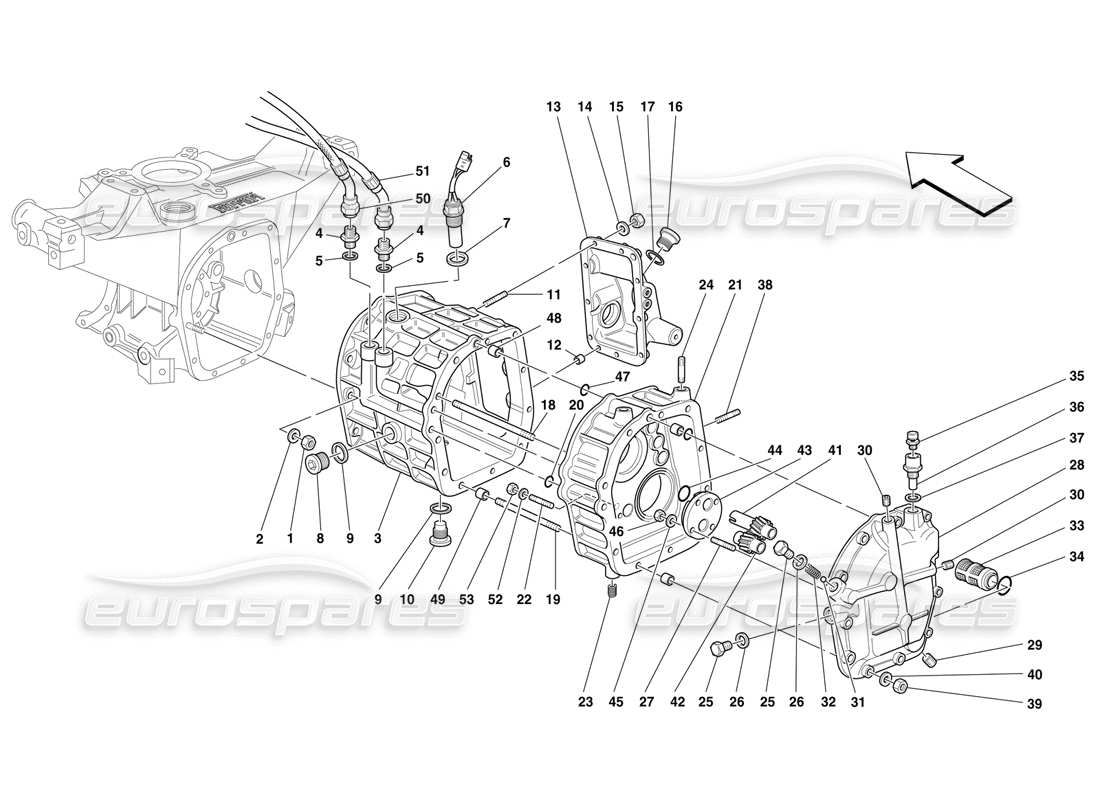

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                      #
                                                                                                      Part number
                                                                                                      Description
                                                                                                      Price
                                                                                                      # 000
                                                                                                      MPN: 156787
                                                                                                      GEARBOXES ASSEMBLY
                                                                                                      from £14,916.93
                                                                                                      from £14,916.93
                                                                                                      This part replaces part number 155098 - and 2 more. Click to view details
                                                                                                      # 001
                                                                                                      MPN: 16100824
                                                                                                      NUT
                                                                                                      from £0.50
                                                                                                      from £0.50
                                                                                                      This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                                      # 002
                                                                                                      MPN: 12601374
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                      # 003
                                                                                                      MPN: 155397
                                                                                                      GEARBOX
                                                                                                      - Not as spare part - With the assembly 156787
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 004
                                                                                                      MPN: 134988
                                                                                                      UNION
                                                                                                      from £19.30
                                                                                                      from £19.30
                                                                                                      # 005
                                                                                                      MPN: 145192
                                                                                                      GASKET
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      This part replaces part number 143311
                                                                                                      # 006
                                                                                                      MPN: 150830

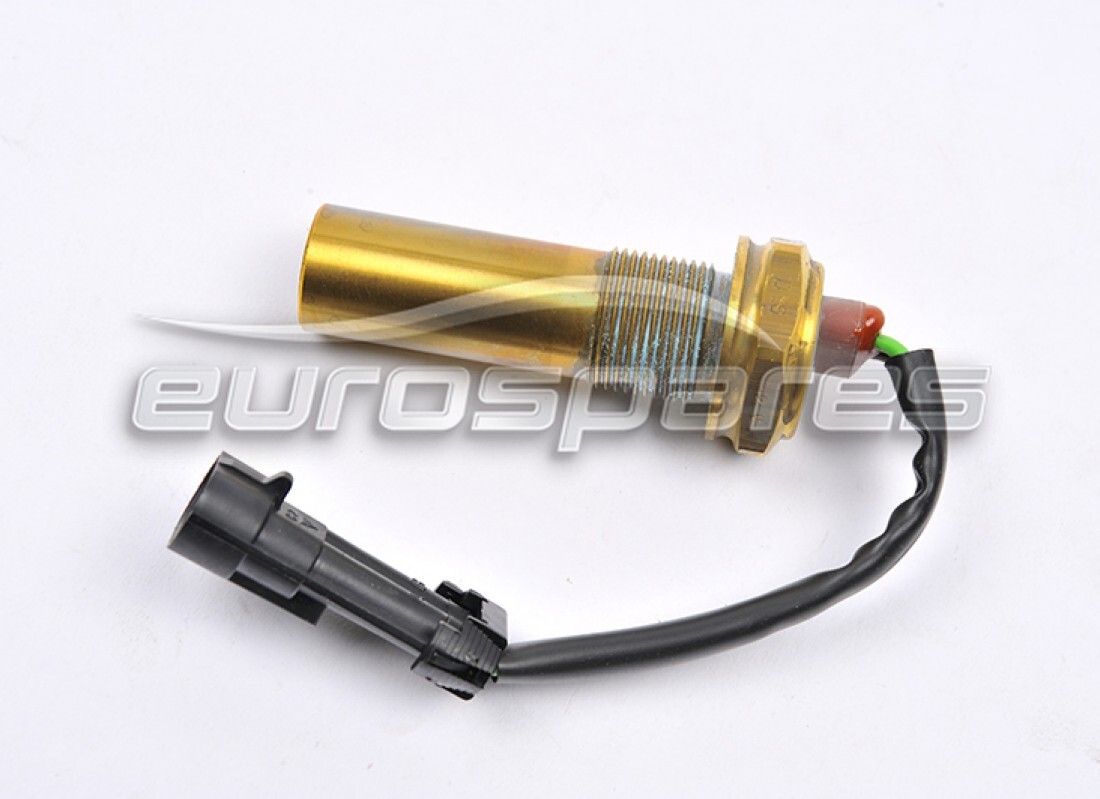

                                                                                                      PULSE SENSOR
                                                                                                      from £323.61
                                                                                                      from £323.61
                                                                                                      # 007
                                                                                                      MPN: 144810
                                                                                                      GASKET
                                                                                                      from £12.06
                                                                                                      from £12.06
                                                                                                      # 008
                                                                                                      MPN: 10275011
                                                                                                      PLUG
                                                                                                      from £1.05
                                                                                                      from £1.05
                                                                                                      This part replaces part number 10275001 - and 3 more. Click to view details
                                                                                                      # 009
                                                                                                      MPN: 144810
                                                                                                      GASKET
                                                                                                      from £12.06
                                                                                                      from £12.06
                                                                                                      # 010
                                                                                                      MPN: 104280
                                                                                                      MAGNETIC PLUG
                                                                                                      from £4.95
                                                                                                      from £4.95
                                                                                                      This part replaces part number 523977
                                                                                                      # 011
                                                                                                      MPN: 11500424
                                                                                                      STUD
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 11500421
                                                                                                      # 012
                                                                                                      MPN: 125717
                                                                                                      CENTERING DOWEL
                                                                                                      from £1.59
                                                                                                      from £1.59
                                                                                                      # 013
                                                                                                      MPN: 155620
                                                                                                      COVER FOR GEARBOX CONTROL ROD INLET
                                                                                                      from £405.86
                                                                                                      from £405.86
                                                                                                      # 014
                                                                                                      MPN: 12601274
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                      # 015
                                                                                                      MPN: 15896214
                                                                                                      NUT
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      This part replaces part number 15896211
                                                                                                      # 016
                                                                                                      MPN: 10275011
                                                                                                      PLUG
                                                                                                      from £1.05
                                                                                                      from £1.05
                                                                                                      This part replaces part number 10275001 - and 3 more. Click to view details
                                                                                                      # 017
                                                                                                      MPN: 144810
                                                                                                      GASKET
                                                                                                      from £12.06
                                                                                                      from £12.06
                                                                                                      # 018
                                                                                                      MPN: 13970624
                                                                                                      STUD
                                                                                                      from £1.48
                                                                                                      from £1.48
                                                                                                      # 019
                                                                                                      MPN: 13970724
                                                                                                      STUD
                                                                                                      from £7.83
                                                                                                      from £7.83
                                                                                                      # 020
                                                                                                      MPN: 134232
                                                                                                      GASKET
                                                                                                      from £0.68
                                                                                                      from £0.68
                                                                                                      This part replaces part number 153718 which we have in stock
                                                                                                      # 021
                                                                                                      MPN: 155283
                                                                                                      REVERSE GEARBOX HOUSING
                                                                                                      - Not as spare part - With the assembly 156787
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 022
                                                                                                      MPN: 11500124
                                                                                                      STUD
                                                                                                      from £0.71
                                                                                                      from £0.71
                                                                                                      This part replaces part number 11500121
                                                                                                      # 023
                                                                                                      MPN: 13582171
                                                                                                      THREADED INSERT
                                                                                                      from £0.84
                                                                                                      from £0.84
                                                                                                      # 024
                                                                                                      MPN: 13543824
                                                                                                      STUD
                                                                                                      from £1.66
                                                                                                      from £1.66
                                                                                                      This part replaces part number 13543821
                                                                                                      # 025
                                                                                                      MPN: 145148
                                                                                                      PLUG
                                                                                                      from £2.90
                                                                                                      from £2.90
                                                                                                      This part replaces part number 156984
                                                                                                      # 026
                                                                                                      MPN: 145192
                                                                                                      GASKET
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      This part replaces part number 143311
                                                                                                      # 027
                                                                                                      MPN: 11500124
                                                                                                      STUD
                                                                                                      from £0.71
                                                                                                      from £0.71
                                                                                                      This part replaces part number 11500121
                                                                                                      # 028
                                                                                                      MPN: 154642
                                                                                                      REAR GEARBOX COVER
                                                                                                      from £616.72
                                                                                                      from £616.72
                                                                                                      # 029
                                                                                                      MPN: 10269450
                                                                                                      THREADED PLUG
                                                                                                      from £16.22
                                                                                                      from £16.22
                                                                                                      # 030
                                                                                                      MPN: 14326050
                                                                                                      THREADED PLUG
                                                                                                      from £0.98
                                                                                                      from £0.98
                                                                                                      # 031
                                                                                                      MPN: 135770
                                                                                                      BALL
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 032
                                                                                                      MPN: 135771
                                                                                                      SPRING
                                                                                                      from £2.26
                                                                                                      from £2.26
                                                                                                      # 033
                                                                                                      MPN: 115538
                                                                                                      FILTER FOR GEAR BOX OIL PUMP
                                                                                                      from £86.85
                                                                                                      from £86.85
                                                                                                      # 034
                                                                                                      MPN: 101034
                                                                                                      GASKET
                                                                                                      from £0.70
                                                                                                      from £0.70
                                                                                                      # 035
                                                                                                      MPN: 13411990
                                                                                                      OIL BREATHER
                                                                                                      from £1.74
                                                                                                      from £1.74
                                                                                                      # 036
                                                                                                      MPN: 150954
                                                                                                      UNION
                                                                                                      from £13.90
                                                                                                      from £13.90
                                                                                                      # 037
                                                                                                      MPN: 145192
                                                                                                      GASKET
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      This part replaces part number 143311
                                                                                                      # 038
                                                                                                      MPN: 11500124
                                                                                                      STUD
                                                                                                      from £0.71
                                                                                                      from £0.71
                                                                                                      This part replaces part number 11500121
                                                                                                      # 039
                                                                                                      MPN: 16100814
                                                                                                      NUT
                                                                                                      from £0.71
                                                                                                      from £0.71
                                                                                                      This part replaces part number 16100811 - and 1 more. Click to view details
                                                                                                      # 040
                                                                                                      MPN: 12601374
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                      # 041
                                                                                                      MPN: 109722
                                                                                                      GEARBOX OIL PUMP DRIVING GEAR
                                                                                                      from £1,360.03
                                                                                                      from £1,360.03
                                                                                                      # 042
                                                                                                      MPN: 109723
                                                                                                      GEARBOX OIL PUMP DRIVEN GEAR
                                                                                                      from £30.54
                                                                                                      from £30.54
                                                                                                      # 043
                                                                                                      MPN: 121962
                                                                                                      SMALL COVER
                                                                                                      from £107.47
                                                                                                      from £107.47
                                                                                                      # 044
                                                                                                      MPN: 109724
                                                                                                      GASKET
                                                                                                      from £0.65
                                                                                                      from £0.65
                                                                                                      # 045
                                                                                                      MPN: 12601274
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                      # 046
                                                                                                      MPN: 15896214
                                                                                                      NUT
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      This part replaces part number 15896211
                                                                                                      # 047
                                                                                                      MPN: 132536
                                                                                                      GASKET
                                                                                                      from £0.80
                                                                                                      from £0.80
                                                                                                      # 048
                                                                                                      MPN: 150957
                                                                                                      BUSHING
                                                                                                      from £4.42
                                                                                                      from £4.42
                                                                                                      # 049
                                                                                                      MPN: 150961
                                                                                                      CENTERING DOWEL
                                                                                                      from £22.77
                                                                                                      from £22.77
                                                                                                      # 050
                                                                                                      -
                                                                                                      OIL DELIVRY TUBE
                                                                                                      # 051
                                                                                                      -
                                                                                                      OIL RETURN TUBE
                                                                                                      # 052
                                                                                                      MPN: 106850
                                                                                                      WASHER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      This part replaces part number 10516473 - and 1 more. Click to view details
                                                                                                      # 053
                                                                                                      MPN: 15896214
                                                                                                      NUT
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      This part replaces part number 15896211
