034 - Differential & Axle Shafts

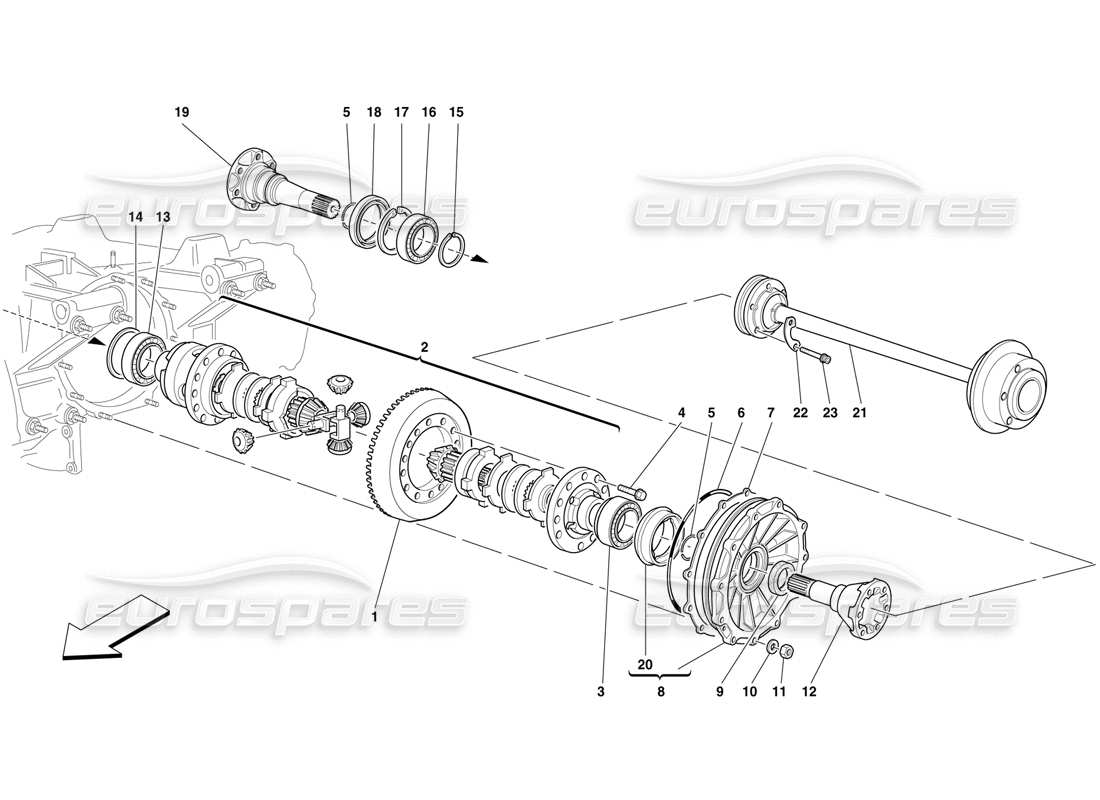

Ferrari F50 Differential & Axle Shafts Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 169544
COMPLETE CROWN WHEEL AND PINION R.10/37
- Not as spare part now - Replace by 169792
Supersession
Supersession
This part replaces part number 156070 - and 1 more. Click to view details
# 000
MPN: 169792
COMPLETE CROWN WHEEL AND PINION R.10/37
from £2,562.78
from £2,562.78
This part replaces part number 169544
# 001
MPN: 156084
BEVEL GEAR
- Not as spare part now - With the complete crown wheel and pinion 169544
Supersession
Supersession
# 001
MPN: 168140
BEVEL GEAR
- Not as spare part now - With the complete crown wheel and pinion 169792
# 002
MPN: 161112
COMPLETE DIFFERENTIAL
from £849.22
from £849.22
# 003
MPN: 125390
LH BEARING
from £93.74
from £93.74
# 004
MPN: 223916
SCREW
from £1.37
from £1.37
This part replaces part number 181910
# 005
MPN: 161355
FLEXIBLE RING
from £2.70
from £2.70
# 006
MPN: 151768
GASKET
from £10.66
from £10.66
# 007
MPN: 151632
SPACER TH. 2,7 MM.
from £65.89
from £65.89
# 007
MPN: 151633
SPACER TH. 2,9 MM.
- As an alternative
from £45.72
from £45.72
# 007
MPN: 151634
SPACER TH. 3,1 MM.
- As an alternative
from £61.53
from £61.53
# 007
MPN: 151635
SPACER TH. 3,3 MM.
- As an alternative
from £88.42
from £88.42
# 007
MPN: 163806
SPACER TH. 3,5 MM.
- As an alternative
from £64.90
from £64.90
# 007
MPN: 163807
SPACER TH. 3,7 MM.
- As an alternative
from £50.48
from £50.48
# 008
MPN: 162586
DIFFERENTIAL COVER
- Valid till stock exhaustion
Supersession
Supersession
# 008
MPN: 169513
DIFFERENTIAL COVER
- Valid after stock exhaustion of 162586
from £375.78
from £375.78
This part replaces part number 162586
# 009
MPN: 141509
GASKET
from £70.78
from £70.78
This part replaces part number 125077
# 010
MPN: 12601374
WASHER
from £0.52
from £0.52
This part replaces part number 10615474 - and 6 more. Click to view details
# 011
MPN: 16100814
NUT
from £0.71
from £0.71
This part replaces part number 16100811 - and 1 more. Click to view details
# 012
MPN: 161406
LH FLANGE
from £459.15
from £459.15
# 013
MPN: 101634
RH BEARING
from £89.21
from £89.21
This part replaces part number 580881
# 014
MPN: 122067
SPACER TH. 2,8 MM.
- As an alternative
from £12.19
from £12.19
# 014
MPN: 122068
SPACER TH. 3,4 MM.
from £9.81
from £9.81
# 014
MPN: 122069
SPACER TH. 3,6 MM.
- As an alternative
from £9.81
from £9.81
# 014
MPN: 122070
SPACER TH. 3,0 MM.
- As an alternative
from £1.72
from £1.72
# 014
MPN: 122071
SPACER TH. 3,2 MM.
- As an alternative
from £9.81
from £9.81
# 014
MPN: 163804
SPACER TH. 3,8 MM.
- As an alternative
from £9.81
from £9.81
# 014
MPN: 163805
SPACER TH. 4,0 MM.
- As an alternative
from £9.81
from £9.81
# 014
MPN: 169534
SPACER TH. 2 MM.
- As an alternative
from £15.39
from £15.39
# 014
MPN: 169535
SPACER TH. 2,2 MM.
- As an alternative
from £15.39
from £15.39
# 014
MPN: 169536
SPACER TH. 2,4 MM.
- As an alternative
from £15.39
from £15.39
# 015
MPN: 156473
FLEXIBLE RING
from £0.53
from £0.53
# 016
MPN: 156161
BEARING
from £110.52
from £110.52
# 017
MPN: 11061976
FLEXIBLE RING
from £0.68
from £0.68
# 018
MPN: 151546
GASKET
from £21.71
from £21.71
# 019
MPN: 161371
RH FLANGE
from £589.23
from £589.23
# 020
MPN: 156546
BUSHING
from £74.39
from £74.39
# 021
MPN: 148500
AXLE SHAFT
from £1,241.76
from £1,241.76
This part replaces part number 170102
# 022
MPN: 149415
SCRAPING PLATE
from £1.08
from £1.08
# 023
MPN: 223916
SCREW
from £1.37
from £1.37
This part replaces part number 181910
