035 - Brake and Clutch System

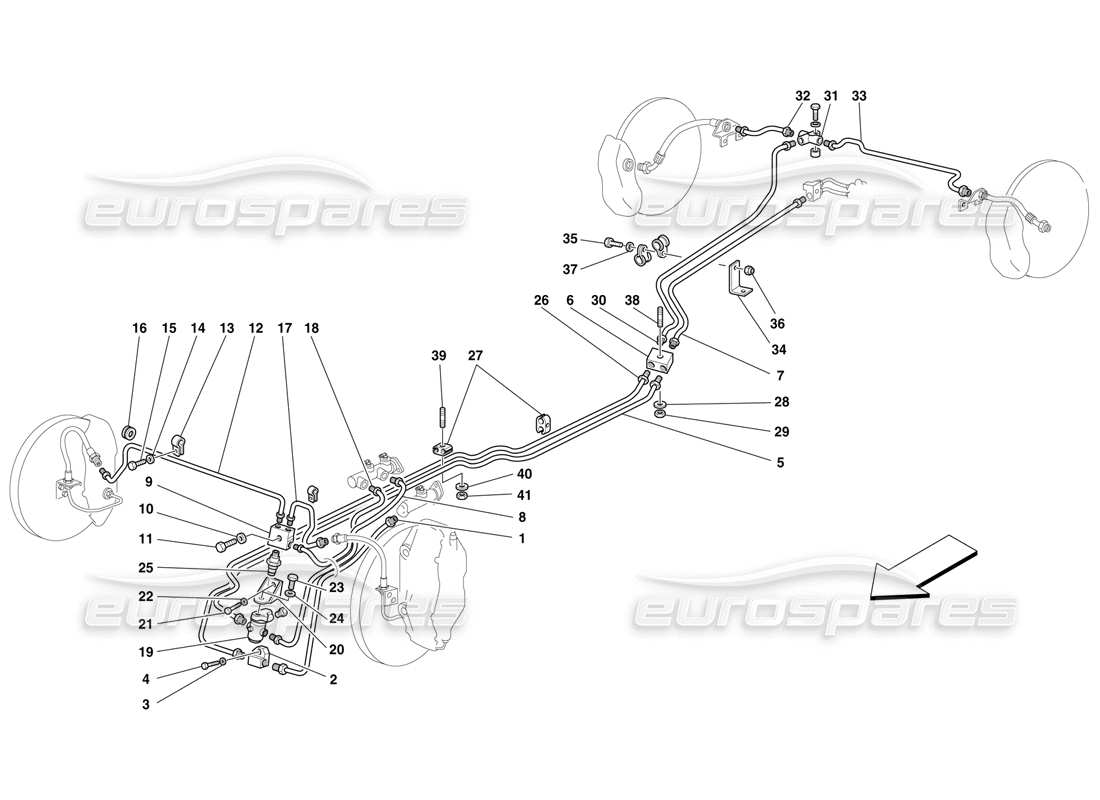

Ferrari F50 Brake and Clutch System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 166671
PIPE FROM CLUTCH PUMP TO UNION
from £35.52
from £35.52
# 002
MPN: 139471
UNION
from £12.84
from £12.84
# 003
MPN: 11181874
WASHER
from £0.47
from £0.47
# 004
MPN: 10902624
SCREW
from £0.47
from £0.47
This part replaces part number 10902621
# 005
MPN: 166672
PIPE FROM REAR UNION TO CLUTCH UNION
from £54.22
from £54.22
# 006
MPN: 167528
UNION
from £53.06
from £53.06
# 007
MPN: 166673
PIPE FROM REAR UNION TO CLUTCH UNION
from £40.39
from £40.39
# 008
MPN: 163004
PIPE FROM BRAKE PUMP TO FRONT UNION
from £5.65
from £5.65
# 009
MPN: 166590
FRONT UNION
from £130.87
from £130.87
# 010
MPN: 11181874
WASHER
from £0.47
from £0.47
# 011
MPN: 10903024
SCREW
from £1.08
from £1.08
This part replaces part number 10903021 - and 1 more. Click to view details
# 012
MPN: 163000
PIPE FROM UNION TO RH FRONT FLEX
from £63.31
from £63.31
# 013
MPN: 10440890
BRACKET WITH SHEATH
from £0.47
from £0.47
# 014
MPN: 11181874
WASHER
from £0.47
from £0.47
# 015
MPN: 10902124
SCREW
from £0.47
from £0.47
This part replaces part number 10902111 - and 1 more. Click to view details
# 016
MPN: 10396980
CABLE GROMMET
# 017
MPN: 163002
PIPE FROM UNION TO LH FRONT FLEX
from £63.31
from £63.31
# 018
MPN: 163005
PIPE FROM BRAKE PUMP TO BRAKING REGULATOR
from £7.28
from £7.28
# 019
MPN: 167276
BRAKING REGULATOR
from £71.36
from £71.36
# 020
MPN: 154818
SUPPORT
from £30.65
from £30.65
# 021
MPN: 10902224
SCREW
from £0.47
from £0.47
# 022
MPN: 11181874
WASHER
from £0.47
from £0.47
# 023
MPN: 16042921
SCREW
from £0.47
from £0.47
# 024
MPN: 11193874
WASHER
from £0.47
from £0.47
This part replaces part number 11193879 which we have in stock
# 025
MPN: 154309
PRESS SWITCH
from £11.68
from £11.68
# 026
MPN: 163007
PIPE FROM BRAKING REGULATOR TO REAR UNION
from £13.82
from £13.82
# 027
MPN: 145473
CLIP
from £0.47
from £0.47
# 028
MPN: 10519424
WASHER
from £0.47
from £0.47
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 029
MPN: 102948
NUT
from £0.47
from £0.47
This part replaces part number 12574211 - and 3 more. Click to view details
# 030
MPN: 163009
PIPE FROM UNION TO 3 WAY UNION
from £10.34
from £10.34
# 031
MPN: 101394
3 WAY UNION
from £26.78
from £26.78
This part replaces part number 680980 - and 7 more. Click to view details
# 032
MPN: 163008
PIPE FROM UNION TO RH REAR FLEX
from £7.14
from £7.14
# 033
MPN: 163006
PIPE FROM UNION TO LH REAR FLEX
from £3.13
from £3.13
# 034
MPN: 168699
BRACKET
from £6.72
from £6.72
# 035
MPN: 10902424
SCREW
from £0.47
from £0.47
This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
# 036
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 037
MPN: 11181874
WASHER
from £0.47
from £0.47
# 038
MPN: 11501024
STUD
from £0.62
from £0.62
This part replaces part number 11501021
# 039
MPN: 11001524
STUD
from £1.29
from £1.29
This part replaces part number 11001521
# 040
MPN: 12637824
WASHER
from £0.47
from £0.47
This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
# 041
MPN: 113647
NUT
from £0.47
from £0.47
