037 - Hand-Brake Control and Caliper

Ferrari F50 Hand-Brake Control and Caliper Parts Diagram

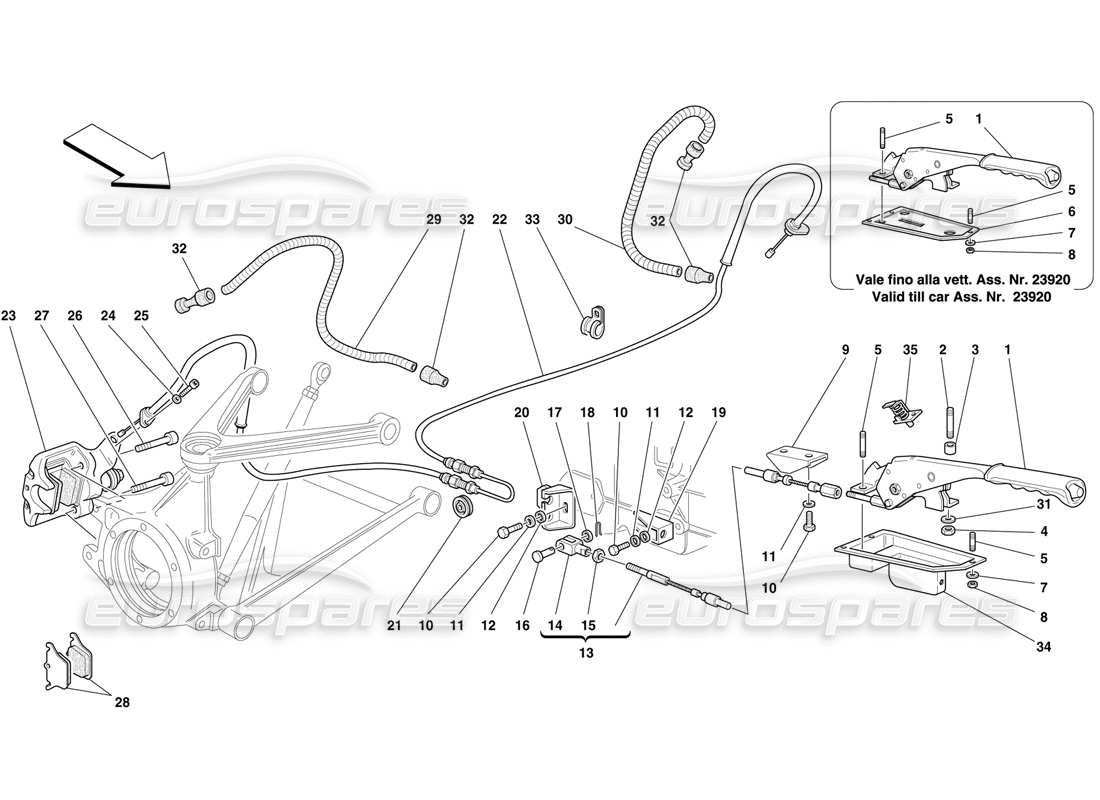

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 001
                                                                    MPN: 167900
                                                                    COMPLETE HAND BRAKE LEVER
                                                                    from £154.02
                                                                    from £154.02
                                                                    # 002
                                                                    MPN: 13517224
                                                                    STUD
                                                                    from £2.09
                                                                    from £2.09
                                                                    This part replaces part number 13517221
                                                                    # 003
                                                                    MPN: 136670
                                                                    SPACER
                                                                    from £2.35
                                                                    from £2.35
                                                                    # 004
                                                                    MPN: 133215
                                                                    NUT
                                                                    Supersession
                                                                    Supersession
                                                                    This part replaces part number 64342800
                                                                    # 005
                                                                    MPN: 13516624
                                                                    STUD
                                                                    from £0.70
                                                                    from £0.70
                                                                    This part replaces part number 13516621 which we have in stock
                                                                    # 006
                                                                    MPN: 167406
                                                                    GASKET
                                                                    - Valid till car Ass. Nr. 23920
                                                                    from £59.58
                                                                    from £59.58
                                                                    # 007
                                                                    MPN: 14496324
                                                                    WASHER
                                                                    from £1.39
                                                                    from £1.39
                                                                    This part replaces part number 14496301
                                                                    # 008
                                                                    MPN: 113647
                                                                    NUT
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 009
                                                                    MPN: 154615
                                                                    SUPPORT FOR HAND BRAKE CABLE
                                                                    from £41.01
                                                                    from £41.01
                                                                    # 010
                                                                    MPN: 16043534
                                                                    SCREW
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 16043521 - and 1 more. Click to view details
                                                                    # 011
                                                                    MPN: 127496
                                                                    WASHER
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 10516671 - and 2 more. Click to view details
                                                                    # 012
                                                                    MPN: 12642024
                                                                    WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 12642020 - and 1 more. Click to view details
                                                                    # 013
                                                                    MPN: 154380
                                                                    HAND BRAKE CONTROL FRONT CABLE
                                                                    from £35.74
                                                                    from £35.74
                                                                    # 015
                                                                    MPN: 16102315
                                                                    NUT
                                                                    Supersession
                                                                    Supersession
                                                                    # 016
                                                                    MPN: 10050811
                                                                    PIN
                                                                    from £5.22
                                                                    from £5.22
                                                                    This part replaces part number 10050810
                                                                    # 017
                                                                    MPN: 13550301
                                                                    WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 018
                                                                    MPN: 10734201
                                                                    SPLIT PIN
                                                                    Supersession
                                                                    Supersession
                                                                    # 019
                                                                    MPN: 151805
                                                                    BRACKET FOR FRONT CABLE
                                                                    from £20.15
                                                                    from £20.15
                                                                    # 020
                                                                    MPN: 151821
                                                                    BRACKET FOR REAR CABLE
                                                                    from £49.01
                                                                    from £49.01
                                                                    # 021
                                                                    MPN: 122091
                                                                    PULLEY
                                                                    from £4.17
                                                                    from £4.17
                                                                    # 022
                                                                    MPN: 162809
                                                                    HAND BRAKE CONTROL REAR CABLE
                                                                    from £379.26
                                                                    from £379.26
                                                                    # 023
                                                                    MPN: 162650
                                                                    RH CALIPER FOR HAND BRAKE
                                                                    from £605.09
                                                                    from £605.09
                                                                    # 023
                                                                    MPN: 162653
                                                                    LH CALIPER FOR HAND BRAKE
                                                                    from £1,083.96
                                                                    from £1,083.96
                                                                    # 024
                                                                    MPN: 127493
                                                                    WASHER
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 106849 - and 1 more. Click to view details
                                                                    # 025
                                                                    MPN: 10977824
                                                                    SCREW
                                                                    from £1.03
                                                                    from £1.03
                                                                    This part replaces part number 10977814 - and 1 more. Click to view details
                                                                    # 026
                                                                    MPN: 14308924
                                                                    SCREW
                                                                    from £2.12
                                                                    from £2.12
                                                                    # 027
                                                                    MPN: 14308424
                                                                    SCREW
                                                                    from £1.60
                                                                    from £1.60
                                                                    # 028
                                                                    MPN: 169549
                                                                    KIT OF PADS FOR HAND BRAKE CALIPERS
                                                                    from £178.13
                                                                    from £178.13
                                                                    # 029
                                                                    MPN: 169529
                                                                    RH HEAT PROTECTION SHEATH
                                                                    from £22.97
                                                                    from £22.97
                                                                    # 030
                                                                    MPN: 169612
                                                                    LH HEAT PROTECTION SHEATH
                                                                    from £26.55
                                                                    from £26.55
                                                                    # 031
                                                                    MPN: 14499401
                                                                    WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 032
                                                                    MPN: 65090800
                                                                    SHEATH
                                                                    from £5.26
                                                                    from £5.26
                                                                    # 033
                                                                    MPN: 10450190
                                                                    BRACKET
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 148751
                                                                    # 034
                                                                    MPN: 173481
                                                                    GASKET
                                                                    - Valid from car Ass. Nr. 23921
                                                                    from £66.76
                                                                    from £66.76
                                                                    # 035
                                                                    MPN: 122043
                                                                    SWITCH FOR BRAKE INDICATOR LAMP
                                                                    from £71.83
                                                                    from £71.83
