044 - REAR SUSPENSION - SHOCK ABSORBER AND STABILIZER BAR

Ferrari F50 Rear Suspension - Shock Absorber and Stabilizer Bar Parts Diagram

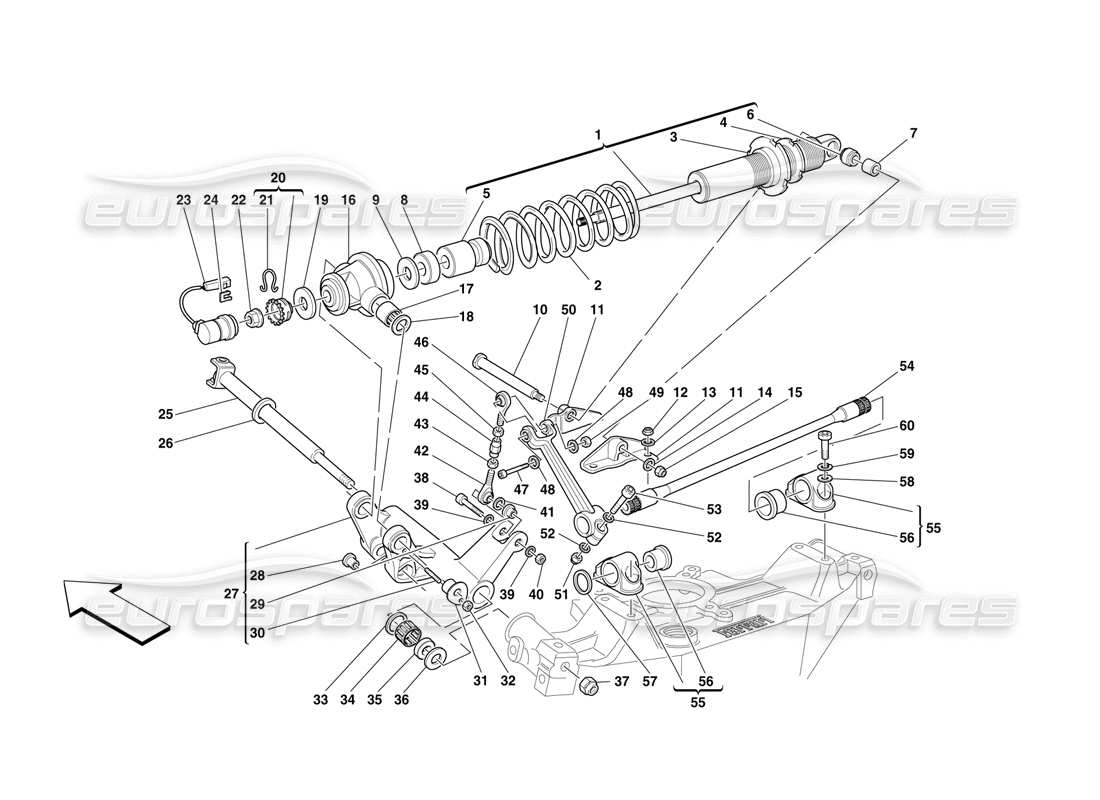

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                    #
                                                                                                                    Part number
                                                                                                                    Description
                                                                                                                    Price
                                                                                                                    # 001
                                                                                                                    MPN: 165597
                                                                                                                    REAR SHOCK ABSORBER
                                                                                                                    from £4,706.90
                                                                                                                    from £4,706.90
                                                                                                                    # 002
                                                                                                                    MPN: 165620
                                                                                                                    SUSPENSION SPRING
                                                                                                                    from £89.52
                                                                                                                    from £89.52
                                                                                                                    # 003
                                                                                                                    MPN: 150156
                                                                                                                    SPACER
                                                                                                                    from £67.29
                                                                                                                    from £67.29
                                                                                                                    # 004
                                                                                                                    MPN: 141860
                                                                                                                    RING NUT
                                                                                                                    from £63.87
                                                                                                                    from £63.87
                                                                                                                    # 005
                                                                                                                    MPN: 150155
                                                                                                                    SHOCK ABSORBER PAD
                                                                                                                    from £299.25
                                                                                                                    from £299.25
                                                                                                                    # 006
                                                                                                                    MPN: 149354
                                                                                                                    BALL JOINT
                                                                                                                    from £42.08
                                                                                                                    from £42.08
                                                                                                                    # 007
                                                                                                                    MPN: 149303
                                                                                                                    SPACER FOR SHOCK ABSORBER
                                                                                                                    from £5.71
                                                                                                                    from £5.71
                                                                                                                    # 008
                                                                                                                    MPN: 154697
                                                                                                                    SPACER
                                                                                                                    from £14.69
                                                                                                                    from £14.69
                                                                                                                    # 009
                                                                                                                    MPN: 116862
                                                                                                                    WASHER
                                                                                                                    from £2.59
                                                                                                                    from £2.59
                                                                                                                    # 010
                                                                                                                    MPN: 149299
                                                                                                                    PIN
                                                                                                                    from £20.67
                                                                                                                    from £20.67
                                                                                                                    # 011
                                                                                                                    MPN: 151340
                                                                                                                    BRACKET FOR SHOCK ABSORBER FIXING
                                                                                                                    from £102.72
                                                                                                                    from £102.72
                                                                                                                    # 012
                                                                                                                    MPN: 12574525
                                                                                                                    NUT
                                                                                                                    from £0.50
                                                                                                                    from £0.50
                                                                                                                    # 013
                                                                                                                    MPN: 12642424
                                                                                                                    WASHER
                                                                                                                    from £0.52
                                                                                                                    from £0.52
                                                                                                                    # 014
                                                                                                                    MPN: 152249
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 015
                                                                                                                    MPN: 102825
                                                                                                                    NUT
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 95900617
                                                                                                                    # 016
                                                                                                                    MPN: 147379
                                                                                                                    HYPERBLOCK
                                                                                                                    from £595.50
                                                                                                                    from £595.50
                                                                                                                    # 017
                                                                                                                    MPN: 150160
                                                                                                                    BEARING
                                                                                                                    from £18.49
                                                                                                                    from £18.49
                                                                                                                    # 018
                                                                                                                    MPN: 150115
                                                                                                                    WASHER
                                                                                                                    - Th. mm. 2,5
                                                                                                                    from £25.17
                                                                                                                    from £25.17
                                                                                                                    # 018
                                                                                                                    MPN: 150166
                                                                                                                    WASHER
                                                                                                                    - Th. mm. 2,4 - As an alternative
                                                                                                                    from £25.17
                                                                                                                    from £25.17
                                                                                                                    # 018
                                                                                                                    MPN: 150167
                                                                                                                    WASHER
                                                                                                                    - Th. mm. 2,3 - As an alternative
                                                                                                                    from £58.31
                                                                                                                    from £58.31
                                                                                                                    # 018
                                                                                                                    MPN: 150168
                                                                                                                    WASHER
                                                                                                                    - Th. mm. 2,2 - As an alternative
                                                                                                                    from £61.22
                                                                                                                    from £61.22
                                                                                                                    # 018
                                                                                                                    MPN: 150169
                                                                                                                    WASHER
                                                                                                                    - Th. mm. 2,6 - As an alternative
                                                                                                                    from £58.31
                                                                                                                    from £58.31
                                                                                                                    # 018
                                                                                                                    MPN: 150170
                                                                                                                    WASHER
                                                                                                                    - Th. mm. 2,7 - As an alternative
                                                                                                                    from £58.31
                                                                                                                    from £58.31
                                                                                                                    # 018
                                                                                                                    MPN: 150171
                                                                                                                    WASHER
                                                                                                                    - Th. mm. 2,8 - As an alternative
                                                                                                                    from £58.31
                                                                                                                    from £58.31
                                                                                                                    # 019
                                                                                                                    MPN: 148829
                                                                                                                    WASHER
                                                                                                                    from £3.70
                                                                                                                    from £3.70
                                                                                                                    # 020
                                                                                                                    MPN: 137824
                                                                                                                    ACTUATOR SUPPORT
                                                                                                                    from £7.74
                                                                                                                    from £7.74
                                                                                                                    # 021
                                                                                                                    MPN: 142079
                                                                                                                    CLIP
                                                                                                                    from £5.91
                                                                                                                    from £5.91
                                                                                                                    # 022
                                                                                                                    MPN: 137826
                                                                                                                    NUT
                                                                                                                    from £1.74
                                                                                                                    from £1.74
                                                                                                                    # 023
                                                                                                                    MPN: 158732
                                                                                                                    ACTUATOR ON THE SHOCK ABOSORBER
                                                                                                                    from £444.64
                                                                                                                    from £444.64
                                                                                                                    This part replaces part number 154449 - and 1 more. Click to view details
                                                                                                                    # 024
                                                                                                                    MPN: 155751
                                                                                                                    CLIP
                                                                                                                    from £2.29
                                                                                                                    from £2.29
                                                                                                                    # 025
                                                                                                                    MPN: 155621
                                                                                                                    PIN
                                                                                                                    from £335.53
                                                                                                                    from £335.53
                                                                                                                    # 026
                                                                                                                    MPN: 152076
                                                                                                                    SPACER
                                                                                                                    - As an alternative
                                                                                                                    from £2.55
                                                                                                                    from £2.55
                                                                                                                    # 026
                                                                                                                    MPN: 152078
                                                                                                                    SPACER
                                                                                                                    - As an alternative
                                                                                                                    from £2.82
                                                                                                                    from £2.82
                                                                                                                    # 026
                                                                                                                    MPN: 152079
                                                                                                                    SPACER
                                                                                                                    - As an alternative
                                                                                                                    from £2.82
                                                                                                                    from £2.82
                                                                                                                    # 026
                                                                                                                    MPN: 152080
                                                                                                                    SPACER
                                                                                                                    from £2.82
                                                                                                                    from £2.82
                                                                                                                    # 026
                                                                                                                    MPN: 152081
                                                                                                                    SPACER
                                                                                                                    - As an alternative
                                                                                                                    from £2.82
                                                                                                                    from £2.82
                                                                                                                    # 027
                                                                                                                    MPN: 150080
                                                                                                                    RH SHOCK ABSORBER CONTROL ROCKER ARM
                                                                                                                    from £424.55
                                                                                                                    from £424.55
                                                                                                                    # 027
                                                                                                                    MPN: 150081
                                                                                                                    LH SHOCK ABSORBER CONTROL ROCKER ARM
                                                                                                                    from £876.42
                                                                                                                    from £876.42
                                                                                                                    # 028
                                                                                                                    MPN: 150082
                                                                                                                    BUSHING
                                                                                                                    from £333.77
                                                                                                                    from £333.77
                                                                                                                    # 029
                                                                                                                    MPN: 149481
                                                                                                                    BUSHING
                                                                                                                    from £97.59
                                                                                                                    from £97.59
                                                                                                                    # 030
                                                                                                                    MPN: 13539124
                                                                                                                    STUD
                                                                                                                    from £3.95
                                                                                                                    from £3.95
                                                                                                                    # 031
                                                                                                                    MPN: 150114
                                                                                                                    PIN
                                                                                                                    from £317.84
                                                                                                                    from £317.84
                                                                                                                    # 032
                                                                                                                    MPN: 113647
                                                                                                                    NUT
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 033
                                                                                                                    MPN: 152095
                                                                                                                    WASHER
                                                                                                                    from £5.38
                                                                                                                    from £5.38
                                                                                                                    # 034
                                                                                                                    MPN: 150152
                                                                                                                    BEARING
                                                                                                                    from £81.71
                                                                                                                    from £81.71
                                                                                                                    # 035
                                                                                                                    MPN: 150153

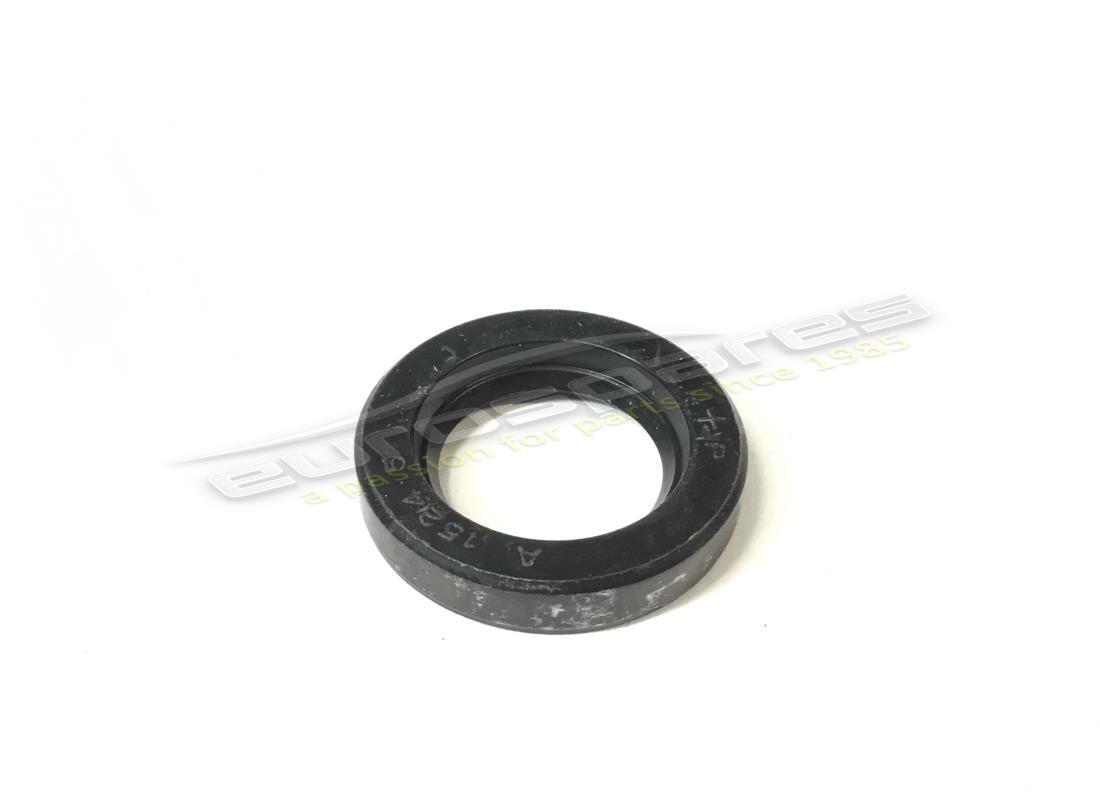

                                                                                                                    SEAL RING
                                                                                                                    from £2.38
                                                                                                                    from £2.38
                                                                                                                    # 036
                                                                                                                    MPN: 150585
                                                                                                                    GASKET
                                                                                                                    from £1.70
                                                                                                                    from £1.70
                                                                                                                    # 037
                                                                                                                    MPN: 12575725
                                                                                                                    NUT
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 038
                                                                                                                    MPN: 149941
                                                                                                                    SCREW
                                                                                                                    from £1.82
                                                                                                                    from £1.82
                                                                                                                    # 039
                                                                                                                    MPN: 10519624
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                                                    # 040
                                                                                                                    MPN: 133215
                                                                                                                    NUT
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    This part replaces part number 64342800
                                                                                                                    # 041
                                                                                                                    MPN: 60784600
                                                                                                                    WASHER
                                                                                                                    from £0.79
                                                                                                                    from £0.79
                                                                                                                    # 042
                                                                                                                    MPN: 149334
                                                                                                                    BALL JOINT
                                                                                                                    from £384.77
                                                                                                                    from £384.77
                                                                                                                    # 043
                                                                                                                    MPN: 11690911
                                                                                                                    LH THREADED NUT
                                                                                                                    from £0.97
                                                                                                                    from £0.97
                                                                                                                    # 044
                                                                                                                    MPN: 150162
                                                                                                                    SHACKLE FOR STABILIZER BAR
                                                                                                                    from £11.23
                                                                                                                    from £11.23
                                                                                                                    # 045
                                                                                                                    MPN: 10788711
                                                                                                                    NUT
                                                                                                                    from £0.39
                                                                                                                    from £0.39
                                                                                                                    This part replaces part number 100965 which we have in stock - and 1 more. Click to view details
                                                                                                                    # 046
                                                                                                                    MPN: 149333
                                                                                                                    BALL JOINT
                                                                                                                    from £384.77
                                                                                                                    from £384.77
                                                                                                                    # 047
                                                                                                                    MPN: 149940
                                                                                                                    SCREW
                                                                                                                    from £1.82
                                                                                                                    from £1.82
                                                                                                                    # 048
                                                                                                                    MPN: 10519624
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                                                    # 049
                                                                                                                    MPN: 133215
                                                                                                                    NUT
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    This part replaces part number 64342800
                                                                                                                    # 050
                                                                                                                    MPN: 149480
                                                                                                                    ARM FOR STABILIZER BAR
                                                                                                                    from £297.85
                                                                                                                    from £297.85
                                                                                                                    # 051
                                                                                                                    MPN: 133215
                                                                                                                    NUT
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    This part replaces part number 64342800
                                                                                                                    # 052
                                                                                                                    MPN: 12638524
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 12638501 - and 2 more. Click to view details
                                                                                                                    # 053
                                                                                                                    MPN: 149939
                                                                                                                    SCREW
                                                                                                                    from £3.30
                                                                                                                    from £3.30
                                                                                                                    # 054
                                                                                                                    MPN: 165645
                                                                                                                    REAR ANTI ROLL BAR
                                                                                                                    from £399.32
                                                                                                                    from £399.32
                                                                                                                    # 055
                                                                                                                    MPN: 149312
                                                                                                                    BAR SUPPORT
                                                                                                                    from £254.89
                                                                                                                    from £254.89
                                                                                                                    # 056
                                                                                                                    MPN: 149300
                                                                                                                    BUSHING
                                                                                                                    from £28.50
                                                                                                                    from £28.50
                                                                                                                    # 057
                                                                                                                    MPN: 149446
                                                                                                                    WASHER
                                                                                                                    - Th. mm. 0,5
                                                                                                                    from £8.31
                                                                                                                    from £8.31
                                                                                                                    # 057
                                                                                                                    MPN: 150128
                                                                                                                    WASHER
                                                                                                                    - Th. mm. 0,3 - As an alternative
                                                                                                                    from £8.31
                                                                                                                    from £8.31
                                                                                                                    # 057
                                                                                                                    MPN: 150129
                                                                                                                    WASHER
                                                                                                                    - Th. mm. 0,7 - As an alternative
                                                                                                                    from £8.31
                                                                                                                    from £8.31
                                                                                                                    # 058
                                                                                                                    MPN: 12638524
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 12638501 - and 2 more. Click to view details
                                                                                                                    # 059
                                                                                                                    MPN: 12605574
                                                                                                                    WASHER
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    This part replaces part number 12605579
                                                                                                                    # 060
                                                                                                                    MPN: 14306724
                                                                                                                    SCREW
                                                                                                                    from £0.50
                                                                                                                    from £0.50
