103 - Rear Bumper and Supports

Ferrari F50 Rear Bumper and Supports Parts Diagram

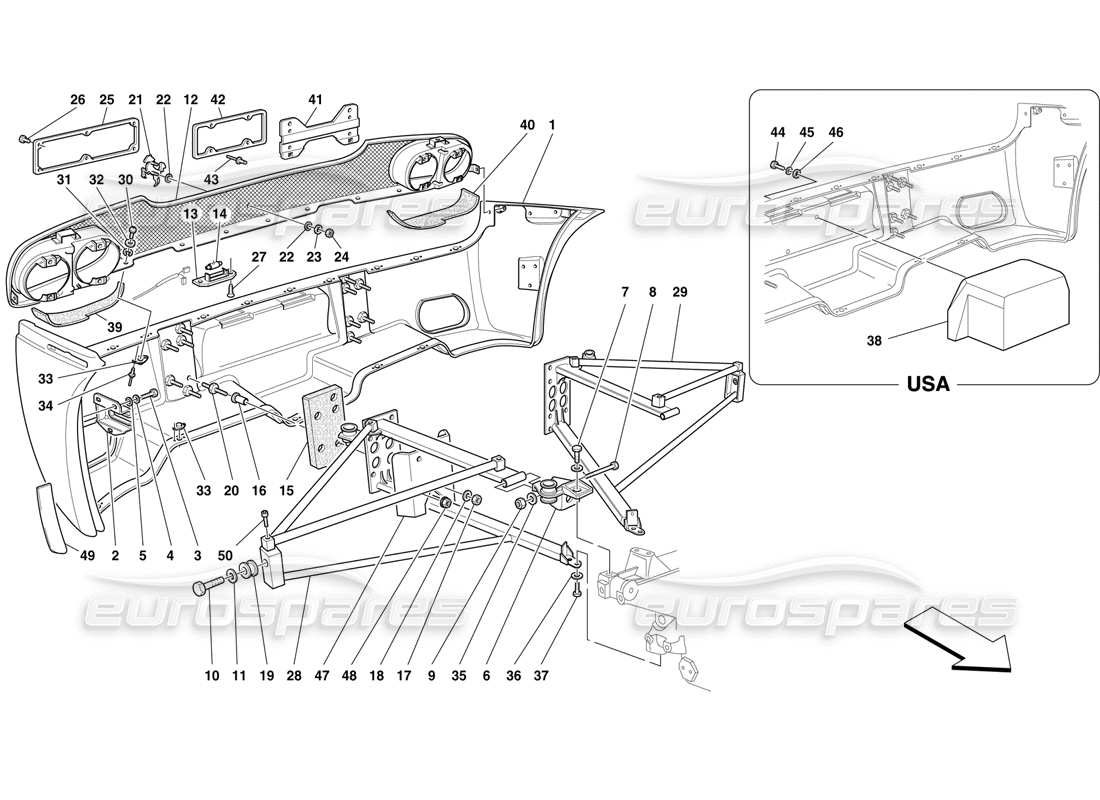

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                  #
                                                                                  Part number
                                                                                  Description
                                                                                  Price
                                                                                  # 001
                                                                                  MPN: 63529610
                                                                                  COMPLETE REAR BUMPER
                                                                                  - Not for USA
                                                                                  from £21,795.40
                                                                                  from £21,795.40
                                                                                  This part replaces part number 63529600
                                                                                  # 001
                                                                                  MPN: 64635110
                                                                                  COMPLETE REAR BUMPER
                                                                                  - Valid for USA
                                                                                  from £11,462.25
                                                                                  from £11,462.25
                                                                                  # 002
                                                                                  MPN: 64133100
                                                                                  BUMPER LATERAL FIXING RH BRACKET
                                                                                  from £206.09
                                                                                  from £206.09
                                                                                  # 002
                                                                                  MPN: 64133200
                                                                                  BUMPER LATERAL FIXING LH BRACKET
                                                                                  from £273.11
                                                                                  from £273.11
                                                                                  # 003
                                                                                  MPN: 10902011
                                                                                  SCREW
                                                                                  from £1.11
                                                                                  from £1.11
                                                                                  This part replaces part number 10902411
                                                                                  # 004
                                                                                  MPN: 127494
                                                                                  WASHER
                                                                                  (minimum order quantity = 20)
                                                                                  from £0.52
                                                                                  from £0.52
                                                                                  This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                  # 005
                                                                                  MPN: 12643701
                                                                                  WASHER
                                                                                  Supersession
                                                                                  Supersession
                                                                                  This part replaces part number 12643704 - and 1 more. Click to view details
                                                                                  # 006
                                                                                  MPN: 154121
                                                                                  LH BRACKET
                                                                                  from £88.85
                                                                                  from £88.85
                                                                                  # 006
                                                                                  MPN: 154122
                                                                                  RH BRACKET
                                                                                  from £88.71
                                                                                  from £88.71
                                                                                  # 007
                                                                                  MPN: 13842414
                                                                                  SCREW
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 008
                                                                                  MPN: 145097
                                                                                  SCREW
                                                                                  from £5.67
                                                                                  from £5.67
                                                                                  # 009
                                                                                  MPN: 102825
                                                                                  NUT
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 95900617
                                                                                  # 010
                                                                                  MPN: 16287524
                                                                                  SCREW
                                                                                  from £0.74
                                                                                  from £0.74
                                                                                  This part replaces part number 16287521
                                                                                  # 011
                                                                                  MPN: 12642024
                                                                                  WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 12642020 - and 1 more. Click to view details
                                                                                  # 012
                                                                                  MPN: 63596600
                                                                                  COMPLETE REAR GRILL
                                                                                  from £3,377.56
                                                                                  from £3,377.56
                                                                                  # 014
                                                                                  MPN: 10857790
                                                                                  12V 5W BULB
                                                                                  from £1.14
                                                                                  from £1.14
                                                                                  This part replaces part number 101524
                                                                                  # 015
                                                                                  MPN: 64134300
                                                                                  ENERGY ABSORBING SMALL BLOCK
                                                                                  from £64.91
                                                                                  from £64.91
                                                                                  # 016
                                                                                  MPN: 65058000
                                                                                  SPACER
                                                                                  from £2.61
                                                                                  from £2.61
                                                                                  This part replaces part number 64132700
                                                                                  # 017
                                                                                  MPN: 14058411
                                                                                  NUT
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  # 018
                                                                                  MPN: 12643724
                                                                                  WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 109684 - and 4 more. Click to view details
                                                                                  # 019
                                                                                  MPN: 65017300
                                                                                  SPACER
                                                                                  from £14.13
                                                                                  from £14.13
                                                                                  # 020
                                                                                  MPN: 64132600
                                                                                  PIN
                                                                                  from £89.45
                                                                                  from £89.45
                                                                                  # 021
                                                                                  MPN: 64178500
                                                                                  CAVALLINO RAMPANTE
                                                                                  from £278.42
                                                                                  from £278.42
                                                                                  # 022
                                                                                  MPN: 60995100
                                                                                  RUBBER RING
                                                                                  from £1.43
                                                                                  from £1.43
                                                                                  # 023
                                                                                  MPN: 12639401
                                                                                  WASHER
                                                                                  from £0.54
                                                                                  from £0.54
                                                                                  # 025
                                                                                  MPN: 60097003
                                                                                  PLATE FRAME
                                                                                  - Not for USA
                                                                                  from £14.69
                                                                                  from £14.69
                                                                                  This part replaces part number 60096401
                                                                                  # 026
                                                                                  MPN: 15688175
                                                                                  SCREW
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 15688108
                                                                                  # 027
                                                                                  MPN: 15644178
                                                                                  SCREW
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 028
                                                                                  MPN: 64138500
                                                                                  RH REAR FRAME
                                                                                  from £1,183.33
                                                                                  from £1,183.33
                                                                                  # 029
                                                                                  MPN: 64138600
                                                                                  LH REAR FRAME
                                                                                  from £1,850.60
                                                                                  from £1,850.60
                                                                                  # 030
                                                                                  MPN: 10978087
                                                                                  SCREW
                                                                                  from £4.25
                                                                                  from £4.25
                                                                                  # 031
                                                                                  MPN: 166467
                                                                                  WASHER
                                                                                  from £0.51
                                                                                  from £0.51
                                                                                  # 032
                                                                                  MPN: 14496377
                                                                                  WASHER
                                                                                  from £1.07
                                                                                  from £1.07
                                                                                  This part replaces part number 14496309
                                                                                  # 033
                                                                                  MPN: 62471100
                                                                                  BRACKET
                                                                                  from £16.25
                                                                                  from £16.25
                                                                                  # 034
                                                                                  MPN: 64722000
                                                                                  RIVET
                                                                                  from £1.11
                                                                                  from £1.11
                                                                                  # 035
                                                                                  MPN: 10732531
                                                                                  WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  # 036
                                                                                  MPN: 11193874
                                                                                  WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 11193879 which we have in stock
                                                                                  # 037
                                                                                  MPN: 16043324
                                                                                  SCREW
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 16043321
                                                                                  # 038
                                                                                  MPN: 64762800
                                                                                  NEST FOR BUMPER
                                                                                  - Valid for USA
                                                                                  from £3,555.48
                                                                                  from £3,555.48
                                                                                  # 039
                                                                                  MPN: 65054700
                                                                                  RH INSULATION
                                                                                  from £185.59
                                                                                  from £185.59
                                                                                  # 040
                                                                                  MPN: 65054800
                                                                                  LH INSULATION
                                                                                  from £185.59
                                                                                  from £185.59
                                                                                  # 041
                                                                                  MPN: 64640800
                                                                                  REAR PLATE FRAME
                                                                                  - Vale per USA
                                                                                  from £34.76
                                                                                  from £34.76
                                                                                  # 042
                                                                                  MPN: 60987900
                                                                                  NUMBER PLATE RIM
                                                                                  - Valid for USA
                                                                                  from £38.94
                                                                                  from £38.94
                                                                                  # 043
                                                                                  MPN: 62556300
                                                                                  RIVET
                                                                                  - Valid for USA
                                                                                  from £0.71
                                                                                  from £0.71
                                                                                  # 044
                                                                                  MPN: 10902624
                                                                                  SCREW
                                                                                  - Valid for USA
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 10902621
                                                                                  # 045
                                                                                  MPN: 14496424
                                                                                  WASHER
                                                                                  - Valid for USA
                                                                                  Supersession
                                                                                  Supersession
                                                                                  This part replaces part number 14496401 - and 3 more. Click to view details
                                                                                  # 046
                                                                                  MPN: 12646201
                                                                                  WASHER
                                                                                  - Valid for USA
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  # 047
                                                                                  MPN: 65089500
                                                                                  RH HEAT SHIELD
                                                                                  from £78.03
                                                                                  from £78.03
                                                                                  # 047
                                                                                  MPN: 65089600
                                                                                  LH HEAT SHIELD
                                                                                  from £78.03
                                                                                  from £78.03
                                                                                  # 048
                                                                                  MPN: 13832101
                                                                                  NUT
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  # 049
                                                                                  MPN: 65126900
                                                                                  LH PROTECTION
                                                                                  from £34.68
                                                                                  from £34.68
                                                                                  This part replaces part number 65122100
                                                                                  # 049
                                                                                  MPN: 65127100
                                                                                  RH PROTECTION
                                                                                  from £34.68
                                                                                  from £34.68
                                                                                  This part replaces part number 65122100
                                                                                  # 050
                                                                                  MPN: 14359274
                                                                                  SCREW
                                                                                  from £1.11
                                                                                  from £1.11
                                                                                  This part replaces part number 168691
