ferrari f50 doors - trims and rear wiew mirror parts diagram

114 - Doors - Trims and Rear Wiew Mirror

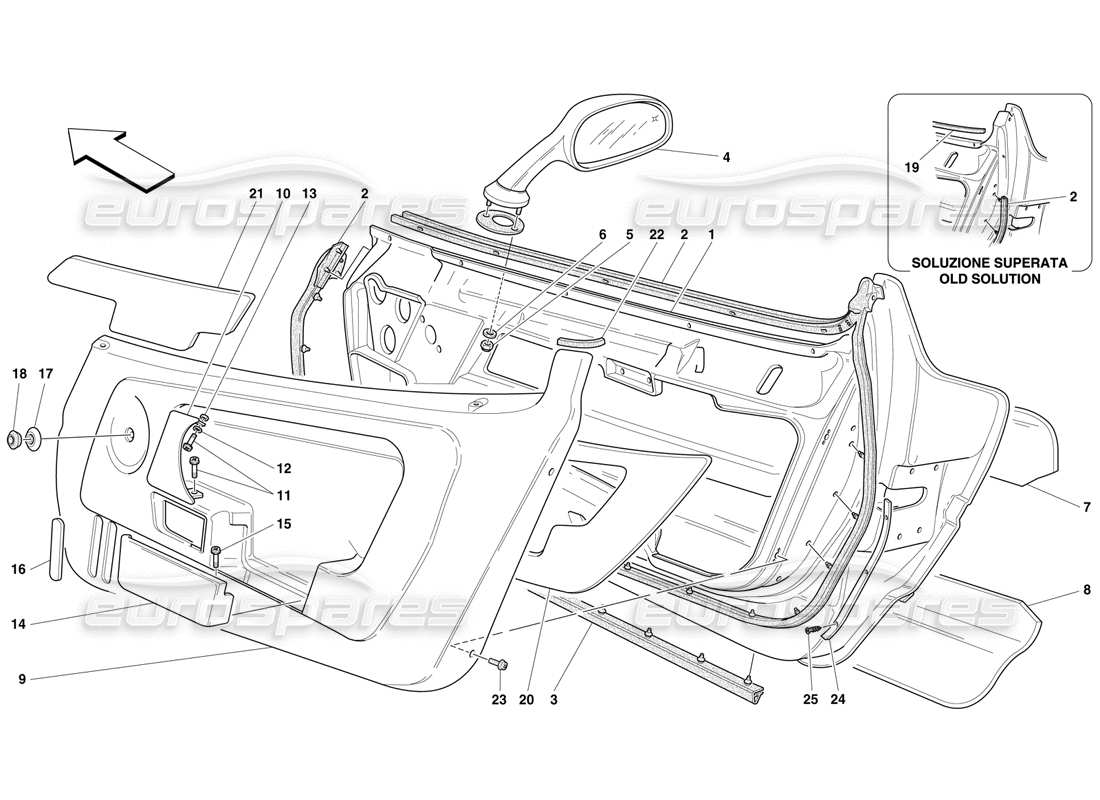

Ferrari F50 Doors - Trims and Rear Wiew Mirror Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Price
                                                # 001
                                                MPN: 64694610

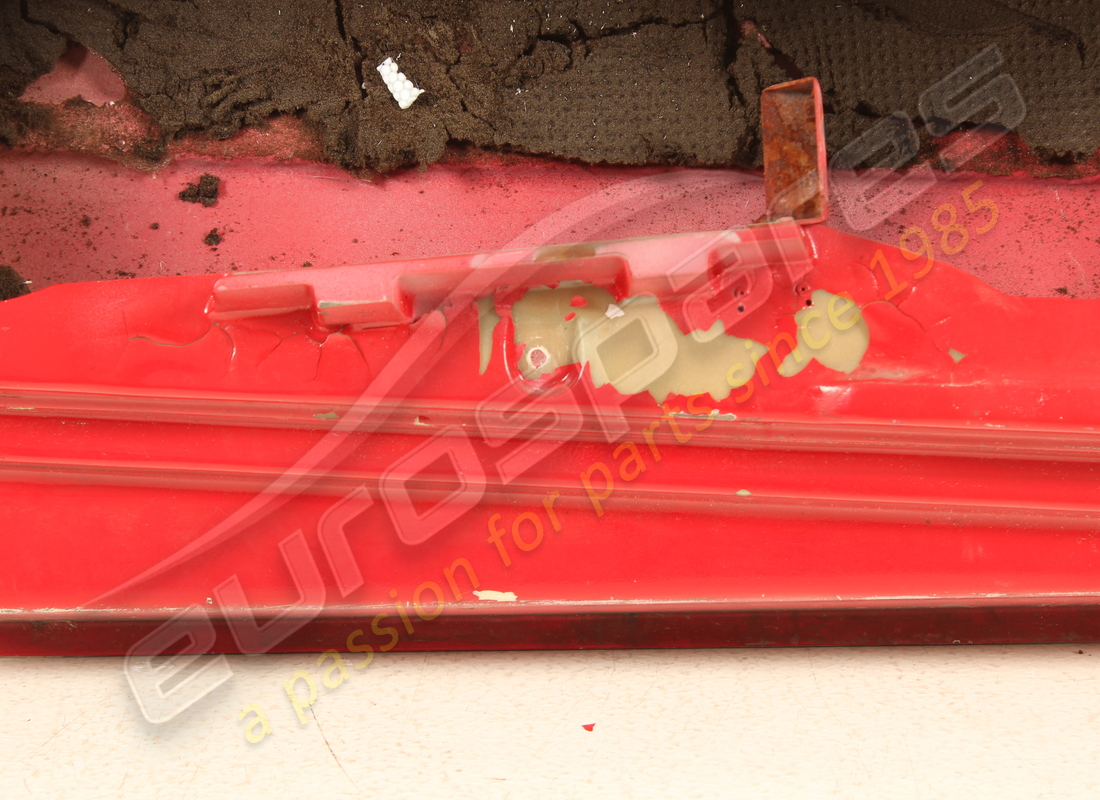

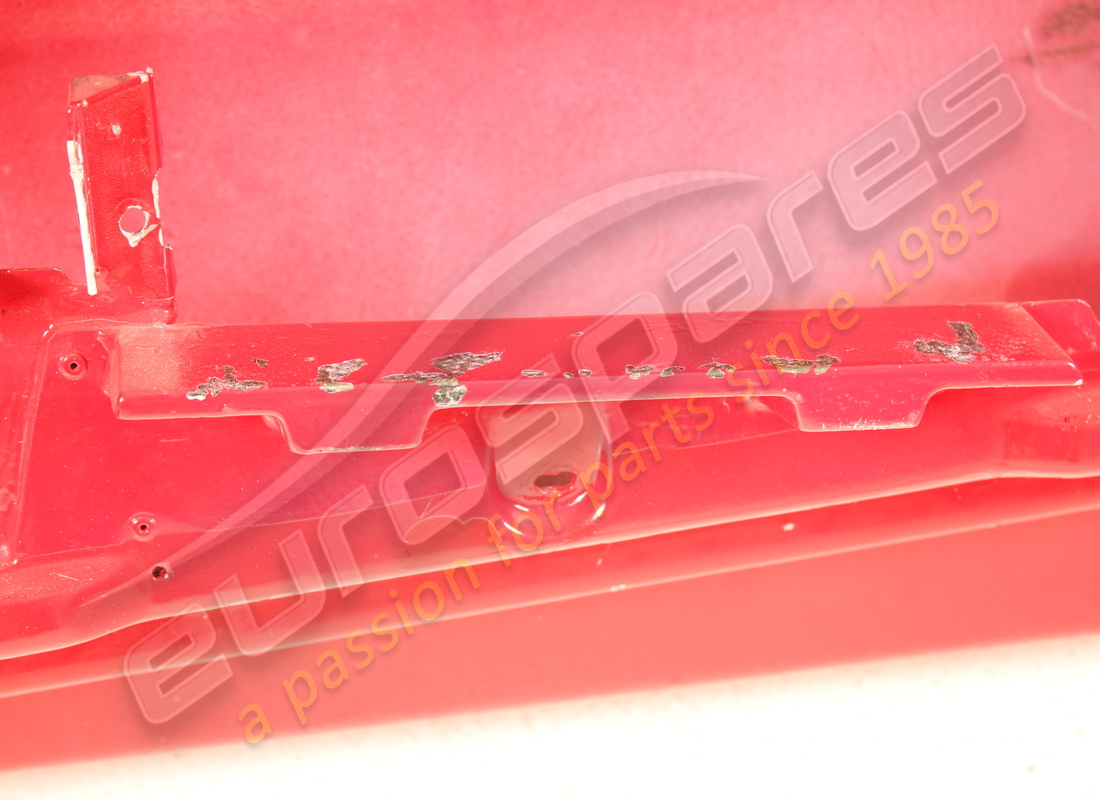

                                                RH DOOR
                                                from £13,091.03
                                                from £13,091.03
                                                # 001
                                                MPN: 64694710
                                                LH DOOR
                                                from £12,862.42
                                                from £12,862.42
                                                # 002
                                                MPN: 64481300
                                                GASKET FOR RH DOOR OPENING
                                                - Not as spare part now - Replaced by 65080600
                                                Supersession
                                                Supersession
                                                # 002
                                                MPN: 64481400
                                                GASKET FOR LH DOOR OPENING
                                                - Not as spare part now - Replaced by 65080700
                                                Supersession
                                                Supersession
                                                # 002
                                                MPN: 65080600
                                                GASKET FOR RH DOOR OPENING
                                                from £968.46
                                                from £968.46
                                                This part replaces part number 64481300 - and 1 more. Click to view details
                                                # 002
                                                MPN: 65080700
                                                GASKET FOR LH DOOR OPENING
                                                from £1,270.98
                                                from £1,270.98
                                                This part replaces part number 64481400 - and 1 more. Click to view details
                                                # 003
                                                MPN: 64515300
                                                UNDER DOOR GASKET
                                                from £34.71
                                                from £34.71
                                                # 004
                                                MPN: 63530210

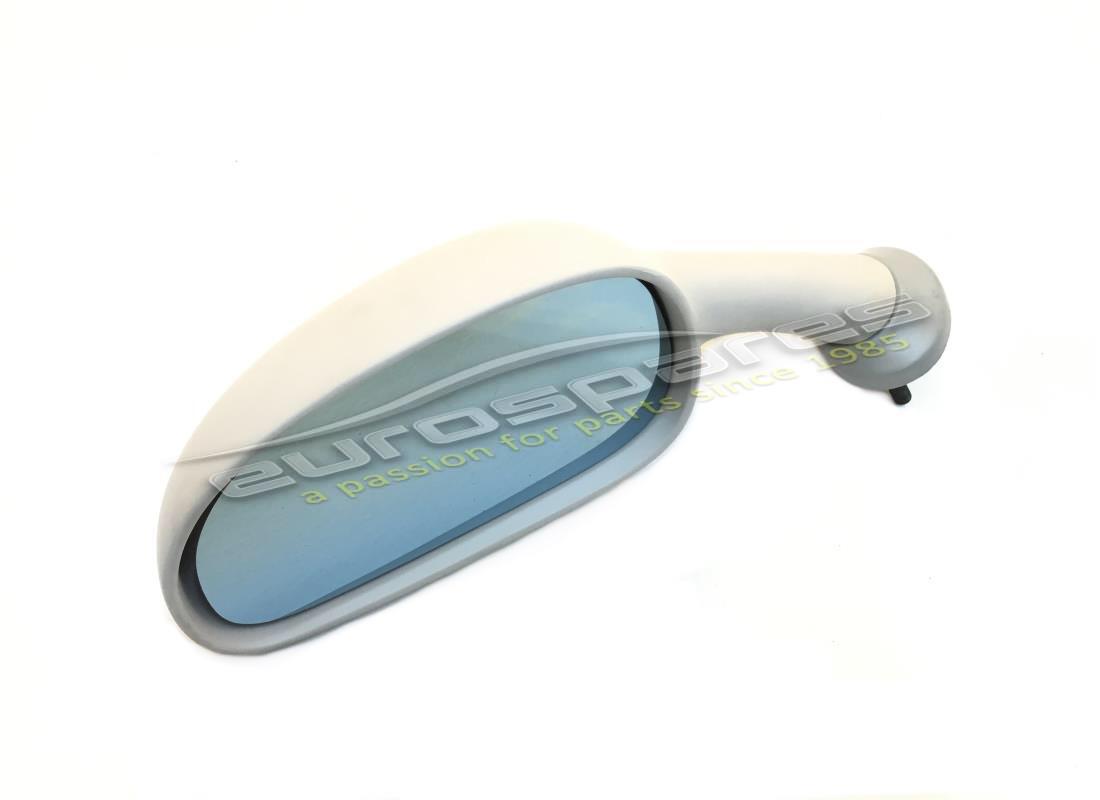

                                                LH OUTER REAR VIEW MIRROR
                                                from £2,887.50
                                                from £2,887.50
                                                This part replaces part number 63530200
                                                # 004
                                                MPN: 64764210

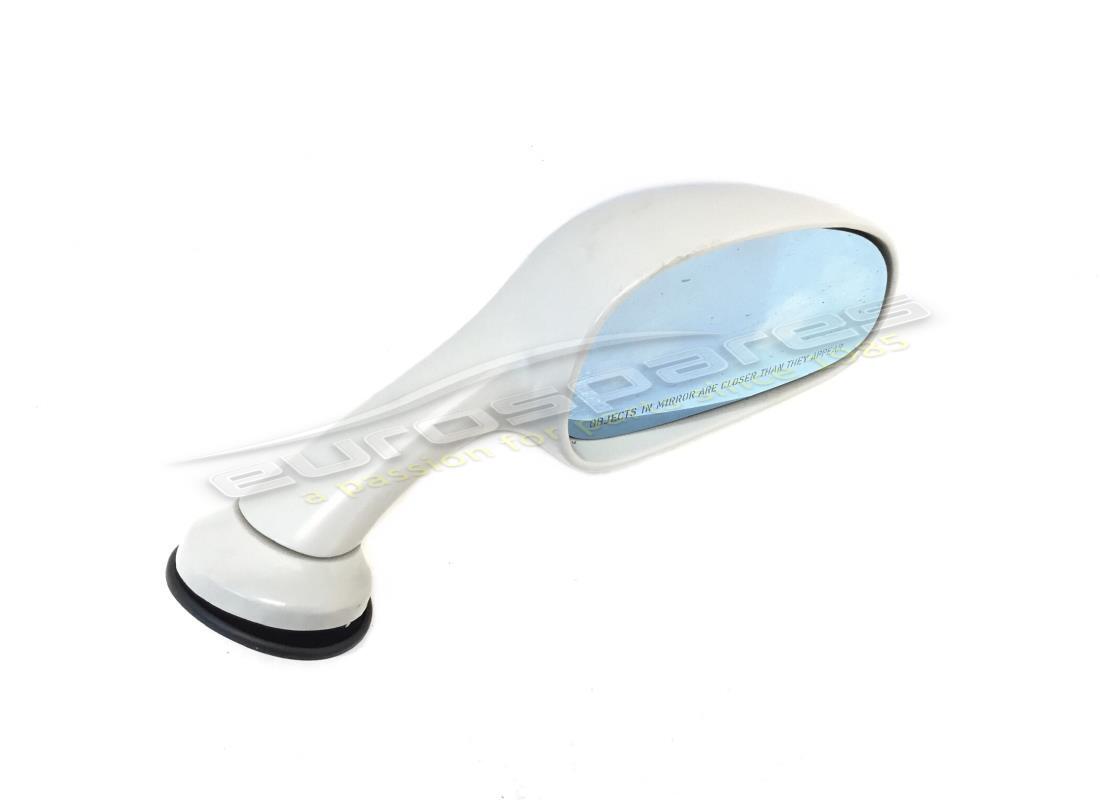

                                                RH OUTER REAR VIEW MIRROR
                                                - Not for USA
                                                from £2,997.15
                                                from £2,997.15
                                                This part replaces part number 64764200
                                                # 004
                                                MPN: 65080910
                                                RH OUTER REAR VIEW MIRROR
                                                - Valid for USA
                                                from £2,084.16
                                                from £2,084.16
                                                This part replaces part number 65080900
                                                # 005
                                                MPN: 101139
                                                NUT
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 16104425
                                                # 006
                                                MPN: 13550301
                                                WASHER
                                                from £0.47
                                                from £0.47
                                                # 007
                                                MPN: 64764000
                                                RH UPPER SILENCER
                                                from £80.36
                                                from £80.36
                                                # 007
                                                MPN: 64764100
                                                LH UPPER SILENCER
                                                from £80.36
                                                from £80.36
                                                # 008
                                                MPN: 64924100
                                                RH LOWER SILENCER
                                                from £80.36
                                                from £80.36
                                                # 008
                                                MPN: 64924200
                                                LH LOWER SILENCER
                                                from £80.36
                                                from £80.36
                                                # 009
                                                MPN: 63537300

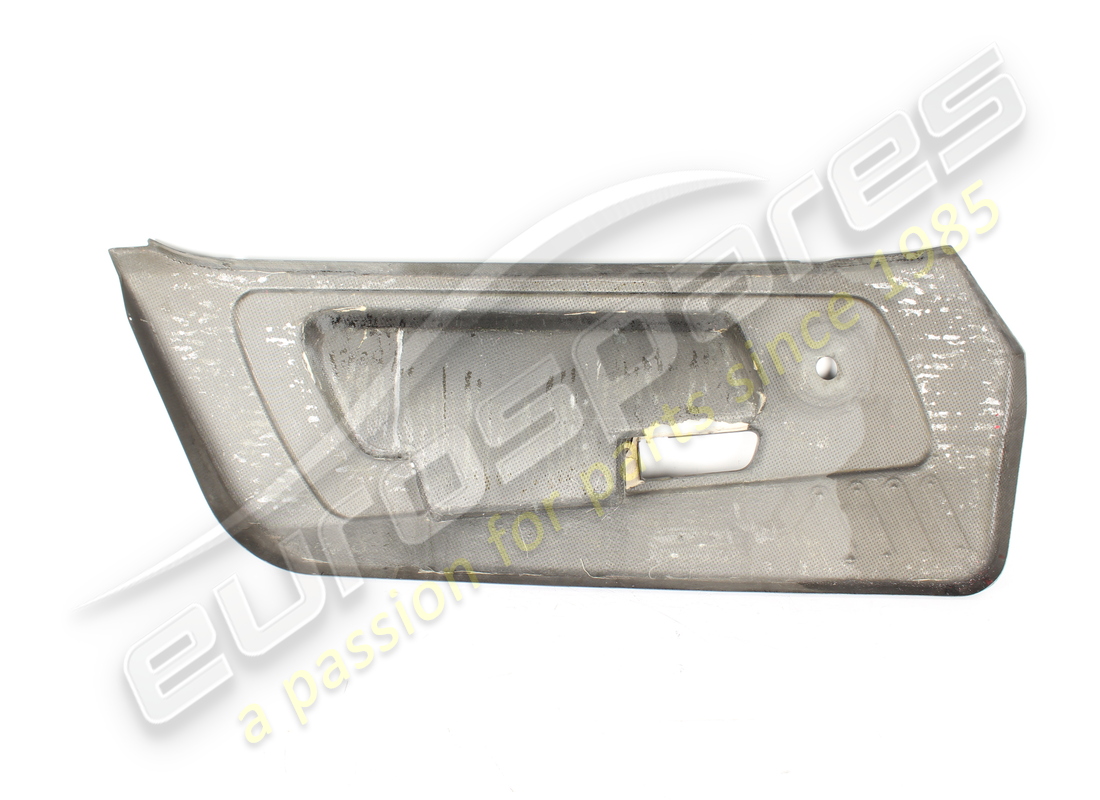

                                                RH DOOR INNER PANEL
                                                from £2,220.18
                                                from £2,220.18
                                                # 009
                                                MPN: 63537400
                                                LH DOOR INNER PANEL
                                                from £2,152.08
                                                from £2,152.08
                                                # 010
                                                MPN: 64868200
                                                COVERED RH HANDLE
                                                from £219.09
                                                from £219.09
                                                # 010
                                                MPN: 64868300
                                                COVERED LH HANDLE
                                                from £219.09
                                                from £219.09
                                                # 011
                                                MPN: 147365
                                                SCREW
                                                from £1.52
                                                from £1.52
                                                # 012
                                                MPN: 12638178
                                                WASHER
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 10519578 - and 3 more. Click to view details
                                                # 013
                                                MPN: 12677811
                                                NUT
                                                # 014
                                                MPN: 64868600
                                                COVERED RH UTILITY POCKET
                                                from £1,053.35
                                                from £1,053.35
                                                # 014
                                                MPN: 64868700
                                                COVERED LH UTILITY POCKET
                                                from £1,053.35
                                                from £1,053.35
                                                # 015
                                                MPN: 14441037
                                                SCREW
                                                from £0.47
                                                from £0.47
                                                # 016
                                                MPN: 161492
                                                DOOR PROTECTION
                                                from £4.19
                                                from £4.19
                                                # 017
                                                MPN: 62584500
                                                UNDER HANDLE RING
                                                from £3.86
                                                from £3.86
                                                # 018
                                                MPN: 64976800
                                                SPACER
                                                from £20.37
                                                from £20.37
                                                # 019
                                                MPN: 64869200
                                                GASKET
                                                from £25.20
                                                from £25.20
                                                This part replaces part number 64517900
                                                # 020
                                                MPN: 64924300
                                                RH INNER PANNEL INSULATION
                                                from £147.23
                                                from £147.23
                                                # 020
                                                MPN: 64924400
                                                LH INNER PANNEL INSULATION
                                                from £37.10
                                                from £37.10
                                                # 021
                                                MPN: 64924500
                                                RH INNER CENTRAL PANNEL INSULATION
                                                from £140.22
                                                from £140.22
                                                # 021
                                                MPN: 64924600
                                                LH INNER CENTRAL PANNEL INSULATION
                                                from £42.71
                                                from £42.71
                                                # 023
                                                MPN: 169813
                                                SCREW
                                                from £0.50
                                                from £0.50
                                                This part replaces part number 86832200
                                                # 024
                                                MPN: 65085600
                                                RH CARPET SHIELD UNDER GASKET
                                                from £12.61
                                                from £12.61
                                                # 024
                                                MPN: 65085700
                                                LH CARPET SHIELD UNDER GASKET
                                                from £12.61
                                                from £12.61
                                                # 025
                                                MPN: 15914977
                                                SCREW
                                                from £0.86
                                                from £0.86
