ferrari f50 passive safety belts system -valid for usa- parts diagram

117 - Passive Safety Belts System -Valid for USA-

Ferrari F50 Passive Safety Belts System -Valid for USA- Parts Diagram

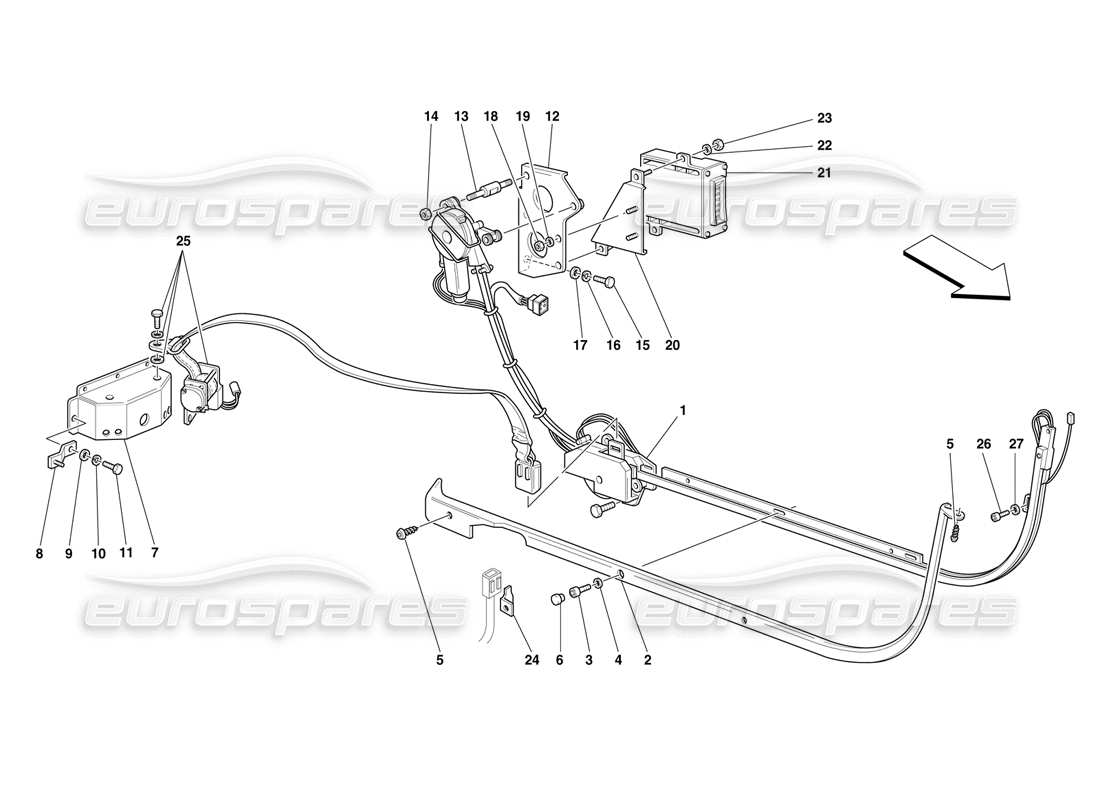

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Price
                                                          # 000
                                                          MPN: 64548900
                                                          PASSIVE BELTS COMPLETE SET
                                                          from £2,582.37
                                                          from £2,582.37
                                                          # 001
                                                          MPN: 64170600
                                                          RH GUIDE
                                                          from £972.65
                                                          from £972.65
                                                          # 001
                                                          MPN: 64170700
                                                          LH GUIDE
                                                          from £972.65
                                                          from £972.65
                                                          # 002
                                                          MPN: 64995200
                                                          RH RAIL COVER
                                                          from £742.76
                                                          from £742.76
                                                          # 002
                                                          MPN: 64995300
                                                          LH RAIL COVER
                                                          from £742.76
                                                          from £742.76
                                                          # 003
                                                          MPN: 13274472
                                                          SCREW
                                                          from £0.50
                                                          from £0.50
                                                          This part replaces part number 13274411 which we have in stock - and 1 more. Click to view details
                                                          # 004
                                                          MPN: 12638178
                                                          WASHER
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 10519578 which we have in stock - and 3 more. Click to view details
                                                          # 005
                                                          MPN: 15688075
                                                          SCREW
                                                          from £0.53
                                                          from £0.53
                                                          This part replaces part number 15688007 which we have in stock - and 1 more. Click to view details
                                                          # 006
                                                          MPN: 14506587
                                                          PLUG
                                                          from £0.54
                                                          from £0.54
                                                          # 007
                                                          MPN: 64171000
                                                          CENTRAL BRACKET
                                                          from £540.27
                                                          from £540.27
                                                          # 008
                                                          MPN: 64983000
                                                          BRACKET
                                                          from £43.89
                                                          from £43.89
                                                          # 009
                                                          MPN: 10519624
                                                          WASHER
                                                          from £0.53
                                                          from £0.53
                                                          This part replaces part number 10519601 - and 3 more. Click to view details
                                                          # 010
                                                          MPN: 10571779
                                                          WASHER
                                                          from £0.47
                                                          from £0.47
                                                          # 011
                                                          MPN: 16043424
                                                          SCREW
                                                          from £0.50
                                                          from £0.50
                                                          This part replaces part number 16043421
                                                          # 012
                                                          MPN: 64859700
                                                          RH MOTOR FASTENING BRACKET
                                                          from £265.23
                                                          from £265.23
                                                          # 012
                                                          MPN: 64859800
                                                          LH MOTOR FASTENING BRACKET
                                                          from £265.23
                                                          from £265.23
                                                          # 013
                                                          MPN: 64171700
                                                          STUD
                                                          from £35.15
                                                          from £35.15
                                                          # 014
                                                          MPN: 102948
                                                          NUT
                                                          from £0.53
                                                          from £0.53
                                                          This part replaces part number 12574211 - and 3 more. Click to view details
                                                          # 015
                                                          MPN: 16043424
                                                          SCREW
                                                          from £0.51
                                                          from £0.51
                                                          This part replaces part number 16043421
                                                          # 016
                                                          MPN: 10571779
                                                          WASHER
                                                          from £0.47
                                                          from £0.47
                                                          # 017
                                                          MPN: 12638524
                                                          WASHER
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 12638501 - and 2 more. Click to view details
                                                          # 018
                                                          MPN: 62790300
                                                          NUT
                                                          from £0.53
                                                          from £0.53
                                                          This part replaces part number 12574011 - and 1 more. Click to view details
                                                          # 019
                                                          MPN: 14496324
                                                          WASHER
                                                          from £1.39
                                                          from £1.39
                                                          This part replaces part number 14496301 which we have in stock
                                                          # 020
                                                          MPN: 64869000
                                                          BRACKET FOR CONTROL UNIT FIXING
                                                          from £191.01
                                                          from £191.01
                                                          # 021
                                                          MPN: 65779400
                                                          PASSIVE BELTS CONTROL ELECTRIC UNIT
                                                          from £1,044.75
                                                          from £1,044.75
                                                          This part replaces part number 61568900 which we have in stock
                                                          # 022
                                                          MPN: 14496324
                                                          WASHER
                                                          from £1.39
                                                          from £1.39
                                                          This part replaces part number 14496301 which we have in stock
                                                          # 023
                                                          MPN: 62790300
                                                          NUT
                                                          from £0.53
                                                          from £0.53
                                                          This part replaces part number 12574011 - and 1 more. Click to view details
                                                          # 024
                                                          MPN: 169719
                                                          BRACKET FOR RH GUIDE FIXING
                                                          from £5.33
                                                          from £5.33
                                                          # 025
                                                          MPN: 64171100
                                                          RH DIAGONAL BELT
                                                          from £465.09
                                                          from £465.09
                                                          # 025
                                                          MPN: 64171200
                                                          LH DIAGONAL BELT
                                                          from £470.00
                                                          from £470.00
                                                          # 026
                                                          MPN: 13274472
                                                          SCREW
                                                          from £0.53
                                                          from £0.53
                                                          This part replaces part number 13274411 which we have in stock - and 1 more. Click to view details
                                                          # 027
                                                          MPN: 12638178
                                                          WASHER
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 10519578 which we have in stock - and 3 more. Click to view details
                                                          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
