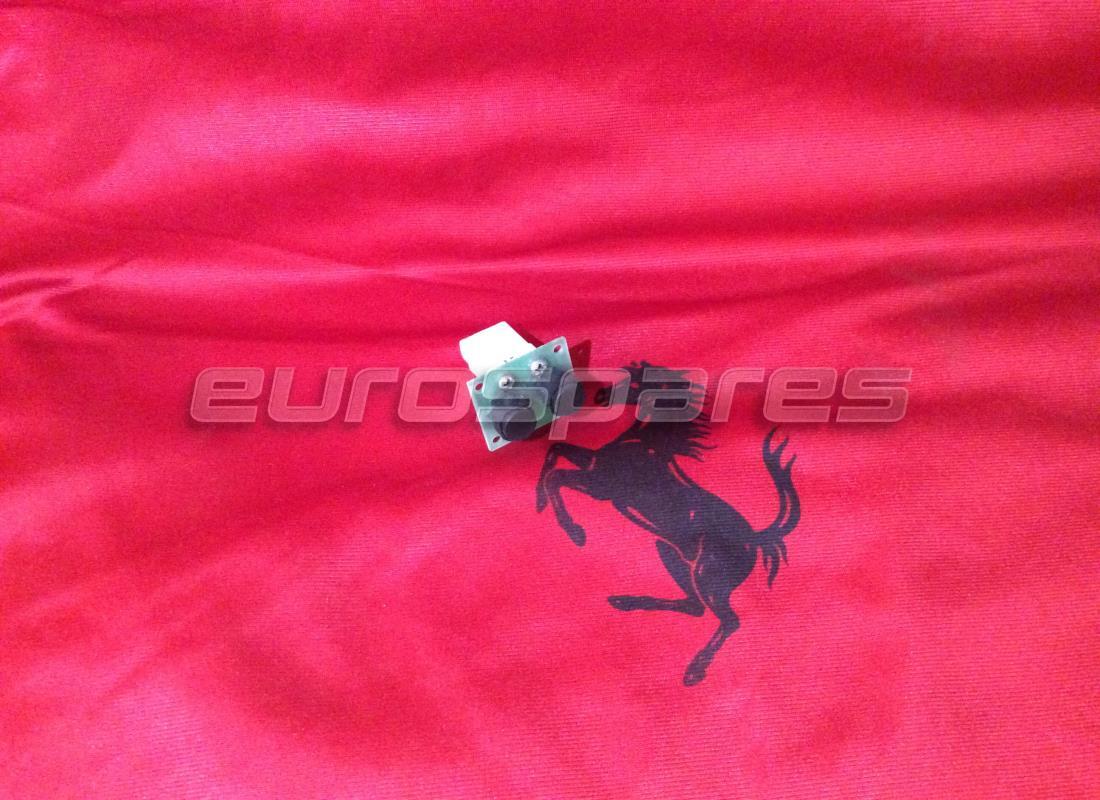

Ferrari F50 Instruments Parts Diagram

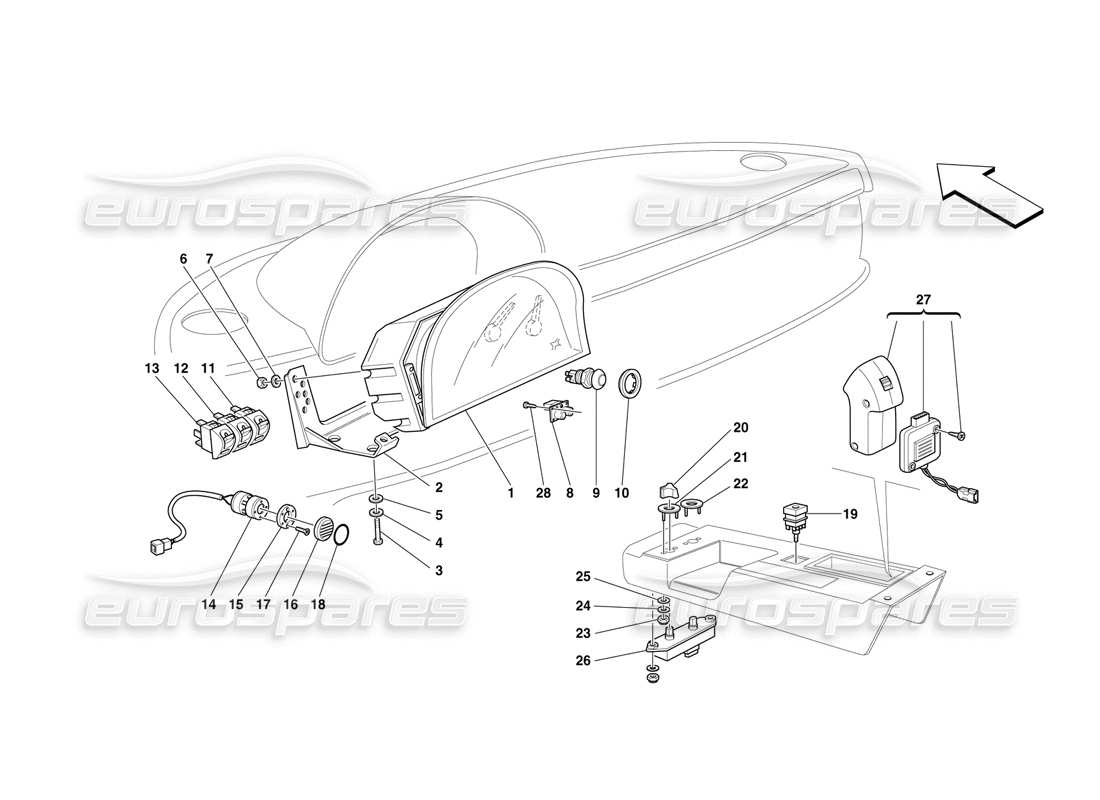

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Price
                                                # 001
                                                MPN: 151910
                                                LCD INSTRUMENT BOARD
                                                - SEE NOTE
                                                # 002
                                                MPN: 64157900
                                                BRACKET
                                                from £230.17
                                                from £230.17
                                                # 003
                                                MPN: 13274972
                                                SCREW
                                                from £1.15
                                                from £1.15
                                                This part replaces part number 13274911 - and 1 more. Click to view details
                                                # 004
                                                MPN: 166467
                                                WASHER
                                                from £0.54
                                                from £0.54
                                                # 005
                                                MPN: 12638178
                                                WASHER
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 10519578 - and 3 more. Click to view details
                                                # 006
                                                MPN: 12577811
                                                NUT
                                                Supersession
                                                Supersession
                                                # 007
                                                MPN: 14496324
                                                WASHER
                                                from £1.43
                                                from £1.43
                                                This part replaces part number 14496301
                                                # 008
                                                MPN: 161421
                                                PUSH BUTTONS ASSEMBLY FOR INSTRUMENTS CONTROL
                                                from £136.96
                                                from £136.96
                                                # 009
                                                MPN: 61665800
                                                ENGINE STARTING CONTROL PUSH BUTTON
                                                from £99.75
                                                from £99.75
                                                # 010
                                                MPN: 142821
                                                RING
                                                - Valid for USA
                                                from £19.02
                                                from £19.02
                                                # 010
                                                MPN: 64604100
                                                RING
                                                - Not for USA
                                                from £42.96
                                                from £42.96
                                                # 011
                                                MPN: 165266
                                                CAR LIFTING CONTROL PUSH BUTTON
                                                from £110.22
                                                from £110.22
                                                # 012
                                                MPN: 165254
                                                REAR FOG LIGHT CONTROL SWITCH
                                                - Not for USA
                                                from £354.51
                                                from £354.51
                                                This part replaces part number 157149
                                                # 013
                                                MPN: 165264
                                                WINDSCREEN DEFROSTING CONTROL SWITCH
                                                - Not for USA
                                                from £108.97
                                                from £108.97
                                                # 013
                                                MPN: 165265
                                                DUMMY SWITCH
                                                - Valid for USA
                                                # 014
                                                MPN: 63934200
                                                INNER COMPARTMENT TEMPERATURE SENSOR
                                                from £31.71
                                                from £31.71
                                                # 015
                                                MPN: 63994600
                                                SENSOR FIXING WASHER
                                                from £4.07
                                                from £4.07
                                                # 016
                                                MPN: 63994500
                                                SENSOR COVERING GRILL
                                                from £2.49
                                                from £2.49
                                                # 017
                                                MPN: 12678577
                                                SCREW
                                                from £0.56
                                                from £0.56
                                                # 018
                                                MPN: 162517
                                                O.R. GASKET
                                                from £2.90
                                                from £2.90
                                                # 019
                                                MPN: 168024
                                                EMERGENCY LIGHTS SWITCH
                                                from £70.26
                                                from £70.26
                                                # 020
                                                MPN: 164088
                                                KNOB FOR POTENTIOMETER
                                                from £86.18
                                                from £86.18
                                                # 021
                                                MPN: 64516700
                                                SILKED SCREEN PRINTING RING FOR FAN
                                                from £42.96
                                                from £42.96
                                                # 022
                                                MPN: 64516800
                                                WATER TEMPERATURE SILKED SCREEN PRINTING RING FOR FAN
                                                from £42.96
                                                from £42.96
                                                # 023
                                                MPN: 16101711
                                                NUT
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 16101715
                                                # 024
                                                MPN: 10615174
                                                WASHER
                                                (minimum order quantity = 20)
                                                Supersession
                                                Supersession
                                                This part replaces part number 10615170 - and 1 more. Click to view details
                                                # 025
                                                MPN: 20159109
                                                WASHER
                                                from £0.53
                                                from £0.53
                                                # 026

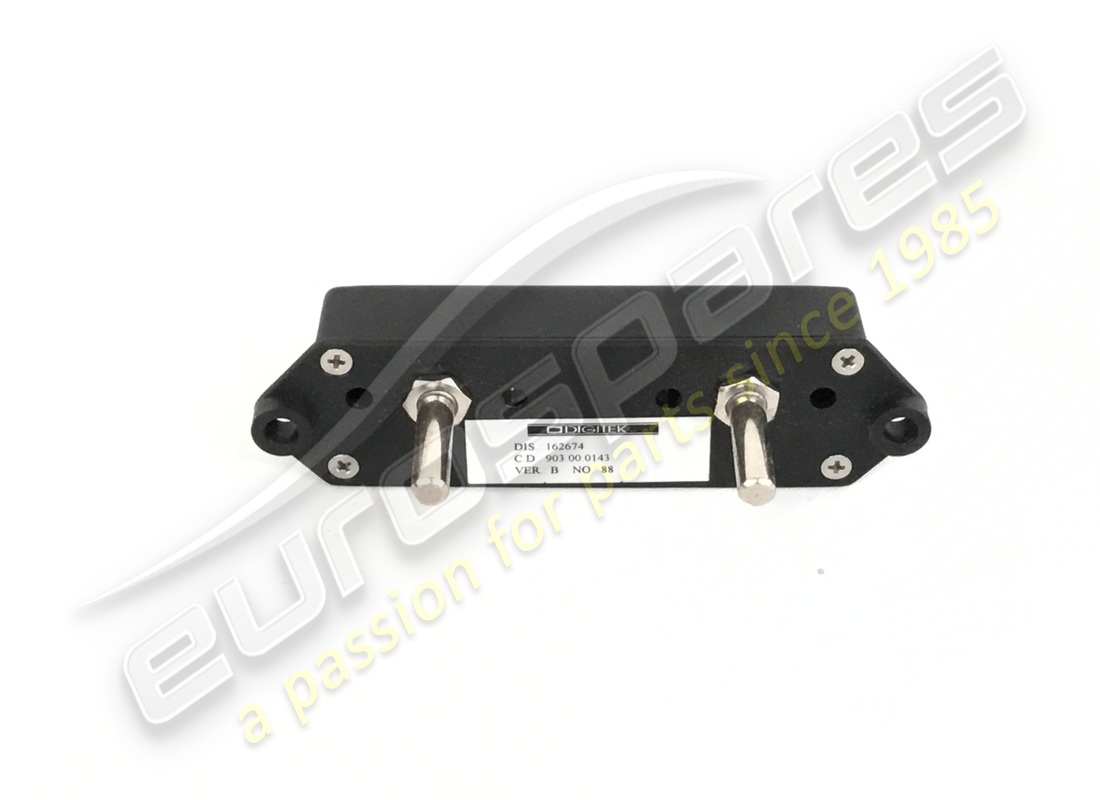

                                                MPN: 162674
                                                POTENTIOMETER
                                                from £2,250.00
                                                from £2,250.00
                                                # 027
                                                MPN: 163674
                                                RECHARGEABLE COURTESY LAMP
                                                from £329.16
                                                from £329.16
                                                # 028
                                                MPN: 13270216
                                                SCREW
                                                Supersession
                                                Supersession
                                                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
