ferrari f50 electrical devices - front part-passengers compartment electrical boards parts diagram

122 - Electrical Devices - Front Part-Passengers Compartment Electrical Boards

Ferrari F50 Electrical Devices - Front Part-Passengers Compartment Electrical Boards Parts Diagram

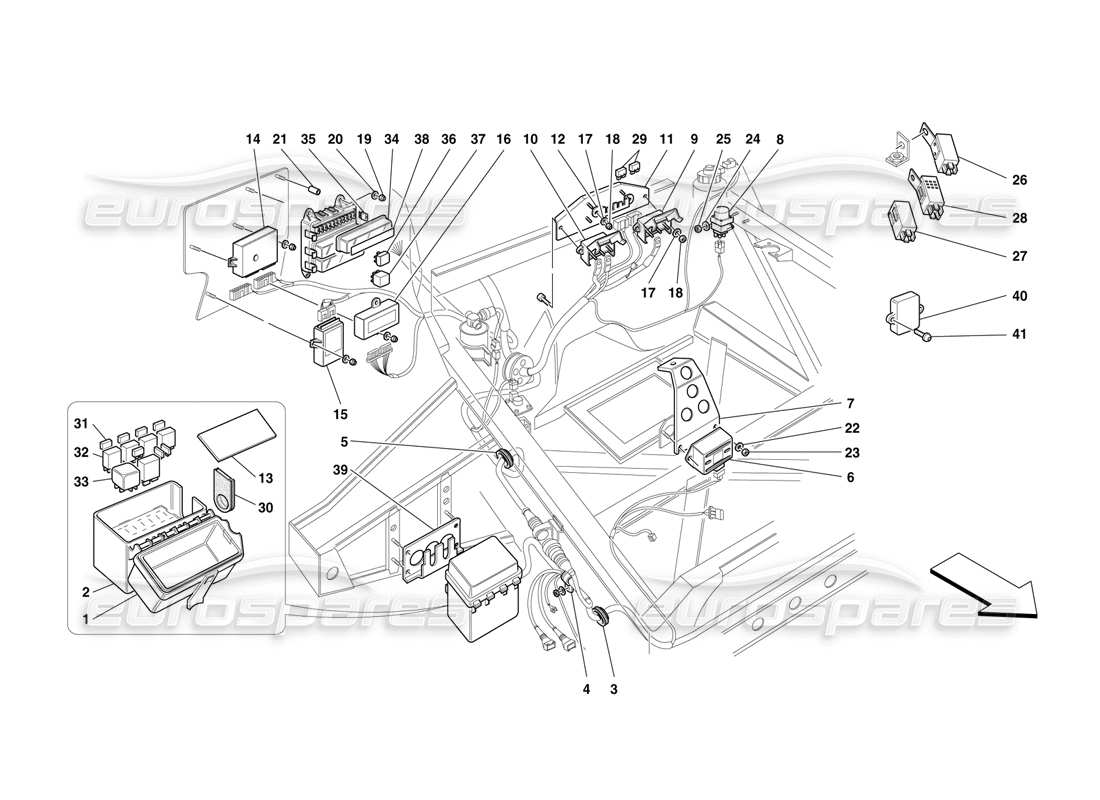

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 001
                                                                      MPN: 162651
                                                                      COVER FOR RELAYS AND FUSES CASE
                                                                      from £66.81
                                                                      from £66.81
                                                                      # 002
                                                                      MPN: 162649
                                                                      RELAYS AND FUSES CASE
                                                                      from £32.90
                                                                      from £32.90
                                                                      # 003
                                                                      MPN: 10397780
                                                                      CABLE GROMMET
                                                                      from £0.71
                                                                      from £0.71
                                                                      # 004
                                                                      MPN: 64686900
                                                                      BRACKET WITH SHEATH
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 14778818
                                                                      # 005
                                                                      MPN: 10398980
                                                                      CABLE GROMMET
                                                                      from £1.06
                                                                      from £1.06
                                                                      # 006
                                                                      MPN: 154310
                                                                      FILTRATE ACCELEROMETER
                                                                      from £308.41
                                                                      from £308.41
                                                                      # 007
                                                                      MPN: 64975700
                                                                      BRACKET
                                                                      from £85.51
                                                                      from £85.51
                                                                      # 008
                                                                      MPN: 179087
                                                                      INERTIAL SWITCH
                                                                      from £34.77
                                                                      from £34.77
                                                                      This part replaces part number 163675 which we have in stock - and 8 more. Click to view details
                                                                      # 009
                                                                      MPN: 166981
                                                                      NEGATIVE CABLES TERMINAL BOX
                                                                      from £14.39
                                                                      from £14.39
                                                                      # 010
                                                                      MPN: 170114
                                                                      POSITIVE CABLES TERMINAL BOX
                                                                      from £7.01
                                                                      from £7.01
                                                                      This part replaces part number 153357
                                                                      # 011
                                                                      MPN: 164267
                                                                      PLATE
                                                                      from £49.01
                                                                      from £49.01
                                                                      # 012
                                                                      MPN: 164273
                                                                      BRACKET
                                                                      from £5.78
                                                                      from £5.78
                                                                      # 013
                                                                      MPN: 167892
                                                                      RELAYS AND FUSES NAMEPLATE
                                                                      - Not for USA
                                                                      # 013
                                                                      MPN: 168454
                                                                      RELAYS AND FUSES NAMEPLATE
                                                                      - Valid for USA
                                                                      from £9.57
                                                                      from £9.57
                                                                      # 014

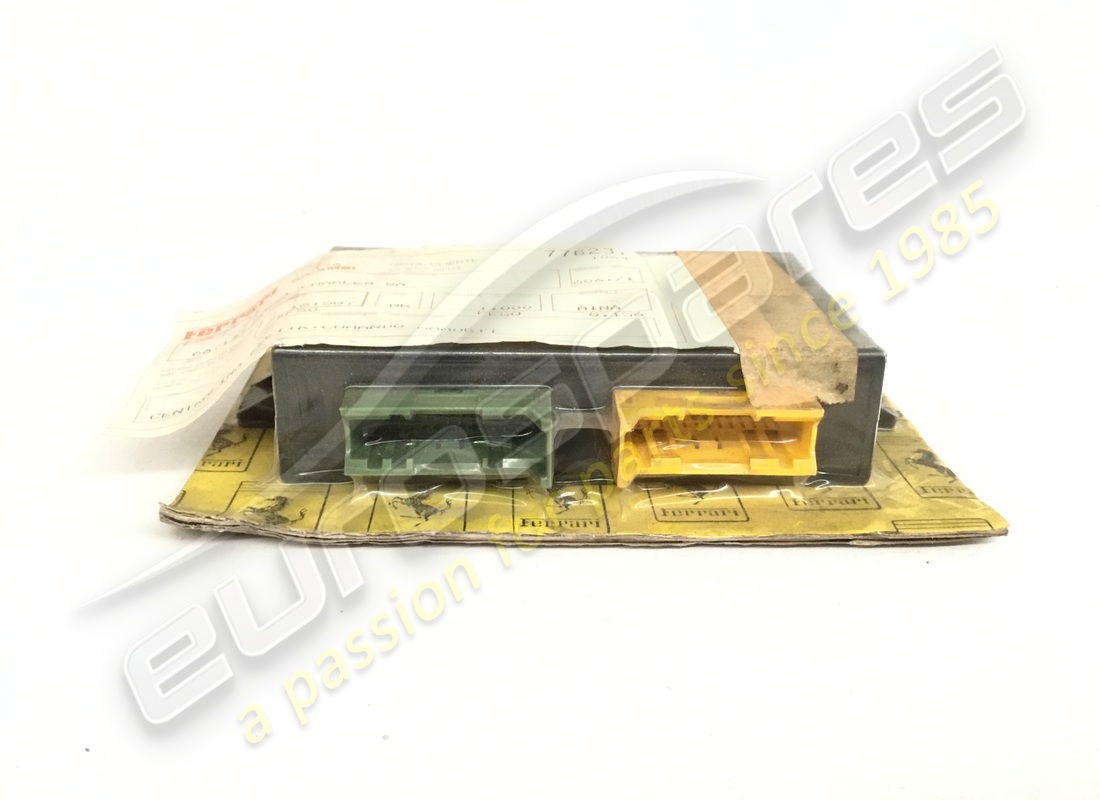

                                                                      MPN: 161587
                                                                      SHOCK ABSORBERS ELECTRONIC CONTROL STATION
                                                                      from £5,500.00
                                                                      from £5,500.00
                                                                      # 015
                                                                      MPN: 61079400
                                                                      A.C. CONTROL STATION
                                                                      from £5,487.83
                                                                      from £5,487.83
                                                                      # 016
                                                                      MPN: 162673
                                                                      A.C. SPEED CONTROL STATION
                                                                      from £490.26
                                                                      from £490.26
                                                                      # 017
                                                                      MPN: 10519301
                                                                      WASHER
                                                                      from £12.68
                                                                      from £12.68
                                                                      This part replaces part number 10517377 - and 2 more. Click to view details
                                                                      # 018
                                                                      MPN: 113647
                                                                      NUT
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 019
                                                                      MPN: 62790300
                                                                      NUT
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 12574011 - and 1 more. Click to view details
                                                                      # 020
                                                                      MPN: 12642877
                                                                      WASHER
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 021
                                                                      MPN: 64673500
                                                                      BUSHING
                                                                      from £5.98
                                                                      from £5.98
                                                                      # 022
                                                                      MPN: 14496324
                                                                      WASHER
                                                                      from £1.39
                                                                      from £1.39
                                                                      This part replaces part number 14496301
                                                                      # 023
                                                                      MPN: 12574115
                                                                      NUT
                                                                      from £1.08
                                                                      from £1.08
                                                                      # 024
                                                                      MPN: 10519301
                                                                      WASHER
                                                                      from £12.68
                                                                      from £12.68
                                                                      This part replaces part number 10517377 - and 2 more. Click to view details
                                                                      # 025
                                                                      MPN: 12577811
                                                                      NUT
                                                                      Supersession
                                                                      Supersession
                                                                      # 026
                                                                      MPN: 158019
                                                                      DIRECTION EMERGENCY LIGHTS RELAY
                                                                      - Not for USA
                                                                      Supersession
                                                                      Supersession
                                                                      # 027
                                                                      MPN: 164369
                                                                      DIRECTION EMERGENCY LIGHTS RELAY
                                                                      - Valid for USA
                                                                      from £107.09
                                                                      from £107.09
                                                                      # 028
                                                                      MPN: 137667
                                                                      ACOUSTIC SIGNAL FOR OPEN DOOR CONTROL
                                                                      - Valid for USA
                                                                      from £38.02
                                                                      from £38.02
                                                                      This part replaces part number 136133 which we have in stock - and 1 more. Click to view details
                                                                      # 029
                                                                      MPN: 166835
                                                                      40 A. FUSE
                                                                      from £5.93
                                                                      from £5.93
                                                                      # 030
                                                                      MPN: 162652
                                                                      RUBBER BOOT
                                                                      from £3.50
                                                                      from £3.50
                                                                      # 031
                                                                      MPN: 125241
                                                                      10 A. FUSE
                                                                      - Q.ty 4 for USA
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 11054990 - and 1 more. Click to view details
                                                                      # 031
                                                                      MPN: 125242
                                                                      15 A. FUSE
                                                                      - Not for USA
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 11055090 - and 1 more. Click to view details
                                                                      # 031
                                                                      MPN: 125243
                                                                      20 A. FUSE
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 11055190 - and 1 more. Click to view details
                                                                      # 031
                                                                      MPN: 131941
                                                                      30 A. FUSE
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number MC3742/6
                                                                      # 032
                                                                      MPN: 161590
                                                                      DIPPED BEAM CONTROL MICRORELAY
                                                                      from £13.13
                                                                      from £13.13
                                                                      # 032
                                                                      MPN: 161590
                                                                      HORNES CONTROL MICRORELAY
                                                                      from £13.13
                                                                      from £13.13
                                                                      # 032
                                                                      MPN: 161590
                                                                      LH RADIATOR FAN CONTROL MICRORELAY
                                                                      from £13.13
                                                                      from £13.13
                                                                      # 032
                                                                      MPN: 161590
                                                                      RH RADIATOR FAN CONTROL MICRORELAY
                                                                      from £13.13
                                                                      from £13.13
                                                                      # 032
                                                                      MPN: 161590
                                                                      MICRORELAY FOR DIPPED BEAM CONTROL RELAY
                                                                      - For USA: MAIN BEAM CONTROL RELAY
                                                                      from £13.13
                                                                      from £13.13
                                                                      # 033
                                                                      MPN: 157802
                                                                      MAIN BEAM CONTROL RELAY
                                                                      - Not for USA
                                                                      Supersession
                                                                      Supersession
                                                                      # 034
                                                                      MPN: 170574
                                                                      COVER
                                                                      from £17.11
                                                                      from £17.11
                                                                      # 035
                                                                      MPN: 125240
                                                                      7,5 A. FUSE
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 11054890 - and 1 more. Click to view details
                                                                      # 035
                                                                      MPN: 125241
                                                                      10 A. FUSE
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 11054990 - and 1 more. Click to view details
                                                                      # 035
                                                                      MPN: 125242
                                                                      15 A. FUSE
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 11055090 - and 1 more. Click to view details
                                                                      # 035
                                                                      MPN: 126031
                                                                      25 A. FUSE
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number MC3742/5
                                                                      # 036
                                                                      MPN: 161590
                                                                      A.C. COMPRESSOR CONTROL MICRORELAY
                                                                      from £13.13
                                                                      from £13.13
                                                                      # 036
                                                                      MPN: 161590
                                                                      LH FUEL PUMP CONSENT CONTROL MICRORELAY
                                                                      from £13.13
                                                                      from £13.13
                                                                      # 036
                                                                      MPN: 161590
                                                                      RH FUEL PUMP CONSENT CONTROL MICRORELAY
                                                                      from £13.13
                                                                      from £13.13
                                                                      # 036
                                                                      MPN: 161590
                                                                      A.C. ELECTRO FAN CONTROL MICRORELAY
                                                                      from £13.13
                                                                      from £13.13
                                                                      # 036
                                                                      MPN: 227285
                                                                      MICRO - RELAY 20/10 A.
                                                                      from £13.87
                                                                      from £13.87
                                                                      This part replaces part number 161591
                                                                      # 036
                                                                      MPN: 227285
                                                                      MICRO - RELAY 20/10 A.
                                                                      from £13.87
                                                                      from £13.87
                                                                      This part replaces part number 161591
                                                                      # 036
                                                                      MPN: 227285
                                                                      MICRO - RELAY 20/10 A.
                                                                      from £13.87
                                                                      from £13.87
                                                                      This part replaces part number 161591
                                                                      # 037
                                                                      MPN: 157802
                                                                      PARKING LIGHTS CONTROL RELAY
                                                                      Supersession
                                                                      Supersession
                                                                      # 037
                                                                      MPN: 157991
                                                                      A.C. ELECTRO FAN CONDENSER (POSITIVE CABLE) CONTROL RELAY
                                                                      from £22.44
                                                                      from £22.44
                                                                      # 037
                                                                      MPN: 157991
                                                                      A.C. ELECTRO FAN CONDENSER (NEGATIVE CABLE) CONTROL RELAY
                                                                      from £22.44
                                                                      from £22.44
                                                                      # 037
                                                                      MPN: 157991
                                                                      LOCKED KEY SERVICES CONTROL RELAY
                                                                      from £22.44
                                                                      from £22.44
                                                                      # 038
                                                                      MPN: 167893
                                                                      FUSES NAMEPLATE
                                                                      from £2.06
                                                                      from £2.06
                                                                      # 038
                                                                      MPN: 167894
                                                                      MICRORELAY NAMEPLATE
                                                                      from £2.06
                                                                      from £2.06
                                                                      # 038
                                                                      MPN: 167895
                                                                      RELAY NAMEPLATE
                                                                      from £2.06
                                                                      from £2.06
                                                                      # 039
                                                                      MPN: 163021
                                                                      BRACKET
                                                                      from £87.74
                                                                      from £87.74
                                                                      # 040
                                                                      MPN: 161589
                                                                      LIFTING SYSTEM CONTROL STATION
                                                                      from £194.79
                                                                      from £194.79
                                                                      # 041
                                                                      MPN: 64727900
                                                                      SCREW
                                                                      Supersession
                                                                      Supersession
