125 - AIR CONDITIONER

Ferrari F50 Air Conditioner Parts Diagram

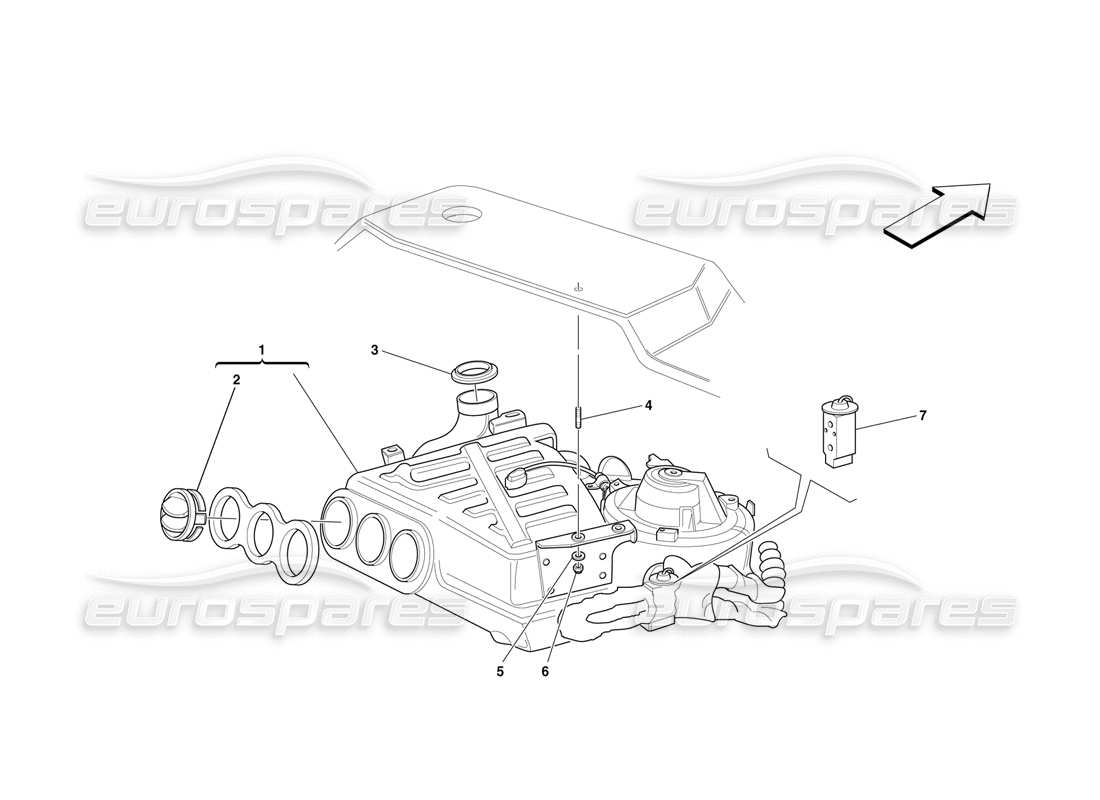

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Price
                # 001
                MPN: 63673900
                COMPLETE AIR CONDITIONER
                from £2,028.93
                from £2,028.93
                # 002
                MPN: 60656500
                AIR DIFFUSOR OPENING
                from £23.94
                from £23.94
                # 003
                MPN: 60188901
                GASKET
                from £18.08
                from £18.08
                # 004
                MPN: 13541124
                STUD
                from £11.72
                from £11.72
                This part replaces part number 13541121
                # 005
                MPN: 12643724
                WASHER
                from £0.47
                from £0.47
                This part replaces part number 109684 - and 4 more. Click to view details
                # 006
                MPN: 102948
                NUT
                from £0.47
                from £0.47
                This part replaces part number 12574211 - and 3 more. Click to view details
                # 007
                MPN: 65518600
                EXPANSION VALVE
                from £114.09
                from £114.09
                This part replaces part number 161851 which we have in stock - and 1 more. Click to view details
