0004 - left hand cylinder head

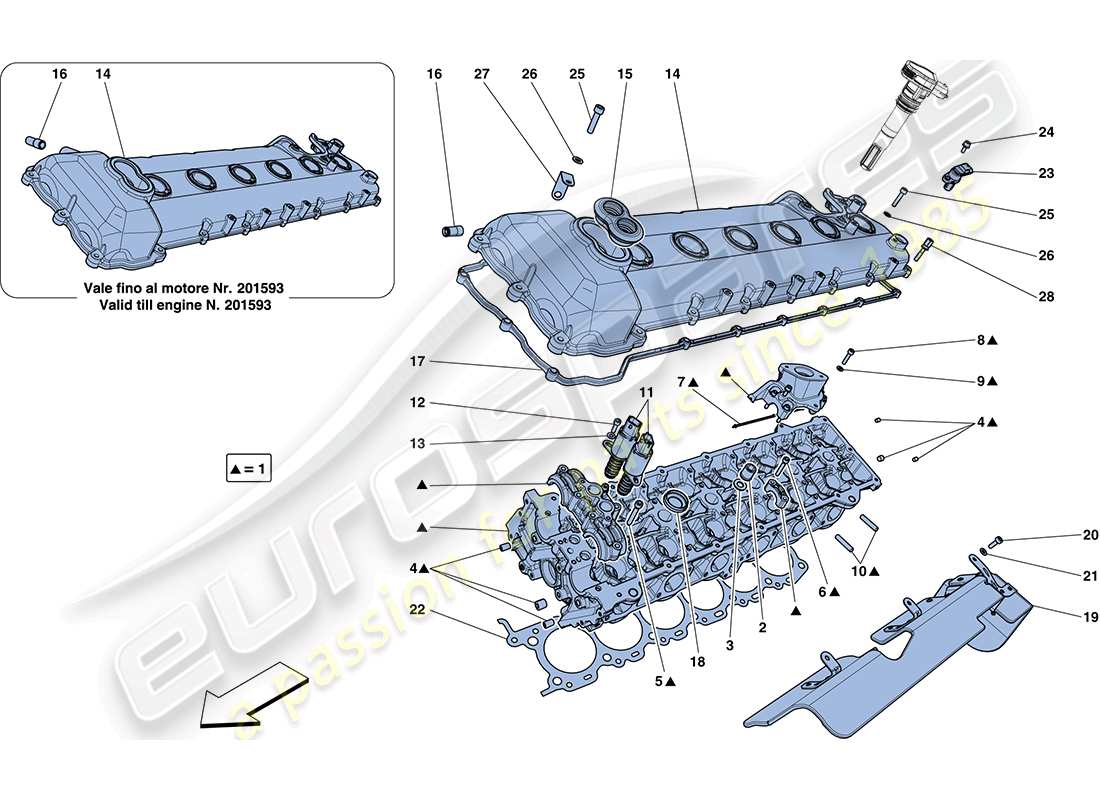

Ferrari FF (Europe) LEFT HAND CYLINDER HEAD Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 273224
LH HEAD
-Applicable up to engine No. 201593-
Supersession
Supersession
# 001
MPN: 300332
LH HEAD
-Applicable from engine No. 201594-
from £2,074.24
from £2,074.24
This part replaces part number 273224
# 002
MPN: 183524
NUT
from £0.98
from £0.98
# 003
MPN: 151117
WASHER
from £0.32
from £0.32
# 004
MPN: 10275501
THREADED PLUG
-M12 X 11- -No longer supplied- -Replaced by 282400-
from £0.52
from £0.52
# 004
MPN: 127635
THREADED PLUG
-M18 X 11 X 1.5- -Inspection hole cover-
from £1.52
from £1.52
This part replaces part number 183447
# 004
MPN: 127635
THREADED PLUG
-M18 X 11 X 1.5- -For rear water orifice cover-
from £1.52
from £1.52
This part replaces part number 183447
# 004
MPN: 14326001
THREADED PLUG
-D. 10 X 1.25- -No longer supplied- -Replaced by 282755-
from £0.47
from £0.47
This part replaces part number 194495
# 004
MPN: 199760
THREADED PLUG
-D. 6 X 1-
from £0.47
from £0.47
# 004
MPN: 282400
THREADED PLUG
-M12 X 11-
from £2.04
from £2.04
# 004
MPN: 282755
THREADED PLUG
-D. 10 X 1.25-
from £1.13
from £1.13
# 005
MPN: 243720
SCREW
-M6 X 40-
from £0.53
from £0.53
# 005
MPN: 243721
SCREW WITH WASHER
-M6 X 45-
from £0.47
from £0.47
# 006
MPN: 243719
SCREW WITH WASHER
-M6 X 35-
from £0.47
from £0.47
# 007
MPN: 239614
GASKET
from £3.61
from £3.61
# 008
MPN: 239502
SCREW
-M6 X 25-
from £0.47
from £0.47
# 008
MPN: 243719
SCREW WITH WASHER
-M6 X 35-
from £0.47
from £0.47
# 009
MPN: 11197774
WASHER
from £0.54
from £0.54
This part replaces part number 11197770 - and 3 more. Click to view details
# 010
MPN: 13541324
STUD BOLT
-M6 X 12- -Shank length 25 mm-
from £0.94
from £0.94
This part replaces part number 13541321
# 010
MPN: 13541424
STUD BOLT
-M6 X 12- -Shank length 28 mm-
from £0.47
from £0.47
This part replaces part number 13541421
# 010
MPN: 211641
STUD BOLT
-M8 X 16- -Shank length 24 mm-
from £0.51
from £0.51
# 011
MPN: 255442
OIL PRESSURE REGULATOR VALVE
-Applicable until depletion-
from £82.48
from £82.48
# 011
MPN: 296017
OIL PRESSURE REGULATOR VALVE
from £60.73
from £60.73
This part replaces part number 269227 - and 3 more. Click to view details
# 011
MPN: 296017
OIL PRESSURE REGULATOR VALVE
from £60.73
from £60.73
This part replaces part number 269227 - and 3 more. Click to view details
# 012
MPN: 14304224
SCREW
-M5 X 16-
from £0.47
from £0.47
# 013
MPN: 11181574
WASHER
from £0.54
from £0.54
# 014
MPN: 271269
LH CYLINDER HEAD COVER
-Applicable up to engine No. 201593-
from £369.77
from £369.77
# 014
MPN: 292566
LH CYLINDER HEAD COVER
-Applicable from engine No. 201594-
from £386.04
from £386.04
# 015
MPN: 229353
SOLENOID VALVE GASKET
from £9.62
from £9.62
# 016
MPN: 271521
CONNECTOR
from £3.55
from £3.55
# 017
MPN: 243802
LH HEAD COVER GASKET
from £44.54
from £44.54
# 018
MPN: 223982
SPARK PLUG TUBE SEAL
from £1.36
from £1.36
# 019
MPN: 276026
COMPL. LH HEAD HEAT SHIELD
-Applicable until depletion-
from £105.77
from £105.77
# 019
MPN: 295114
COMPL. LH HEAD HEAT SHIELD
-Applicable after depletion of 276026-
from £233.48
from £233.48
This part replaces part number 276026 which we have in stock
# 020
MPN: 14305724
SCREW
-M6 X 14-
from £0.53
from £0.53
This part replaces part number 11567624 - and 2 more. Click to view details
# 021
MPN: 11197774
WASHER
from £0.54
from £0.54
This part replaces part number 11197770 - and 3 more. Click to view details
# 022
MPN: 243804
LH HEAD-CRANKCASE GASKET
-Applicable until depletion-
Supersession
Supersession
# 022
MPN: 324014
LH HEAD-CRANKCASE GASKET
-Applicable after depletion of 243804-
from £148.48
from £148.48
This part replaces part number 243804
# 023
MPN: 224573
TIMING SENSOR
from £11.13
from £11.13
# 024
MPN: 231616
SCREW
-M6 X 14-
from £0.47
from £0.47
This part replaces part number 14305724 which we have in stock
# 025
MPN: 157218
SCREW
-M6 X 25-
from £0.47
from £0.47
# 025
MPN: 157218
SCREW
-M6 X 25- -Applicable up to engine No. 201593-
from £0.47
from £0.47
# 025
MPN: 284200
SCREW
-M6 X 25- -Applicable from engine No. 201594- -Applicable until depletion-
Supersession
Supersession
# 025
MPN: 293278
SCREW
-Applicable from engine No. 201594- -Applicable after depletion of 284200-
from £7.54
from £7.54
This part replaces part number 284200
# 026
MPN: 11197774
WASHER
from £0.51
from £0.51
This part replaces part number 11197770 - and 3 more. Click to view details
# 026
MPN: 11197774
WASHER
from £0.54
from £0.54
This part replaces part number 11197770 - and 3 more. Click to view details
# 026
MPN: 11198074
WASHER
-Applicable from engine No. 201594-
from £0.47
from £0.47
This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
# 027
MPN: 219946
BRACKET
from £2.31
from £2.31
# 028
MPN: 214412
STUD BOLT
-No longer supplied-
from £6.96
from £6.96
-part-diagram-0005.webp "FERRARI FF (EUROPE) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-0006.webp "FERRARI FF (EUROPE) TIMING SYSTEM - DRIVE PARTS DIAGRAM")
-part-diagram-0007.webp "FERRARI FF (EUROPE) INJECTION - IGNITION SYSTEM PARTS DIAGRAM")
-part-diagram-0008.webp "FERRARI FF (EUROPE) SECONDARY AIR SYSTEM PARTS DIAGRAM")
-part-diagram-0009.webp "FERRARI FF (EUROPE) FUEL SYSTEM PUMPS AND PIPES PARTS DIAGRAM")
-part-diagram-0010.webp "FERRARI FF (EUROPE) FUEL TANKS AND FILLER NECK PARTS DIAGRAM")
-part-diagram-0011.webp "FERRARI FF (EUROPE) EVAPORATIVE EMISSIONS CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-0012.webp "FERRARI FF (EUROPE) INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-0013.webp "FERRARI FF (EUROPE) AIR INTAKE PARTS DIAGRAM")
-part-diagram-0014.webp "FERRARI FF (EUROPE) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS PARTS DIAGRAM")
-part-diagram-0015.webp "FERRARI FF (EUROPE) SILENCERS PARTS DIAGRAM")
-part-diagram-0016.webp "FERRARI FF (EUROPE) GEARBOX OIL LUBRICATION AND COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-0017.webp "FERRARI FF (EUROPE) LUBRICATION SYSTEM: TANK PARTS DIAGRAM")
-part-diagram-0018.webp "FERRARI FF (EUROPE) COOLING - WATER / OIL PUMP PARTS DIAGRAM")
-part-diagram-0019.webp "FERRARI FF (EUROPE) COOLING - HEADER TANK AND PIPES PARTS DIAGRAM")
-part-diagram-0020.webp "FERRARI FF (EUROPE) COOLING - RADIATORS AND AIR DUCTS PARTS DIAGRAM")
-part-diagram-0021.webp "FERRARI FF (EUROPE) TRANSMISSION HOUSING PARTS DIAGRAM")
-part-diagram-0022.webp "FERRARI FF (EUROPE) TRANSMISSION PIPE PARTS DIAGRAM")
-part-diagram-0023.webp "FERRARI FF (EUROPE) COMPLETE PEDAL BOARD ASSEMBLY PARTS DIAGRAM")
-part-diagram-0024.webp "FERRARI FF (EUROPE) GEARBOX HOUSING PARTS DIAGRAM")
-part-diagram-0025.webp "FERRARI FF (EUROPE) GEARBOX REPAIR KIT PARTS DIAGRAM")
-part-diagram-0026.webp "FERRARI FF (EUROPE) PTU SYSTEM PARTS DIAGRAM")
-part-diagram-0027.webp "FERRARI FF (EUROPE) PTU REPAIR KIT PARTS DIAGRAM")
-part-diagram-0028.webp "FERRARI FF (EUROPE) POWER STEERING SYSTEM PARTS DIAGRAM")
-part-diagram-0029.webp "FERRARI FF (EUROPE) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0030.webp "FERRARI FF (EUROPE) FRONT BRAKE CALLIPERS PARTS DIAGRAM")
-part-diagram-0031.webp "FERRARI FF (EUROPE) REAR BRAKE CALLIPERS PARTS DIAGRAM")
-part-diagram-0032.webp "FERRARI FF (EUROPE) PARKING BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-0033.webp "FERRARI FF (EUROPE) HYDRAULIC POWER STEERING BOX PARTS DIAGRAM")
-part-diagram-0034.webp "FERRARI FF (EUROPE) STEERING CONTROL PARTS DIAGRAM")
-part-diagram-0035.webp "FERRARI FF (EUROPE) POWER STEERING PUMP AND RESERVOIR PARTS DIAGRAM")
-part-diagram-0036.webp "FERRARI FF (EUROPE) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0037.webp "FERRARI FF (EUROPE) FRONT SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0038.webp "FERRARI FF (EUROPE) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0039.webp "FERRARI FF (EUROPE) REAR SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0040.webp "FERRARI FF (EUROPE) WHEELS PARTS DIAGRAM")
-part-diagram-0041.webp "FERRARI FF (EUROPE) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-0042.webp "FERRARI FF (EUROPE) VEHICLE LIFT SYSTEM PARTS DIAGRAM")
-part-diagram-0043.webp "FERRARI FF (EUROPE) BATTERY PARTS DIAGRAM")
-part-diagram-0044.webp "FERRARI FF (EUROPE) ALTERNATOR - STARTER MOTOR PARTS DIAGRAM")
-part-diagram-0045.webp "FERRARI FF (EUROPE) AC SYSTEM COMPRESSOR PARTS DIAGRAM")
-part-diagram-0046.webp "FERRARI FF (EUROPE) AC SYSTEM - WATER AND FREON PARTS DIAGRAM")
-part-diagram-0047.webp "FERRARI FF (EUROPE) EVAPORATOR UNIT PARTS DIAGRAM")
-part-diagram-0048.webp "FERRARI FF (EUROPE) DASHBOARD AIR DUCTS PARTS DIAGRAM")
-part-diagram-0049.webp "FERRARI FF (EUROPE) TOOLS AND ACCESSORIES PROVIDED WITH VEHICLE PARTS DIAGRAM")
-part-diagram-0100.webp "FERRARI FF (EUROPE) BODYSHELL - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0101.webp "FERRARI FF (EUROPE) GREENHOUSE PARTS DIAGRAM")
-part-diagram-0102.webp "FERRARI FF (EUROPE) STRUCTURES AND ELEMENTS, FRONT OF VEHICLE PARTS DIAGRAM")
-part-diagram-0103.webp "FERRARI FF (EUROPE) STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE PARTS DIAGRAM")
-part-diagram-0104.webp "FERRARI FF (EUROPE) STRUCTURES AND ELEMENTS, REAR OF VEHICLE PARTS DIAGRAM")
-part-diagram-0105.webp "FERRARI FF (EUROPE) CHASSIS COMPLETION PARTS DIAGRAM")
-part-diagram-0106.webp "FERRARI FF (EUROPE) FLAT UNDERTRAY AND WHEELHOUSES PARTS DIAGRAM")
-part-diagram-0107.webp "FERRARI FF (EUROPE) INSULATION PARTS DIAGRAM")
-part-diagram-0108.webp "FERRARI FF (EUROPE) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0109.webp "FERRARI FF (EUROPE) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0110.webp "FERRARI FF (EUROPE) HEADLINER TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0111.webp "FERRARI FF (EUROPE) FRONT LID AND OPENING MECHANISM PARTS DIAGRAM")
-part-diagram-0112.webp "FERRARI FF (EUROPE) REAR LID AND OPENING MECHANISM PARTS DIAGRAM")
-part-diagram-0113.webp "FERRARI FF (EUROPE) FUEL FILLER FLAP AND CONTROLS PARTS DIAGRAM")
-part-diagram-0114.webp "FERRARI FF (EUROPE) DOORS - SUBSTRUCTURE AND TRIM PARTS DIAGRAM")
-part-diagram-0115.webp "FERRARI FF (EUROPE) DOORS - OPENING MECHANISM AND HINGES PARTS DIAGRAM")
-part-diagram-0116.webp "FERRARI FF (EUROPE) DOORS - POWER WINDOWS AND REAR-VIEW MIRROR PARTS DIAGRAM")
-part-diagram-0117.webp "FERRARI FF (EUROPE) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-0118.webp "FERRARI FF (EUROPE) REAR BUMPER PARTS DIAGRAM")
-part-diagram-0119.webp "FERRARI FF (EUROPE) SCREENS, WINDOWS AND SEALS PARTS DIAGRAM")
-part-diagram-0120.webp "FERRARI FF (EUROPE) FRONT SEAT - SEAT BELTS, GUIDES AND ADJUSTMENT PARTS DIAGRAM")
-part-diagram-0121.webp "FERRARI FF (EUROPE) FRONT SEAT - TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0122.webp "FERRARI FF (EUROPE) REAR SEAT - SEAT BELTS - INTERIOR TRIM PARTS DIAGRAM")
-part-diagram-0123.webp "FERRARI FF (EUROPE) TUNNEL - SUBSTRUCTURE AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0124.webp "FERRARI FF (EUROPE) DASHBOARD PARTS DIAGRAM")
-part-diagram-0125.webp "FERRARI FF (EUROPE) GLOVE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0126.webp "FERRARI FF (EUROPE) AIRBAGS PARTS DIAGRAM")
-part-diagram-0127.webp "FERRARI FF (EUROPE) DASHBOARD AND TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-0128.webp "FERRARI FF (EUROPE) HEADLIGHTS AND TAILLIGHTS PARTS DIAGRAM")
-part-diagram-0129.webp "FERRARI FF (EUROPE) SHIELDS - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0130.webp "FERRARI FF (EUROPE) WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-0131.webp "FERRARI FF (EUROPE) MAIN WIRING HARNESSES PARTS DIAGRAM")
-part-diagram-0132.webp "FERRARI FF (EUROPE) VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-0133.webp "FERRARI FF (EUROPE) ELECTRONIC MANAGEMENT (SUSPENSION) PARTS DIAGRAM")
-part-diagram-0134.webp "FERRARI FF (EUROPE) VEHICLE ECUS PARTS DIAGRAM")
-part-diagram-0135.webp "FERRARI FF (EUROPE) ANTITHEFT SYSTEM PARTS DIAGRAM")
-part-diagram-0136.webp "FERRARI FF (EUROPE) INFOTAINMENT SYSTEM PARTS DIAGRAM")
-part-diagram-0137.webp "FERRARI FF (EUROPE) INFOTAINMENT SYSTEM PARTS DIAGRAM")
-part-diagram-0138.webp "FERRARI FF (EUROPE) AUDIO SPEAKER SYSTEM PARTS DIAGRAM")
-part-diagram-0139.webp "FERRARI FF (EUROPE) ADHESIVE LABELS AND PLAQUES PARTS DIAGRAM")
-part-diagram-0999.webp "FERRARI FF (EUROPE) COLOUR CODES PARTS DIAGRAM")
-part-diagram-0000.webp "FERRARI FF (EUROPE) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-0001.webp "FERRARI FF (EUROPE) CRANKCASE PARTS DIAGRAM")
-part-diagram-0002.webp "FERRARI FF (EUROPE) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-0003.webp "FERRARI FF (EUROPE) RIGHT HAND CYLINDER HEAD PARTS DIAGRAM")
