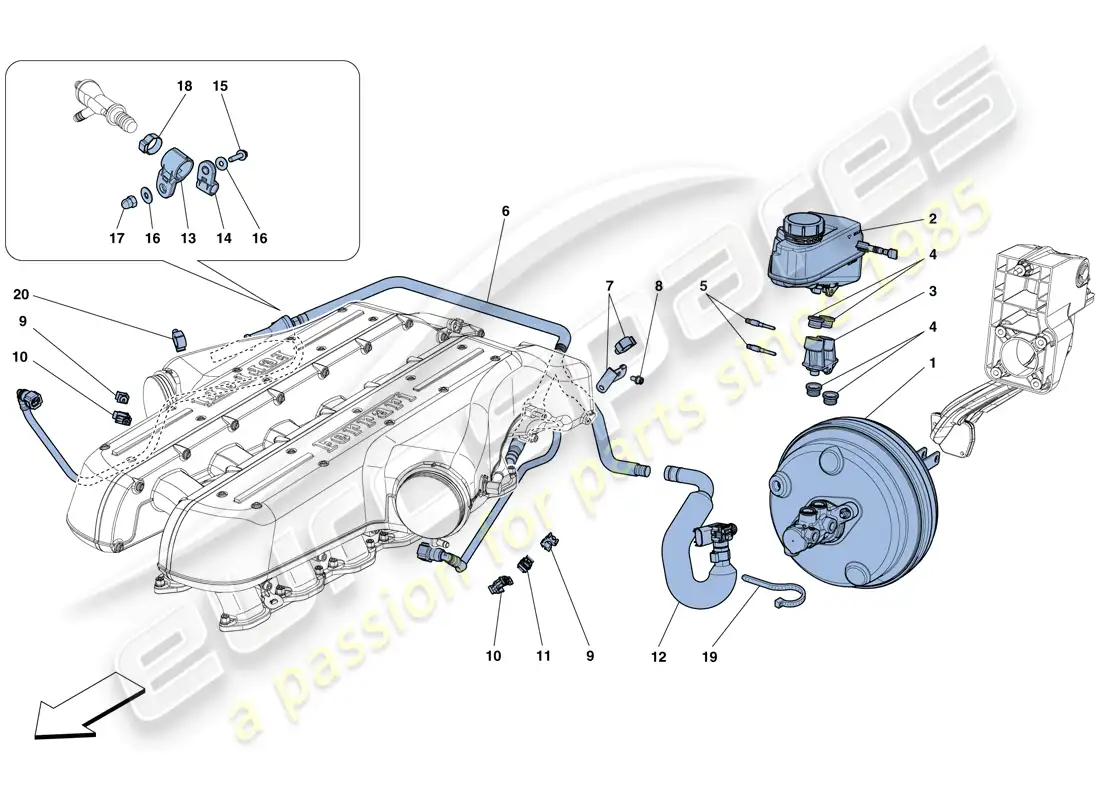

0027 - SERVO BRAKE SYSTEM

Ferrari GTC4 Lusso (Europe) SERVO BRAKE SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            MPN: 261826
                            Brake Servo
                            from £151.95
                            from £151.95
                            # 002
                            MPN: 242849
                            OIL TRAY
                            from £24.61
                            from £24.61
                            # 003
                            MPN: 241549
                            ADAPTER UNION
                            from £4.65
                            from £4.65
                            # 004
                            MPN: 241550
                            GASKET
                            from £0.53
                            from £0.53
                            # 005
                            MPN: 241537
                            SPECIAL SCREW
                            from £0.53
                            from £0.53
                            # 006
                            MPN: 293057
                            KAYSER PIPE WITH VALVES
                            -Not for GD-
                            from £245.16
                            from £245.16
                            This part replaces part number 274558
                            # 006
                            MPN: 293060
                            KAYSER PIPE WITH VALVES
                            -Applicable for GD-
                            from £231.11
                            from £231.11
                            This part replaces part number 280135
                            # 007
                            MPN: 277006
                            BRACKET
                            -Not for GD-
                            from £15.97
                            from £15.97
                            # 007
                            MPN: 280141
                            BRACKET
                            -Applicable for GD-
                            from £18.77
                            from £18.77
                            # 008
                            MPN: 233600
                            SCREW
                            from £0.47
                            from £0.47
                            # 009
                            MPN: 140130
                            CLIP
                            -Not for USA, CDN, USA LIGHT-
                            from £0.47
                            from £0.47
                            # 010
                            MPN: 140727
                            CLIP
                            from £0.53
                            from £0.53
                            # 011
                            MPN: 209864
                            ANCHOR FOR CLIPS
                            from £1.57
                            from £1.57
                            # 012
                            MPN: 289205
                            PIPE FROM KAYSER VALVE TO BRAKE SERVO
                            -Not for GD-
                            from £144.63
                            from £144.63
                            This part replaces part number 258631
                            # 012
                            MPN: 289345
                            PIPE FROM KAYSER VALVE TO BRAKE SERVO
                            -Applicable for GD- -No longer supplied- -Replaced by 343095-
                            from £202.12
                            from £202.12
                            This part replaces part number 280139
                            # 012
                            MPN: 343095
                            PIPE FROM KAYSER VALVE TO BRAKE SERVO
                            -Applicable for GD-
                            from £205.94
                            from £205.94
                            # 013
                            MPN: 244221
                            CLIP
                            from £2.60
                            from £2.60
                            # 014
                            MPN: 244218
                            CLIP
                            from £2.25
                            from £2.25
                            # 015
                            MPN: 16285227
                            SCREW
                            -M5 X 20-
                            from £0.47
                            from £0.47
                            # 016
                            MPN: 12638178
                            WASHER
                            from £0.47
                            from £0.47
                            This part replaces part number 10519578 - and 3 more. Click to view details
                            # 017
                            MPN: 168698
                            NUT
                            from £0.93
                            from £0.93
                            This part replaces part number 14054048
                            # 018
                            MPN: 13434670
                            COLLAR
                            from £0.47
                            from £0.47
                            # 019
                            MPN: 206739
                            RING CLAMP
                            -Not for GD- -No longer supplied- -Replaced by 331573-
                            from £3.64
                            from £3.64
                            This part replaces part number 243232
                            # 019
                            MPN: 331573
                            RING CLAMP
                            -Not for GD-
                            from £0.47
                            from £0.47
                            # 020
                            MPN: 337973
                            CLIP
                            -Applicable for GD-
                            from £0.61
                            from £0.61
