ferrari gtc4 lusso (europe) wheels parts diagram

0039 - Wheels

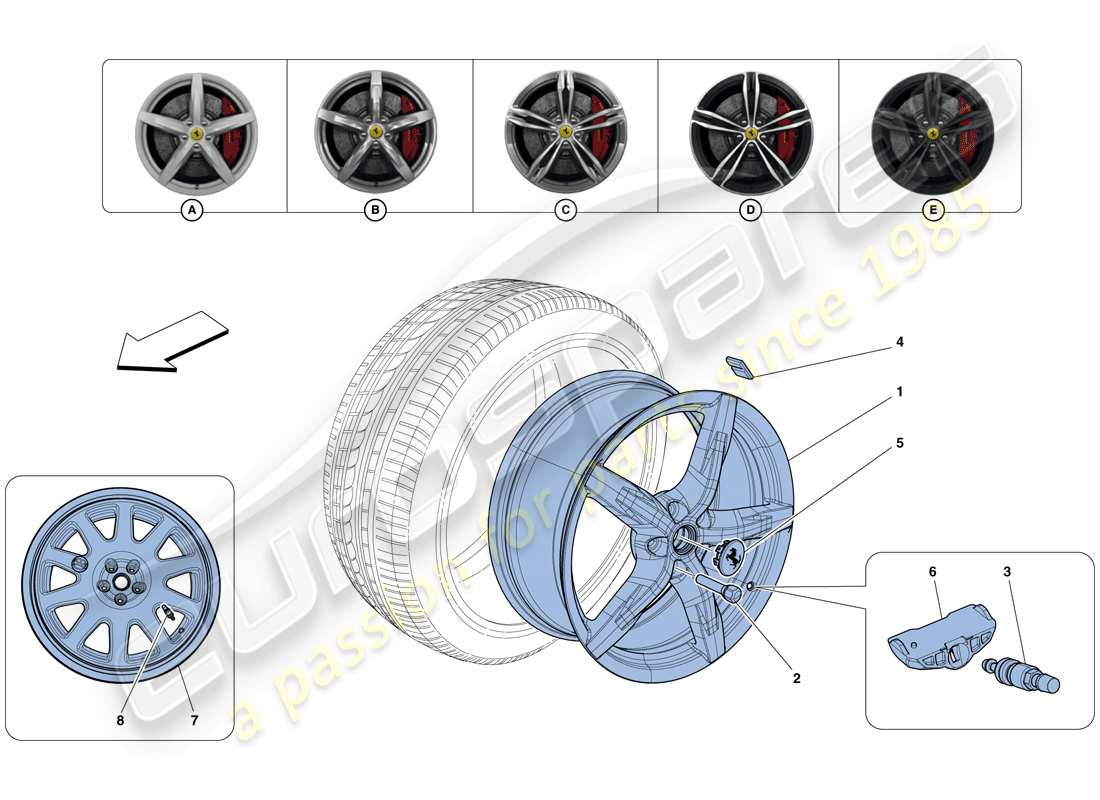

Ferrari GTC4 Lusso (Europe) WHEELS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: 327805
      FRONT WHEEL
      -8.5J X 20- -Cast, chrome paint finish- -See box B- -Modis code RICS-
      from £935.33
      from £935.33
      # 001
      MPN: 327806
      REAR WHEEL
      -10.5J X 20- -Cast, chrome paint finish- -See box B- -Modis code RICS-
      from £1,138.68
      from £1,138.68
      # 001
      MPN: 328456
      FRONT WHEEL
      -8.5J X 20- -Forged, chrome paint finish- -See box C- -Modis code RMSV-
      from £1,410.85
      from £1,410.85
      # 001
      MPN: 328457
      REAR WHEEL
      -10.5J X 20- -Forged, chrome paint finish- -See box C- -Modis code RMSV-
      from £1,451.35
      from £1,451.35

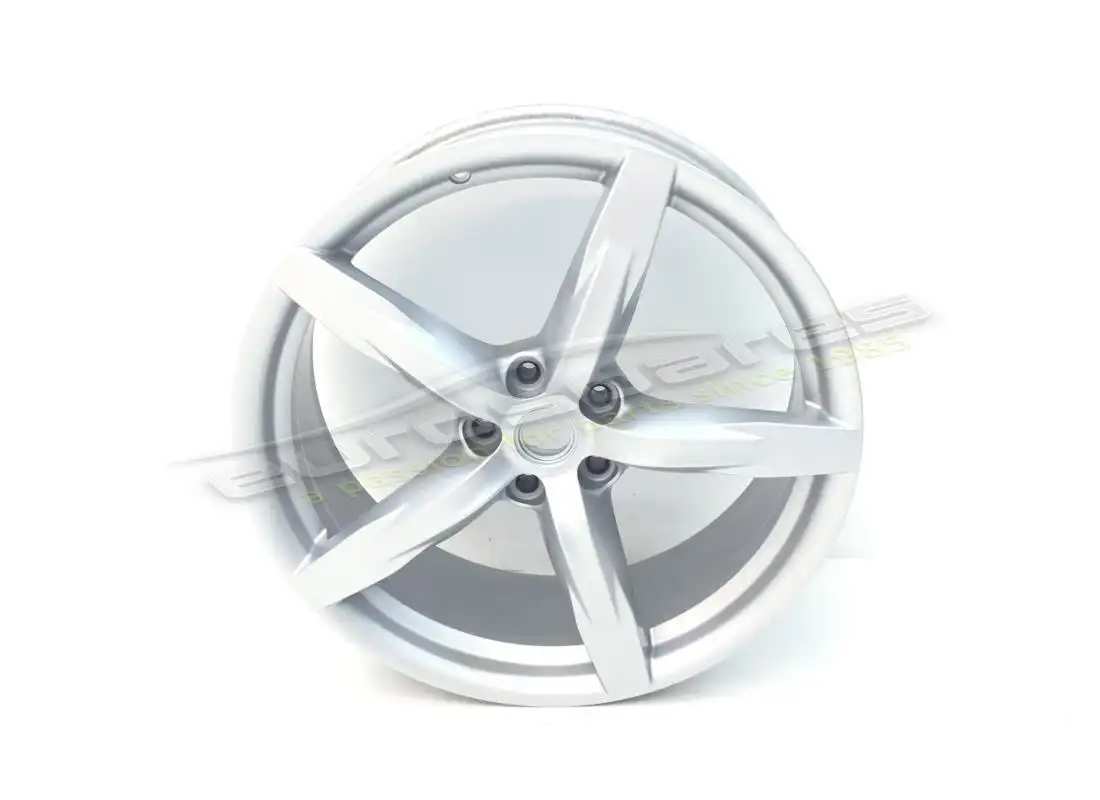

      # 001
      MPN: 328466
      FRONT WHEEL
      -8.5J X 20- -Cast, matte silver paint finish- -See box A- -Modis code STANDARD-
      from £682.30
      from £682.30
      # 001
      MPN: 328467
      REAR WHEEL
      -10.5J X 20- -Cast, matte silver paint finish- -See box A- -Modis code STANDARD-
      from £763.63
      from £763.63
      # 001
      MPN: 328868
      FRONT WHEEL
      -8.5J X 20- -Forged painted matt Corsa grey- -See box E- -Modis code RIFS-
      from £1,426.99
      from £1,426.99
      # 001
      MPN: 328869
      REAR WHEEL
      -10.5J X 20- -Forged painted matt Corsa grey- -See box E- -Modis code RIFS-
      from £2,002.83
      from £2,002.83
      # 001

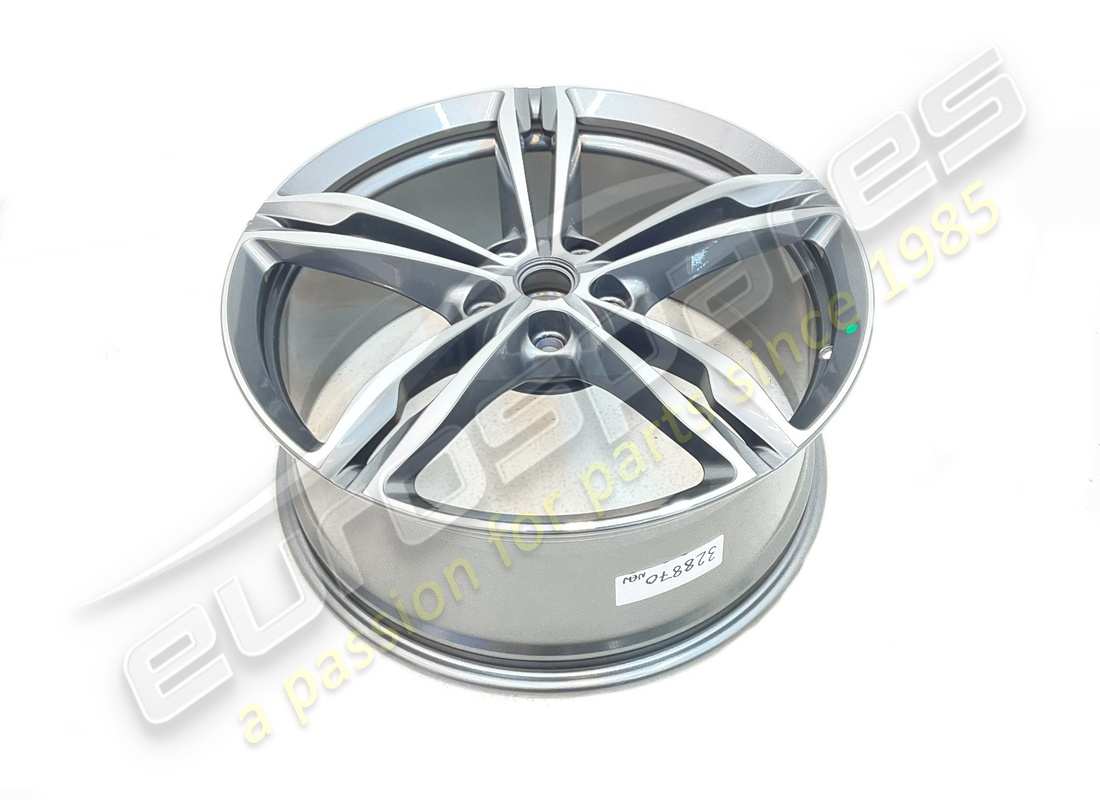

      MPN: 328870
      FRONT WHEEL
      -8.5J X 20- -Forged, diamond cut- -See box D- -Modis code RSFD-
      from £1,464.75
      from £1,464.75
      # 001
      MPN: 328871
      REAR WHEEL
      -10.5J X 20- -Forged, diamond cut- -See box D- -Modis code RSFD-
      from £2,964.15
      from £2,964.15
      # 001
      MPN: 70004725

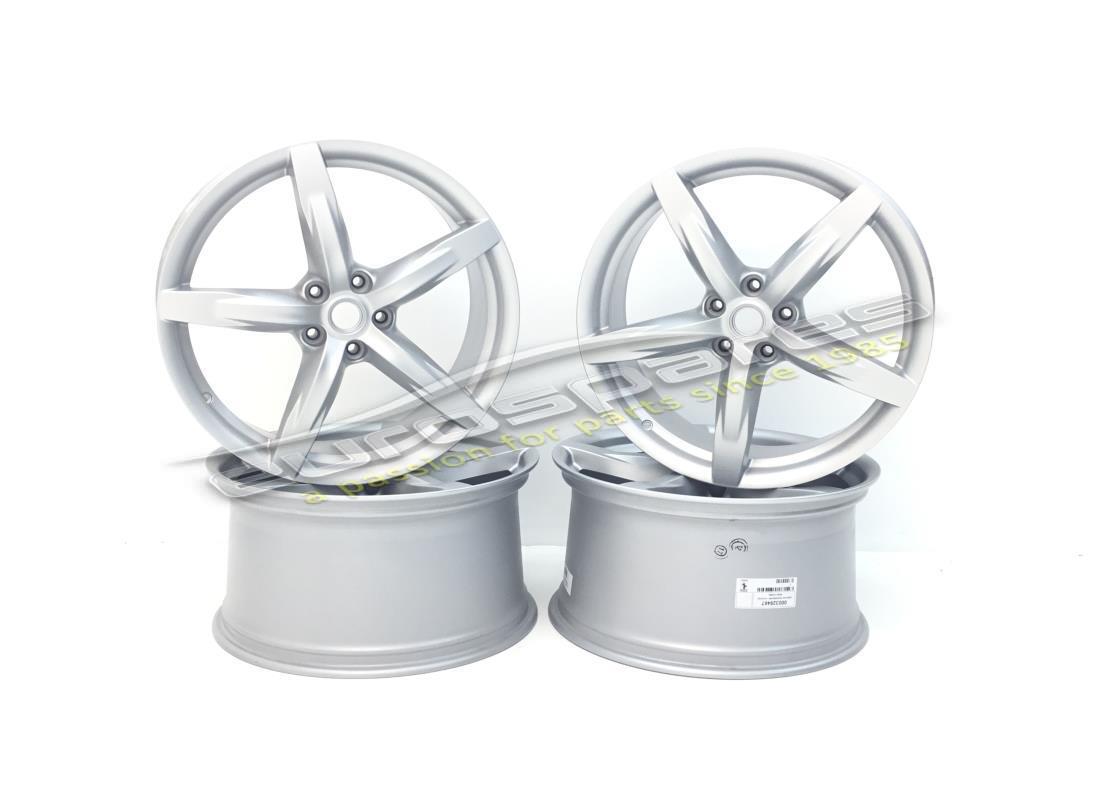

      WHEELS SET IN SILVER
      from £1,351.41
      from £1,351.41
      # 002
      MPN: 247702
      WHEEL STUD
      -After depletion, for vehicles up to Assembly No. 155616, order Kit P/N 70006039 and replace all stud bolts- -Applicable up to Ass. No. 155616- -Applicable until depletion-
      from £7.50
      from £7.50
      This part replaces part number 192724 - and 2 more. Click to view details
      # 002
      MPN: 70006039
      WHEEL STUD BOLT KIT
      -Applicable up to Ass. No. 155616-
      from £297.98
      from £297.98
      # 002
      MPN: 803384
      WHEEL STUD
      -Applicable from Ass. No. 155617-
      from £9.10
      from £9.10
      This part replaces part number 247702 which we have in stock - and 2 more. Click to view details
      # 003
      MPN: 185328
      VALVE
      from £10.31
      from £10.31
      # 004
      MPN: 11096693
      ADHESIVE WHEEL BALANCER WEIGHT
      from £5.97
      from £5.97
      # 005
      MPN: 226245
      HUBCAP
      -Applicable until depletion-
      Supersession
      Supersession
      This part replaces part number 108947
      # 005
      MPN: 340066
      HUBCAP
      -Applicable after depletion of 226245-
      from £5.31
      from £5.31
      This part replaces part number 226245 - and 2 more. Click to view details
      # 006
      MPN: 314818
      TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR
      -Not for J-
      from £86.77
      from £86.77
      # 006
      MPN: 314821
      TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR
      -Applicable for J-
      from £105.05
      from £105.05
      # 007
      MPN: 240241
      SPARE WHEEL RIM
      -4.5J X 20- -Version with spare wheel- -Not for CINA-
      from £1,007.63
      from £1,007.63
      # 007
      MPN: 240241
      SPARE WHEEL RIM
      -4.5J X 20- -Version with spare wheel- -Applicable for CINA- -Applicable up to Ass. No. 158094-
      from £1,007.63
      from £1,007.63
      # 008
      MPN: 317250104
      VALVE
      -Version with spare wheel- -Not for CINA-
      from £5.45
      from £5.45
      # 008
      MPN: 317250104
      VALVE
      -Version with spare wheel- -Applicable for CINA- -Applicable up to Ass. No. 158094-
      from £5.45
      from £5.45
